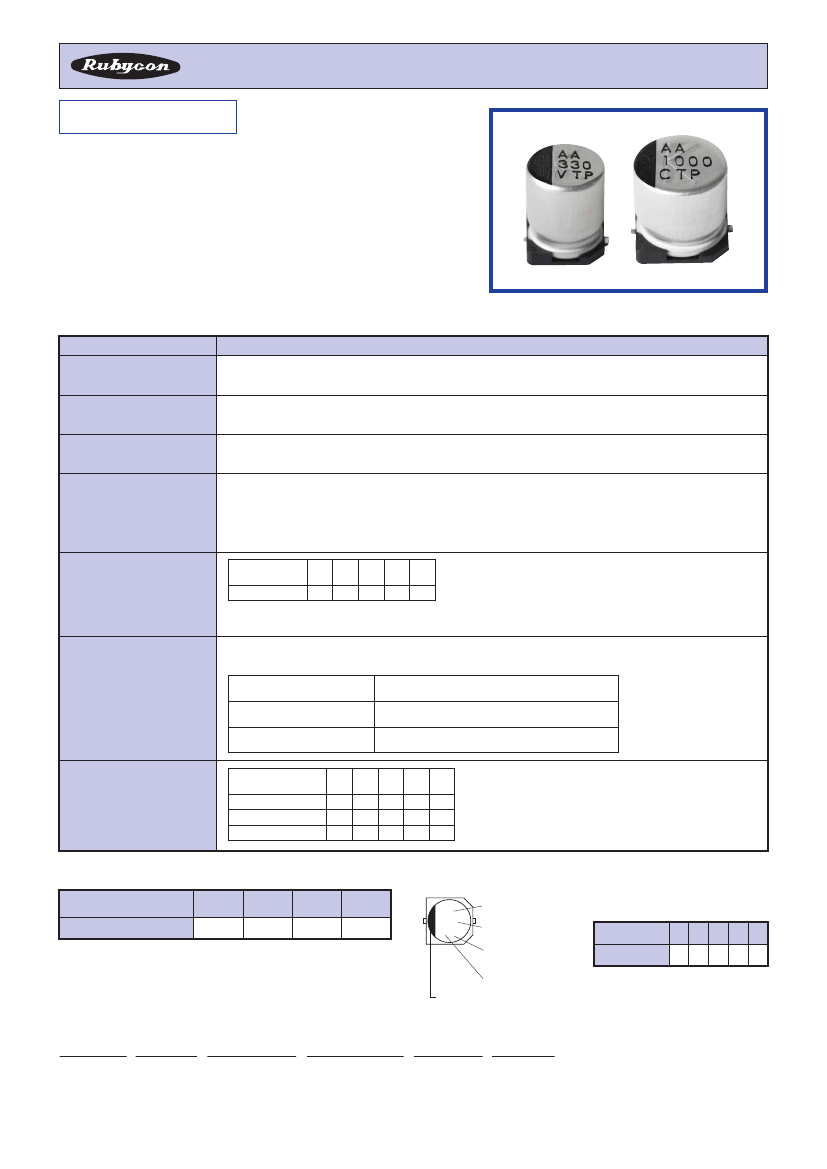

CHIP ALUMINUM ELECTROLYTIC CAPACITORS
TPV
TPV
SERIES
105℃ Low ESR, Miniaturized, Lead Free Reflow Soldering
◆FEATURES
・
Load Life 105℃ 2000 hours.
・
Lead free reflow soldering is available.
・
Available for high density mounting.
・
Prescribe ESR value at 100 kHz.
・
RoHS compliance.
◆SPECIFICATIONS
Items
Category Temperature Range
Characteristics
−55∼＋105℃
6.3∼35Vdc
±20％
（20℃，
120Hz）
Rated Voltage Range
Capacitance Tolerance
Leakage Current(MAX)
I＝0.01CV
or 3μA whichever is greater. (After 2 minutes application of rated voltage)
I＝
Leakage Current
(μA) C＝
Capacitance
(μF) V＝
Rated Voltage
(Vdc)
Rated Voltage
（20℃,120Hz）
6.3 10 16 25 35
(Vdc)
tanδ
0.26 0.19 0.16 0.14 0.12
When rated capacitance is over 1000μF,
tanδ shall be added 0.02 to the listed value with increase of every 1000μF.
After applying rated voltage for 2000 hours at 105℃, the capacitor shall meet the following requirements.
Capacitance Change
Dissipation Factor
Leakage Current
Rated Voltage
6.3
(Vdc)
Z
（−25℃） （20℃） 2
/Z
Z
（−40℃） （20℃） 3
/Z
Z
（−55℃） （20℃） 4
/Z
Within ±30% of the initially measured value.
Not more than 200％ of the specified value.
Not more than the specified value.
(tanδ)
Dissipation Factor(MAX)
Endurance
10
2
3
4
16
2
3
4
25
2
3
3
35
（120Hz）
2
3
3
Low Temperature Stability
Impedance Ratio(MAX)
◆MULTIPLIER FOR RIPPLE CURRENT
Frequency
（Hz）
Coefficient
◆MARKING
100k≦
1.00
AA
680
CTP
120
0.60
1k
0.80
10k
0.95
Lot No.
※Voltage code
Capacitance
Series
※
Rated voltage code
Rated Voltage
(Vdc)
Voltage code
6.3 10 16 25 35
j
A
C
E
V
Negative
◆PART NUMBER
□□□
Rated Voltage
TPV
Series
□□□□□
Capacitance
M
Capacitance Tolerance
□□□
Option
D×L
Case Size
CHIP ALUMINUM ELECTROLYTIC CAPACITORS
TPV
(mm)

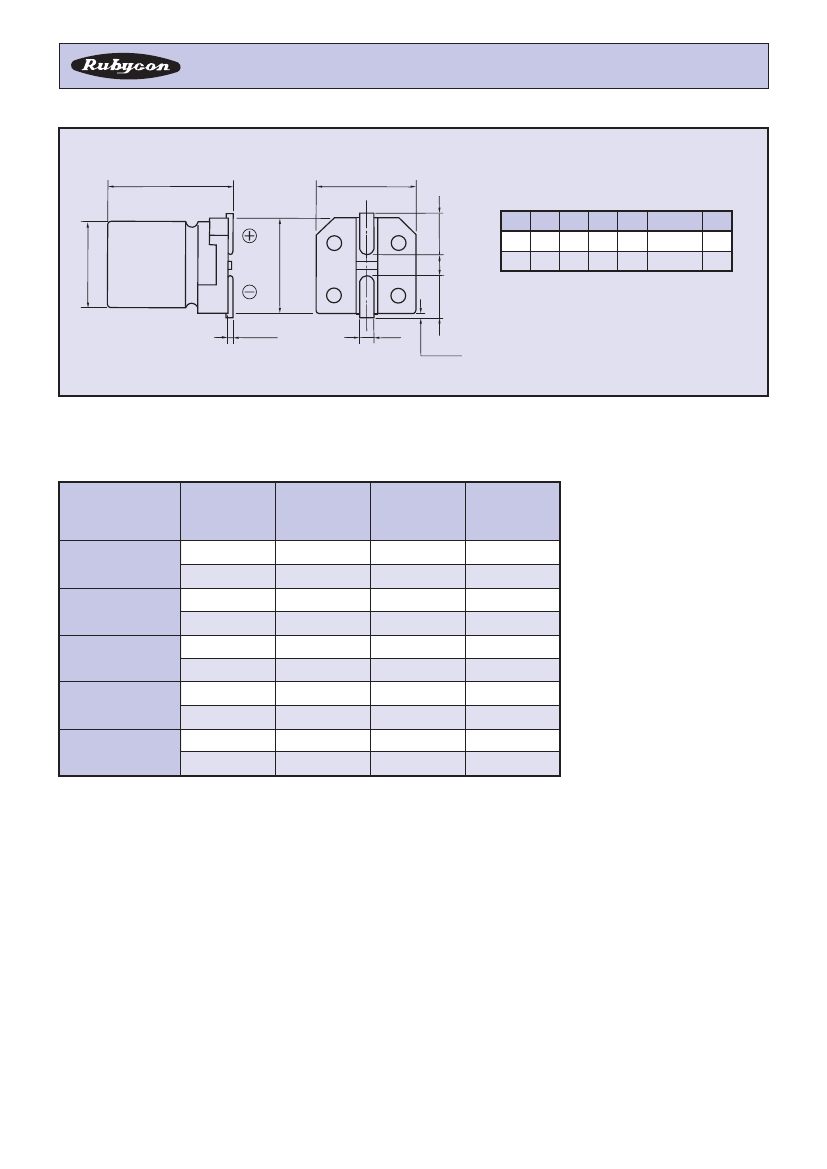

◆DIMENSIONS
L MAX
A
1±0.2
C
φD
φD＋0.5MAX
B
1±0.2
P
L
A1
B1
C
W1
P
8 10.5 8.3 8.3 2.9 0.8∼1.1 3.1
10 10.5 10.3 10.3 3.2 0.8∼1.1 4.5
0.3MAX
W
1
0.5MAX
◆STANDARD SIZE
Size φDXL(mm), Rated Ripple Current(mA r.m.s./105℃,100kHz), ESR(Ω MAX/20℃, 100kHz)
Vdc
Cap
(μF)
1200
2200
1000
1500
680
1000
470
820
330
560
Size
(φDXL)
8×10.5
10×10.5
8×10.5
10×10.5
8×10.5
10×10.5
8×10.5
10×10.5
8×10.5
10×10.5
Ripple
850
1190
850
1190
850
1190
850
1190
850
1190
ESR
0.080
0.060
0.080
0.060
0.080
0.060
0.080
0.060
0.080
0.060
6.3
10
16
25
35
