2-1393249-3 Overview

THERMAL CIRCUIT BREAKER

2-1393249-3 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompli
Circuit protection typeTHERMAL CIRCUIT BREAKER
Base Number Matches1
This browser does not have Java enabled.
TE Connectivity
 My Cart |
 My Part Lists | Sign In/Register
English
(Change)
Have a Question?
Chat with a Product
Information Specialist
What can we help you find?
Products
Industries
Resources
About TE
My Account
Innovation
Support Center

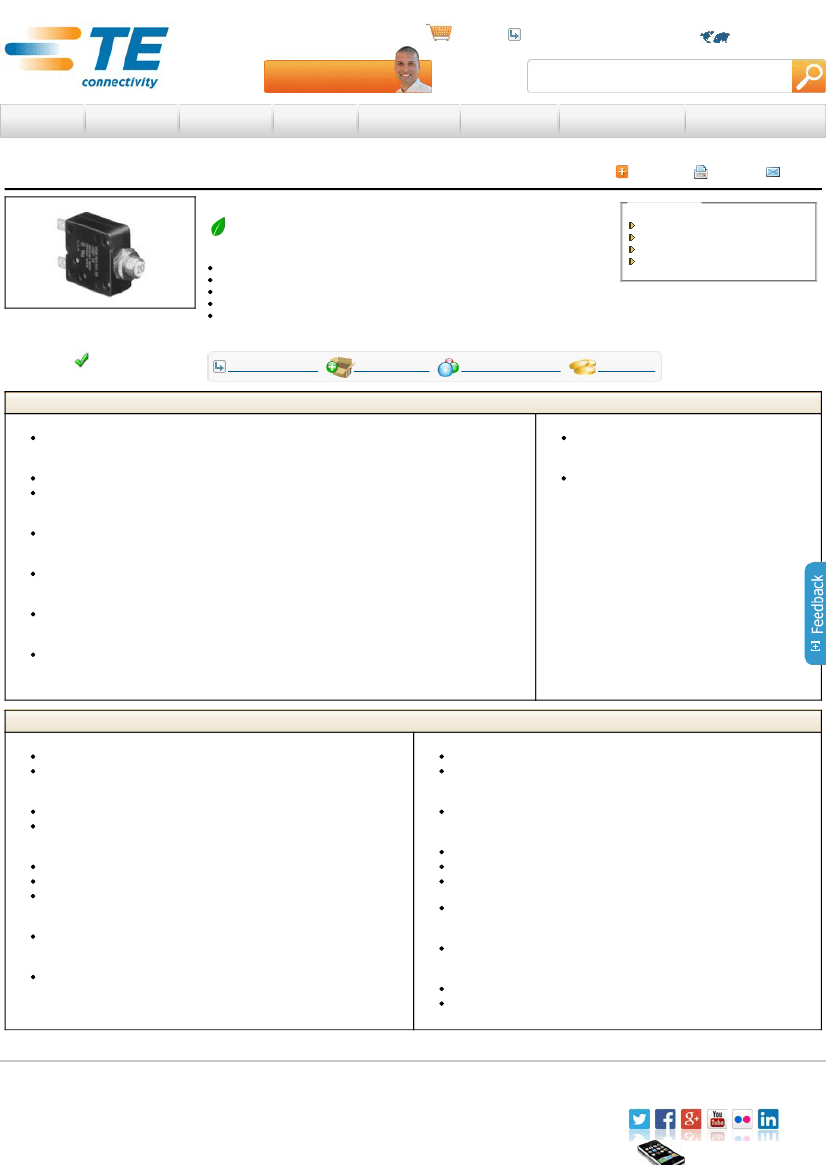

Home > Products > Circuit Breakers > Product Feature Selector > Product Details
W58­XB1A4B­15 Product Details
Thermal Circuit Breakers

Converted to EU RoHS but not ELV Compliant
 (
Statement of Compliance
)
Product Highlights:
Circuit Breaker
W58 Series
1 Poles
Actuator Style = Push to Reset
Current Rating = 15 A
View all Features
 Share
 Print
 Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
W58­XB1A4B­15
(2­1393249­3)
TE Internal Number: 2­1393249­3
 Active
Add to My Part List
Request Sample
Find Similar Products
Buy Product
Documentation & Additional Information
Product Drawings:
None Available
Catalog Pages/Data Sheets:
W58 Push To Reset Only Thermal Circuit Breaker (PDF, English)
Flyer ­ UL1500 Ignition Protected Circuit Breakers (PDF, English)
Product Specifications:
None Available
Application Specifications:
None Available
Instruction Sheets:
None Available
CAD Files:
None Available
Additional Information:
Product Line Information
Related Products:
Tooling
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
Product Type = Circuit Breaker
Actuator Style = Push to Reset
Mechanical Attachment:
Mounting Options = Knurled Nut/Hex Nut
Mounting Bushing = 7/16" x .500" [12.70 mm] Long
Electrical Characteristics:
Current Rating (A) = 15
Operating Voltage, Max. = 50 VDC, 250 VAC
Interrupt Capacity = 2,000 A @ 50 VDC or 1,000 A @ 250 VAC
Termination Features:
Termination Type = 6.35 [.250] Straight Quick Connect Tab
Body Features:
Button Color = White with Red Rate Marking, Red Trip Band
Contact Features:
Number of Poles = 1
Trip Time at 200% = 6 to 30 Seconds
Configuration Features:
Circuit Function = Series Trip
Industry Standards:
RoHS/ELV Compliance = RoHS/Not ELV Compliant
Lead Free Solder Processes = Not relevant for lead free process
RoHS/ELV Compliance History = Converted to comply with RoHS not
ELV directives
Approved Standards = CSA Certified
Packaging Features:
Mounting Hardware Packaging = Bulk Unassembled
Other:
Series = W58
Brand = Potter & Brumfield
