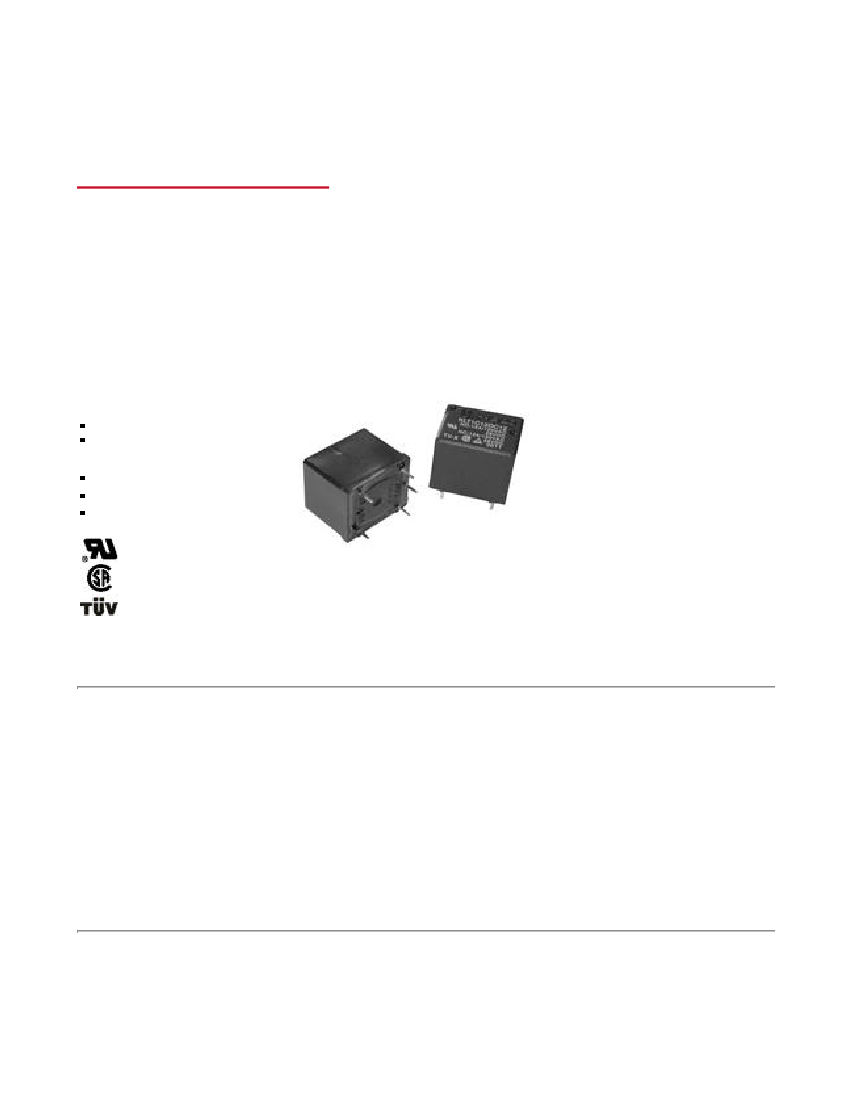

KLT MINIATURE POWER RELAYS
SPDT 3, 6, 12, 15 & 20 AMP
FEATURES
Highly reliable, low cost
Miniature size & large switch
capacity up to 20A
High dielectric strength type
Fully Sealed
Inexpensive
File E75887
File LR49291
Also Available As Surface Mount Device. Call for Availability.
ELECTRICAL RATINGS
3 Amp:
6 Amp:
12 & 15 Amp:
3A at 120VAC or 28VDC resistive
6A at 120VAC or 28VDC; 6A at 240VAC general purpose; 1/4 hp at 120VAC
12A at 120VAC or 28VDC; 12A at 240VAC general purpose; 7A at 277VAC general
purpose; 1/4 hp at 120VAC; 15A at 120VAC resistive
Pilot duty:
40A in-rush, 4A steady state at 125VAC
10A in-rush, 1A steady state at 240VAC
N.O. only, Single
Pole:
10A at 12VDC Tungsten; 15A at 120VAC Tungsten
1/2 hp at 120VAC; 5.4A at 277 VAC Ballast
GENERAL DATA
Contact resistance:
Operate Time:
50mOhms Max.
8ms Max. (at nominal voltage)
Hasco Components: Electromechanical Relays: KLT Miniature Power...
Operate Bounce Time:
Release Time:
Release Bounce Time:
Max. Switching Voltage:
Min. Permissible Load (reference value):
Insulation Rating:
Insulation Resistance:
Dielectric Strength:
Vibration:
Shock:
Operation Frequency:
Service Life:
Temperature Range:
Temperature Rise:
Humidity:
Approximate Weight:
Mechanical:
Electrical:
Mechanical:
Electrical:
Class B:
Class F:
3 ms Max.
5 ms Max.
8 ms Max
277VAC & 125VDC
3 Amp: 5VDC at 1mA
6, 12, 15 & 20 Amp: 5VDC at 100mA
Class B & Class F
more than 100M at 500VDC
750VAC (50/60Hz), between open contacts
1500VAC (50/60Hz), between coil & contact
1.5mm double amplitude, 10 to 50Hz
100 m/sec
2
(approx. 10G’s)
18,000 operations/hour
1,800 operations/hour (under rated load)
10 million operations
100,000 operations min. at rated resistive load
– 40°C to 85°C
–40°C to 105°C
Less than 35 degrees
45% - 85% RH
12 grams
COIL RATINGS
Nominal Coil
Voltage
Coil Resistance
in Ohms, ±10%
at 20°C
6, 12, 15 Amp
25
70
100
225
400
900
1600
6400
Coil Resistance
in Ohms, ±10%
at 20°C
20 Amp
20
55
80
180
320
1100
1280
5120
75% max.
of nominal
voltage
10% min.
of nominal
voltage
130% of nominal
voltage
Must Operate
Voltage
at 20°C
Must Release
Voltage
at 20°C
Maximum
Voltage
3VDC
5VDC
6VDC
9VDC
12VDC
18VDC
24VDC
48VDC
REMARK
Use alcohol, freon or water for cleaning. (water temperature not to exceed 50°C)
ORDERING INFORMATION
Hasco Components: Electromechanical Relays: KLT Miniature Power...
KLT
F
1C
Contact Arrangement:
12
Contact Material &
Rating:
DC12
Nominal
Voltage:
1
NIL
=
Sealed
1
=
Unsealed
Model Class
No.
B
Class
F
A=1
Form A
B=1
Form B
C=1
Form C
(SPST-NO) (SPST-NC) (SPDT)
3 Amp = Silver, gold flash
6 Amp = Silver cadmium
oxide
12 Amp = silver cadmium
oxide
15 Amp = silver tin indium
oxide
20 Amp = Silver tin indium
oxide
3 = 3VDC;
5= 5VDC;
6 = 6VDC;
9 = 9VDC;
12 = 12VDC;
24 = 24VDC;
48 = 48VDC

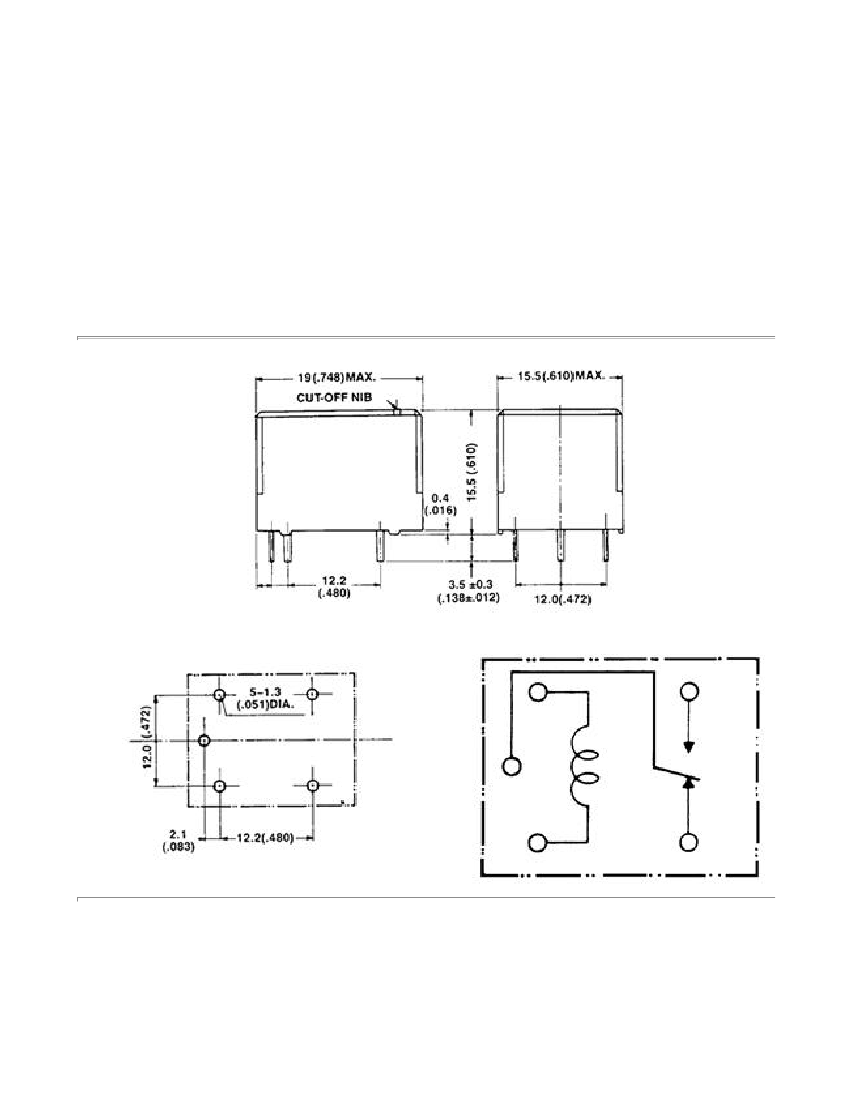

DIMENSIONS:
mm (inch)
MOUNTING HOLES
(bottom view)
TERMINAL ARRANGEMENT
(bottom view)
PART NUMBERS
KLT1A6DC5
KLT1A6DC6
KLT1A6DC9
KLT1A6DC12
KLT1B12DC5
KLT1B12DC6
KLT1B12DC9
KLT1B12DC12
KLT1C15DC5
KLT1C15DC6
KLT1C15DC9
KLT1C15DC12
