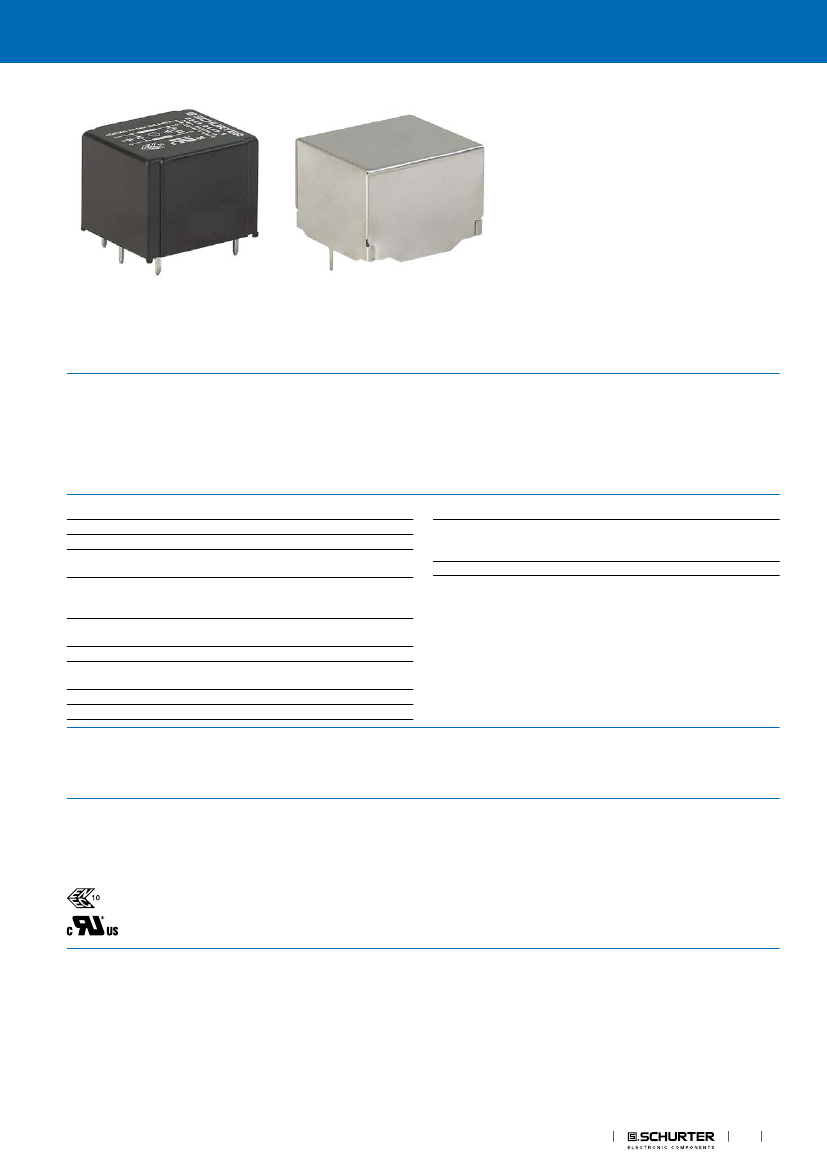

1-Phase AC Filters / DC Filters
https://www.schurter.com /PG84
5500
AC Filter for PCB Mounting
Shield
See below:
Approvals and Compliances
Characteristics
- Ultra-compact design
- Shield available separately (German silver)
- Suitable for use in equipment according to IEC/UL 60950
Suitable for use in medical equipment according to IEC/UL 60601-1
Description
- Line filter in standard and medical version
Weblinks
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Microsite
Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz
1 - 10 A @ Ta 40 °C / 125 VAC; 60 Hz
standard < 0.5 mA (250 V / 60 Hz)
medical < 5 µA (250 V / 60 Hz)
> 2.7 kVDC between L-N
> 1.7 kVDC between L/N-PE
Test voltage (2 sec)
-25 °C to 85 °C
25/085/21 acc. to IEC 60068-1
Suitable for appliances with protection
class I acc. to IEC 61140
For PCB mounting tin-plated
Thermoplastic, UL 94V-0
Line Filter
Standard and Medical Version, IEC
60939, UL 1283, CSA C22.2 no. 8
Technical Details
> 5'900'000 h acc. to MIL-HB-217 F
MTBF
Allowable Operation Tempe-
rature
Climatic Category
Protection Class
Terminal
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: 5500
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 101307
UL File Number: E72928
Product standards
Product standards that are referenced
EMC Products
1
5500
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 60939
IEC 60127-6
IEC 61058-1
UL 498
UL 1283
CSA C22.2 no. 42
CSA C22.2 no. 8
Description
1-Phase AC Filters / DC Filters
https://www.schurter.com /PG84
Appliance couplers for household and similar general purposes
Passive filters for suppressing electromagnetic interference
Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Electromagnetic interference (EMI) filters
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60601-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Medical electrical equipment - Part 1: General requirements for basic
safety and essential performance
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
Suitable for use in medical equipment according to IEC/UL 60601-1
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
Medical Equipment
SCHURTER AG

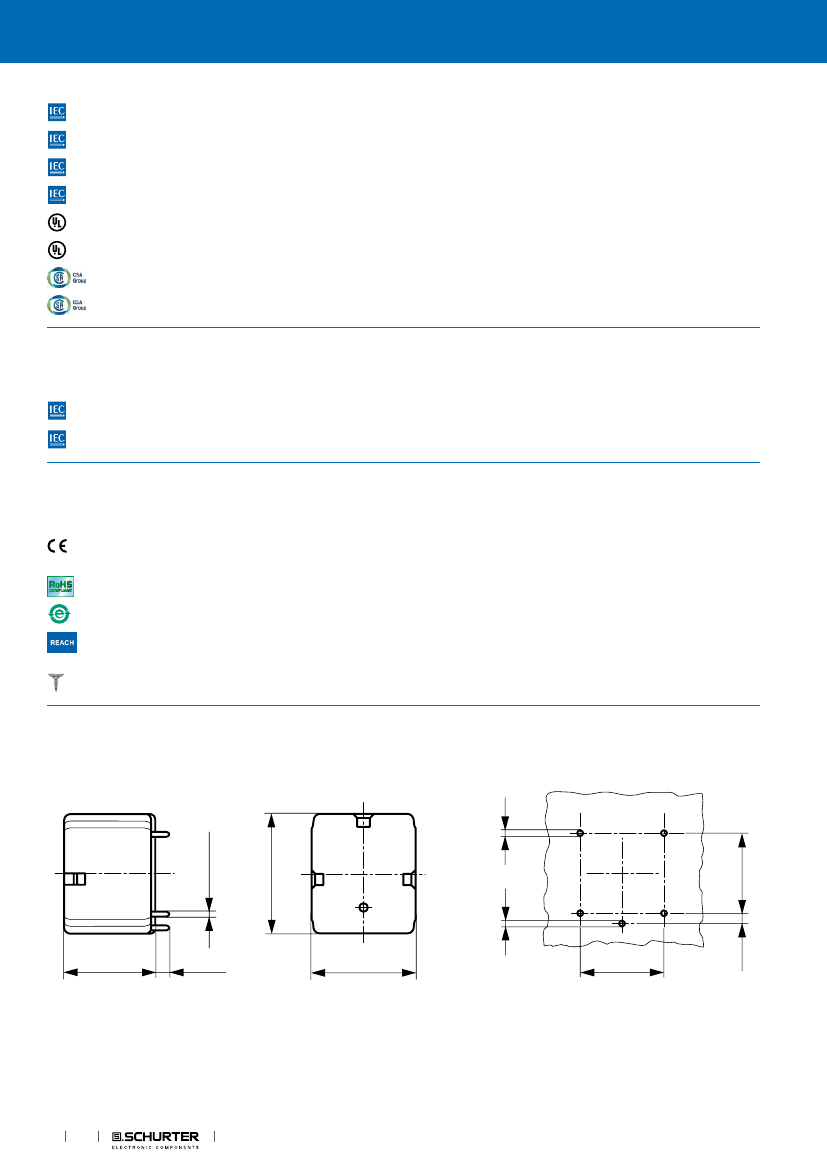

Dimension [mm]
Line Filter
0.8x1
±0.03
1.5
±0.10
30
-0.20
1.5
±0.10
23.2
±0.20
3.7
+0.50
0
26.6
-0.20
+0.10
20.3
±0.15
2
EMC Products
2.54
20.3
±0.15
+0.10
1-Phase AC Filters / DC Filters
https://www.schurter.com /PG84
5500
1600 A / 520 V
0.3x1
30.8
±0.10
22.2
4.3
27.5
-0.20
0
Technical Data of Filter-Components
Rated Current
[A]
1
2
4
6
8
10
1
2
4
6
8
10
Filter-Type
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Inductances
L [mH]
2 x 11
2x4
2 x 1.6
2 x 0.7
2 x 0.6
2 x 0.4
2 x 11
2x4
2 x 1.6
2 x 0.7
2 x 0.6
2 x 0.4
Capacitance
CX [nF]
47
47
47
47
47
47
47
47
47
47
47
47
Capacitance
CY [nF]
2.2
2.2
2.2
2.2
2.2
2.2
-
-
-
-
-
-
R [MΩ]
-
-
-
-
-
-
1
1
1
1
1
1
Diagrams
Standard version
Medical version (M5)
L
L1
L’
R
L2
Cy
Cy
L
L1
1.2
±0.10
1)
PE
Cx
PE’
2)
N’
1)
PE
Cx
R
L2
N
1) Line
2) Load
N
1) Line
2) Load
EMC Products
30.5
±0.15
L’
PE’
2)
N’
3
5500

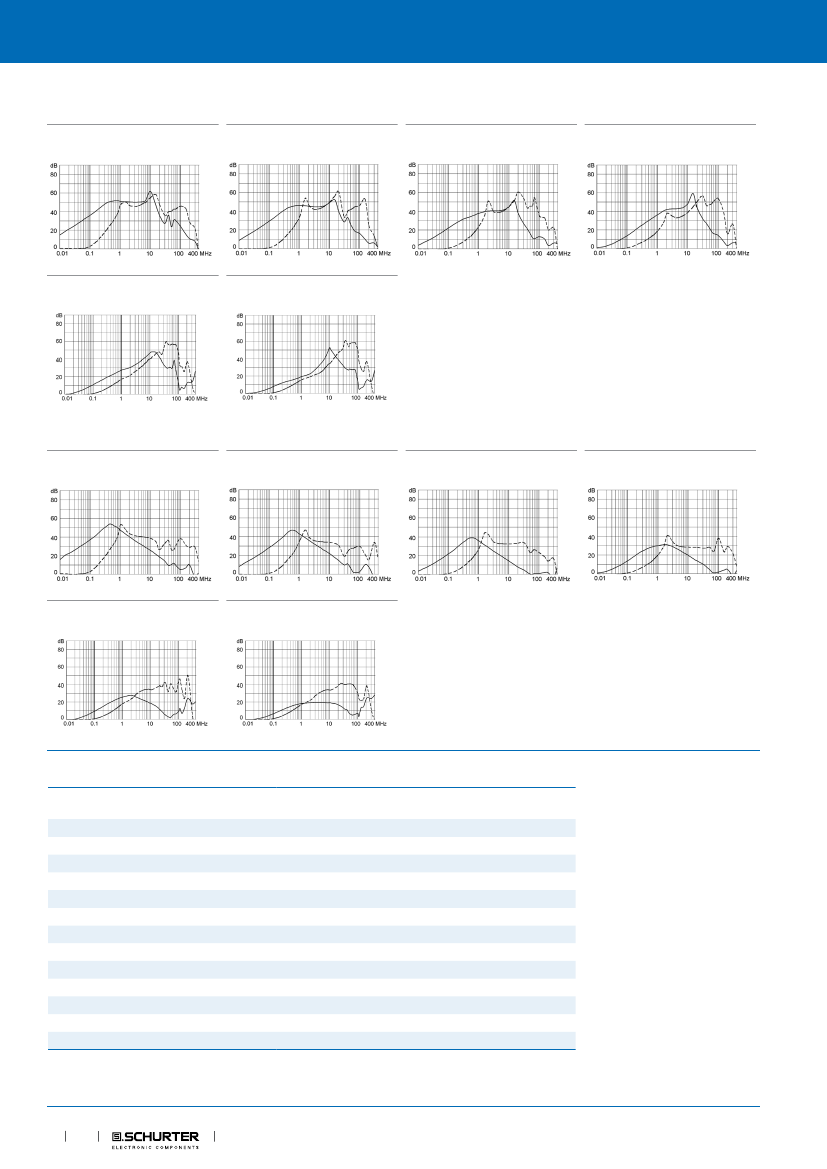

Attenuation Loss
Standard version
1-Phase AC Filters / DC Filters
https://www.schurter.com /PG84
- - - - 50Ω differential mode _____ 50Ω common mode
1A
2A
4A
6A
8A
10 A
Medical version (M5)
1A
2A
4A
6A
8A
10 A
All Variants
Rated Current
[A]
-
1
2
4
6
8
10
1
2
4
6
8
10
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Filter-Type
-
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Standard Version
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
Medical Version (M5)
EMC-Shielding
Shield
Without EMC-shield
Without EMC-shield
Without EMC-shield
Without EMC-shield
Without EMC-shield
Without EMC-shield
Without EMC-shield
Without EMC-shield
Without EMC-shield
Without EMC-shield
Without EMC-shield
Without EMC-shield
Weight [g]
20 g
35 g
35 g
35 g
35 g
40 g
35 g
35 g
35 g
35 g
35 g
35 g
35 g
Order Number
5500.0001
5500.0155.1
5500.0255.1
5500.0455.1
5500.0655.1
5500.0855.1
5500.1055.1
5500.0155.3
5500.0255.3
5500.0455.3
5500.0655.3
5500.0855.3
5500.1055.3
█
█
█
█
█
4
EMC Products
1-Phase AC Filters / DC Filters
https://www.schurter.com /PG84
5500
Packaging unit
100 Pcs
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
EMC Products
5
18.09.2018
