CA3310M datasheet, PDF - EEWORLD Datasheet

CA3310M: DescriptionADC, Successive Approximation, 10-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS, PDSO24; CategoryAnalog mixed-signal IC converter; File Size40KB，1 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

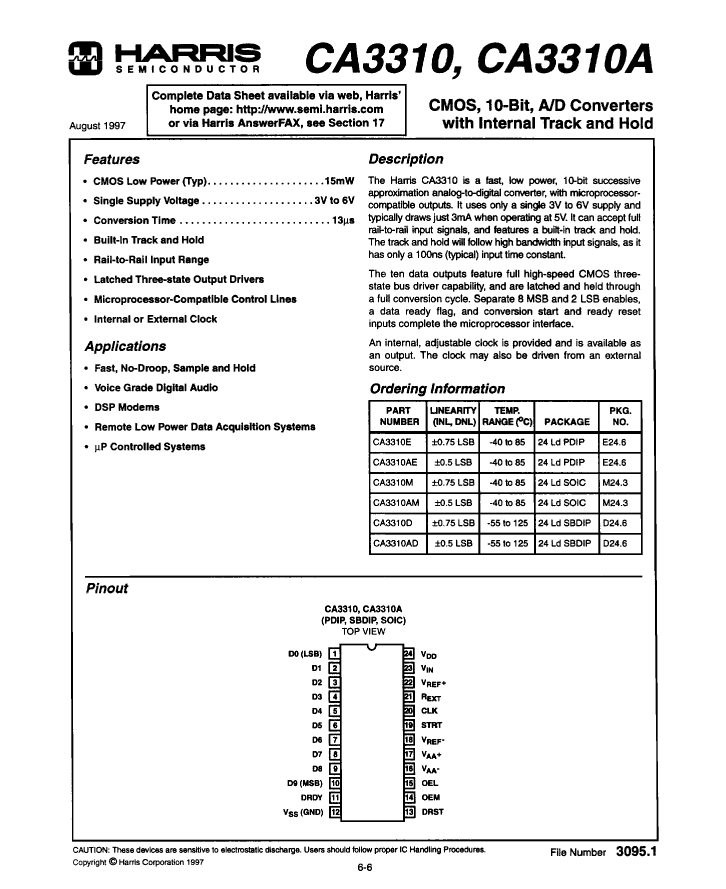

CA3310M Overview

ADC, Successive Approximation, 10-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS, PDSO24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	SOP, SOP24,.4
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum analog input voltage	5 V
Minimum analog input voltage	-5 V
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
Maximum linear error (EL)	0.0732%
Number of analog input channels	1
Number of digits	10
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output bit code	BINARY
Output format	PARALLEL, WORD
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP24,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
Sample and hold/Track and hold	TRACK
Maximum slew rate	8 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

	CA3310M	CA3310AM
Description	ADC, Successive Approximation, 10-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS, PDSO24	ADC, Successive Approximation, 10-Bit, 1 Func, 1 Channel, Parallel, Word Access, CMOS, PDSO24
Is it Rohs certified?	incompatible	incompatible
Maker	Harris	Harris
package instruction	SOP, SOP24,.4	SOP, SOP24,.4
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Maximum analog input voltage	5 V	5 V
Minimum analog input voltage	-5 V	-5 V
Converter type	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDSO-G24	R-PDSO-G24
JESD-609 code	e0	e0
Maximum linear error (EL)	0.0732%	0.0488%
Number of analog input channels	1	1
Number of digits	10	10
Number of functions	1	1
Number of terminals	24	24
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output bit code	BINARY	BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Encapsulate equivalent code	SOP24,.4	SOP24,.4
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Sample and hold/Track and hold	TRACK	TRACK
Maximum slew rate	8 mA	8 mA
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
