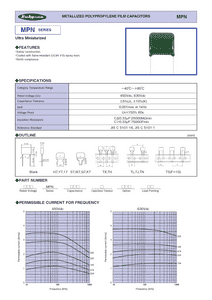

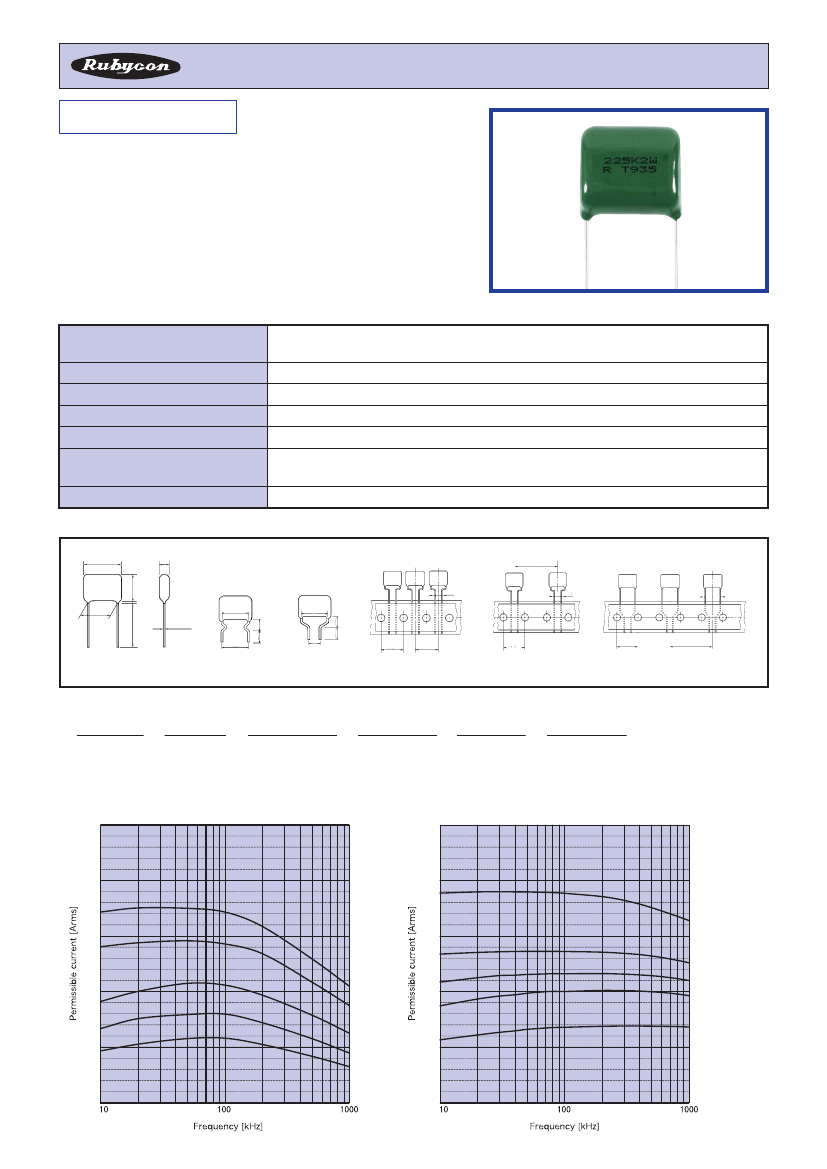

METALLIZED POLYPROPYLENE FILM CAPACITORS
MPN
MPN
SERIES
Ultra Miniaturized
◆FEATURES
・
Safety construction.
・
Coated with flame-retardant (UL94 V-0) epoxy resin.
・
RoHS compliance.
◆SPECIFICATIONS
Category Temperature Range
Rated Voltage (U
R
)
Capacitance Tolerance
tanδ
Voltage Proof
Insulation Resistance
Reference Standard
−40℃∼＋85℃
450Vdc, 630Vdc
±5%(J), ±10%(K)
0.001max at 1kHz
U
R
×150% 60s
C≦0.33μF 25000MΩmin
：
C＞0.33μF 7500ΩFmin
：
JIS C 5101-16, JIS C 5101-1
(mm)
◆OUTLINE
A max
B max
P
C max
1.0 max
LS
F
φd±0.05
5±0.5 5max
F
5±0.5 5max
LS
LS=F
F
20 min
LS
LS
P
0
P
P
0
P
0
P
Blank
H7,Y7,17 S7,W7,Q7,K7
TX,TH
TL,TJ,TN
TS(F＝10)
◆PART NUMBER
□□□
Rated Voltage
MPN
Series
□□□
Capacitance
□
Capacitance Tolerance
□□□
Option
□□
Lead Forming
◆PERMISSIBLE CURRENT FOR FREQUENCY
450Vdc
630Vdc
METALLIZED POLYPROPYLENE FILM CAPACITORS
MPN
□ : Tolerance **：Lead Forming

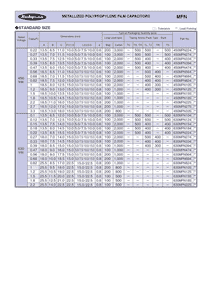

◆STANDARD SIZE
Rated
Voltage
Cap(μF)
A
B
Dimensions (mm)
C
F±1.0
LS±0.5
d
Long Lead type
Bag
Carton
Typical Packaging Quantity (pcs)
Taping Ammo Pack Type - Style
TC
TX, TH TL, TJ
TN
TS
Part No.
450
Vdc
630
Vdc
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1
1.2
1.5
1.8
2.2
2.7
3.3
0.1
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1
1.2
1.5
1.8
2.2
13.5
13.5
13.5
13.5
13.5
18.5
18.5
18.5
18.5
18.5
18.5
18.5
18.5
18.5
18.5
13.5
13.5
13.5
13.5
13.5
18.0
18.0
18.0
18.0
18.0
18.0
25.5
25.5
25.5
25.5
25.5
25.5
6.5
7.0
7.5
8.0
8.0
6.5
7.0
7.5
8.0
9.0
10.0
10.5
11.0
12.0
13.0
6.5
7.0
7.5
8.0
8.5
7.0
7.5
8.5
9.0
9.0
10.0
8.5
9.5
10.5
11.5
12.5
14.0
11.0
11.5
12.5
13.5
15.0
11.0
11.5
12.0
12.5
13.0
13.5
14.5
16.0
17.0
18.0
12.0
12.5
14.0
14.5
15.5
14.0
14.5
15.0
16.0
17.5
18.5
17.0
18.0
19.0
20.0
21.0
22.5
10.0
10.0
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
10.0
10.0
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
22.5
22.5
5.0/7.5/10.0
5.0/7.5/10.0
5.0/7.5/10.0
5.0/7.5/10.0
5.0/7.5/10.0
5.0/7.5/10.0/15.0
5.0/7.5/10.0/15.0
5.0/7.5/10.0/15.0
5.0/7.5/10.0/15.0
5.0/7.5/10.0/15.0
5.0/7.5/10.0/15.0
5.0/7.5/10.0/15.0
5.0/7.5/10.0/15.0
5.0/7.5/10.0/15.0
5.0/7.5/10.0/15.0
5.0/7.5/10.0
5.0/7.5/10.0
5.0/7.5/10.0
5.0/7.5/10.0
5.0/7.5/10.0
5.0/7.5/10.0/15.0
5.0/7.5/10.0/15.0
5.0/7.5/10.0/15.0
5.0/7.5/10.0/15.0
5.0/7.5/10.0/15.0
5.0/7.5/10.0/15.0
15.0/22.5
15.0/22.5
15.0/22.5
15.0/22.5
15.0/22.5
15.0/22.5
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
200
100
100
100
100
100
100
100
100
100
100
200
200
200
200
100
100
100
100
100
100
100
100
100
200
200
200
200
200
100
100
100
3,000
3,000
2,000
2,000
2,000
2,000
2,000
2,000
2,000
1,000
1,000
1,000
1,000
1,000
800
3,000
2,000
2,000
2,000
2,000
2,000
2,000
1,000
1,000
1,000
1,000
1,000
800
800
500
500
500
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
−
500
500
500
500
500
−
−
−
−
−
−
−
−
−
−
500
500
500
500
500
−
−
−
−
−
−
−
−
−
−
−
−
500
500
400
400
400
500
500
400
400
400
−
−
−
−
−
500
500
400
400
400
500
400
400
−
−
−
−
−
−
−
−
−
−
−
−
−
−
400
400
400
300
300
−
−
−
−
−
−
−
−
−
−
400
400
300
−
−
−
−
−
−
−
−
−
500
500
400
400
400
−
−
−
−
−
−
−
−
−
−
500
500
400
400
400
−
−
−
−
−
−
−
−
−
−
−
−
450MPN224□**
450MPN274□**
450MPN334□**
450MPN394□**
450MPN474□**
450MPN564□**
450MPN684□**
450MPN824□**
450MPN105□**
450MPN125□**
450MPN155□**
450MPN185□**
450MPN225□**
450MPN275□**
450MPN335□**
630MPN104□**
630MPN124□**
630MPN154□**
630MPN184□**
630MPN224□**
630MPN274□**
630MPN334□**
630MPN394□**
630MPN474□**
630MPN564□**
630MPN684□**
630MPN824□**
630MPN105□**
630MPN125□**
630MPN155□**
630MPN185□**
630MPN225□**
