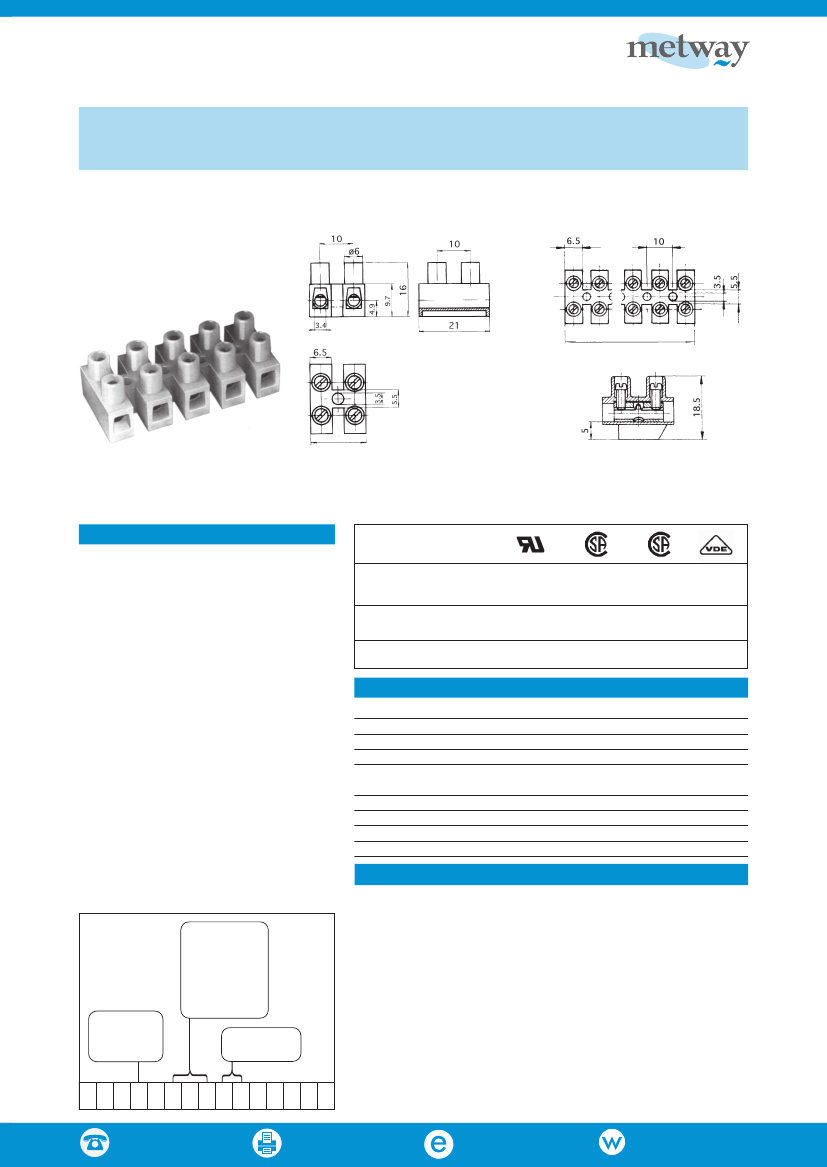

Electromechanical Terminal Blocks
Terminal blocks - strip type
SERIES 323
10A terminal blocks - standard & raised base
STANDARD BASE
RAISED BASE
Length = number of poles x 10 less 2mm
FEATURES
Series 323
terminal blocks are available in
standard height profile, suffixed WE (HDS) and
in raised base profile, suffixed FU (HDS). The
raised base versions are particularly suitable to
obtain required minimum creepage and
clearance distances when mounting on non-
insulating surfaces. They are available with or
without wire protectors, with captive screws fitted
as standard.
Approvals
Nominal Cross-Section mm2
20-10 AWG
30A
26-10 AWG
25A
26-10 AWG
10A
2.5
Voltage Rating
V
300
300
300
400
Application Group
B, D
B
D, E
TECHNICAL DETAILS
Mouldings:
Inserts:
Screws:
Screw tightening torque:
Temp. limits:
Current rating:
Voltage rating:
Conductor size:
Wire stripping length:
OPTIONS
Marking:
special printing available. Please provide sketch.
PART NUMBER CODE
Without protectors
Standard profile
Enter WE
Without protectors
Raised profile
Leave blank
With protectors
Enter HDS
Standard base
Leave blank
Raised base
Enter K
nylon 6.6, natural, UL94 V2
brass, tinned
M3 steel, zinc plated, blue passivated
max: 0.51 Nm
max short term: 140º C
continuous: 105º C
26A
400v to VDE 0110 pollution group 2
2.5mm
2
6.5mm
Cut lengths:
standard 12 pole lengths can be cut to shorter lengths.
Covers & base plates:
see page 58.
Number of poles
Enter 02 - 12
3 2 3
+ 44 (0) 1273 431600
- - - - -
+44 (0) 1273 439288
sales@metway.co.uk
www.metway.co.uk
57
