2215-4323: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.2 inch Pitch, Wire Wrap Terminal, Locking; CategoryThe connector The connector; File Size166KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

2215-4323 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.2 inch Pitch, Wire Wrap Terminal, Locking

2215-4323 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
body width	0.318 inch
subject depth	0.457 inch
body length	3.74 inch
Connector type	BOARD EURO CONNECTOR
Contact point gender	FEMALE
Contact style	SQ PIN-SKT
DIN compliance	YES
Durability	400 Cycles
Manufacturer's serial number	2215
Plug contact pitch	0.2 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal length	0.512 inch
Terminal pitch	5.08 mm
Termination type	WIRE WRAP
Total number of contacts	32
Base Number Matches	1

Preview

Download Datasheet

View All

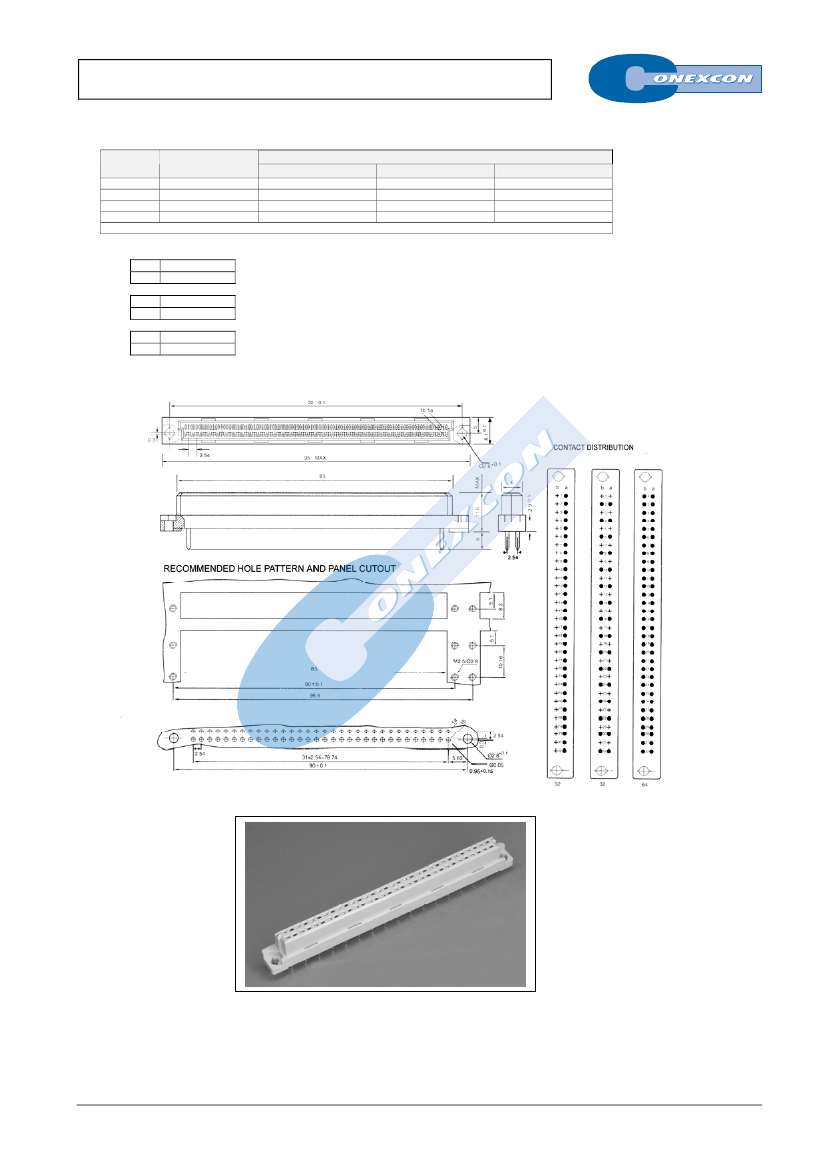

DIN 41612 EUROCARD CONNECTORS

2215 SERIES.

Vertical Female Type B Connectors.

Circuit Size

16

32

64

Configuration

a

a+b

Part Number

PCB Solder 4mm

Wrap post tail length 13mm Wrap post tail length 17mm

2215 –

T161

2215 –

T163

2215 –

T167

2215 –

T021

2215 –

T023

2215 –

T027

2215 –

T321

2215 –

T323

2215 –

T327

2215 –

T641

2215 –

T643

2215 –

T647

Available with press-in contacts (Consult with the Sales Office)

a

4

a

13

a

17

0.30 x 0.63

PCB Solder

0.60 x 0.69

Wrap post

0.60 x 0.69

Wrap post

T = Plating and class connector



T =

3.

0.20µ” over 1.27µ” Ni. 200 cycles class 2B

T =

4.

0.38µ” over 1.27µ” Ni. 400 cycles class 2

T =

5.

0.76µ” over 1.27µ” Ni. 500 cycles class 1

FULL LINE CATALOGUE
