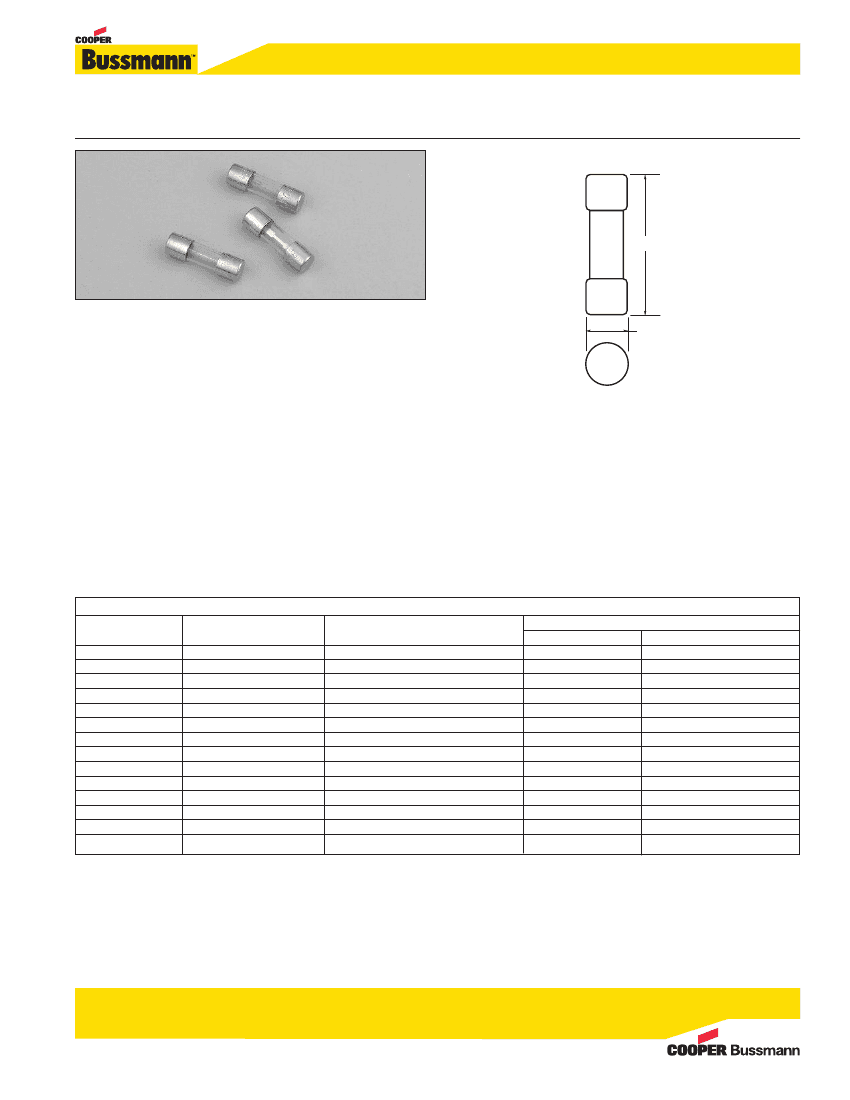

Fast-Acting
1
/
4
” x
7
/
8
” Glass Tube Fuses
AGW Series
Dimensions - in
0.88"
Description
• Fast-acting
•
1
/
4
” x
7
/
8
” (6.3 x 22.2mm) physical size
• Glass tube, nickel-plated brass endcap construction
• Mounts in in-line holders HHB (data sheet # 2103), HHK, HRK (data
sheet # 2111) or PCB fuseclips for
1
/
4
" fuses (1A1119, 1A1120,
1A1907, 1A3398, 1A4533 and 1A4534 - data sheet # 2131)
Ordering
Specify product code
• Insert packaging code prefix before part number, E.g., BK/AGW-1
0.25"
Part Number
(Amps)
AGW-1
AGW-1-
1
⁄
2
AGW-2
AGW-2-
1
⁄
2
AGW-3
AGW-4
AGW-5
AGW-6
AGW-7-
1
⁄
2
AGW-10
AGW-15
AGW-20
AGW-25
AGW-30
Voltage Rating
Vac
32
32
32
32
32
32
32
32
32
32
32
32
32
32
Specifications
Interrupting Rating (amps)
at Rated Voltage AC
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
Typical DC Cold Resistance (W)*
Lower
Upper
0.100
0.060
0.042
0.029
0.027
0.018
0.013
0.010
0.009
0.006
0.003
0.002
0.002
0.001
0.135
0.080
0.056
0.040
0.036
0.024
0.018
0.014
0.012
0.008
0.005
0.003
0.003
0.002
* DC Cold Resistance (Measured at <10% of rated current)
0813
BU-SB13900
Page 1 of 2
Data Sheet 2040

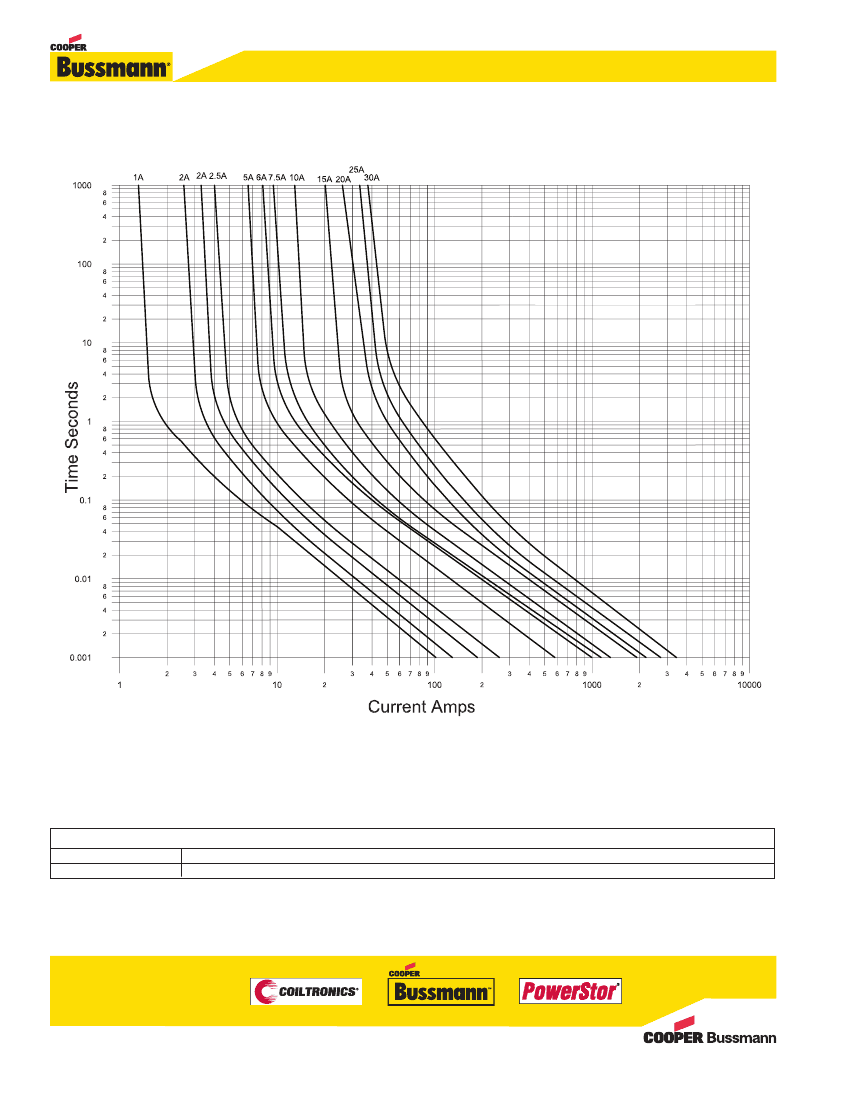

Time-Current Curves
Packaging Code
Packaging Code Prefix
BK
Description
100 fuses packed into a cardboard carton
© 2013 Cooper Bussmann
www.cooperbussmann.com
0813
BU-SB13900
Page 2 of 2
Data Sheet 2040
