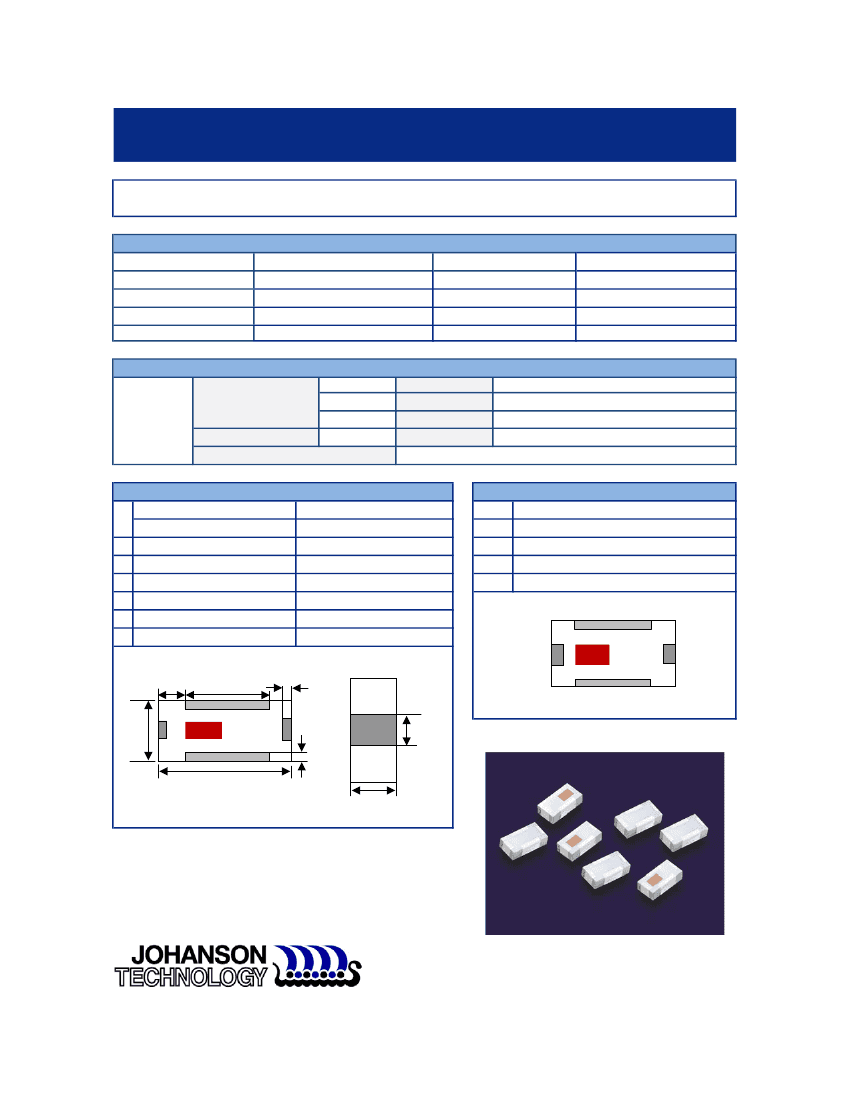

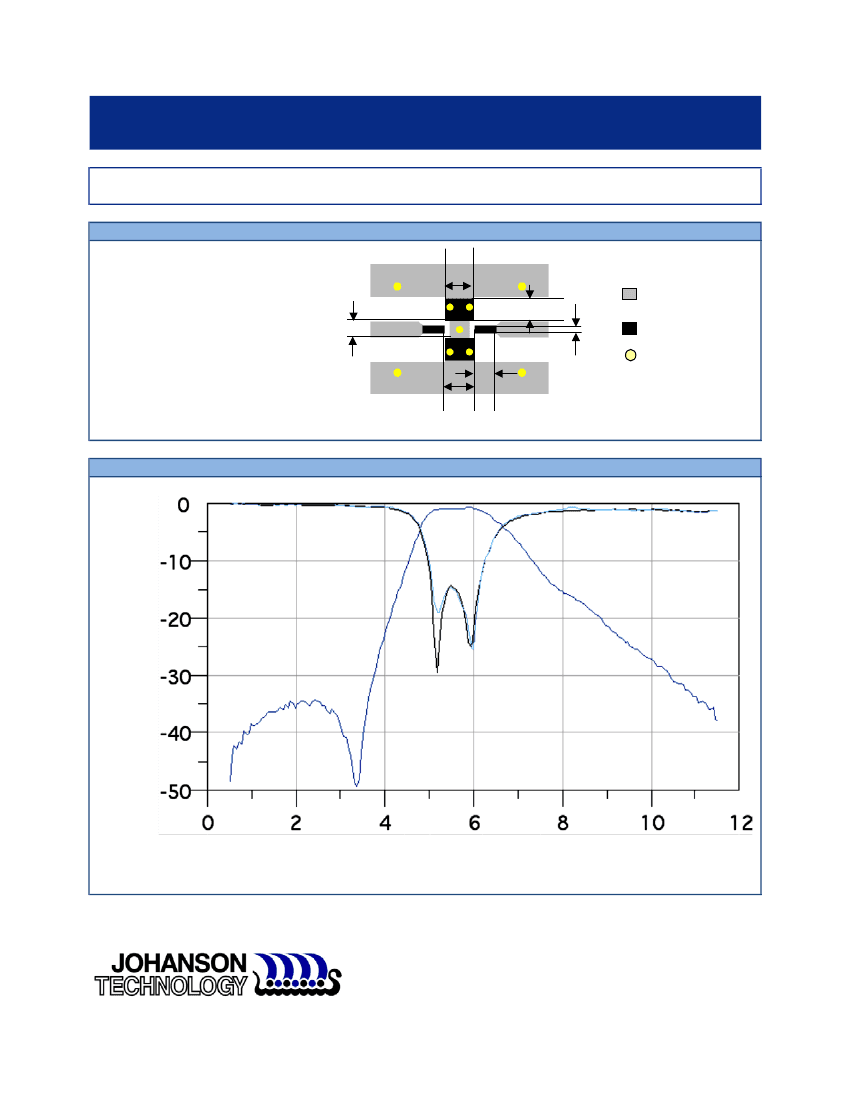

"High Frequency Ceramic Solutions"
5.5 GHz Band Pass Filter
Detail Specification:
12/5/2012
P/N 5515BP15B725
Page 1 of 2
General Specifications
Part Number
Frequency (MHz)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
5515BP15B725
5150 - 5875
30 dB @ 3500 MHz
25 dB @ 9800 - 11840 MHz
5 dB @ 14700 - 17760 MHz
Insertion Loss
Return Loss
Impedance
Input Power
Operating Temperature
1.5 dB max.
9.5 dB min.
50 Ω
2W max. (CW)
-40 to +85°C
Part Number Explanation
Bulk
T&R
Packing Style
100% Tin
P/N Suffix
Termination style
Tin / Lead
Eval board (50 ohm SMA)
Suffix = S
Suffix = T
Suffix = None
Suffix = /Pb
eg. 5515BP15B725S
eg. 5515BP15B725E
eg. 5515BP15B725(E or S)
eg. 5515BP15B725(E or S)/Pb
5515BP15B725-EB-SMA
Terminal Configuration
No.
Function
GND
1
OUT
2
GND
3
IN
4
Mechanical Dimensions
In
L
W
T
a
b
c
d
0.079
0.049
0.037
0.051
0.012
0.010
0.014
±
±
±
±
±
+
+
0.006
0.004
0.004
0.006
0.006
0.006
0.006
2.00
1.25
0.95
1.30
0.30
0.25
0.35
mm
± 0.15
± 0.10
± 0.10
± 0.15
± 0.15
+ 0.15
+ 0.15
1
4
2
3
d
W
a
c
b
c
L
T
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
Ver 1.0
2012 Johanson Technology, Inc. All Rights Reserved
"High Frequency Ceramic Solutions"
5.5 GHz Band Pass Filter
Detail Specification:
12/5/2012
P/N 5515BP15B725
Page 2 of 2
Mounting Considerations
Mount these devices with brown mark
facing up.
*Line width should be designed to provide
50 ohm impedance, depending on PCB
material and thickness
0.80
1.30
1.00
LEGEND
Solder
*
1.00
1.40
*
0.35
Land
Through-hole
(φ0.35)
Units: mm
Typical Electrical Performance (T=25°C)
S11 (dB)
S12 (dB)
S22 (dB)
Frequency MHz
Johanson Technology, Inc. reserves the right to make design changes without notice. Please confirm the specifications
and delivery conditions when placing your order. All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
Ver 1.0
2012 Johanson Technology, Inc. All Rights Reserved
