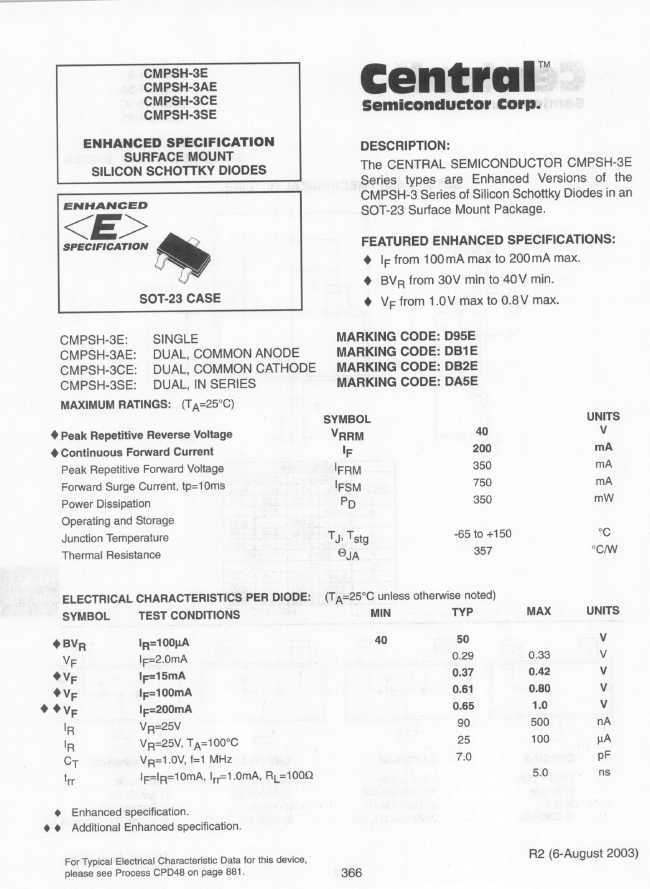

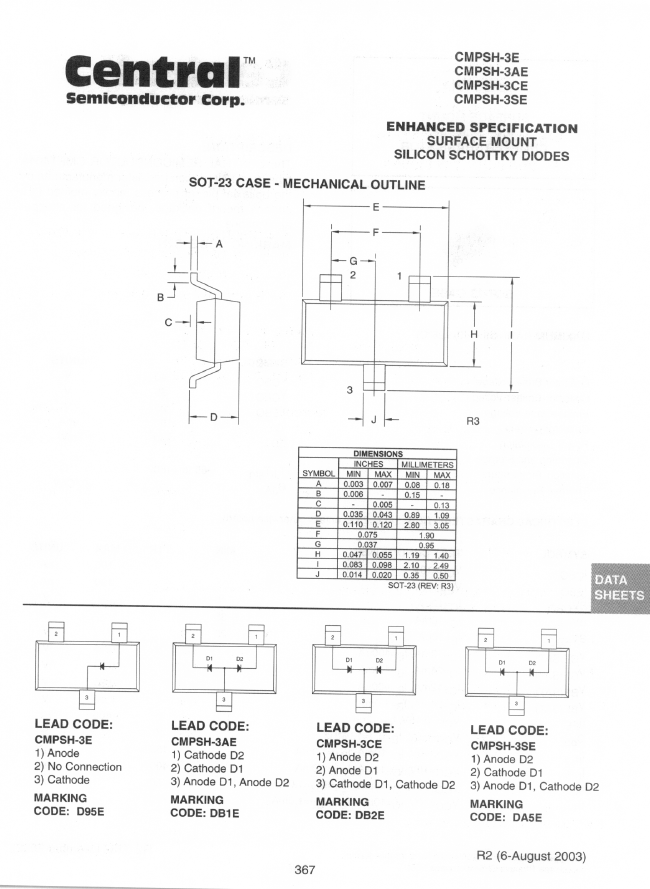

Rectifier Diode, Schottky, 2 Element, 0.2A, 40V V(RRM), Silicon, SOT-23, 3 PIN
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Central Semiconductor |
| Parts packaging code | SOT-23 |
| package instruction | SOT-23, 3 PIN |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 0.33 V |
| JESD-30 code | R-PDSO-G3 |
| JESD-609 code | e0 |
| Maximum non-repetitive peak forward current | 0.75 A |
| Number of components | 2 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Minimum operating temperature | -65 °C |
| Maximum output current | 0.2 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Maximum power dissipation | 0.35 W |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 40 V |
| Maximum reverse recovery time | 0.005 µs |
| surface mount | YES |
| technology | SCHOTTKY |
| Terminal surface | TIN LEAD |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| CMPSH-3SEBK | CMPSH-3SETR | CMPSH-3AEBK | CMPSH-3ETR | CMPSH-3CETR | CMPSH-3EBK | CMPSH-3CEBK | CMPSH-3AETR | |
|---|---|---|---|---|---|---|---|---|
| Description | Rectifier Diode, Schottky, 2 Element, 0.2A, 40V V(RRM), Silicon, SOT-23, 3 PIN | Rectifier Diode, Schottky, 2 Element, 0.2A, 40V V(RRM), Silicon, SOT-23, 3 PIN | Rectifier Diode, Schottky, 2 Element, 0.2A, 40V V(RRM), Silicon, SOT-23, 3 PIN | Rectifier Diode, Schottky, 1 Element, 0.2A, 40V V(RRM), Silicon, SOT-23, 3 PIN | Rectifier Diode, Schottky, 2 Element, 0.2A, 40V V(RRM), Silicon, SOT-23, 3 PIN | Rectifier Diode, Schottky, 1 Element, 0.2A, 40V V(RRM), Silicon, SOT-23, 3 PIN | Rectifier Diode, Schottky, 2 Element, 0.2A, 40V V(RRM), Silicon, SOT-23, 3 PIN | Rectifier Diode, Schottky, 2 Element, 0.2A, 40V V(RRM), Silicon, SOT-23, 3 PIN |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | SOT-23 | SOT-23 | SOT-23 | SOT-23 | SOT-23 | SOT-23 | SOT-23 | SOT-23 |
| package instruction | SOT-23, 3 PIN | SOT-23, 3 PIN | SOT-23, 3 PIN | SOT-23, 3 PIN | SOT-23, 3 PIN | SOT-23, 3 PIN | SOT-23, 3 PIN | SOT-23, 3 PIN |
| Contacts | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Reach Compliance Code | unknown | unknown | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS | COMMON ANODE, 2 ELEMENTS | SINGLE | COMMON CATHODE, 2 ELEMENTS | SINGLE | COMMON CATHODE, 2 ELEMENTS | COMMON ANODE, 2 ELEMENTS |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 0.33 V | 0.33 V | 0.33 V | 0.33 V | 0.33 V | 0.33 V | 0.33 V | 0.33 V |
| JESD-30 code | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 |
| JESD-609 code | e0 | e0 | e0 | e3 | e0 | e3 | e0 | e0 |
| Maximum non-repetitive peak forward current | 0.75 A | 0.75 A | 0.75 A | 0.75 A | 0.75 A | 0.75 A | 0.75 A | 0.75 A |
| Number of components | 2 | 2 | 2 | 1 | 2 | 1 | 2 | 2 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Minimum operating temperature | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C |
| Maximum output current | 0.2 A | 0.2 A | 0.2 A | 0.2 A | 0.2 A | 0.2 A | 0.2 A | 0.2 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Maximum power dissipation | 0.35 W | 0.35 W | 0.35 W | 0.35 W | 0.35 W | 0.35 W | 0.35 W | 0.35 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 40 V | 40 V | 40 V | 40 V | 40 V | 40 V | 40 V | 40 V |
| Maximum reverse recovery time | 0.005 µs | 0.005 µs | 0.005 µs | 0.005 µs | 0.005 µs | 0.005 µs | 0.005 µs | 0.005 µs |
| surface mount | YES | YES | YES | YES | YES | YES | YES | YES |
| technology | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY |
| Terminal surface | TIN LEAD | TIN LEAD | TIN LEAD | MATTE TIN | TIN LEAD | MATTE TIN | TIN LEAD | TIN LEAD |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maker | Central Semiconductor | Central Semiconductor | Central Semiconductor | - | Central Semiconductor | Central Semiconductor | Central Semiconductor | Central Semiconductor |
