CMPTA77BK datasheet, PDF - EEWORLD Datasheet

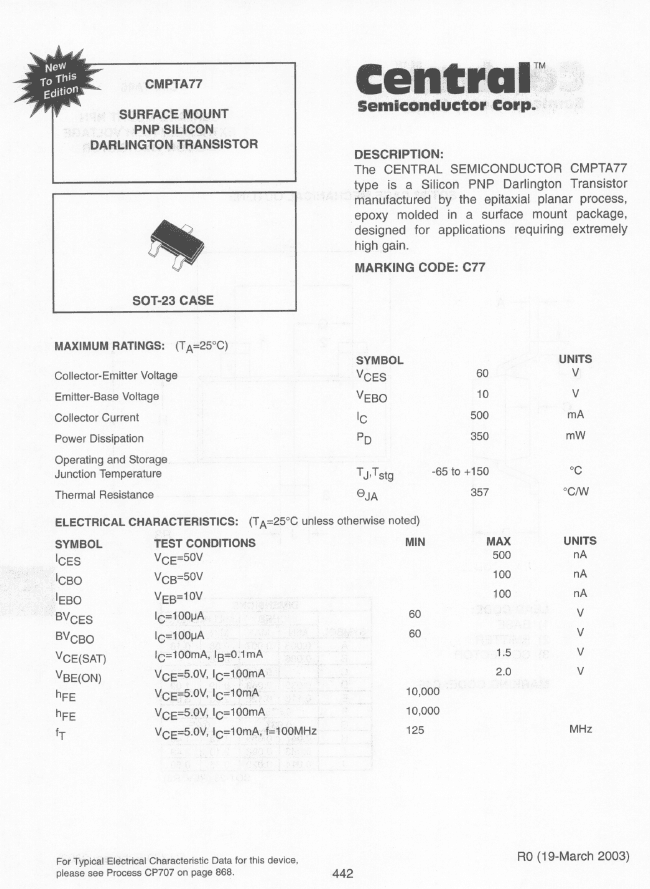

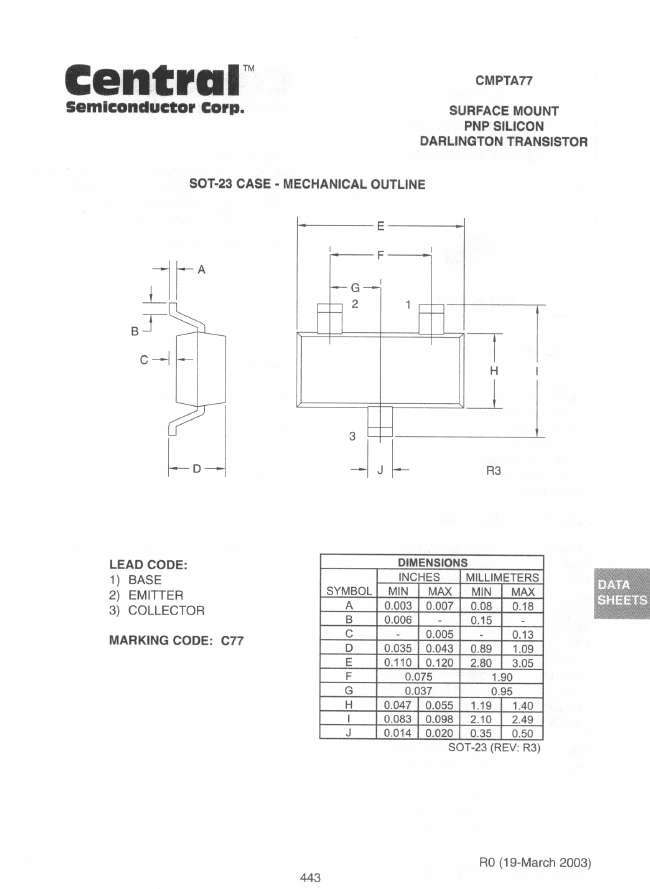

CMPTA77BK: DescriptionSmall Signal Bipolar Transistor, 0.5A I(C), 1-Element, PNP, Silicon, SOT-23, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size2MB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CMPTA77BK Overview

Small Signal Bipolar Transistor, 0.5A I(C), 1-Element, PNP, Silicon, SOT-23, 3 PIN

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
Parts packaging code	SOT-23
package instruction	SOT-23, 3 PIN
Contacts	3
Reach Compliance Code	unknown
Maximum collector current (IC)	0.5 A
Configuration	DARLINGTON
Minimum DC current gain (hFE)	10000
JESD-30 code	R-PDSO-G3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.35 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	DUAL
Transistor component materials	SILICON
Nominal transition frequency (fT)	125 MHz

	CMPTA77BK	CMPTA77LEADFREE	CMPTA77TR
Description	Small Signal Bipolar Transistor, 0.5A I(C), 1-Element, PNP, Silicon, SOT-23, 3 PIN	Small Signal Bipolar Transistor, 0.5A I(C), 1-Element, PNP, Silicon, SOT-23, 3 PIN	Small Signal Bipolar Transistor, 0.5A I(C), 1-Element, PNP, Silicon, SOT-23, 3 PIN
Is it Rohs certified?	incompatible	conform to	incompatible
Maker	Central Semiconductor	Central Semiconductor	Central Semiconductor
Parts packaging code	SOT-23	SOT-23	SOT-23
package instruction	SOT-23, 3 PIN	SMALL OUTLINE, R-PDSO-G3	SOT-23, 3 PIN
Contacts	3	3	3
Reach Compliance Code	unknown	compliant	unknown
Maximum collector current (IC)	0.5 A	0.5 A	0.5 A
Configuration	DARLINGTON	DARLINGTON	DARLINGTON
Minimum DC current gain (hFE)	10000	10000	10000
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e0	e3	e0
Number of components	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES
Terminal surface	TIN LEAD	MATTE TIN (315)	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL
Transistor component materials	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	125 MHz	125 MHz	125 MHz
Maximum power dissipation(Abs)	0.35 W	-	0.35 W
