CMR3U-01MTR13LEADFREE datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> CMR3U-01MTR13LEADFREE

Preview

CMR3U-01MTR13LEADFREE: DescriptionRectifier Diode, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, SMB, 2 PIN; CategoryDiscrete semiconductor diode; File Size291KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

CMR3U-01MTR13LEADFREE Overview

Rectifier Diode, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, SMB, 2 PIN

CMR3U-01MTR13LEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Central Semiconductor
package instruction	SMB, 2 PIN
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	ULTRA FAST RECOVERY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
Maximum reverse recovery time	0.05 µs
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	10

Preview

Download Datasheet

View All

CMR3U-01M

CMR3U-02M

CMR3U-04M

CMR3U-06M

CMR3U-10M

w w w. c e n t r a l s e m i . c o m

SURFACE MOUNT ULTRA FAST

RECOVERY SILICON RECTIFIER

3 AMP, 100 THRU 1000 VOLTS

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMR3U-01M

Series 3.0 Amp Surface Mount Silicon Ultra Fast

Recovery Rectifier is a high quality, well constructed,

highly reliable component designed for use in all types

of commercial, industrial, entertainment, computer, and

automotive applications. To order devices on 12mm

Tape and Reel (3000/13” Reel), add TR13 suffix to part

number.

MARKING CODE: SEE MARKING CODE TABLE ON

FOLLOWING PAGE

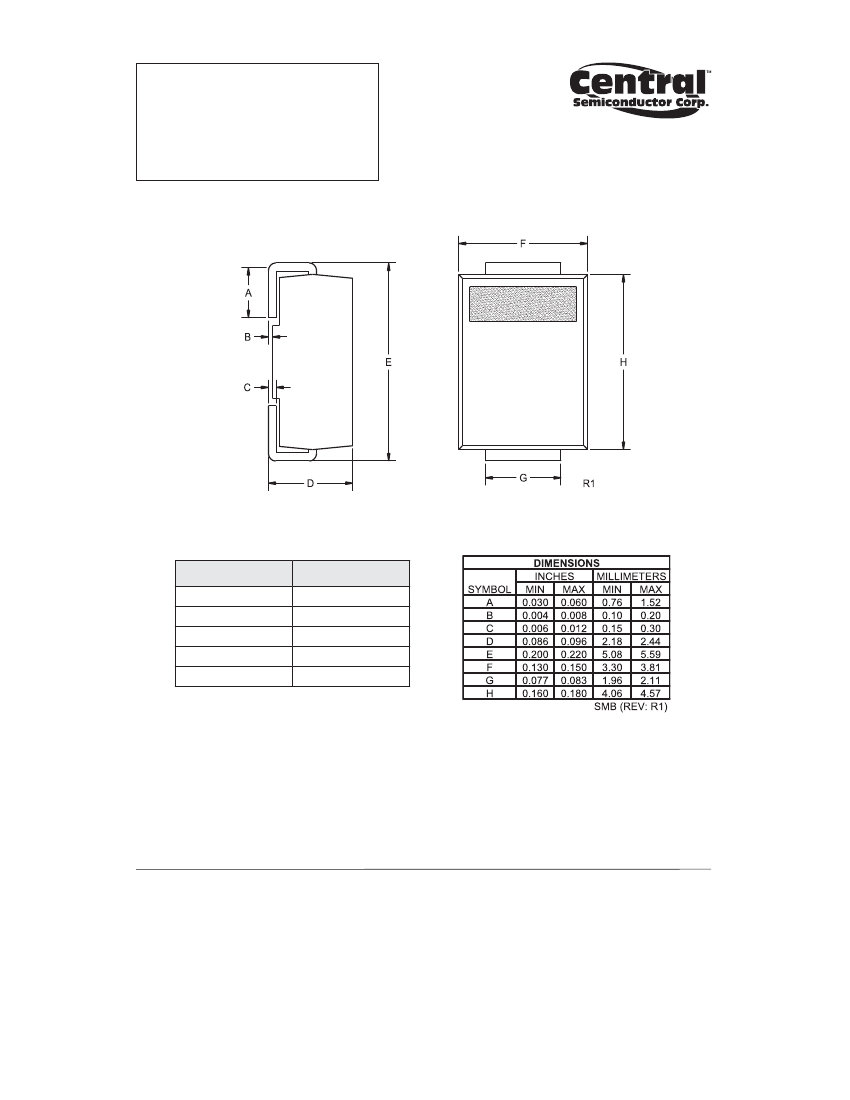

SMB CASE

FEATURES:

•

Low cost

•

High reliability

•

Glass passivated chip

•

Special selections available

•

Superior lot to lot consistency

•

“C” bend construction provides strain relief

when mounted on PC board

MAXIMUM RATINGS:

(TA=25°C unless otherwise noted)

SYMBOL CMR3U CMR3U CMR3U CMR3U CMR3U

-01M

-02M

-04M

-06M

-10M UNITS

Peak Repetitive Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Average Forward Current (TA=75°C)

Peak Forward Surge Current, tp=8.3ms

Operating and Storage Junction Temperature

Thermal Resistance

VRRM

VR

VR(RMS)

IO

IFSM

TJ, Tstg

Θ

JL

100

70

200

140

400

280

3.0

100

-65 to +175

30

600

420

1000

700

V

A

°C

°C/W

ELECTRICAL CHARACTERISTICS:

(TA=25°C unless otherwise noted)

SYMBOL TEST CONDITIONS

IR

VF

trr

VR=Rated VRRM

VR=Rated VRRM, TA=100°C

IF=3.0A (CMR3U-01M, -02M)

IF=3.0A (CMR3U-04M)

IF=3.0A (CMR3U-06M)

IF=3.0A (CMR3U-10M)

IF=0.5A, IR=1.0A, Irr=0.25A (CMR3U-01M, -02M, -04M)

IF=0.5A, IR=1.0A, Irr=0.25A (CMR3U-06M, -10M)

MAX

5.0

500

1.00

1.25

1.40

2.00

50

100

UNITS

µA

V

ns

R3 (8-February 2010)

CMR3U-01MTR13LEADFREE Related Products

	CMR3U-01MTR13LEADFREE	CMR3U-01MLEADFREE	CMR3U-06MTR13LEADFREE	CMR3U-02MLEADFREE	CMR3U-04MTR13LEADFREE	CMR3U-04MLEADFREE	CMR3U-06MLEADFREE	CMR3U-10MTR13LEADFREE	CMR3U-10MLEADFREE
Description	Rectifier Diode, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, SMB, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 3A, 100V V(RRM), Silicon, SMB, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, SMB, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 3A, 200V V(RRM), Silicon, SMB, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 3A, 400V V(RRM), Silicon, SMB, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 3A, 400V V(RRM), Silicon, SMB, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 3A, 600V V(RRM), Silicon, SMB, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, SMB, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 3A, 1000V V(RRM), Silicon, SMB, 2 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	SMB, 2 PIN	SMB, 2 PIN	SMB, 2 PIN	SMB, 2 PIN	R-PDSO-C2	SMB, 2 PIN	R-PDSO-C2	SMB, 2 PIN	SMB, 2 PIN
Contacts	2	2	2	2	2	2	2	2	2
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
Humidity sensitivity level	1	1	1	1	1	1	1	1	1
Maximum non-repetitive peak forward current	100 A	100 A	100 A	100 A	100 A	100 A	100 A	100 A	100 A
Number of components	1	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	100 V	600 V	200 V	400 V	400 V	600 V	1000 V	1000 V
Maximum reverse recovery time	0.05 µs	0.05 µs	0.1 µs	0.05 µs	0.05 µs	0.05 µs	0.1 µs	0.1 µs	0.1 µs
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	10	10	10	10	10	10	10	10
Maker	Central Semiconductor	-	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor
