CP316V-2N5551-WS datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> The transistor> CP316V-2N5551-WS

CP316V-2N5551-WS: DescriptionTransistor; CategoryDiscrete semiconductor The transistor; File Size233KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric View All

CP316V-2N5551-WS Overview

Transistor

CP316V-2N5551-WS Parametric

Parameter Name	Attribute value
Maker	Central Semiconductor
package instruction	,
Reach Compliance Code	compliant

CP316V-2N5551-WS Preview

PROCESS

CP316V

Small Signal Transistors

NPN - High Voltage Transistor Chip

PROCESS DETAILS

Process

Die Size

Die Thickness

Base Bonding Pad Area

Emitter Bonding Pad Area

Top Side Metalization

Back Side Metalization

GEOMETRY

GROSS DIE PER 4 INCH WAFER

29,659

PRINCIPAL DEVICE TYPES

CMPT5551

CXT5551

CZT5551

2N5551

EPITAXIAL PLANAR

20 x 20 MILS

7.1 MILS

4.0 x 4.0 MILS

4.7 x 4.7 MILS

Al - 30,000Å

Au - 18,000Å

BACKSIDE COLLECTOR

145 Adams Avenue

Hauppauge, NY 11788 USA

Tel: (631) 435-1110

Fax: (631) 435-1824

www.centralsemi.com

R1 (8-October 2008)

PROCESS

CP316V

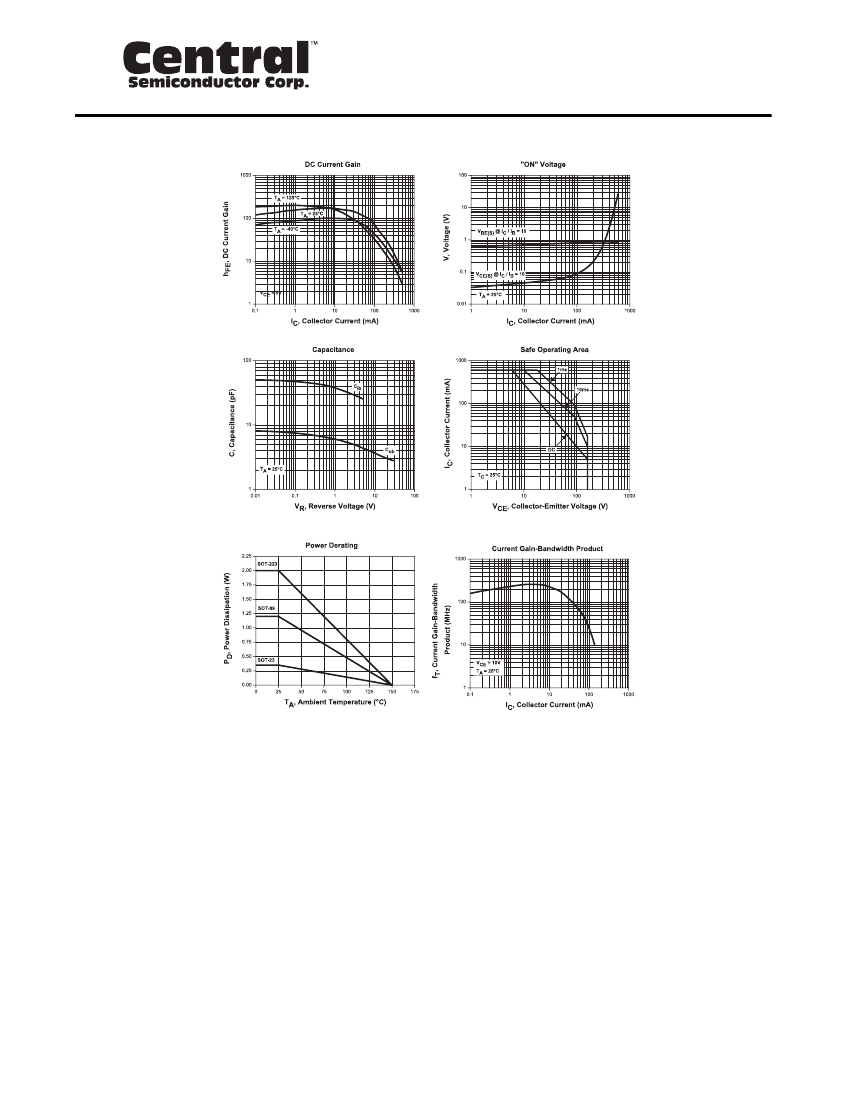

Typical Electrical Characteristics

145 Adams Avenue

Hauppauge, NY 11788 USA

Tel: (631) 435-1110

Fax: (631) 435-1824

www.centralsemi.com

R1 (8-October 2008)
