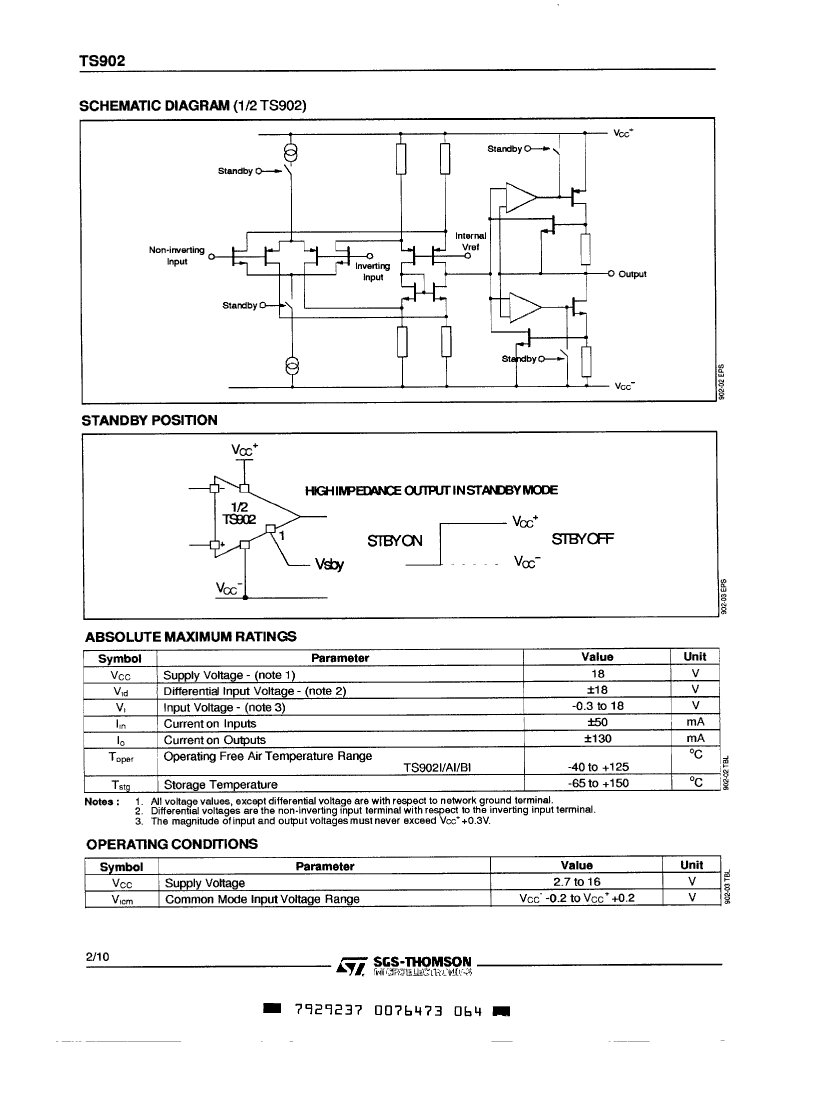

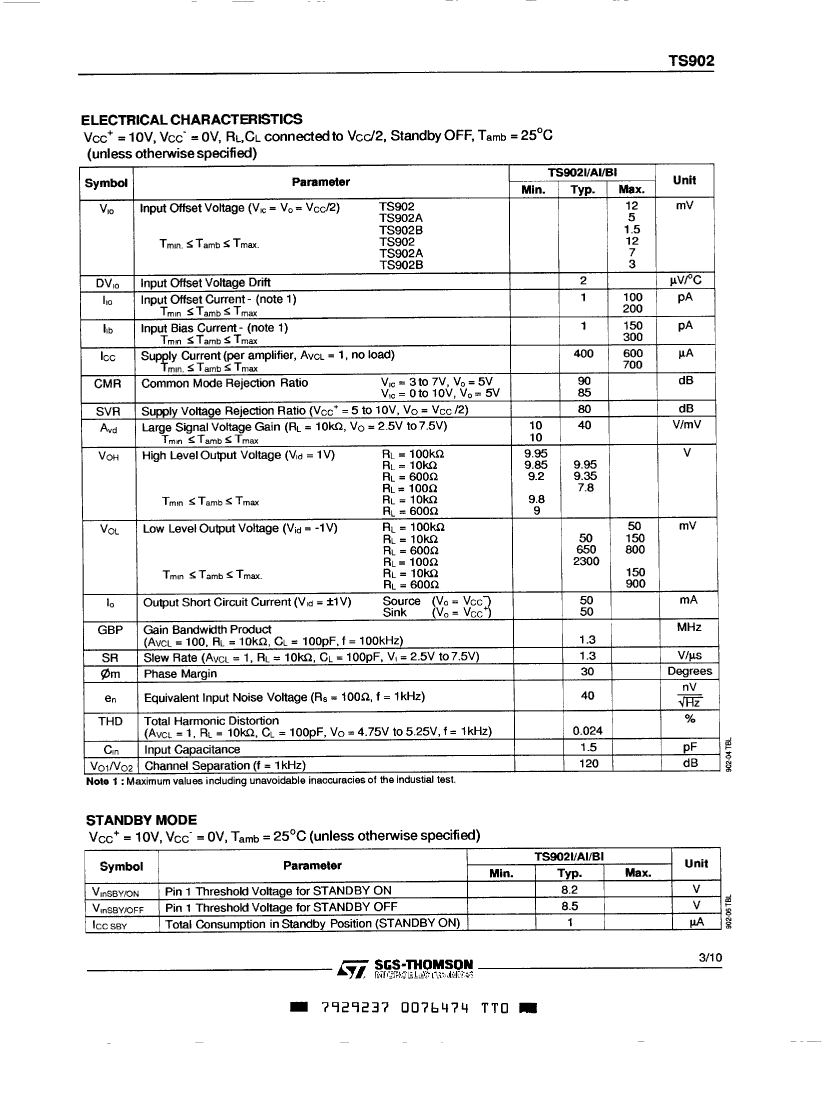

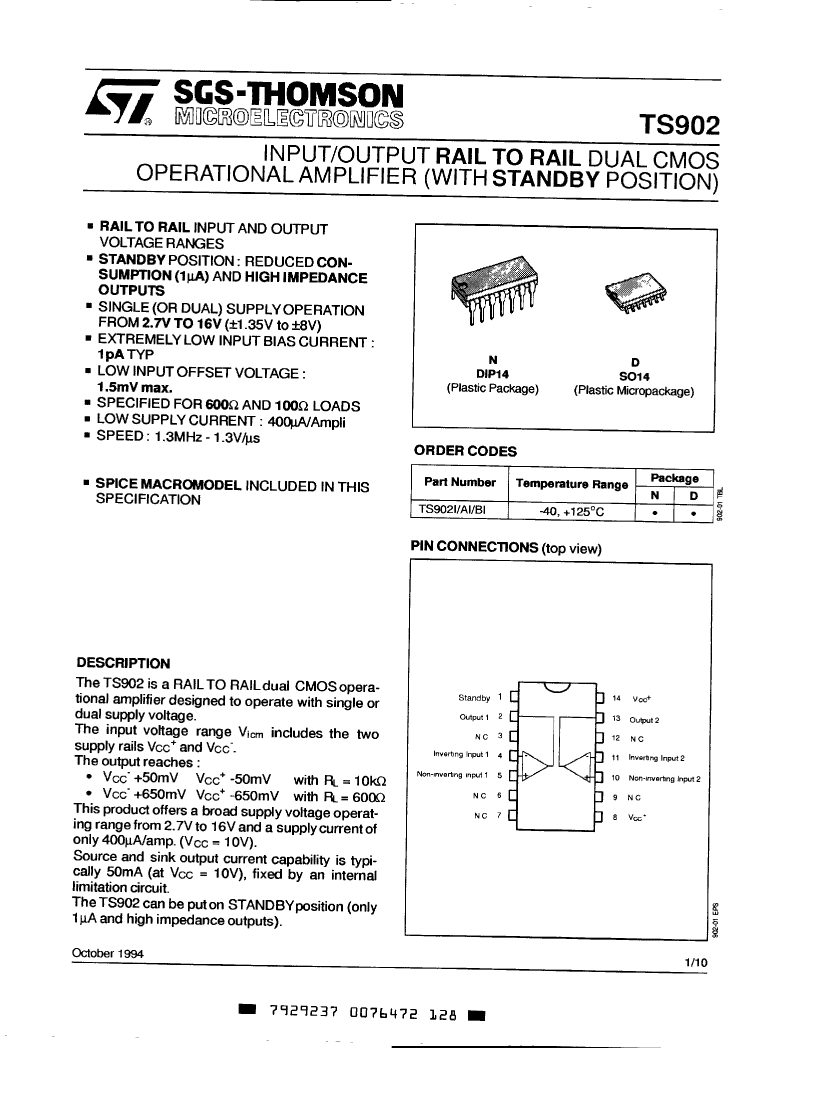

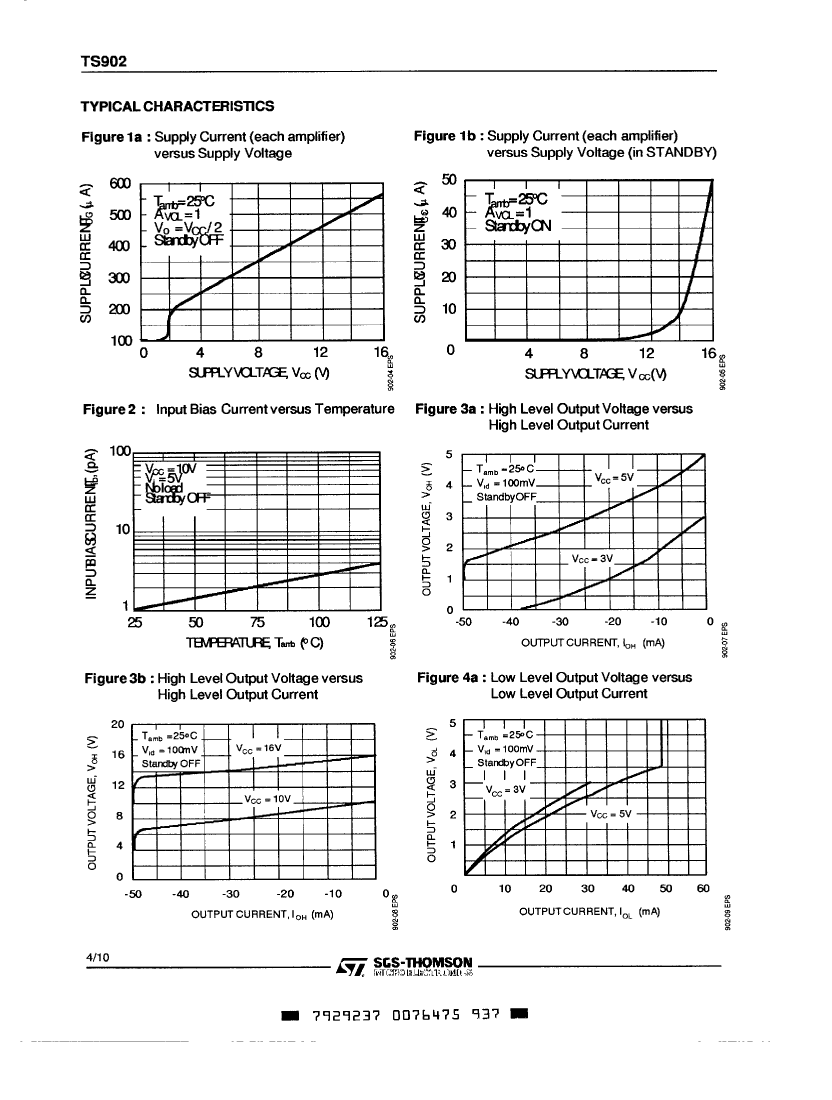

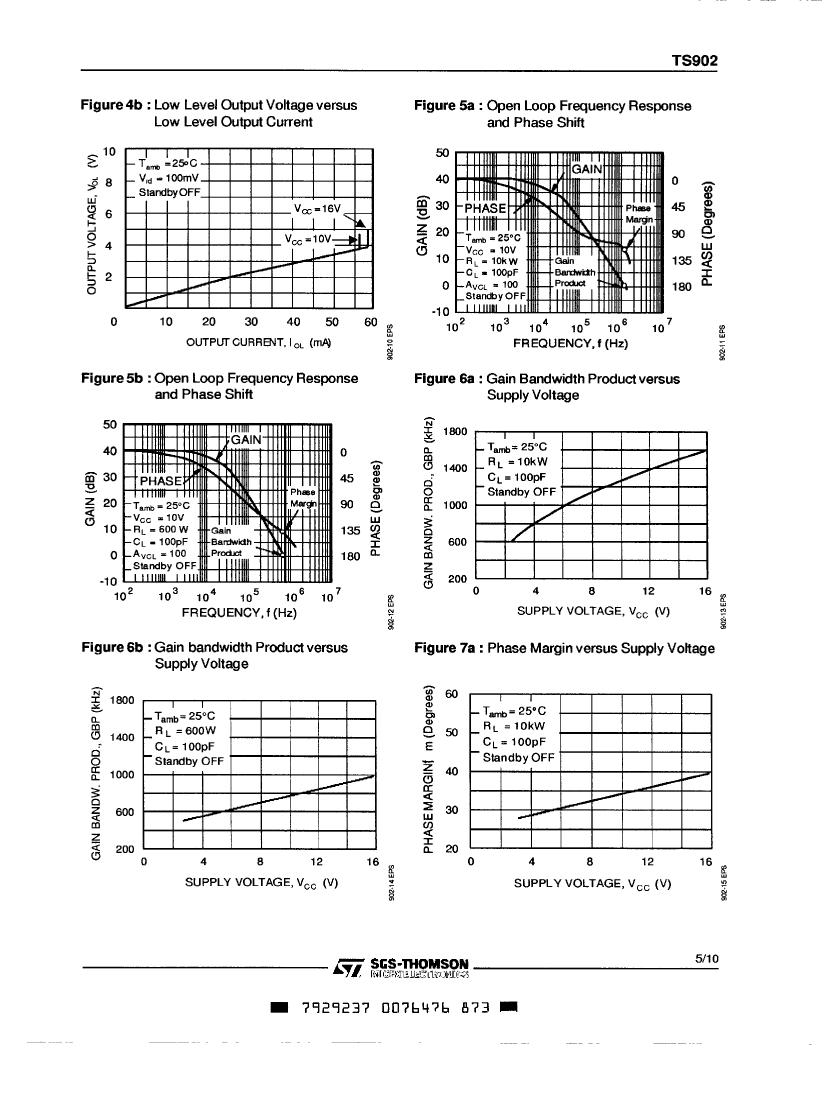

DUAL OP-AMP, 7000uV OFFSET-MAX, 0.7MHz BAND WIDTH, PDSO14, MICRO, PLASTIC, SO-14
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | STMicroelectronics |
| Parts packaging code | SOIC |
| package instruction | SOP, SOP14,.25 |
| Contacts | 14 |
| Reach Compliance Code | not_compliant |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.0003 µA |
| Maximum bias current (IIB) at 25C | 0.00015 µA |
| Nominal Common Mode Rejection Ratio | 60 dB |
| frequency compensation | YES |
| Maximum input offset voltage | 7000 µV |
| JESD-30 code | R-PDSO-G14 |
| JESD-609 code | e0 |
| length | 8.65 mm |
| low-bias | YES |
| low-dissonance | NO |
| micropower | YES |
| Number of functions | 2 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP14,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 2.7/16 V |
| Certification status | Not Qualified |
| Maximum seat height | 1.75 mm |
| Nominal slew rate | 0.5 V/us |
| Maximum slew rate | 1.4 mA |
| Supply voltage upper limit | 18 V |
| Nominal supply voltage (Vsup) | 3 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | AUTOMOTIVE |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 700 kHz |
| Minimum voltage gain | 10000 |
| width | 3.9 mm |
| TS902AID | TS902IN | TS902AIN | TS902BIN | TS902BID | |
|---|---|---|---|---|---|
| Description | DUAL OP-AMP, 7000uV OFFSET-MAX, 0.7MHz BAND WIDTH, PDSO14, MICRO, PLASTIC, SO-14 | DUAL OP-AMP, 12000uV OFFSET-MAX, 0.7MHz BAND WIDTH, PDIP14, PLASTIC, DIP-14 | DUAL OP-AMP, 7000uV OFFSET-MAX, 0.7MHz BAND WIDTH, PDIP14, PLASTIC, DIP-14 | DUAL OP-AMP, 1500uV OFFSET-MAX, 1MHz BAND WIDTH, PDIP14, PLASTIC, DIP-14 | DUAL OP-AMP, 1500uV OFFSET-MAX, 1MHz BAND WIDTH, PDSO14, MICRO, PLASTIC, SO-14 |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Parts packaging code | SOIC | DIP | DIP | DIP | SOIC |
| package instruction | SOP, SOP14,.25 | PLASTIC, DIP-14 | PLASTIC, DIP-14 | PLASTIC, DIP-14 | MICRO, PLASTIC, SO-14 |
| Contacts | 14 | 14 | 14 | 14 | 14 |
| Reach Compliance Code | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.0003 µA | 0.0003 µA | 0.0003 µA | 0.00015 µA | 0.00015 µA |
| Maximum bias current (IIB) at 25C | 0.00015 µA | 0.00015 µA | 0.00015 µA | 0.00015 µA | 0.00015 µA |
| Nominal Common Mode Rejection Ratio | 60 dB | 60 dB | 60 dB | 85 dB | 85 dB |
| frequency compensation | YES | YES | YES | YES | YES |
| Maximum input offset voltage | 7000 µV | 12000 µV | 7000 µV | 1500 µV | 1500 µV |
| JESD-30 code | R-PDSO-G14 | R-PDIP-T14 | R-PDIP-T14 | R-PDIP-T14 | R-PDSO-G14 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 |
| low-bias | YES | YES | YES | YES | YES |
| low-dissonance | NO | NO | NO | NO | NO |
| micropower | YES | YES | YES | YES | YES |
| Number of functions | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 14 | 14 | 14 | 14 | 14 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 105 °C | 105 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | DIP | DIP | DIP | SOP |
| Encapsulate equivalent code | SOP14,.25 | DIP14,.3 | DIP14,.3 | DIP14,.3 | SOP14,.25 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE | IN-LINE | IN-LINE | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 2.7/16 V | 2.7/16 V | 2.7/16 V | 2.7/16 V | 2.7/16 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.75 mm | 5.1 mm | 5.1 mm | 5.1 mm | 1.75 mm |
| Nominal slew rate | 0.5 V/us | 0.5 V/us | 0.5 V/us | 1 V/us | 1 V/us |
| Maximum slew rate | 1.4 mA | 1.4 mA | 1.4 mA | 0.9 mA | 0.9 mA |
| Supply voltage upper limit | 18 V | 18 V | 18 V | 18 V | 18 V |
| Nominal supply voltage (Vsup) | 3 V | 3 V | 3 V | 10 V | 10 V |
| surface mount | YES | NO | NO | NO | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | AUTOMOTIVE | AUTOMOTIVE | AUTOMOTIVE | INDUSTRIAL | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | GULL WING |
| Terminal pitch | 1.27 mm | 2.54 mm | 2.54 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 700 kHz | 700 kHz | 700 kHz | 1000 kHz | 1000 kHz |
| Minimum voltage gain | 10000 | 10000 | 10000 | 10000 | 10000 |
| width | 3.9 mm | 7.62 mm | 7.62 mm | 7.62 mm | 3.9 mm |
