• Highly reliable multilayer electrode construction
• Compatible with all soldering process
Applications:
•
•
•
•
•
•
Telecommunication Equipments
Radio and Tape Recorders, TV Tuners
Digital Cameras, Watches, Pocket Calculators
Automotive Industry
Computers, Instruments
Medical and Military Equipment

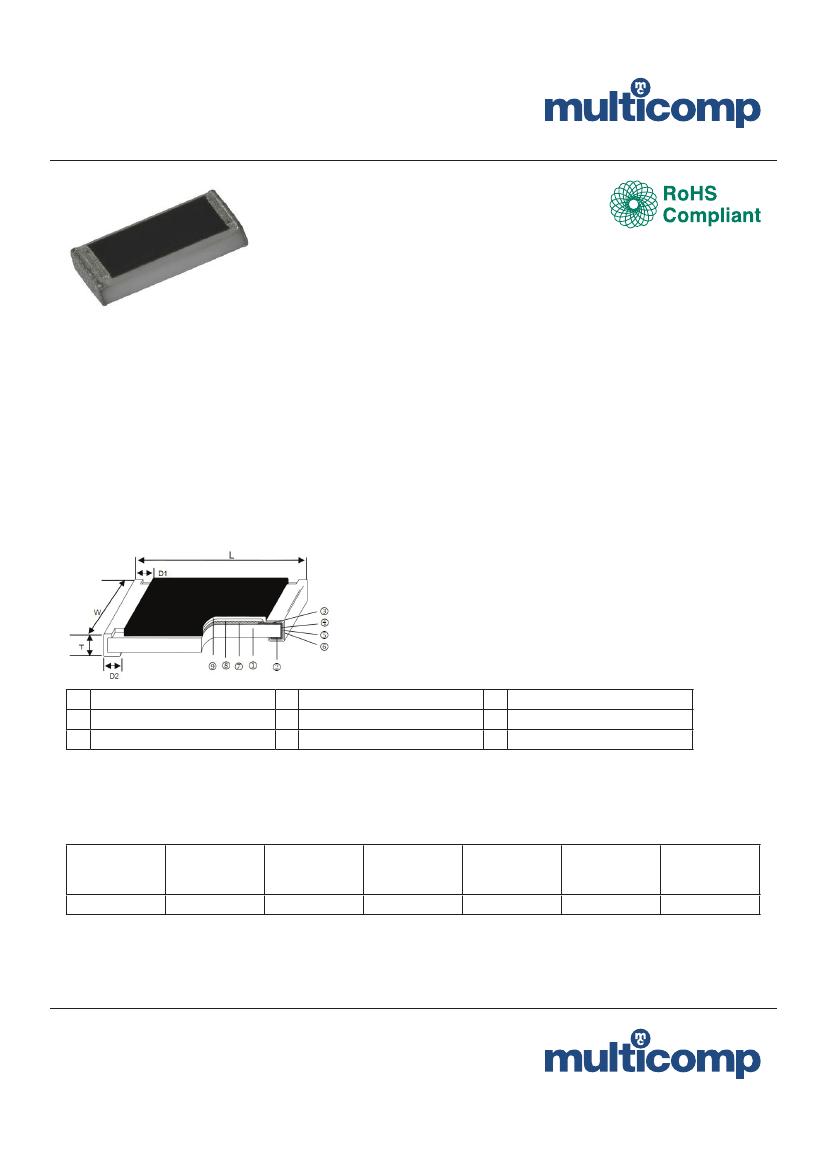

Construction:
1
2
3
Alumina Substrate
Bottom Electrode (Ag)
Top Electrode (Ag-Pd)
4
5
6
Edge Electrode (NiCr)
Barrier Layer (Ni)
External Electrode (Sn)
7
8
9
Resistor Layer (RuO
2
/Ag)
Primary Overcoat (Glass)
Secondary Overcoat (Epoxy)
Dimensions
Size
(Inch)
0201
L
0.60±0.03
W
0.30±0.03
T
0.23±0.03
D1
0.15±0.05
D2
0.15±0.05
Unit: mm
Weight
(g)
(1,000pcs)
0.150
www.element14.com
www.farnell.com
www.newark.com
Page <1>
18/07/12
V1.0
0201
Thick Film Chip Resistor

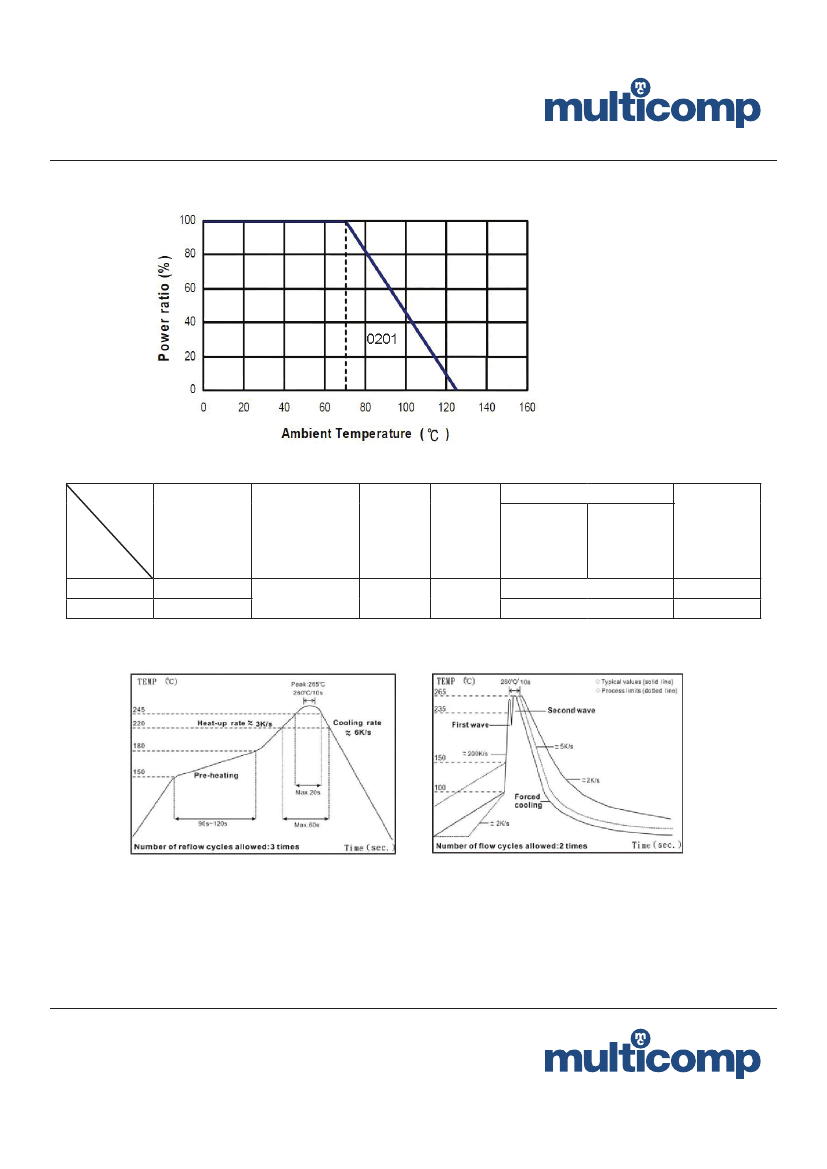

Derating Curve
Standard Electrical Specifications
Item
Power Rating
at 70°C
Jumper
Rated Current
1/20W
1A
Resistance Range
Operating
Temp.
Range
Max.
Operating
Voltage
Max.
Overload
Voltage
±1%
1Ω - 10MΩ
0Ω (<50mΩ)
±5%
TCR
(PPM/°C)
Type
0201
Jumper
-55 ~ +125°C
25V
50V
±200
-
Soldering Condition
IR Reflow Soldering
Wave Soldering (Flow Soldering)
(1) Time of IR reflow soldering at maximum temperature point 260°C : 10s
(2) Time of wave soldering at maximum temperature point 260°C : 10s
(3) Time of soldering iron at maximum temperature point 410°C : 5s
www.element14.com
www.farnell.com
www.newark.com
Page <2>
18/07/12
V1.0
0201
Thick Film Chip Resistor
Environmental Characteristics
Requirement
Item
Temperature Coefficient
of Resistance (T.C.R.)
±1% and
Below
±5%
As Spec.
Jumper
Test Method
JIS-C-5201-1 4.8
IEC-60115-1 4.8
-55°C~+125°C, 25°C is the reference temperature
<50mΩ
JIS-C-5201-1 4.13
IEC-60115-1 4.13
RCWV*2.5 or Max. overload voltage for
5 seconds, 2 seconds for high power series
JIS-C-5201-1 4.6
IEC-60115-1 4.6
Max. overload voltage for 1 minute
JIS-C-5201-1 4.25
IEC-60115-1 4.25.1
<100mΩ
70±2°C, Max. working voltage for 1000 hrs with
1.5 hrs “ON” and 0.5 hrs “OFF”
JIS-C-5201-1 4.24
<100mΩ 40±2°C, 90~95% R.H. Max. working voltage for
1000 hrs with 1.5 hrs “ON” and 0.5 hrs “OFF”
<50mΩ
JIS-C-5201-1 4.23
IEC-60115-1 2.23.2
at +125/+155°C for 1000 hrs
JIS-C-5201-1 4.33
IEC-60115-1 4.33
Bending once for 5 seconds
2010, 2512 sizes : 2mm Other sizes : 3mm
JIS-C-5201-1 4.17
IEC-60115-1 4.17
245 ±5°C for 3 seconds
<50mΩ
JIS-C-5201-1 4.18
IEC-60115-1 4.18
260 ±5°C for 10 seconds
JIS-C-5201-1 4.7
IEC-60115-1 4.7
1.42 times RCWV (RMS) for 1 minute
JIS-C-5201-1 4.18
IEC-60068-2-58 8.2.1
260 ±5°C for 30 seconds
JIS-C-5201-1 4.18
IEC-60115-1 4.18
-55°C to +125/+155°C, 5 cycles
Short Time Overload
±(1.0%+0.05Ω)
±(2.0%+0.05Ω)
Insulation Resistance
≥10G
Endurance
±(1.0%+0.10Ω)
±(2.0%+0.10Ω)
Damp Heat with Load
±(1.0%+0.10Ω)
±(2.0%+0.10Ω)
Dry Heat
±(1.0%+0.05Ω)
±(1.5%+0.10Ω)
Bending Strength
±(1.0%+0.05Ω)
±(1.0%+0.05Ω)
<50mΩ
Solderability
Resistance to
Soldering Heat
Voltage Proof
95% min. coverage
±(0.5%+0.05Ω)
±(1.0%+0.05Ω)
No breakdown or flashover
Individual leaching area < 5%
=
Total leaching area < 10%
=
±(0.5%+0.05Ω)
±(1.0%+0.05Ω)
<50mΩ
Leaching
Rapid Change of
Temperature
Storage Temperature: 25±3°C; Humidity < 80%RH
www.element14.com
www.farnell.com
www.newark.com
Page <3>
18/07/12
V1.0
0201
Packaging
Thick Film Chip Resistor

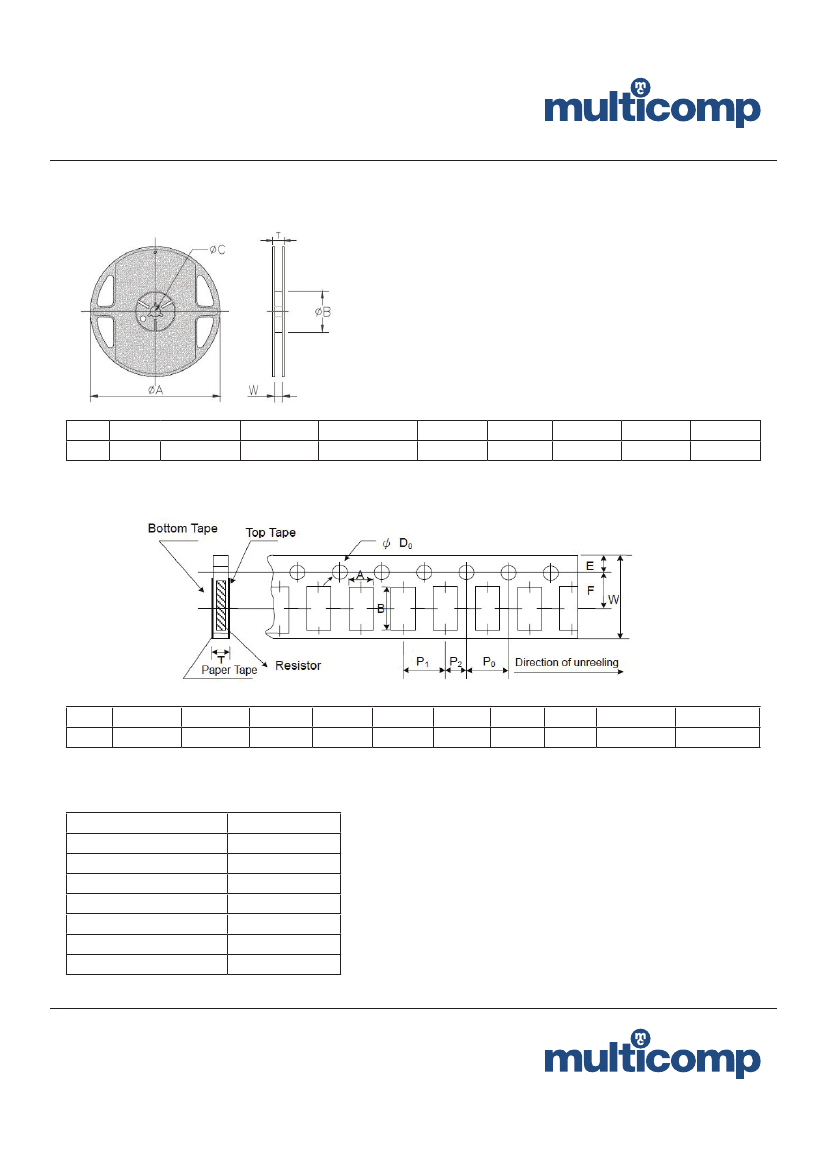

Reel Specifications & Packaging Quantity
Unit: mm
Type
0201
Packaging Quantity
Paper
15K to 20K
Tape Width
8mm
Reel Diameter
7 inch
ΦA
178.5±1.5
ΦB
60
+1/-0
ΦC
13.0±0.2
W
9.0±0.5
T
12.5±0.5
Paper Tape Specifications
Unit: mm
Type
0201
A
0.38±0.05
B
0.68±0.05
W
8 ± 0.2
E
F
P
0
4 ±0.1
P
1
2±0.05
P
2
2±0.05
ΦD
0
1.5+0.1, -0
T
0.42±0.2
1.75±0.1 3.5±0.05
Part Number Table
Description
Resistor, 0201, 10M0, 1%
Resistor, 0201, 9M10, 1%
Resistor, 0201, 8M20, 1%
Resistor, 0201, 7M50, 1%
Resistor, 0201, 6M80, 1%
Resistor, 0201, 6M20, 1%
Resistor, 0201, 5M60, 1%
Part Number
MCRE000262
MCRE000261
MCRE000260
MCRE000259
MCRE000258
MCRE000257
MCRE000256
www.element14.com
www.farnell.com
www.newark.com
Page <4>
18/07/12
V1.0
0201
Thick Film Chip Resistor
Description
Resistor, 0201, 5M10, 1%
Resistor, 0201, 4M70, 1%
Resistor, 0201, 4M30, 1%
Resistor, 0201, 3M90, 1%
Resistor, 0201, 3M60, 1%
Resistor, 0201, 3M30, 1%
Resistor, 0201, 3M00, 1%
Resistor, 0201, 2M70, 1%
Resistor, 0201, 2M40, 1%
Resistor, 0201, 2M20, 1%
Resistor, 0201, 2M00, 1%
Resistor, 0201, 1M80, 1%
Resistor, 0201, 1M60, 1%
Resistor, 0201, 1M50, 1%
Resistor, 0201, 1M30, 1%
Resistor, 0201, 1M20, 1%
Resistor, 0201, 1M10, 1%
Resistor, 0201, 9R10, 1%
Part Number
MCRE000255
MCRE000254
MCRE000253
MCRE000252
MCRE000251
MCRE000250
MCRE000249
MCRE000248
MCRE000247
MCRE000246
MCRE000245
MCRE000244
MCRE000243
MCRE000242
MCRE000241
MCRE000240
MCRE000239
MCRE000238
Description
Resistor, 0201, 8R20, 1%
Resistor, 0201, 7R50, 1%
Resistor, 0201, 6R20, 1%
Resistor, 0201, 5R60, 1%
Resistor, 0201, 5R10, 1%
Resistor, 0201, 4R30, 1%
Resistor, 0201, 3R90, 1%
Resistor, 0201, 3R60, 1%
Resistor, 0201, 3R0, 1%
Resistor, 0201, 2R70, 1%
Resistor, 0201, 2R40, 1%
Resistor, 0201, 2R0, 1%
Resistor, 0201, 1R80, 1%
Resistor, 0201, 1R60, 1%
Resistor, 0201, 1R30, 1%
Resistor, 0201, 1R20, 1%
Resistor, 0201, 1R10, 1%
Resistor, 0201, 1R0, 1%
Part Number
MCRE000237
MCRE000236
MCRE000235
MCRE000234
MCRE000233
MCRE000232
MCRE000231
MCRE000230
MCRE000229
MCRE000228
MCRE000227
MCRE000226
MCRE000225
MCRE000224
MCRE000223
MCRE000222
MCRE000221
MCRE000220
