HM2P08PDF1G5E9LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> HM2P08PDF1G5E9LF

HM2P08PDF1G5E9LF: DescriptionBoard Connector, 150 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size169KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P08PDF1G5E9LF Overview

Board Connector, 150 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

HM2P08PDF1G5E9LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	25 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	MATTE TIN
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	6
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	150
UL Flammability Code	94V-0

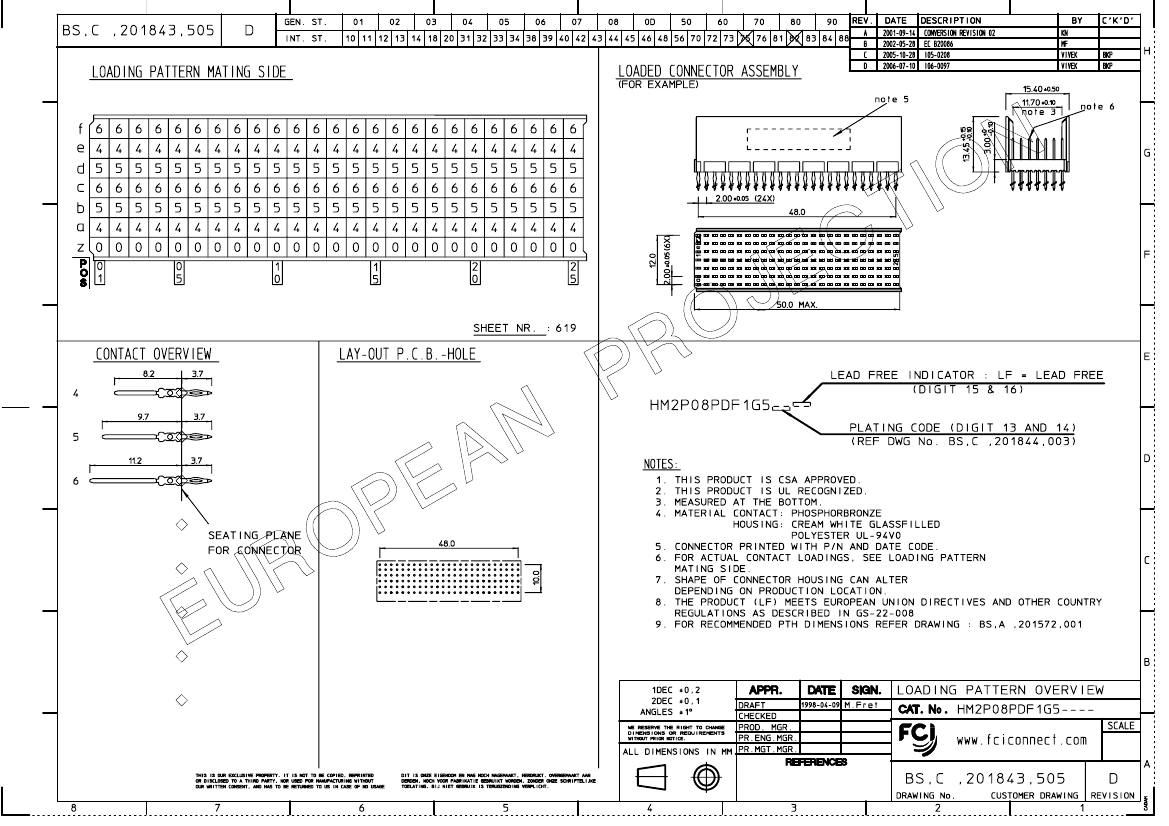

HM2P08PDF1G5E9LF Preview

PDM: Rev:D

STATUS:

Released

Printed: Dec 01, 2007

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

HM2P08PDF1G5E9LF Related Products

	HM2P08PDF1G5E9LF	HM2P08PDF1G5E9	HM2P08PDF1G5N9	HM2P08PDF1G5N9LF	HM2P08PDF1G5Z1LF	HM2P08PDF1G5Z1
Description	Board Connector, 150 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 150 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 150 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 150 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 150 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 150 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	25 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	25 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	25 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	25 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	25 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE	25 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	MATTE TIN	TIN LEAD	TIN LEAD	MATTE TIN	MATTE TIN	TIN LEAD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e0	e0	e3	e3	e0
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	HM2	HM2	HM2	HM2	HM2	HM2
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	6	6	6	6	6	6
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	150	150	150	150	150	150
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	-
