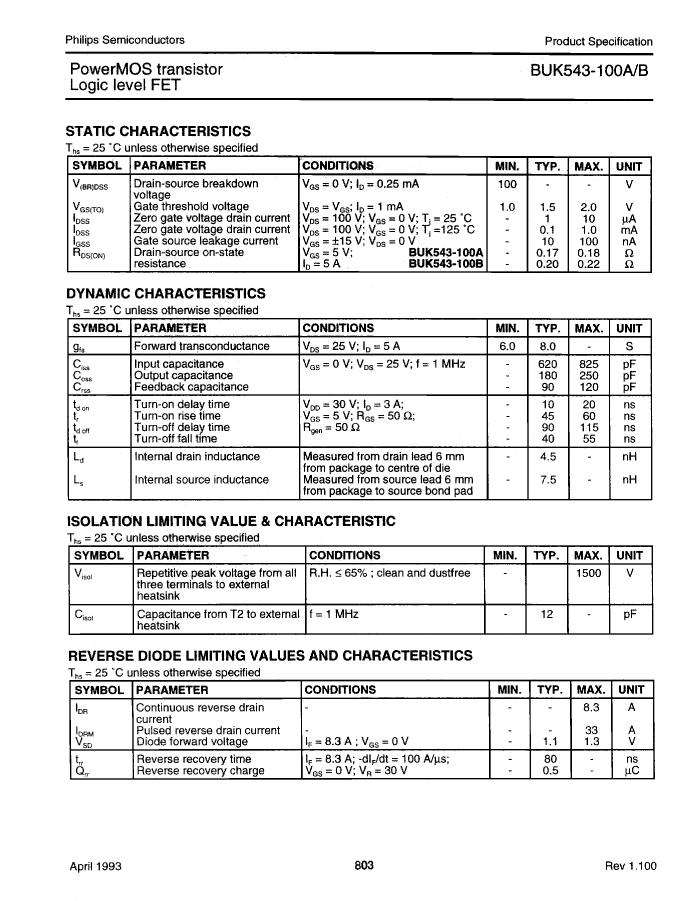

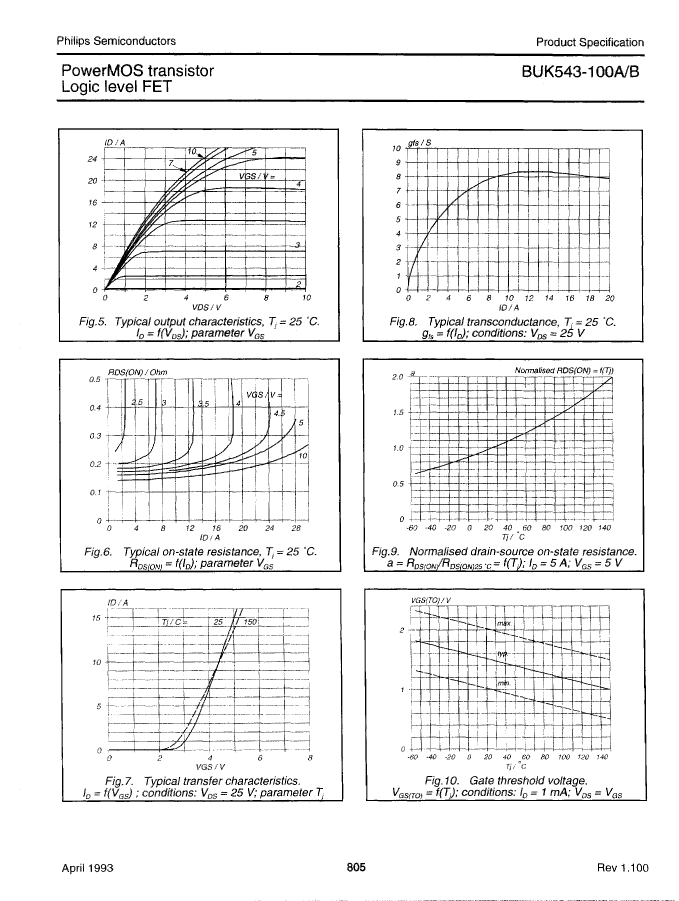

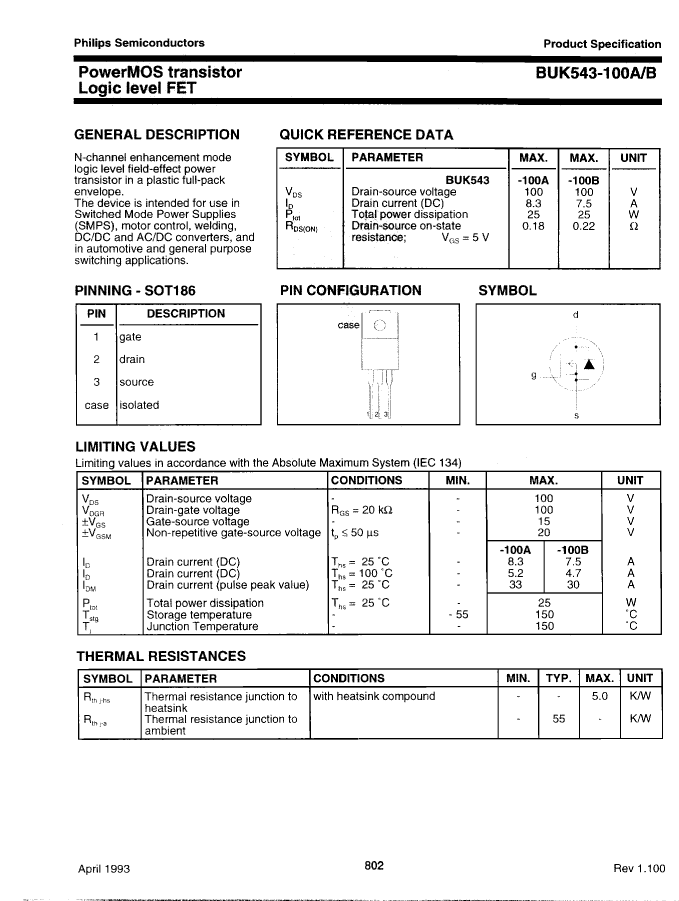

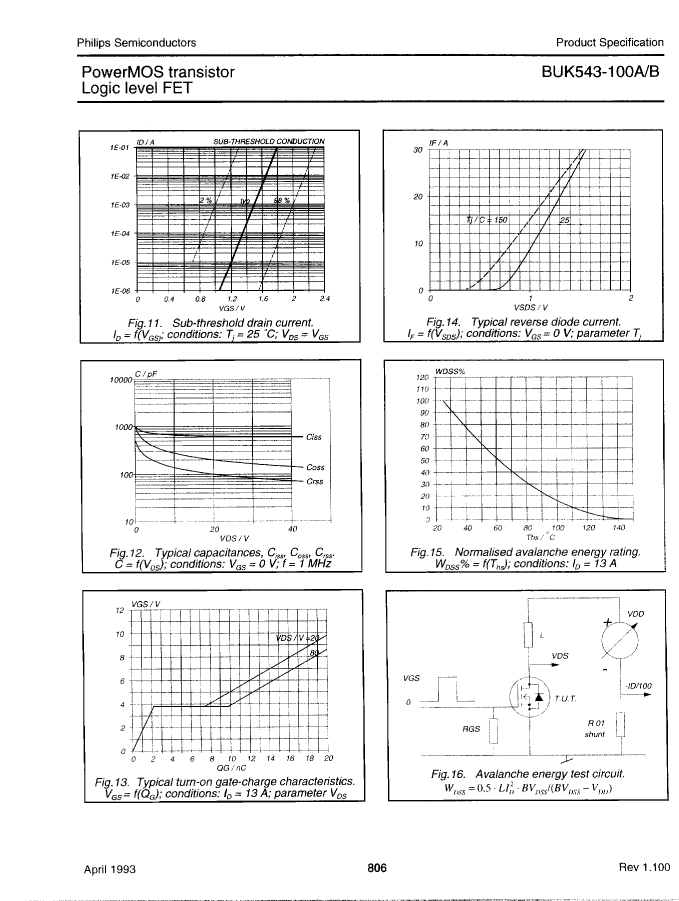

7.5A, 100V, 0.22ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, TO-220, 3 PIN

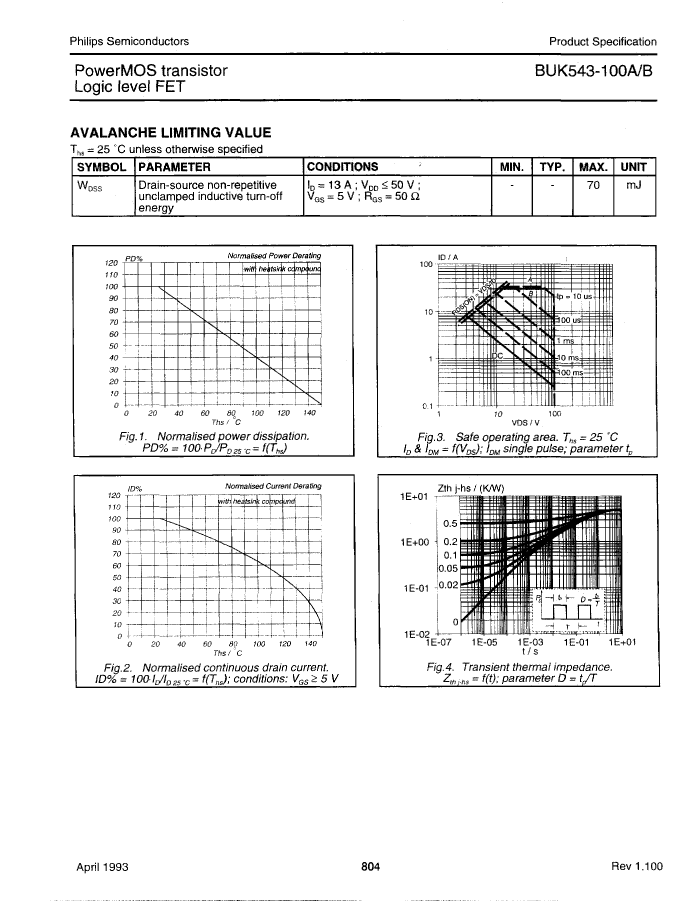

| Parameter Name | Attribute value |
| Maker | NXP |
| package instruction | FLANGE MOUNT, R-PSFM-T3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | LOGIC LEVEL COMPATIBLE |
| Avalanche Energy Efficiency Rating (Eas) | 70 mJ |
| Shell connection | ISOLATED |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| Minimum drain-source breakdown voltage | 100 V |
| Maximum drain current (ID) | 7.5 A |
| Maximum drain-source on-resistance | 0.22 Ω |
| FET technology | METAL-OXIDE SEMICONDUCTOR |
| JEDEC-95 code | TO-220AB |
| JESD-30 code | R-PSFM-T3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Operating mode | ENHANCEMENT MODE |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Polarity/channel type | N-CHANNEL |
| Maximum pulsed drain current (IDM) | 30 A |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| BUK543-100B,127 | BUK543-100B127 | BUK543-100A | BUK543-100A,127 | BUK543-100A127 | BUK543-100B | |
|---|---|---|---|---|---|---|
| Description | 7.5A, 100V, 0.22ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, TO-220, 3 PIN | TRANSISTOR 7.5 A, 100 V, 0.22 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, TO-220, 3 PIN, FET General Purpose Power | TRANSISTOR 8.3 A, 100 V, 0.18 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, PLASTIC, FULL PACK-3, FET General Purpose Power | 8.3A, 100V, 0.18ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, TO-220, 3 PIN | TRANSISTOR 8.3 A, 100 V, 0.18 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, TO-220, 3 PIN, FET General Purpose Power | TRANSISTOR 7.5 A, 100 V, 0.22 ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, PLASTIC, FULL PACK-3, FET General Purpose Power |
| Maker | NXP | NXP | NXP | NXP | NXP | NXP |
| package instruction | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | LOGIC LEVEL COMPATIBLE | LOGIC LEVEL COMPATIBLE | LOGIC LEVEL COMPATIBLE | LOGIC LEVEL COMPATIBLE | LOGIC LEVEL COMPATIBLE | LOGIC LEVEL COMPATIBLE |
| Avalanche Energy Efficiency Rating (Eas) | 70 mJ | 70 mJ | 70 mJ | 70 mJ | 70 mJ | 70 mJ |
| Shell connection | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED |
| Configuration | SINGLE WITH BUILT-IN DIODE | SINGLE WITH BUILT-IN DIODE | SINGLE WITH BUILT-IN DIODE | SINGLE WITH BUILT-IN DIODE | SINGLE WITH BUILT-IN DIODE | SINGLE WITH BUILT-IN DIODE |
| Minimum drain-source breakdown voltage | 100 V | 100 V | 100 V | 100 V | 100 V | 100 V |
| Maximum drain current (ID) | 7.5 A | 7.5 A | 8.3 A | 8.3 A | 8.3 A | 7.5 A |
| Maximum drain-source on-resistance | 0.22 Ω | 0.22 Ω | 0.18 Ω | 0.18 Ω | 0.18 Ω | 0.22 Ω |
| FET technology | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR |
| JEDEC-95 code | TO-220AB | TO-220AB | TO-220AB | TO-220AB | TO-220AB | TO-220AB |
| JESD-30 code | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 |
| Operating mode | ENHANCEMENT MODE | ENHANCEMENT MODE | ENHANCEMENT MODE | ENHANCEMENT MODE | ENHANCEMENT MODE | ENHANCEMENT MODE |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Polarity/channel type | N-CHANNEL | N-CHANNEL | N-CHANNEL | N-CHANNEL | N-CHANNEL | N-CHANNEL |
| Maximum pulsed drain current (IDM) | 30 A | 30 A | 33 A | 33 A | 33 A | 30 A |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO | NO |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| transistor applications | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Parts packaging code | - | TO-220AB | TO-220AB | - | TO-220AB | TO-220AB |
| Contacts | - | 3 | 3 | - | 3 | 3 |
