Part Number

Search

L7952ABV

Description
IC,VOLT REGULATOR,FIXED,-5.2V,BIPOLAR,SIP,3PIN,PLASTIC
CategoryPower/power management    The power supply circuit
File Size265KB,8 Pages
ManufacturerSTMicroelectronics
Websitehttp://www.st.com/
Download Datasheet Parametric Compare View All

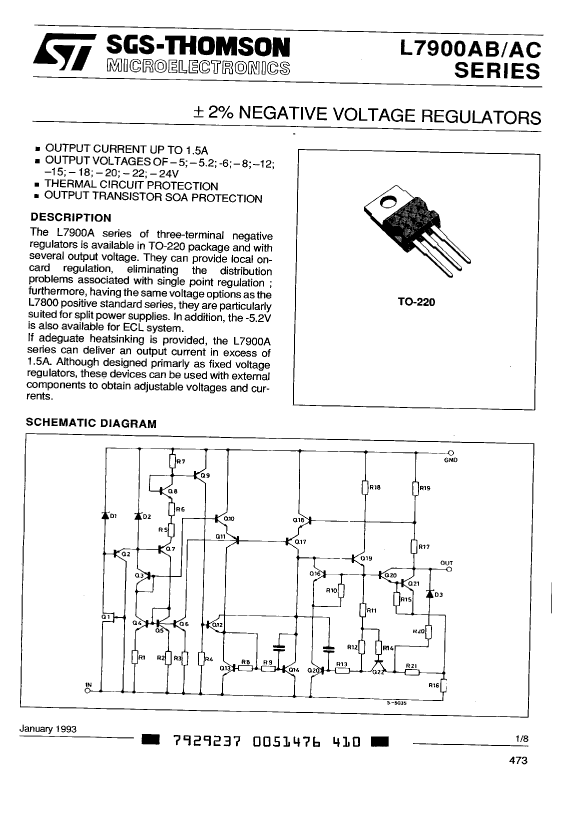

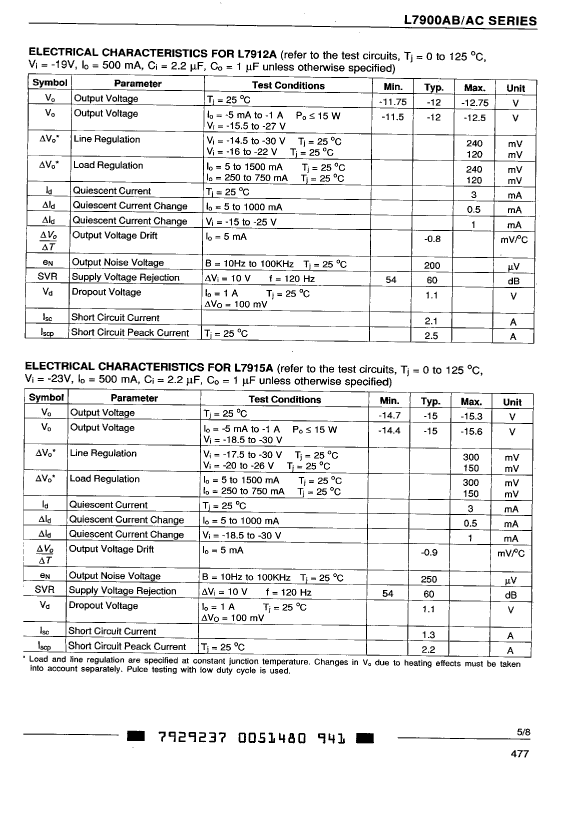

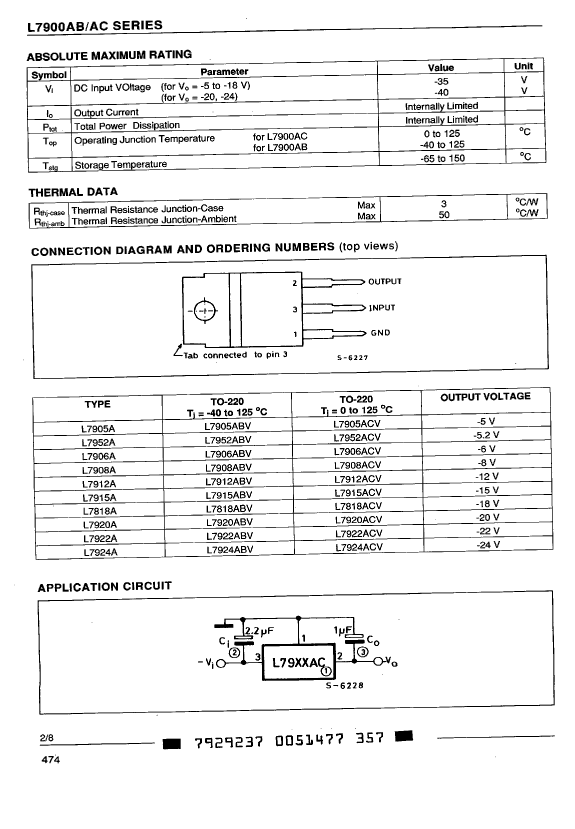

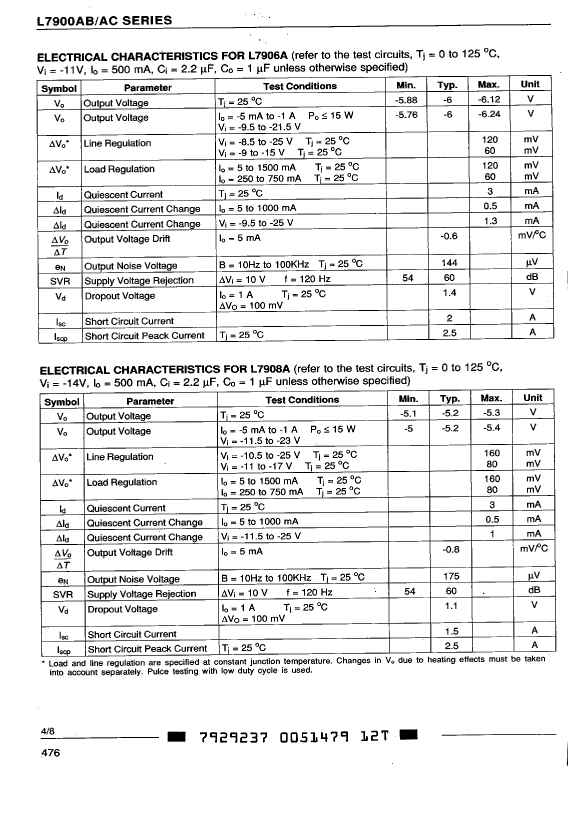

L7952ABV Overview

IC,VOLT REGULATOR,FIXED,-5.2V,BIPOLAR,SIP,3PIN,PLASTIC

L7952ABV Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerSTMicroelectronics
package instruction, SIP3,.1TB
Reach Compliance Codenot_compliant
AdjustabilityFIXED
Nominal dropback voltage 11.4 V
Maximum absolute input voltage35 V
JESD-609 codee0
Maximum grid adjustment rate0.105%
Maximum load regulation0.105%
Output times1
Number of terminals3
Working temperatureTJ-Max125 °C
Working temperature TJ-Min-40 °C
Maximum output current 11.5 A
Nominal output voltage 1-5.2 V
Package body materialPLASTIC/EPOXY
Encapsulate equivalent codeSIP3,.1TB
Certification statusNot Qualified
surface mountNO
technologyBIPOLAR
Terminal surfaceTin/Lead (Sn/Pb)
Terminal pitch2.54 mm
Terminal locationSINGLE
Maximum voltage tolerance3.8%
Powered by ICminer.com Electronic-Library Service CopyRight 2003

L7952ABV Related Products

L7952ABV L7920ABV L7905ABV L7912ABV L7922ABV L7924ABV L7908ABV L7906ABV L7915ABV L7918ABV
Description IC,VOLT REGULATOR,FIXED,-5.2V,BIPOLAR,SIP,3PIN,PLASTIC L7920ABV, T220-3 L7905ABV, T220-3 L7912ABV, PSFM-3 IC,VOLT REGULATOR,FIXED,-22V,BIPOLAR,SIP,3PIN,PLASTIC L7924ABV, T220-3 L7908ABV, T220-3 L7906ABV, T220-3 L7915ABV, T220-3 L7918ABV, T220-3
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Reach Compliance Code not_compliant not_compliant not_compliant not_compliant not_compliant not_compliant not_compliant not_compliant not_compliant not_compliant
Adjustability FIXED FIXED FIXED FIXED FIXED FIXED FIXED FIXED FIXED FIXED
Nominal dropback voltage 1 1.4 V 1.1 V 1.4 V 1.1 V 1.1 V 1.1 V 1.1 V 1.1 V 1.1 V 1.1 V
Maximum absolute input voltage 35 V 40 V 35 V 35 V 40 V 40 V 35 V 35 V 35 V 35 V
JESD-609 code e0 e0 e0 e0 e0 e0 e0 e0 e0 e0
Maximum grid adjustment rate 0.105% 0.4% 0.1% 0.24% 0.44% 0.48% 0.16% 0.12% 0.3% 0.36%
Maximum load regulation 0.105% 0.4% 0.1% 0.24% 0.44% 0.48% 0.16% 0.12% 0.3% 0.36%
Output times 1 1 1 1 1 1 1 1 1 1
Number of terminals 3 3 3 3 3 3 3 3 3 3
Maximum output current 1 1.5 A 1.5 A 1.5 A 1.5 A 1.5 A 1.5 A 1.5 A 1.5 A 1.5 A 1.5 A
Nominal output voltage 1 -5.2 V -20 V -5 V -12 V -22 V -24 V -8 V -6 V -15 V -18 V
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Encapsulate equivalent code SIP3,.1TB SIP3,.1TB SIP3,.1TB SIP3,.1TB SIP3,.1TB SIP3,.1TB SIP3,.1TB SIP3,.1TB SIP3,.1TB SIP3,.1TB
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
surface mount NO NO NO NO NO NO NO NO NO NO
technology BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Terminal location SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Maximum voltage tolerance 3.8% 4% 4% 4.2% 4% 4.2% 3.8% 4% 4% 3.9%
Maker STMicroelectronics STMicroelectronics - - - - STMicroelectronics STMicroelectronics STMicroelectronics STMicroelectronics
package instruction , SIP3,.1TB T220-3 , SIP3,.1TB , SIP3,.1TB - T220-3 , SIP3,.1TB T220-3 , SIP3,.1TB T220-3
Working temperatureTJ-Max 125 °C 125 °C 125 °C 125 °C - 125 °C 125 °C 125 °C 125 °C 125 °C
Working temperature TJ-Min -40 °C -40 °C -40 °C -40 °C - -40 °C -40 °C -40 °C -40 °C -40 °C
