SNGD20620A datasheet, PDF - EEWORLD Datasheet

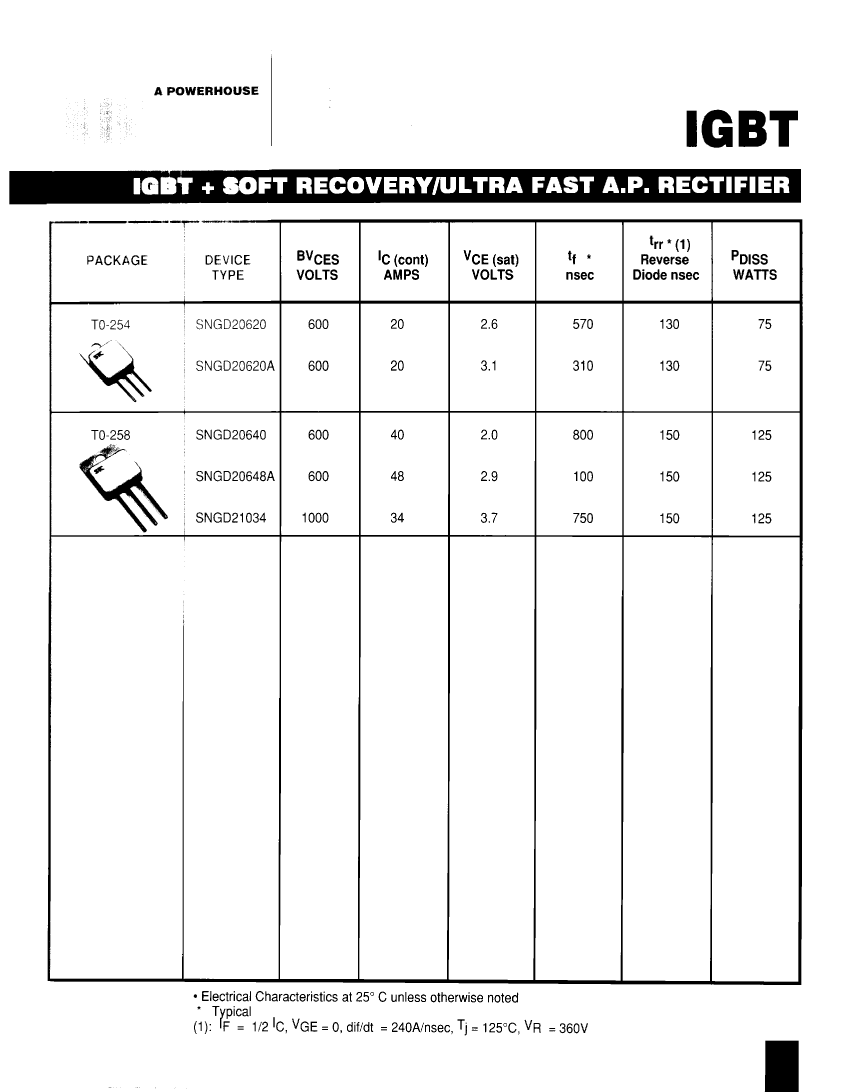

SNGD20620A: DescriptionInsulated Gate Bipolar Transistor, 20A I(C), 600V V(BR)CES, N-Channel, TO-254AA, TO-254, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size21KB，1 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

SNGD20620A Overview

Insulated Gate Bipolar Transistor, 20A I(C), 600V V(BR)CES, N-Channel, TO-254AA, TO-254, 3 PIN

Parameter Name	Attribute value
Maker	Microsemi
Parts packaging code	TO-254AA
package instruction	FLANGE MOUNT, S-MSFM-P3
Contacts	3
Reach Compliance Code	compliant
Maximum collector current (IC)	20 A
Collector-emitter maximum voltage	600 V
Configuration	SINGLE WITH BUILT-IN DIODE
JEDEC-95 code	TO-254AA
JESD-30 code	S-MSFM-P3
Number of components	1
Number of terminals	3
Package body material	METAL
Package shape	SQUARE
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	NO
Terminal form	PIN/PEG
Terminal location	SINGLE
Transistor component materials	SILICON

	SNGD20620A	SNGD20640	SNGD20620	SNGD20648A
Description	Insulated Gate Bipolar Transistor, 20A I(C), 600V V(BR)CES, N-Channel, TO-254AA, TO-254, 3 PIN	Insulated Gate Bipolar Transistor, 40A I(C), 600V V(BR)CES, N-Channel, TO-258AA, TO-258, 3 PIN	Insulated Gate Bipolar Transistor, 20A I(C), 600V V(BR)CES, N-Channel, TO-254AA, TO-254, 3 PIN	Insulated Gate Bipolar Transistor, 48A I(C), 600V V(BR)CES, N-Channel, TO-258AA, TO-258, 3 PIN
Parts packaging code	TO-254AA	TO-258AA	TO-254AA	TO-258AA
package instruction	FLANGE MOUNT, S-MSFM-P3	FLANGE MOUNT, R-MSFM-P3	FLANGE MOUNT, S-MSFM-P3	FLANGE MOUNT, R-MSFM-P3
Contacts	3	3	3	3
Reach Compliance Code	compliant	compliant	compliant	compliant
Maximum collector current (IC)	20 A	40 A	20 A	48 A
Collector-emitter maximum voltage	600 V	600 V	600 V	600 V
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
JEDEC-95 code	TO-254AA	TO-258AA	TO-254AA	TO-258AA
JESD-30 code	S-MSFM-P3	R-MSFM-P3	S-MSFM-P3	R-MSFM-P3
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Package body material	METAL	METAL	METAL	METAL
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Transistor component materials	SILICON	SILICON	SILICON	SILICON
