SCPU-10-G-03.00-BMS-AMS datasheet, PDF

Datasheet> All Categories > The connector> The connector> SCPU-10-G-03.00-BMS-AMS

SCPU-10-G-03.00-BMS-AMS: DescriptionInterconnection Device, ROHS COMPLIANT; CategoryThe connector The connector; File Size810KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SCPU-10-G-03.00-BMS-AMS Overview

Interconnection Device, ROHS COMPLIANT

SCPU-10-G-03.00-BMS-AMS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Connector type	INTERCONNECTION DEVICE

Preview

Download Datasheet

View All

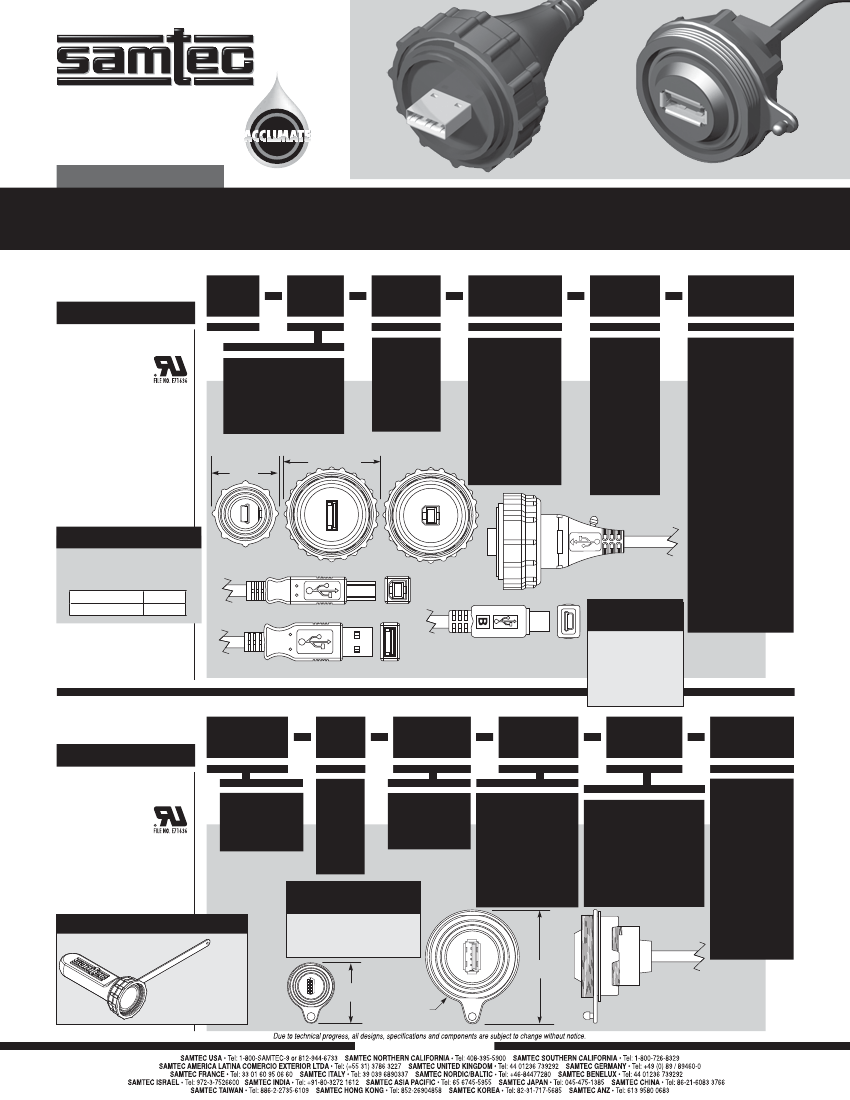

F-213-1 SUPPLEMENT

SCPU, SCRUS SERIES

SCPU–17–G–03.00–AMS–BMS

SCRUS–17–G–00.25–AMS–BC

IP68 USB & MINI USB SOCKETS & PLUGS

Mates with:

SCRUS

SCPU

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?SCPU

Insulator Material:

Glass Filled

Thermoplastic

Contact Material:

Copper Alloy

Shield Material:

CRS

Wire:

20 AWG (Power),

25 AWG (Signal),

28 AWG (Drain)

Sealed Overmold:

PA66 GF13 FR

Operating Temp Range:

-20°C to +75°C

RoHS Compliant:

Yes

SHELL

SIZE

PLATING

WIRE

LENGTH

END 1

OPTION

END 2

OPTION

–G

–17

(Standard USB only)

= 30µ"

(0,76 µm)

Gold on

Contact,

Nickel on

Shell

–02.00

= (2 m) 79" Cable

–AMS

= USB A Type,

Sealed

–AMS

= USB A Type, Sealed

= USB B Type, Sealed

(-17 only)

–03.00

= (3 m) 118" Cable

–10

(Mini USB only)

(42,00) 1.65

–BMS

= USB B Type,

Sealed

–BMS

–MBS

–AM

–BM

–05.00

= (5 m) 197" Cable

(Assembled Length

= Wire Length

+ (19,5 mm) .77")

–MBS

= Mini USB B

Type, Sealed

(–10 only)

(28,00)

1.102

= Mini USB B Type,

Sealed

(–10 only)

= USB A Type,

Not Sealed

ALSO AVAILABLE

Other wire lengths.

Dust Cap: DCA-17-02

Contact Samtec.

APPLICATION SERIES

ETHERNET

SCPE

–MBS

–AMS

–BMS

= USB B Type,

Not Sealed

(-17 only)

–BM

ALSO

AVAILABLE

–MB

= Mini USB B Type,

Not Sealed

(-10 only)

–MB

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

–AM

Dust Caps:

DCA-17-01

DCA-10-01

Panel Plug:

SCPPA-17-01

Mates with:

SCPU

TYPE

SHELL

SIZE

PLATING

SPECIFICATIONS

For complete speciﬁcations and

recommended panel hole layout

see www.samtec.com?SCRUS

Insulator Material:

PBT

Contact Material:

Phosphor Bronze

Wire:

20 AWG (Power),

25 AWG (Signal),

28 AWG (Drain)

O-Ring:

Silicone

Operating Temp Range:

-20°C to +75°C

RoHS Compliant:

Yes

USB Flash Drive Cover:

DCA–17–03

WIRE

LENGTH

END 1

OPTION

END 2

OPTION

SCRUS

= Sealed Circular

USB Receptacle

Cable Assembly

–17

(Standard

USB only)

–G

= 30µ" (0,76 µm)

Gold on Contact,

Nickel on Shell

–00.25

= (0,25 m) 9.84" Cable

–AM

–AMS

= USB A Type, Sealed

= USB A Type,

Not Sealed

–10

(Mini

USB only)

–00.50

= (0,50 m) 19.68" Cable

(Assembled Length

= Wire Length

+ (37,9 mm) 1.50")

Note:

Some lengths,

styles and options are

non-standard,

non-returnable.

APPLICATION

–BMS

= USB B Type, Sealed

–BM

= USB B Type,

Not Sealed

–MBS

= Mini USB B Type, Sealed

–MB

= Mini USB B

Type, Not Sealed

SPECIFIC

SCRU Series: termination

for standard USB cable

from panel to board

ALSO AVAILABLE

–BC

= Blunt Cut

(48,45)

1.907

Device dimensions:

80,00mm x 13,30mm x

20,25mm max.

–MBS

(31,80)

1.252

(39,50)

1.55

DIA

–AMS

WWW.SAMTEC.COM
