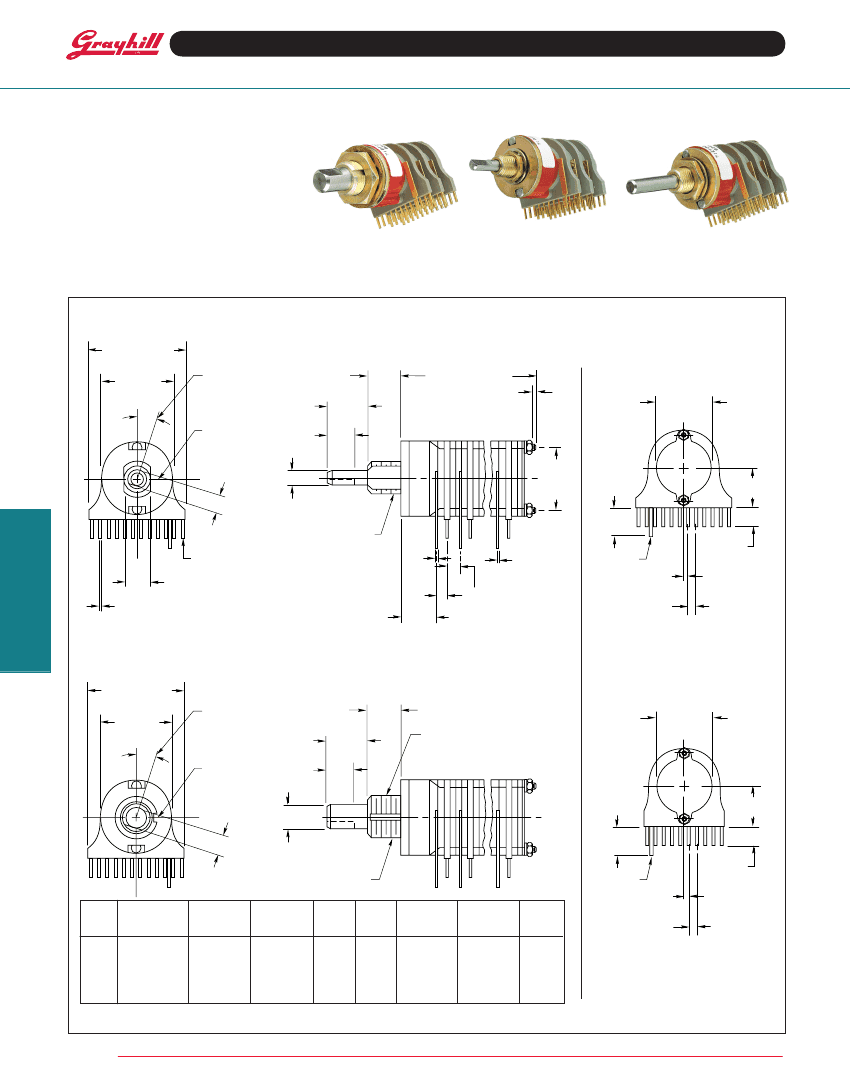

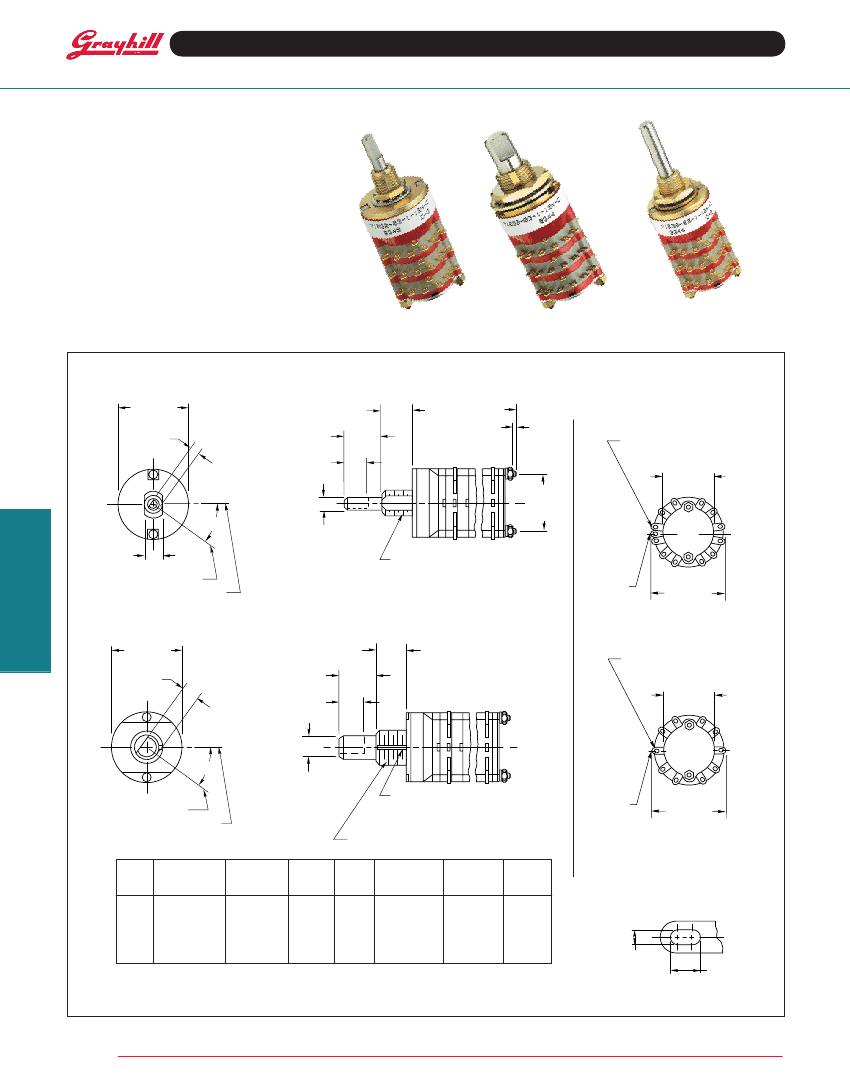

Multi-Deck Rotary Switches
SERIES 71
.5-.75" Diameter, 1/4 Amp
FEAtuRES
• Performance and Value Leader
• Molded-In Position Terminals
• Choice of Shaft/Bushing Diameters
• 30° and 36° Angles of Throw
• Military Qualified MIL-DTL-3786/39
DIMENSIONS: Standard and Military
in inches (and millimeters)
0.125" Diameter Shaft–Styles A and MA (and sealed versions)
.687 ± .015
(17,45 ± 0,38)
DIA.
.094 ± .010
(2,39 ± 0,25)
.312 ± .020
(7,92 ± 0,51)
.375 ± .020
(9,53 ± 0,51)
.250 ± .020
(6,35 ± 0,51)
SEE
CHART
C
.203 ± .005
(5,16 ± 0,13)
C
OF POSITION NO. 1
L
C
OF BUSHING FLATS
L
DIM. A ± .046 (1,17)
DIM. B REF.
STUD PROJECTION
(SEE CHARACTER-
ISTICS)
Rear Views–Style A, B, MA, MB
(and sealed versions)
30° and 36° Angle of Throw may be
interposed on either shaft diameter.
30° Angle of throw
SEE DETAIL
.500 ± .015
(12,7 ± 0,38)
DIA.
.562
± .015
(14,27
± 0,38)
GRAyHILL
10
9
8
1
12
1
1
7
1/4 32UNEF-2A THREAD
SEE NOTE
0.250" Diameter Shaft–Styles B and MB (and sealed versions)
.687 ± .015
(17,45 ± 0,38)
DIA.
.219 ± .004
(5,56 ± 0,10)
.312 ± .020
(7,92 ± 0,51)
.375 ± .020
(9,53 ± 0,51)
.250 ± .020
(6,35 ± 0,51)
SEE
CHART
C
.250 + .001
–.002 DIA.
(6,36 + 0,25
–0,05)
BUSHING KEyWAy
.066 ± .002 (1,68 ± 0,05) WIDE By
.036 ± .003 (0,91 ± 0,08) DEEP
FROM A .375 (9,53) DIA.
3/8-32UNEF-2A THREAD
No. of
Decks
1
2
3
4
5
6
Dimension
A
.761 (19,33)
.979 (24,87)
1.197 (30,40)
1.415 (35,94)
1.633 (41,48)
2.131 (54,13)
Approx.
Weight
Grams
14
16
18
20
22
24
Approx.
Weight
Grams
26
28
30
32
34
36
All dimensions not shown
are the same as above.
.750 ± .020
(19,05 ± 0,51)
OVER TERMINALS
36° Angle of throw
SEE DETAIL
.500 ± .015
(12,7 ± 0,38)
DIA.
8
7
GRAyHILL
10
9
1
C
OF POSITION NO. 1
L
C
OF BUSHING KEyWAy
L
SEE NOTE
.750 ± .020
(19,05 ± 0,51)
OVER TERMINALS
Dimension
B
.031 (0,79)
.031 (0,79)
.031 (0,79)
.031 (0,79)
.031 (0,79)
.312 (7,92)
No. of
Decks
7
8
9
10
11
12
Dimension
A
2.349 (59,66)
2.567 (65,20)
2.785 (70,74)
3.003 (76,28)
3.221 (81,81)
3.439 (87,35)
Dimension
B
.312 (7,92)
.312 (7,92)
.312 (7,92)
.312 (7,92)
.312 (7,92)
.312 (7,92)
Note:
Common location for a single pole per
deck switch. For common location on
multipole switches see circuit diagrams.
terminal Detail
Angle C is 15° in 12 position switches and 36 ° in 10 position switches.
Grayhill part number and date code marked on detent cover label. Customer part
number marked on request. Military part number marked when required.
.034 ± .003
(0,86 ± 0,08)
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois
60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
5
3
4
2
3
.125 + .001
–.002 DIA.
(3,18 + 0,25
–0,05)
6
2
Rotary Switches
6
5
4
.068 ± .005
(1,73 ± 0,13)

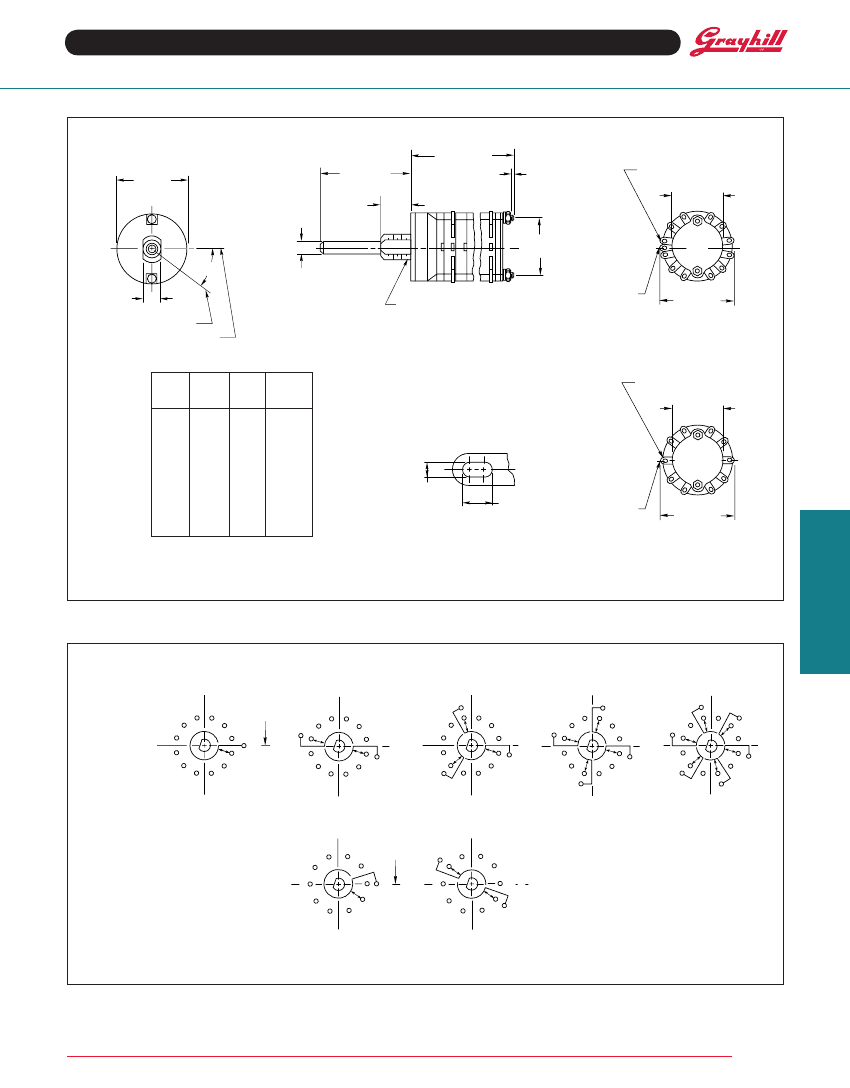

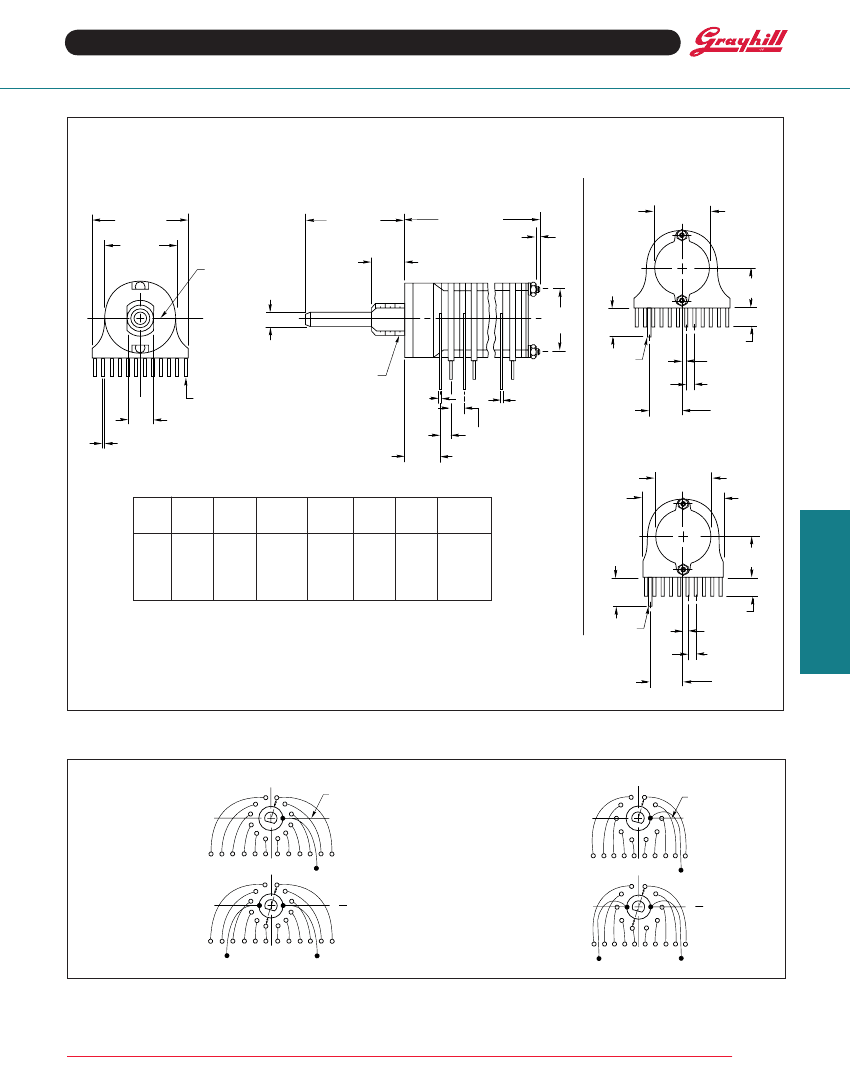

Multi-Deck Rotary Switches
DIMENSIONS: Metric
All dimensions are in millimeters
4mm Diameter Shaft–Style E and ES
DIM. A ± 1,2
Ø 17,45
± 0,4
25,00 ± 0,5
8,00
± 0,3
SEE
CHART
C
6,00 + 0,00
–0,08
C
OF POSITION NO. 1
L
C
OF BUSHING FLATS
L
DIM. B REF.
STUD PROJECTION
(SEE CHARACTER-
ISTICS)
Rear Views
30° Angle of throw
SEE DETAIL
Ø 12,70
± 0,4
9
GRAyHILL
10
8
Ø 4,00 ± 0,03
SEE NOTE
M7,0 X 0,75 THREAD
19,05 ± 0,5
OVER TERMINALS
36° Angle of throw
No. of
Decks
1
2
3
4
5
6
7
8
9
10
11
12
Dim.
A
19,33
24,87
30,40
35,94
41,48
54,13
59,66
65,20
70,74
76,28
81,81
87,35
Dim.
B
0,79
0,79
0,79
0,79
0,79
7,92
7,92
7,92
7,92
7,92
7,92
7,92
Approx.
Weight
Grams
12
14
16
18
20
22
24
26
28
30
32
34
SEE DETAIL
Ø 12,70
± 0,4
terminal Detail
8
7
GRAyHILL
10
9
1
.034 ± .003
(0,86 ± 0,08)
.068 ± .005
(1,73 ± 0,13)
SEE NOTE
19,05 ± 0,5
OVER TERMINALS
Angle C is 15° in 12 position switches and
36° in 10 position switches.
Note:
Common location for a single pole per
deck switch. For common location on
multipole switches see circuit diagrams.
Grayhill part number and date code marked on detent cover label. Customer part number marked on request.
CIRCuIt DIAGRAMS: Standard, Military and Metric
Switch is Viewed From Shaft End and Shown in Position No. 1.
Note: All common terminals are located above base terminals as shown.
C
OF
L
BUSHING
11 KEyWAy
12
C1
6
5
4
3
2
1
6
5
4
3
2
C2 7
8
9
10
8
9
10
11
12
C
L
1 C1
7
6
5
8
C3
9
10
11
C
L
1 C1
12
C3
7
6
8
9
C4
10 11
12
C
L
1 C1
C4
7
6
C3
5
8
C5
9 10
30° Angle
of throw
7
C2
4
3
2
5
4
C2
3
2
4
ONE POLE
TWO POLE
C
OF
L
BUSHING
KEyWAy
9
10
4
3
2
1
C1
THREE POLE
FOUR POLE
FIVE OR SIX POLE
7
6
8
C2
7
6
8
9
10
C
L
36° Angle
of throw
5
5
4
3
2
1
C1
ONE POLE
TWO POLE
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois
60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
5
14,27
± 0,4
1
12
1
1
7
6
2
3
4
2
3
6
3
C2
5
4
Rotary Switches
C6
11
12
1
2
C
L
C1
Multi-Deck Rotary Switches
SERIES 71
.5-.75" Diameter, 1/4 Amp, PC Mount
FEAtuRES
• Terminals From One Side
• Minimum Board Footprint
• Choice of Shaft/Bushing Diameters
• 30° and 36° Angles of Throw
• Military Qualified MIL-DTL-3786/39
DIMENSIONS: Standard and Military
in inches (and millimeters)
0.125" Diameter Shaft: Styles AF and MAF (and sealed versions)
.875 (30°)
.725 (36°) ± .015
(22,23, 18,42
± 0,38)
.687 ± .015
(17,45 ± 0,38)
DIA.
SEE
CHART
C
C
OF
L
BUSHING
FLATS
C
L
.125 – .002 + .001
(3,18 – 0,05 + 0,03)
DIA.
1/4-32 UNEF-2A
THREAD
.015
± .002
(0,38
± 0,05)
.412 ± .010
(10,46 ± 0,25)
TyP.
C
L
C
L
SEE NOTE
BELOW
C
L
.110 ± .010
(2,79 ± 0,25)
TyP.
Military Qualified style MAF
includes a spacer deck between decks
2 and 3. See dimension chart.
SHAFT
SHOWN
IN POSITION
ONE
.312 ± .020
(7,92 ± 0,51)
.375 ± .020
(9,53 ± 0,51)
.250 ± .020
(6,35 ± 0,51)
DIM. A ± .046 (1,17)
DIM. B REF.
STUD PROJECTION
(SEE CHARACTER-
ISTICS)
Rear Views: Styles AF, BF, MAF, MBF
(and sealed versions)
30° and 36° Angle of Throw may be
interposed on either shaft diameter.
30° Angle of throw
.500 ± .015
(12,7 ± 0,38)
DIA.
GRAyHILL
2
1
12
11
10
9
.094 ± .010
(2,39 ± 0,25)
TERMINAL
NO. 1
.203 ± .005
(5,16 ± 0,13)
.020 ± .003
(0,51 ± 0,08)
TyP.
SEE
NOTE
.075 ± .005
(1,91 ± 0,13)
TyP.
CC
L L
0.250" Diameter Shaft: Styles BF and MBF (and sealed versions)
.875 (30°)
.725 (36°) ± .015
(22,23, 18,42
± 0,38)
.687 ± .015
(17,45 ± 0,38)
DIA.
SEE
CHART
C
Military Qualified style MBF
includes a spacer deck between decks
2 and 3. See dimension chart.
36° Angle of throw
.500 ± .015
(12,7 ± 0,38)
DIA.
.312 ± .020
SHAFT
(7,92 ± 0,51)
SHOWN
IN POSITION
.375 ± .020
ONE
(9,53 ± 0,51)
C
OF
L
BUSHING
KEyWAy
.250 ± .020
(6,35 ± 0,51)
All dimensions not shown
are the same as above.
BUSHING KEyWAy .066 ± .002
(1,68 ± 0,05) WIDE By .036 ± .003
(0,91 ± 0,08) DEEP FROM A
.375 (9,53) DIA.
.156 ± .010
(3,96 ± 0,25)
TyP.
1
GRAyHILL
10
2
3
4
.219 ± .004
(5,56 ± 0,10)
No. of
Decks
1
2
3
4
5
6
Dimension A
Standard
Style
.761 (19,33)
.979 (24,87)
1.197 (30,40)
1.415 (35,94)
1.633 (41,48)
2.131 (54,13)
Dimension A
Military
Style
.761 (19,33)
.979 (24,87)
1.415 (35,94)
1.633 (41,49)
N.A.
N.A.
.250 – .002 + .001
(6,35 – 0,05 + 0,03)
DIA.
3/8 32UNEF-2A
THREAD
Dimension B
All
Styles
.031 (0,79)
.031 (0,79)
.031 (0,79)
.031 (0,79)
.031 (0,79)
.312 (7,92)
Approx.
Weight
Grams
12
14
16*
18*
20
22
No. of
Decks
7
8
9
10
11
12
Dimension A
Standard
Style
2.349 (59,66)
2.567 (65,20)
2.785 (70,74)
3.003 (76,28)
3.221 (81,81)
3.439 (87,35)
Dimension B
Standard
Style
.312 (7,92)
.312 (7,92)
.312 (7,92)
.312 (7,92)
.312 (7,92)
.312 (7,92)
Approx.
Weight
Grams
24
26
28
30
32
34
SEE
NOTE
.075 ± .005
(1,91 ± 0,13)
TyP.
CC
L L
Note:
Common location for a single pole per
deck switch. For common location on
two pole switches see circuit diagrams.
Angle C is 15° in 12 position switches and 18° in 10 position switches.
*Military style switch is 18 grams for 3 decks and 20 grams for 4 decks.
Grayhill part number and date code marked on detent cover label. Customer part
number marked on request. Military part number marked when required.
See pages F-39 through F-44 for specifications,
accessories and ordering information.
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois
60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
8
6
7
6
.562
± .015
(14,27
± 0,38)
.156 ± .010
(3,96 ± 0,25)
TyP.
4
3
.368 (9,35)
REF.
5
.125 ± .010
(3,18 ± 0,25)
TyP.
.037 ± .005
(0,94 ± 0,13)
TyP.
5
Rotary Switches
9
.125 ± .010
(3,18 ± 0,25)
TyP.
.037 ± .005
(0,94 ± 0,13)
TyP.
8
7
.368 (9,35)
REF.
Multi-Deck Rotary Switches
DIMENSIONS: Metric
All dimensions are in millimeters
4mm Diameter Shaft: Style EF and ESF
Rear Views
30° and 36° Angle of Throw may be
interposed on either shaft diameter.
30° Angle of throw
22,23 – 0,4
17,45
– 0,4
C
OF
L
BUSHING
FLATS
25,00 – 0,51
DIM. A – 1,17
DIM. B REF.
STUD PROJECTION
(SEE CHARACTER-
ISTICS)
Ø 12,7
± 0,38
8,00 – 0,3
GRAyHILL
2
4
3
1
12
11
10
9
14,27
– 0,38
4,00 – 0,03
M7 X 0,75
THREAD
TERMINAL
NO. 1
6,00 + 0,00 0,08
0,51 – 0,08 TyP.
10,46 – 0,25
C
L
.0,38
– 0,03
TyP.
C
L
SEE NOTE
BELOW
C
L
2,79 – 0,25
TyP.
SEE
NOTE
CC
L L
C
L
C
L
36° Angle of throw
Ø 12,7
± 0,38
GRAyHILL
No. of
Decks
1
2
3
4
5
6
Dim.
A
19,33
24,87
30,40
35,94
41,48
54,13
Dim.
B
0,79
0,79
0,79
0,79
0,79
7,92
Approx.
Weight
Grams
12
14
16
18
20
22
No. of
Decks
7
8
9
10
11
12
Dim.
A
59,66
65,20
70,74
76,28
81,81
87,35
Dim.
B
7,92
7,92
7,92
7,92
7,92
7,92
Approx.
Weight
Grams
24
26
28
30
32
34
18,42
± 0,04
2
1
10
3
Note:
Common location for a single pole per
deck switch. For common location on
two pole switches see circuit diagrams.
SEE
NOTE
Grayhill part number and date code marked on detent cover label. Customer part number marked on request.
C
L
3,18 ± 0,25
TyP.
0,94 ± 0,13
TyP.
1,91 ± 0,13
TyP.
CC
L L
7,62 ± 0,25
C
L
CIRCuIt DIAGRAMS: Standard, Military and Metric PC Mount
Circuit is Viewed From Shaft End and Shown in Position No. 1
ONE POLE
C
OF BUSHING
L
KEyWAy OR
FLATS
ONE POLE
C
OF BUSHING
L
KEyWAy OR
FLATS
30° Angle
of throw
12 11 10 9 8 7 6 5 4 3 2 1
C1
TWO POLE
C
L
36° Angle
of throw
TWO POLE
10 9 8 7 6 5 4 3 2 1
C1
C
L
12 11 10 9 8 7 6 5 4 3 2 1
C2
C1
10 9 8 7 6 5 4 3 2 1
C2
C1
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois
60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
6
5
3,96 ± 0,25
TyP.
4
8
7
6
3,96 ± 0,25
TyP.
9,35
REF.
5
3,18 ± 0,25
TyP.
0,94 ± 0,13
TyP.
1,91 ± 0,13
TyP.
7,62 ± 0,25
9
8
7
9,35
REF.
Rotary Switches
Multi-Deck Rotary Switches
SERIES 71: PC Board Pattern
in inches (and millimeters)
All Styles Except 71Bt
30° Angle of throw
COMMON TERMINAL HOLE
LOCATION (SEE CHART)
.075
(1,91)
TyP.
.300
(7,62)
TyP.
.037 (0,94)
A
.110 (2,79 )TyP.
B
36° Angle of throw
COMMON TERMINAL HOLE
LOCATION (SEE CHART)
.075
(1,91)
TyP.
.300
(7,62)
TyP.
.037 (0,94)
A
.110 (2,79 )TyP.
B
SHAFT END
OF SWITCH
.110 TyP.
(2,79 )
C
OF COMMON
L
FOR DECK ONE
SHAFT END
OF SWITCH
.110 TyP.
(2,79 )
Spacer decks can be supplied to facilitate PC board layouts of
three or more decks. A spacer deck does not have any terminals
and provides no switching function. Dimensionally, it requires
the same space as one normal switch deck. Spacer deck can
be placed at any location in the switch, per your instructions.
Switches which include spacer decks are procured under a
special part number.
Shown for a two deck switch.
Bushing mount is recommended.
Number of Poles
Per Deck
1
2
Common terminal
Hole Location
A
A and B
SERIES 71: PC MOuNt ACCESSORy
1
/
8
" and
1
/
4
" Diameter Shaft Styles
Metric Mount Styles
in millimeters
Rotary Switches
in inches (and millimeters)
DIMENSIONS APPLy TO BOTH WASHERS.
WASHER IS
.032 (0,81) THICK
.255 ±.002
(6,48 ± 0,05) DIA.
0.368 ± .003
(9,35 ± 0,08)
C
L
.375 ± .002
(9,53 ± 0,05)
.687
(17,45)
DIA.
Ø 17.45
±0.08
9.35
±0.08
THICKNESS
0.81 ±0.05
.130 ±.003
(3,30 ± 0,08)
.500
±.002
(12,7
± 0,05)
FOR USE WITH
STyLE BF
PARt 71C2053
12.7
±0.05
FOR USE WITH
STyLE EF
PARt 71C2111
C
L
0.030 ±.001
(0,76 ± 0,03)
.207 ±.005
(5,26 ± 0,13)
FOR USE WITH
STyLE AF
PARt 71C2054
0.76 ±0.03
For printed circuit styles. Mounting bushing provides additional
support for the front end of the switch. Order separately by
appropriate part number. Rotary switch discount applies.
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois
60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
Talking
京公网安备 11010802033920号
EEWORLD
