MI-J5Z-IA-F2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> MI-J5Z-IA-F2

MI-J5Z-IA-F2: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid,; CategoryPower/power management The power supply circuit; File Size180KB，6 Pages; ManufacturerVICOR; Websitehttp://www.vicorpower.com/

Download Datasheet Parametric View All

MI-J5Z-IA-F2 Overview

DC-DC Regulated Power Supply Module, 1 Output, 10W, Hybrid,

MI-J5Z-IA-F2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	VICOR
package instruction	,
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	REMOTE SHUTDOWN
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Certification	CE
Efficiency (main output)	90%
high	12.7 mm
Maximum input voltage	210 V
Minimum input voltage	100 V
Nominal input voltage	155 V
JESD-30 code	R-PDMA-P9
JESD-609 code	e0
length	57.9 mm
Maximum grid adjustment rate	0.5%
Maximum load regulation	0.5%
Number of functions	1
Output times	1
Number of terminals	9
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Maximum output voltage	2.2 V
Minimum output voltage	1 V
Nominal output voltage	2 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Ripple voltage (main output)	0.05304 Vrms
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD OVER COPPER
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	10 W
Fine-tuning/adjustable output	YES
width	61 mm

Preview

Download Datasheet

View All

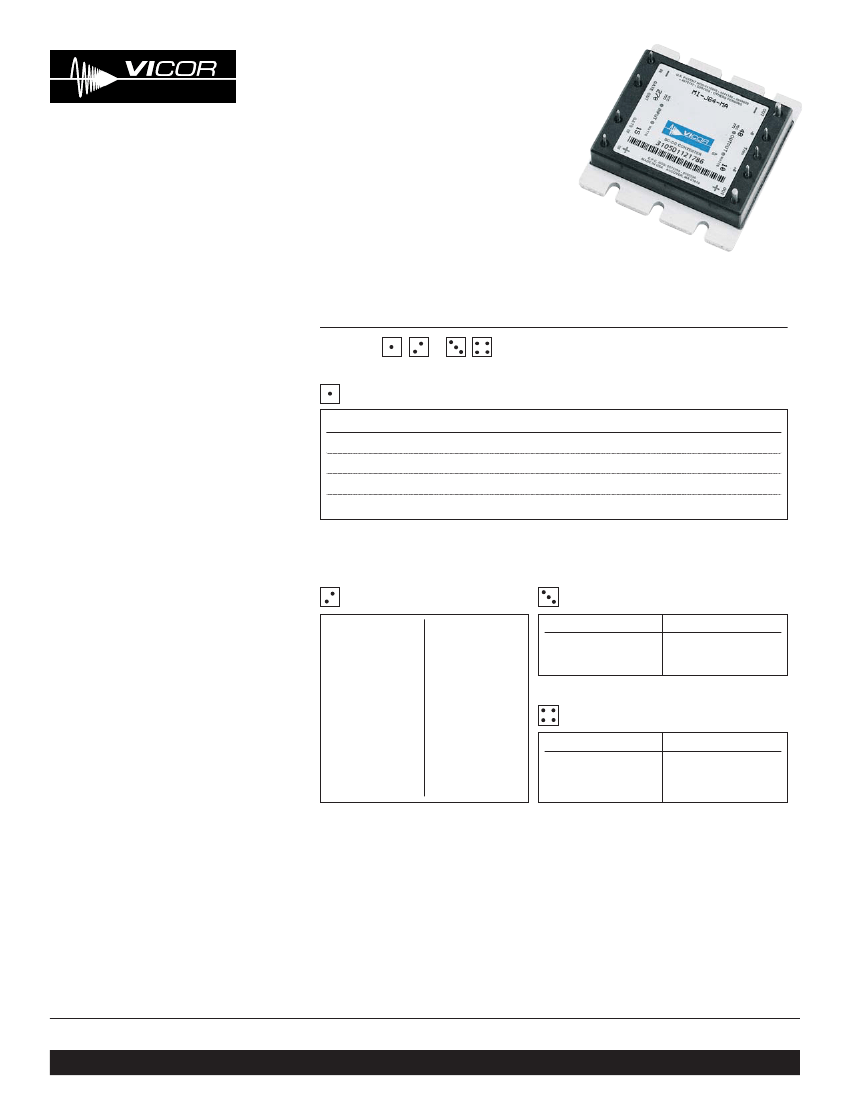

Data Sheet

MI-J00

Features

• Inputs:

28 Vdc per MIL-STD-704D/E/F

155 Vdc per MIL-STD-1399A

270 Vdc per MIL-STD-704D/E/F

• Single output: 2 – 48 Vdc

• Up to 23 W/in

• MIL-STD-810 environments

• Up to 90% efficiency

• Remote sense

• Current limit

• ZCS power architecture

• Low noise FM control

• Size: 2.28" x 2.4" x 0.5"

(57,9 x 61,0 x 12,7 mm)

DC-DC Converters

10 to 50 Watts

Converter Selection Chart

MI-J

Semi-custom modules available, consult factory.

Product Highlights

The MI-J00 family of DC-DC converters is

designed for applications utilizing distributed

power architectures. Based on Vicor’s VI-200 /

VI-J00 family of zero-current switching,

component-level DC-DC converters, the MI-J00

family offers exceptional performance in terms of

power density, efficiency, noise, ease of use, and

reliability.

The MI-J00 family meets all steady-state,

transient and under/overvoltage requirements of

MIL-STD-704D/E/F for both 28 Vdc input

(MI-J2X) and 270 Vdc input (MI-J6X), and the

worst case envelope of MIL-STD-1399A for

155 Vdc input (MI-J5X).

The output voltage can be externally trimmed or

programmed from 50% to 110% of nominal

output. Current limiting, remote sense, and an

inhibit pin all combine to offer a high degree of

protection, versatility, and reliability for power

systems.

Fully encapsulated in Vicor’s industry standard

package, the MI-J00 family meets MIL-STD-810

environmental testing requirements for humidity,

fungus, salt-fog, explosive atmosphere,

acceleration, vibration, and shock.

Input Voltage

Nominal

= 28 V

= 155 V

= 270 V

= 165 V

[a]

[b]

[c]

Range

18 – 50 V

[b]

100 – 210 V

125 – 400 V

[c]

100 – 310 V

Transient

[a]

60 V

230 V

475 V

n/a

Notes

28 Vdc input per MIL-STD 704D/E/F

155 Vdc input per MIL-STD-1399A

270 Vdc input per MIL-STD-704D/E/F

Transient voltage for 1 second.

16 V operation at 75% load.

These units rated at 75% load from 125 – 150 Vin: MI-J6Z-xY, MI-J6Y-xY, MI-J60-xY

Output Voltage

= 2.0 V

= 3.3 V

= 5.0 V

= 5.2 V

= 5.5 V

= 5.8 V

= 6.5 V

= 7.5 V

= 10 V

= 12 V

= 13.8 V

= 15 V

= 18.5 V

= 24 V

= 28 V

= 36 V

= 40 V

= 48 V

Product Grade Temperatures (°C)

Operating

= –40 to +100

= –55 to +100

Storage

= –55 to +125

= –65 to +125

Output Power/Current Vout

≥

= 10 W

= 25 W

= 50 W

<5 V

= —

=5 A

= 10 A

Packaging Options

Standard:

Slotted baseplate

SlimMod:

Flangeless baseplate, option suffix:

- S

Example: MI - JXX - XX

- S

FinMod:

Finned heat sink, option suffix:

- F1, -F2, -F3

and

- F4

Examples:

MI - JXX - XX

-F1,

0.25" fins, longitudinal

MI - JXX - XX

-F2,

0.50" fins, longitudinal

MI - JXX - XX

-F3,

0.25" fins, transverse

MI - JXX - XX

-F4,

0.50" fins, transverse

Vicor Corp.

Tel: 800-735-6200, 978-470-2900 Fax: 978-475-6715

MI-200 DC-DC Converters 10 to 50 Watts

Rev. 1.0

Page 1 of 6

Set your site on VICOR at www.vicorpower.com
