KPA-3010SURCK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> KPA-3010SURCK

KPA-3010SURCK: DescriptionSINGLE COLOR LED, HYPER RED, 2 mm; CategoryLED optoelectronic/LED photoelectric; File Size219KB，5 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

KPA-3010SURCK Overview

SINGLE COLOR LED, HYPER RED, 2 mm

KPA-3010SURCK Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	3 X 1 MM, 2 MM HEIGHT, ROHS COMPLIANT, SMT, 3 PIN
Reach Compliance Code	compli
ECCN code	EAR99
Samacsys Confidence	4
Samacsys Status	Released
Samacsys PartID	1629454
Samacsys Pin Cou	3
Samacsys Part Category	LED
Samacsys Package Category	Othe
Samacsys Footprint Name	3.0 x 1.0 mm Right Angle SMD Chip LED Lam
Samacsys Released Date	2019-04-11 11:10:26
Is Samacsys	N
color	HYPER RED
color@wavelength	Red
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.5 V
Lens type	WATER CLEAR
minimum luminous intensity	120 cd
Nominal luminous intensity	150.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	2 mm
method of packing	TAPE AND REEL
peak wavelength	650 nm
Maximum reverse voltage	5 V
shape	RECTANGULAR
size	2 mm
surface mount	YES
Terminal pitch	3.5 mm
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

3.0mmx1.0 mm RIGHT ANGLE SMD

CHIP LED LAMP

Part Number: KPA-3010SURCK

Hyper Red

Features

3.0mmx1.0mm right angle SMT LED, 2.0mm thickness.

Low power consumption.

Wide viewing angle.

Ideal for back light and indicator.

Various colors and lens types available.

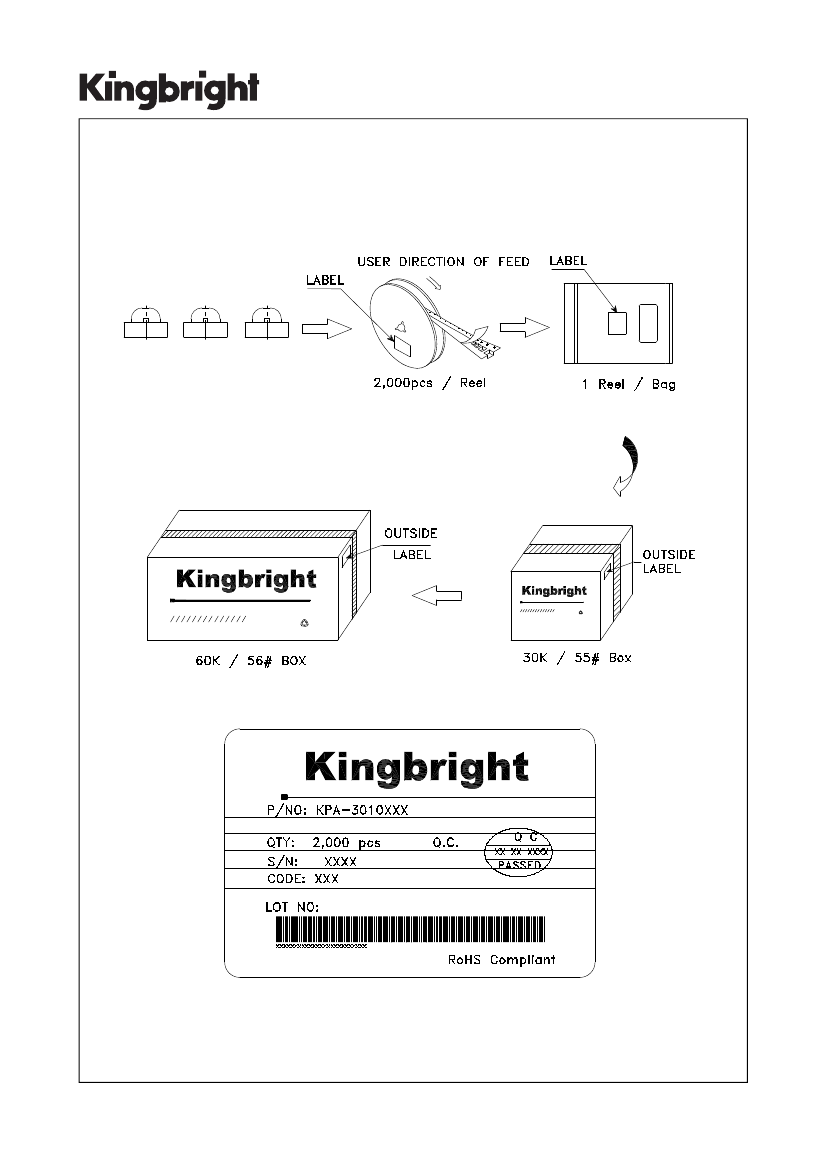

Package : 2000pcs / reel.

Moisture sensitivity level : level 3.

Tinned pads for improved solderability.

RoHS copliant.

Description

The Hyper Red source color devices are made with Al-

GaInP on GaAs substrate Light Emitting Diode.

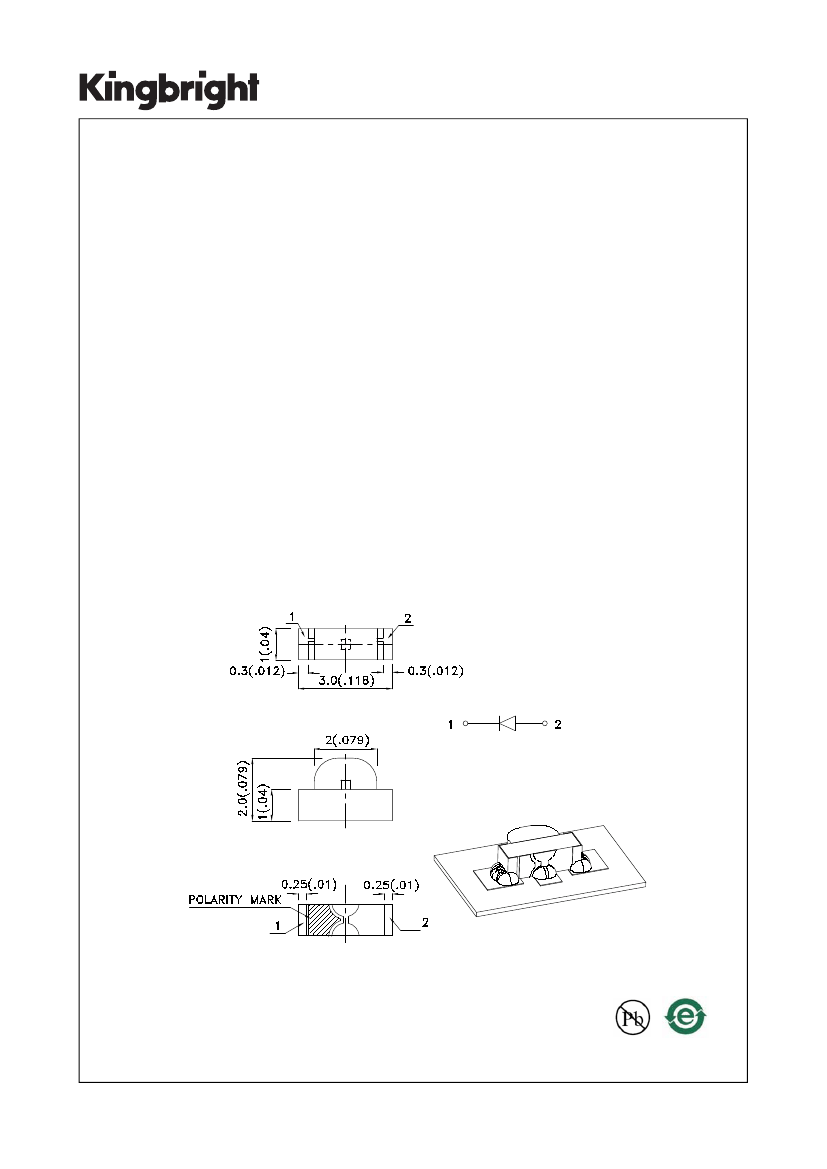

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.15(0.006") unless otherwise noted.

3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.

4.The device has a single mounting surface. The device must be mounted according to the specifications.

SPEC NO: DSAD0236

APPROVED: WYNEC

REV NO: V.16A

CHECKED: Allen Liu

DATE: DEC/04/2011

DRAWN: Y.H.Wu

PAGE: 1 OF 5

ERP: 1203000643
