3.0mmx1.0 mm RIGHT ANGLE SMD
CHIP LED LAMP
Part Number: KPA-3010SECK
Super Bright Orange
Features
3.0mmx1.0mm right angle SMT LED, 2.0mm thickness.
Low power consumption.
Wide viewing angle.
Ideal for back light and indicator.
Various colors and lens types available.
Package : 2000pcs / reel.
Moisture sensitivity level : level 3.
Tinned pads for improved solderability.
RoHS compliant.
Description
The Super Bright Orange device is made with AlGaInP (on
GaAs substrate) light emitting diode chip.

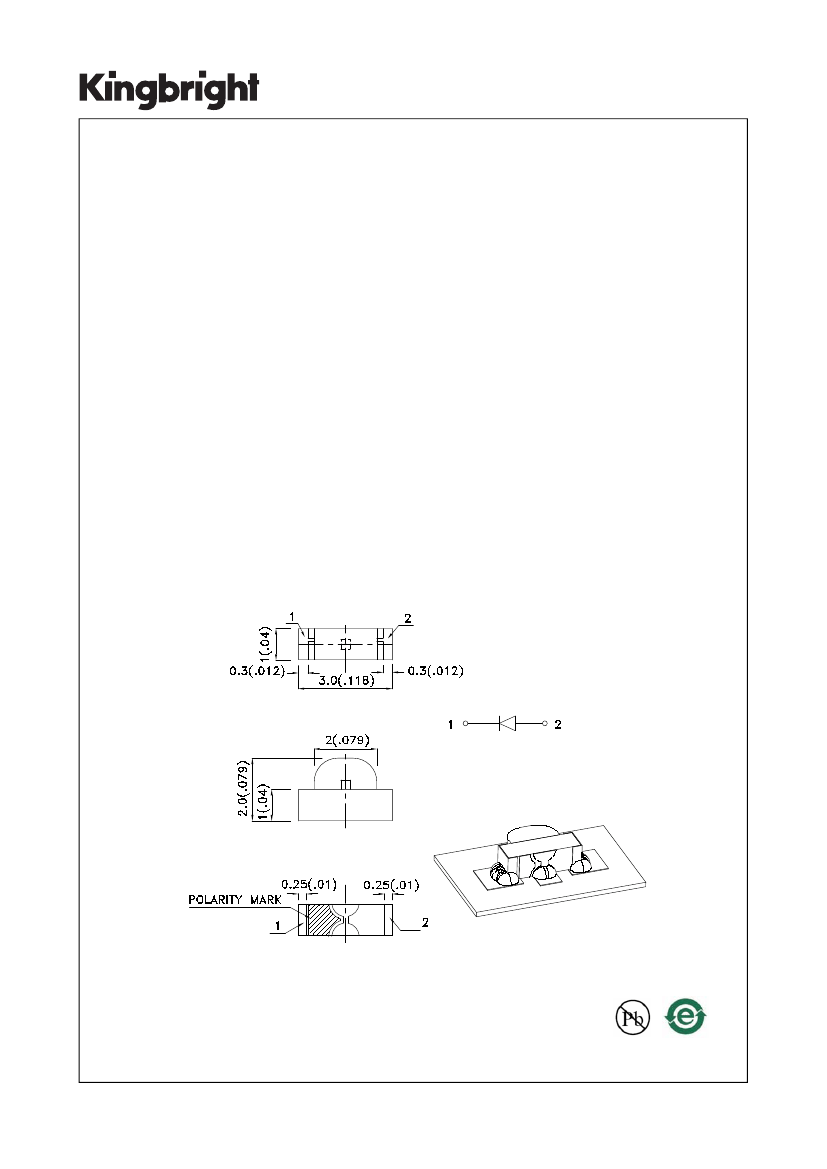

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.15(0.006") unless otherwise noted.
3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
4.The device has a single mounting surface. The device must be mounted according to the specifications.
SPEC NO: DSAB7756
APPROVED: WYNEC
REV NO: V.14A
CHECKED: Allen Liu
DATE: NOV/29/2011
DRAWN: C.H.Han
PAGE: 1 OF 5
ERP: 1203000618
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
KPA-3010SECK
Super Bright Orange (AlGaInP)
Water Clear
110
*80
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity/ luminous Flux: +/-15%.
*Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Viewing
Angle [1]
2θ1/2
120
°
Typ.
250
*180
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Super Bright Orange
Super Bright Orange
Super Bright Orange
Super Bright Orange
Super Bright Orange
Super Bright Orange
Typ.
610
601
29
15
2.1
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3.Wavelength value is traceable to the CIE127-2007 compliant national standards.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating Temperature
Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Super Bright Orange
75
30
195
5
-40°C To +85°C
-40°C To +85°C
Units
mW
mA
mA
V
SPEC NO: DSAB7756
APPROVED: WYNEC
REV NO: V.14A
CHECKED: Allen Liu
DATE: NOV/29/2011
DRAWN: C.H.Han
PAGE: 2 OF 5
ERP: 1203000618
KPA-3010SECK

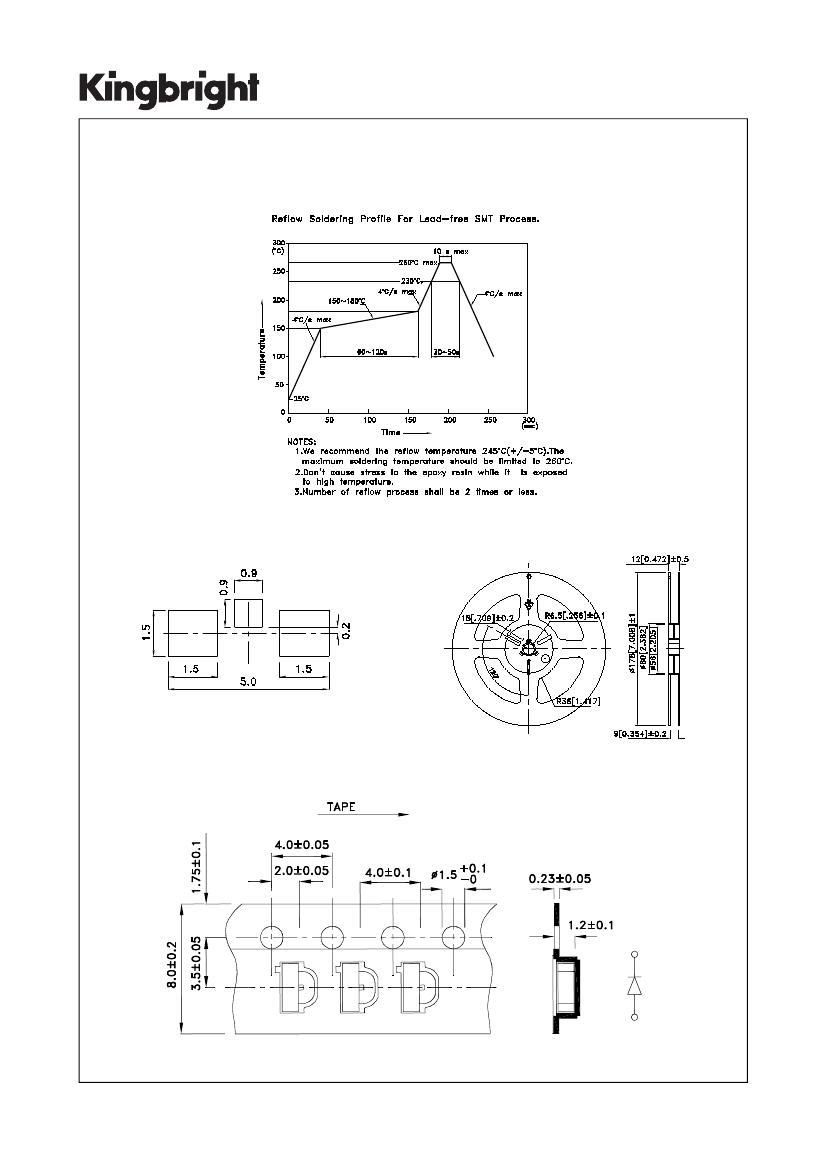

Reflow soldering is recommended and the soldering profile is shown below.
Other soldering methods are not recommended as they might cause damage to the product.
Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.1)

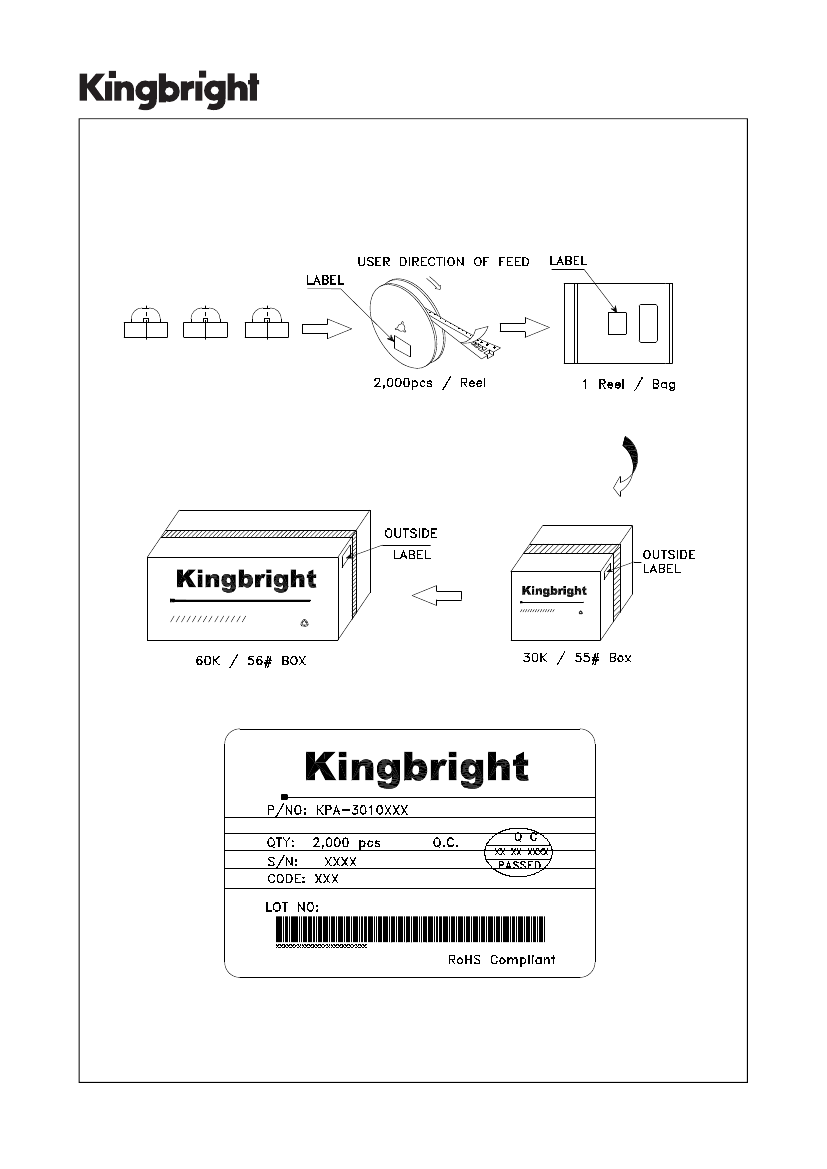

Reel Dimension
Tape Dimensions
(Units : mm)
SPEC NO: DSAB7756
APPROVED: WYNEC
REV NO: V.14A
CHECKED: Allen Liu
DATE: NOV/29/2011
DRAWN: C.H.Han
PAGE: 4 OF 5
ERP: 1203000618
