90793-004LF

Description
Board Connector, 160 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug, LEAD FREE
CategoryThe connector    The connector
File Size734KB，8 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

90793-004LF Overview

Board Connector, 160 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, Plug, LEAD FREE

90793-004LF Parametric

Parameter NameAttribute value
MakerAmphenol
package instructionLEAD FREE
Reach Compliance Codecompliant
Other featuresSTAGGERED CONFIGURATION
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD FLASH (30) OVER PALLADIUM NICKEL
Contact completed and terminatedTIN (150)
Contact point genderMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number90793
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch1.27 mm
Termination typeSOLDER
Total number of contacts160

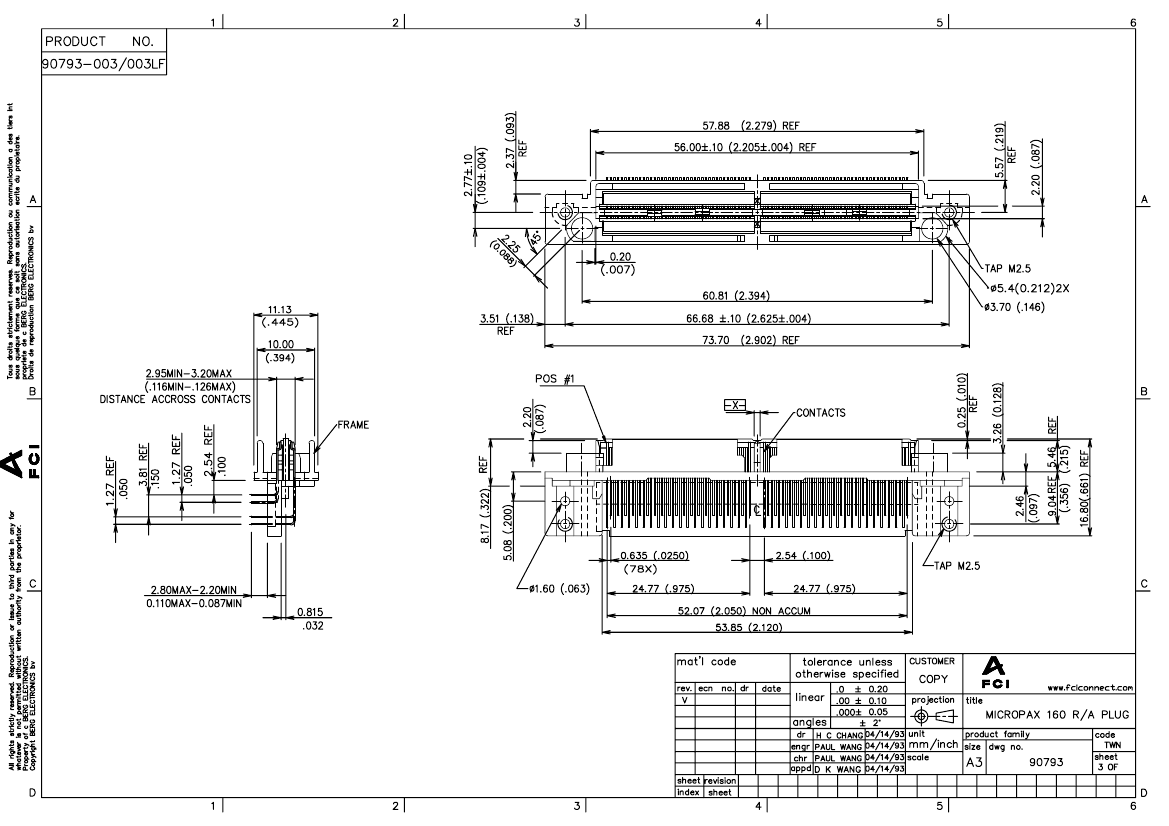

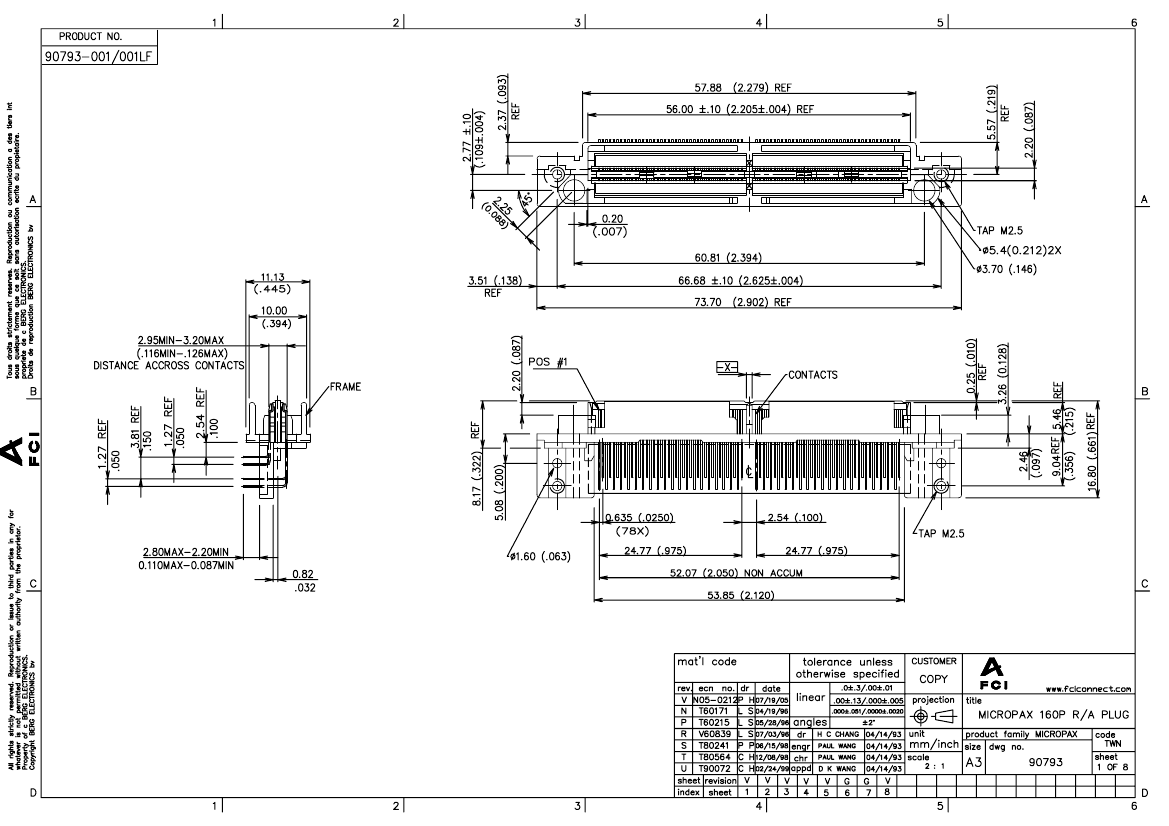

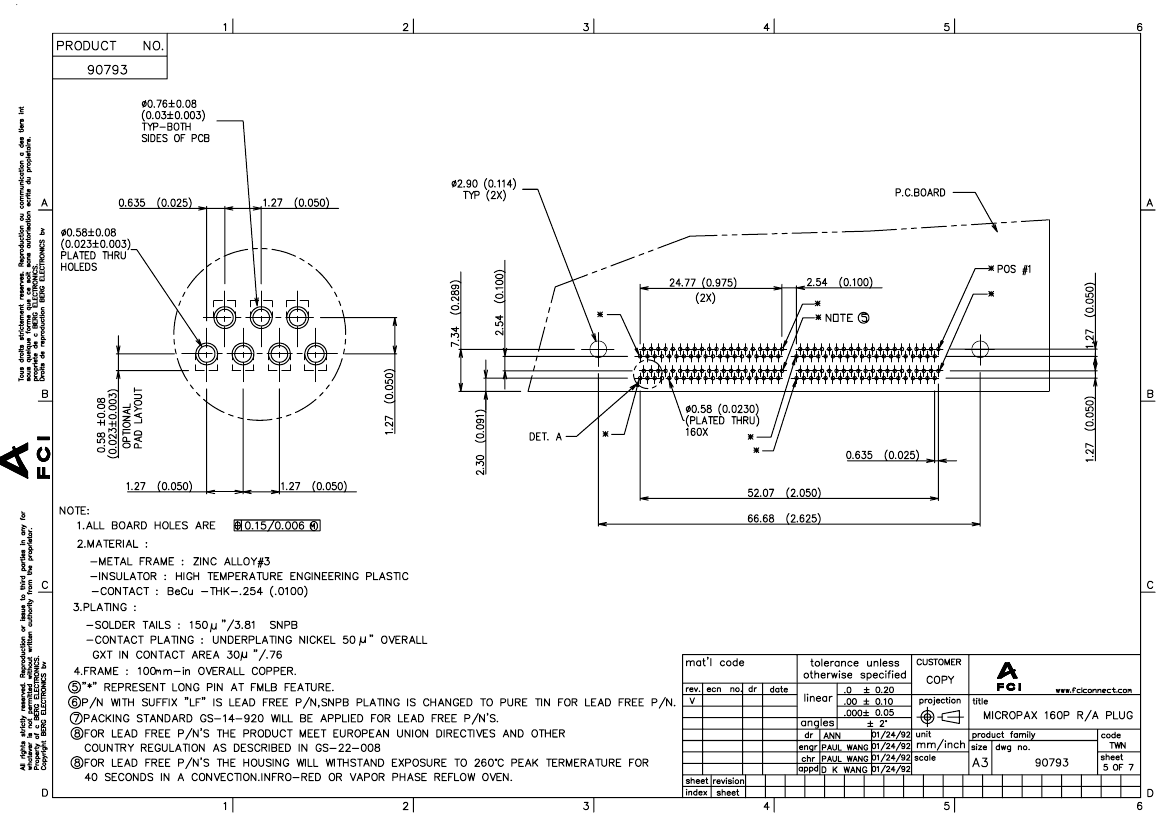

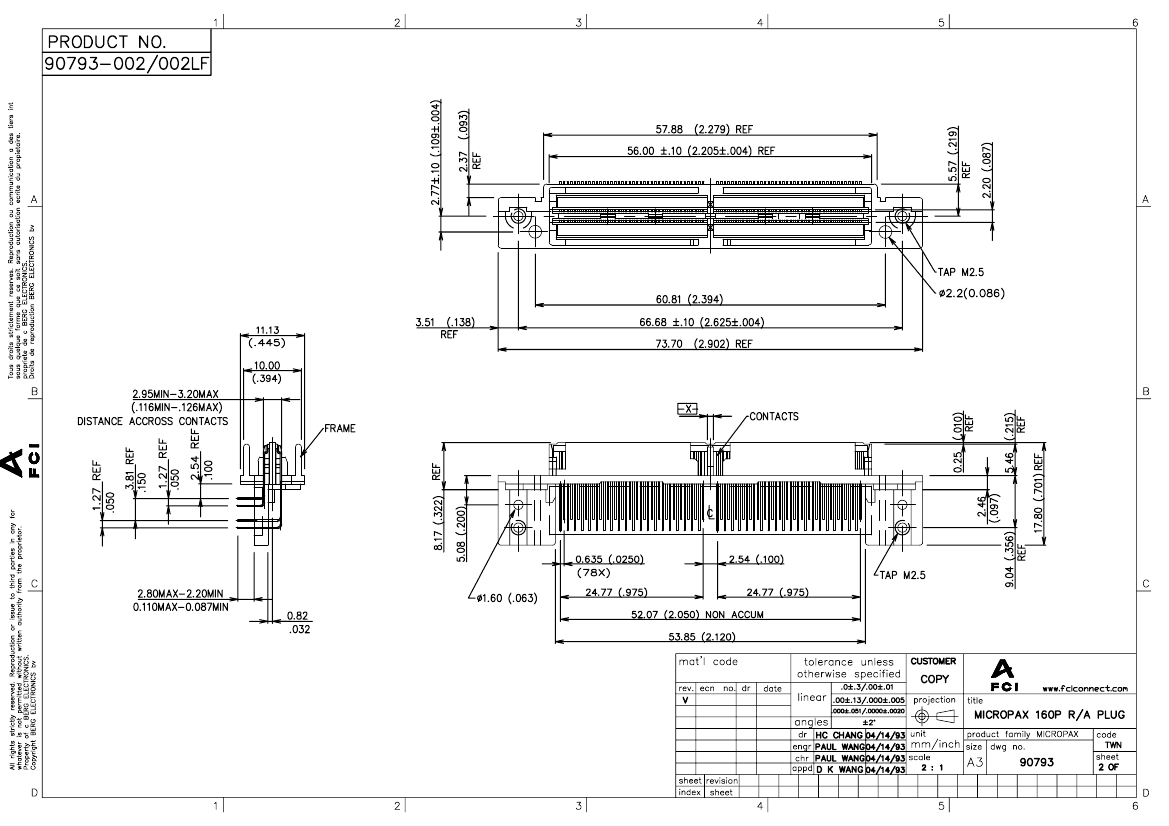

90793-004LF Preview

PDM: Rev:V
STATUS:
Released
Printed: Jul 22, 2010
.
PDM: Rev:V
STATUS:
Released
Printed: Jul 22, 2010
.
PDM: Rev:V
STATUS:
Released
Printed: Jul 22, 2010
.
PDM: Rev:V
STATUS:
Released
Printed: Jul 22, 2010
.
PDM: Rev:V
STATUS:
Released
Printed: Jul 22, 2010
.
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
