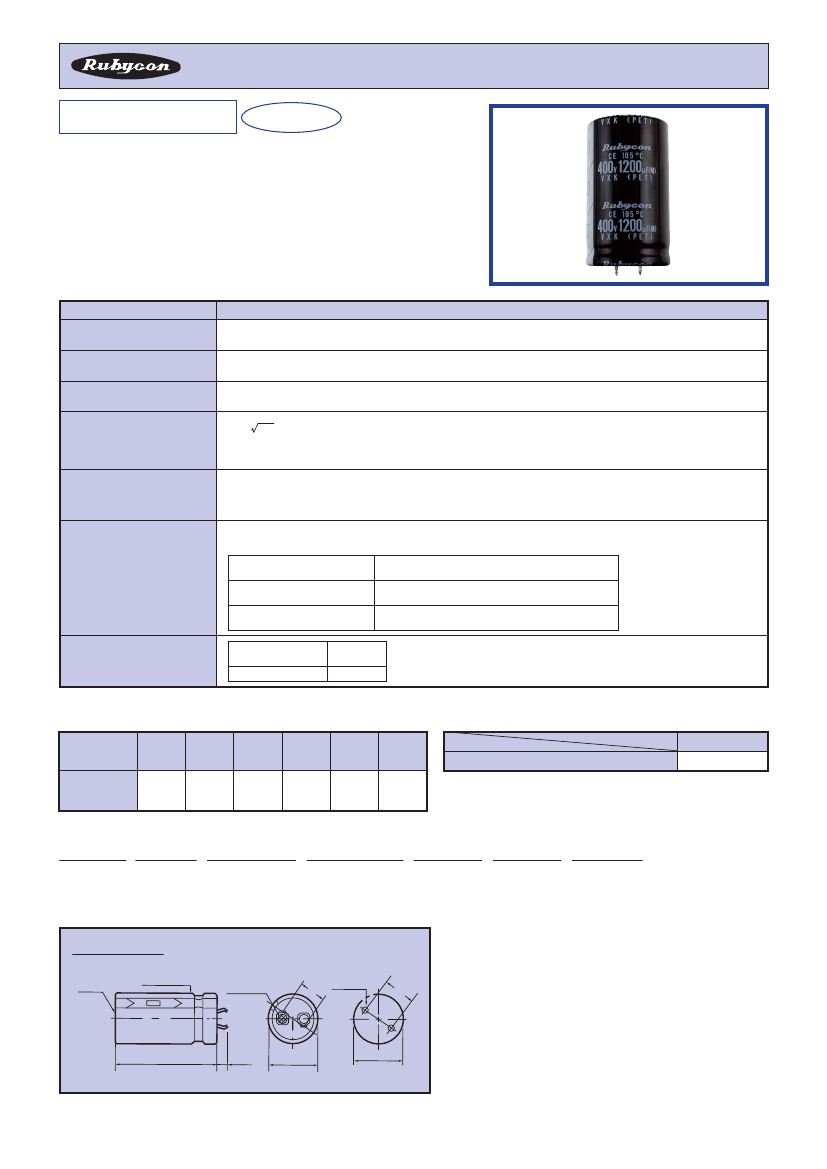

SNAP-IN ALUMINUM ELECTROLYTIC CAPACITORS
VXK
VXK
SERIES
NEW
105℃ 5000 hours, Ultra Miniaturized, Snap-in Terminal Type
◆FEATURES
・
Load Life : 105℃ 5000 hours.
・
Smaller size than VXH series.
・
RoHS compliance.
◆SPECIFICATIONS
Items
Category Temperature Range
Rated Voltage Range
Capacitance Tolerance
Characteristics
−25∼＋105℃
400∼450Vdc
±20％
（20℃，
120Hz）
I＝3
CV (After 5 minutes application of rated voltage)
Leakage Current(MAX)
I＝
Leakage Current
(μA)
C＝
Capacitance
(μF)
V＝
Rated Voltage
(Vdc)
(tanδ)
Dissipation Factor(MAX)
0.2（20℃，
120Hz）
After applying rated voltage with rated ripple current for 5000 hours at 105℃,
the capacitors shall meet the following requirements.
Endurance
Capacitance Change
Dissipation Factor
Leakage Current
Rated Voltage
400∼450
(Vdc)
8
Z
（−25℃） （20℃）
/Z
Within ±20％ of the initial value.
Not more than 200％ of the specified value.
Not more than the specified value.
Low Temperature Stability
Impedance Ratio(MAX)
（120Hz）
◆MULTIPLIER FOR RIPPLE CURRENT
Frequency
◆OPTION
1k
1.25
10k≦
1.40
Code
PET Sleeve without plate
（Hz）
Coefficient
60(50) 120 100） 300
（
0.80
1.00
1.15
500
1.20
EFC
◆PART NUMBER
□□□
Rated Voltage
VXK
Series
□□□□□
Capacitance
M
Capacitance Tolerance
□□□
Option
SN
Terminal Code
D×L
Case Size
◆DIMENSIONS
●
SN
［4mm½
terminal type
SLEEVE
（PET）
VENT
NEGATIVE
10
（mm）
Terminal code : SN(Tin plating)
2-φ2
10
±0.1
L±2
4±0.5
φD±1
φD±1
MOUNTING HOLES
SNAP-IN ALUMINUM ELECTROLYTIC CAPACITORS
VXK
◆STANDARD SIZE
Vdc
Cap(μF)
φD
400
φ22
22×25
22×30
22×35
22×40
22×50
22×55
1.01
1.17
1.33
1.52
1.78
1.97
25×25
25×30
25×35
25×40
25×45
25×50
25×55
1.13
1.31
1.50
1.70
1.89
2.10
2.31
30×25
30×30
30×30
30×35
30×40
30×50
30×55
1.33
1.55
1.60
1.82
2.04
2.42
2.64
35×25
35×30
35×35
35×40
35×45
35×50
35×60
1.43
1.68
1.92
2.15
2.37
2.58
2.95
φ25
φ30
φ35
150
180
220
270
330
390
470
560
680
820
1000
1200
Vdc
Cap(μF)
φD
420
φ22
22×25
22×30
22×35
22×40
22×45
22×50
22×60
0.92
1.08
1.23
1.40
1.58
1.78
2.02
25×25
25×30
25×35
25×40
25×45
25×55
1.12
1.30
1.49
1.69
1.88
2.17
30×25
30×30
30×35
30×40
30×50
30×55
1.32
1.54
1.75
1.96
2.29
2.51
35×25
35×30
35×35
35×40
35×45
35×50
35×60
1.40
1.64
1.85
2.07
2.29
2.50
2.89
φ25
φ30
φ35
120
150
180
220
270
330
390
470
560
680
820
1000
Vdc
Cap(μF)
φD
450
φ22
22×25
22×30
22×35
22×40
22×50
22×55
0.93
1.09
1.24
1.41
1.65
1.85
25×25
25×30
25×35
25×40
25×45
25×50
25×60
1.06
1.22
1.39
1.58
1.78
1.97
2.26
30×25
30×30
30×35
30×40
30×45
30×50
30×60
1.26
1.46
1.67
1.87
2.08
2.29
2.63
35×25
35×30
35×30
35×35
35×40
35×45
35×55
1.35
1.58
1.61
1.84
2.06
2.28
2.66
Ripple Current (A r.m.s./120Hz, 105℃)
Case Size φD×L(mm)
φ25
φ30
φ35
120
150
180
220
270
330
390
470
560
680
820
