BDS28B.MOD: Description30A, 90V, PNP, Si, POWER TRANSISTOR, TO-254AA, HERMETIC SEALED PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size98KB，3 Pages; ManufacturerSEMELAB

Download Datasheet Parametric View All

BDS28B.MOD Overview

30A, 90V, PNP, Si, POWER TRANSISTOR, TO-254AA, HERMETIC SEALED PACKAGE-3

BDS28B.MOD Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SEMELAB
Parts packaging code	TO-254AA
package instruction	FLANGE MOUNT, R-MSFM-P3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Shell connection	ISOLATED
Maximum collector current (IC)	30 A
Collector-emitter maximum voltage	90 V
Configuration	DARLINGTON
Minimum DC current gain (hFE)	200
JEDEC-95 code	TO-254AA
JESD-30 code	R-MSFM-P3
Number of components	1
Number of terminals	3
Package body material	METAL
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal form	PIN/PEG
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	4 MHz

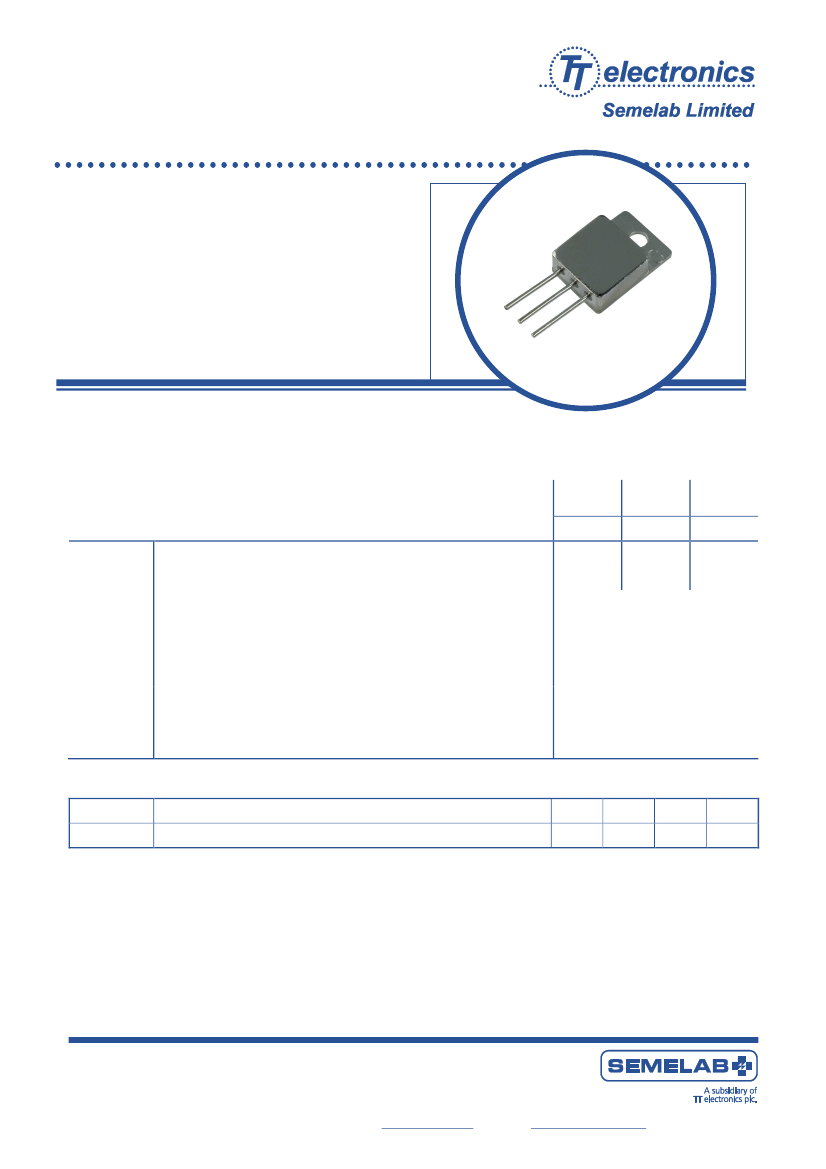

Preview

Download Datasheet

View All

COMPLEMENTARY POWER

DARLINGTON

BDS28A/B/CM3A

BDS29A/B/CM3A

•

High DC Current Gain

Hermetic Isolated TO-254AA Package

Screening Options Available

Designed for General Purpose Amplifier Applications

ABSOLUTE MAXIMUM RATINGS

(TC = 25°C unless otherwise stated)

PNP BDS28A

NPN BDS29A

BDS28B

BDS29B

BDS28C

BDS29C

VCBO

VCEO

VEBO

IC

IB

PD

TJ

Tstg

Collector – Base Voltage

Collector – Emitter Voltage

Emitter – Base Voltage

Continuous Collector Current

Base Current

TC = 25°C

Total Power Dissipation at

Derate Above 25°C

Junction Temperature Range

Storage Temperature Range

60V

90V

120V

90V

120V

5V

30A

1.0A

150W

0.857W/°C

-65 to +200°C

THERMAL PROPERTIES

Symbols

R

θJC

Parameters

Thermal Resistance, Junction To Case

Min.

Typ.

Max.

1.16

Units

°C/W

Semelab Limited reserves the right to change test conditions, parameter limits and package dimensions without notice.

Information furnished by Semelab is believed to be both accurate and reliable at the time of going to press. However

Semelab assumes no responsibility for any errors or omissions discovered in its use. Semelab encourages customers to

verify that datasheets are current before placing orders.

Semelab Limited

Coventry Road, Lutterworth, Leicestershire, LE17 4JB

Telephone +44 (0) 1455 556565

Fax +44 (0) 1455 552612

Email:

sales@semelab-tt.com

Document Number 9017

Issue 1

Page 1 of 3

Website:

http://www.semelab-tt.com
