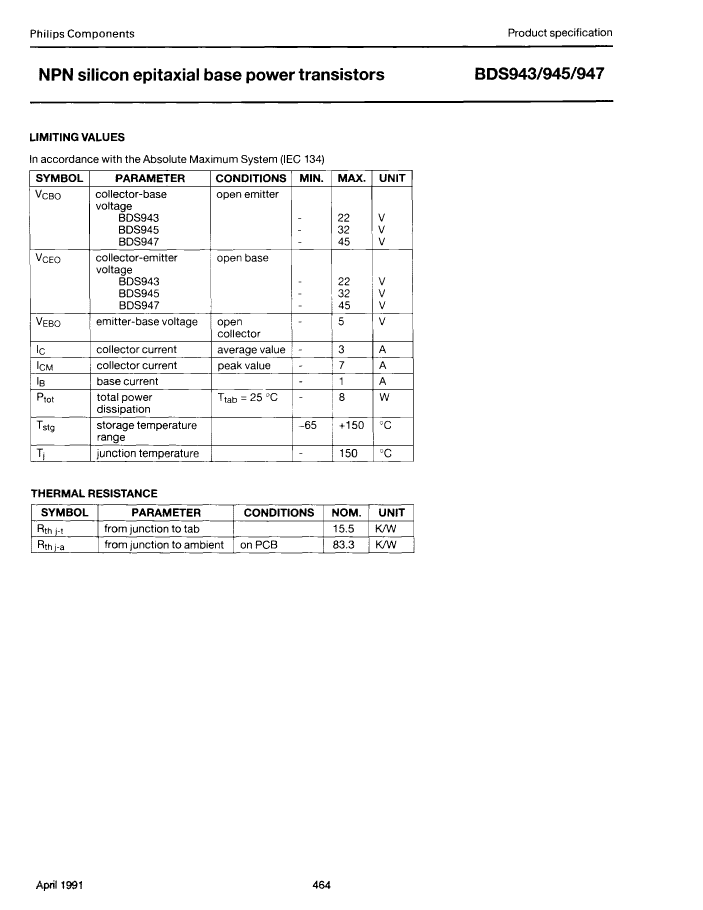

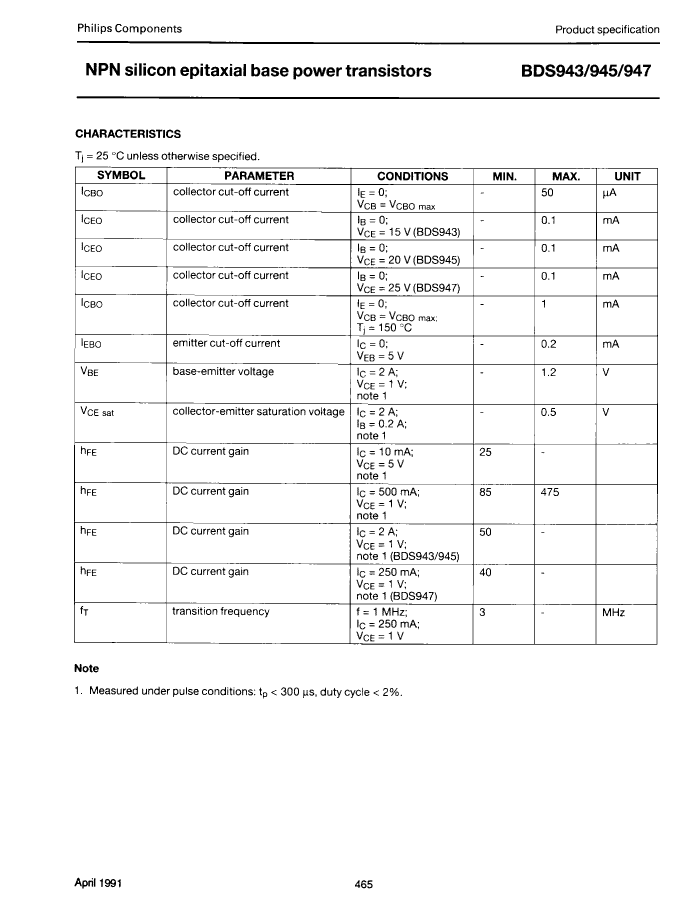

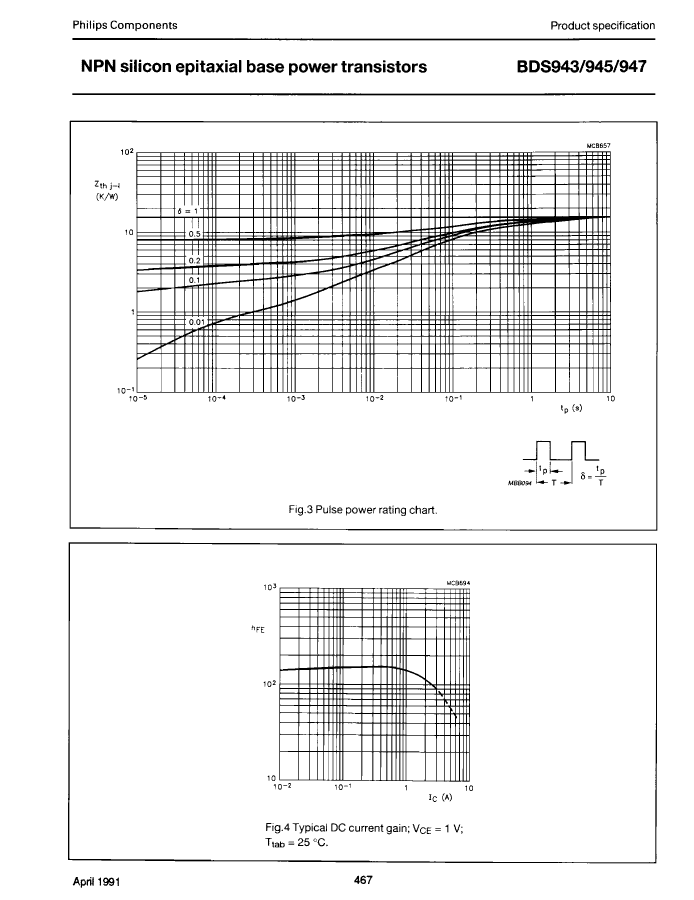

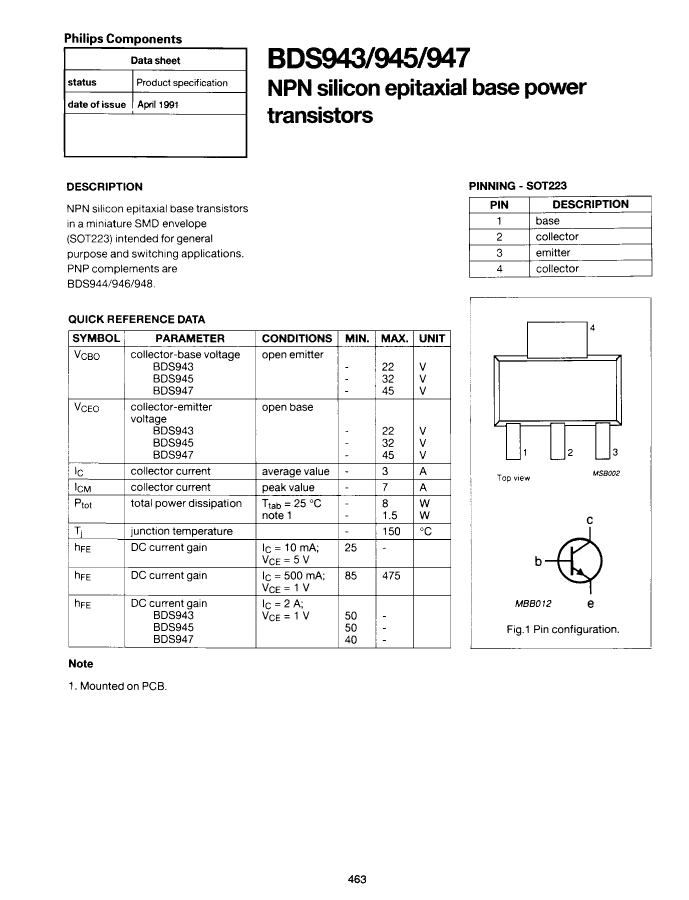

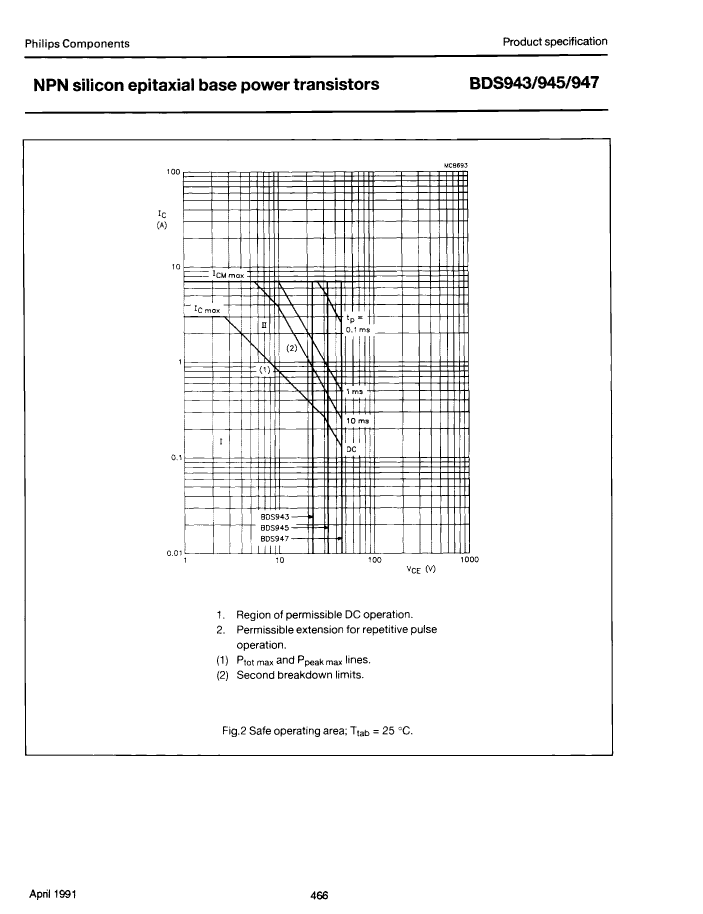

BDS943-T: DescriptionTRANSISTOR 3000 mA, 22 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal; CategoryDiscrete semiconductor The transistor; File Size136KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BDS943-T Overview

TRANSISTOR 3000 mA, 22 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal

BDS943-T Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	3 A
Collector-emitter maximum voltage	22 V
Configuration	SINGLE
Minimum DC current gain (hFE)	50
JESD-30 code	R-PDSO-G4
Number of components	1
Number of terminals	4
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	3 MHz

Preview

Download Datasheet

View All

BDS943-T Related Products

	BDS943-T	BDS945	BDS945-T	BDS947	BDS943	BDS947-T
Description	TRANSISTOR 3000 mA, 22 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 3000 mA, 32 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 3000 mA, 32 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 3000 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 3000 mA, 22 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal	TRANSISTOR 3000 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR, BIP General Purpose Small Signal
Maker	NXP	NXP	NXP	NXP	NXP	NXP
package instruction	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	3 A	3 A	3 A	3 A	3 A	3 A
Collector-emitter maximum voltage	22 V	32 V	32 V	45 V	22 V	45 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	50	50	50	40	50	40
JESD-30 code	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
Number of components	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	3 MHz	3 MHz	3 MHz	3 MHz	3 MHz	3 MHz
