DC current transducer DK-B10
Split core transducer for the electronic measurement of DC current, with
galvanic isolation between the primary circuit and the secondary circuit.
0-10 V DC output voltage proportional to measured current.
I
PN
= 50 .. 200 A
Electrical data
Primary nominal current
I
PN
(At)
50, 75, 100
100, 150, 200
V
C
R
L
V
SL
BW
I
C
Output voltage
V
OUT
(V DC)
0-10
0-10
Types
DK 100 B10
DK 200 B10
20-50
50
11.5
DC
100
RoHS since
date code
August 2009
August 2009
V DC
kΩ
V DC
Hz
mA
Features
● DC measurement (magnitude
only)
● Split core case
● Three jumper selectable ranges
● Industry standard 0-10 V DC
unipolar voltage output
● Panel mouting
● Isolated plastic case recognized
according to UL 94-V0.
Supply voltage
Load resistance (min)
Output voltage limitation
Frequency bandwidth
Current consumption (max)
Advantages
● Large aperture
● Extended measuring range
● High isolation between primary
and secondary circuits
● Easy to mount, cut installation
costs
● No insertion loss (voltage drop).
Accuracy - Dynamic performance data
X
t
r
ε
L
Accuracy,
T
A
= 25°C
Linearity error
Response time to 90 % of
I
PN
step
±2
± 0.75
< 100
% of FS
% of
I
PN
ms
General data
T
A
T
S
m
IPxx
Ambient operating temperature (0-95% RH)
Ambient storage temperature
Mass
Protection degree
Standards
- 20 .. + 50
°C
- 20 .. + 85
°C
120
g
IP 20
Safety IEC 61010-1: 2001
EMC
1)
IEC 61326-1: 2005
Applications
●
Battery banks
Load current monitoring
Charging current monitoring
Operation supervision
●
Power supplies
DC power or auxiliary loads
measurement
●
Electric heating elements
Faster response than temperature
sensors.
Note:
1)
For IEC 61000-4-3, IEC 61000-4-6 and IEC 61000-4-4
Criterion B: temporary impairment to operational behavior.
Application domain
● Renewable Energies and
Power Supplies.
Page 1/3
22May2012/version 1
LEM reserves the right to carry out modifications on its transducers, in order to improve them, without prior notice
www.lem.com
DC current transducer DK-B10
Isolation characteristics
V
d
V
b
Rms voltage for AC isolation test
1)
, 50 Hz, 1 min
Rated isolation voltage rms
2)
, reinforced isolation, CAT III, PD2
3 kV
150 V
Notes:
1)
Between primary (completely filling the primary aperture) and secondary
2)
If insulated cable is used for the primary circuit, the voltage category could
be improved according to the insulation characteristics given by the cable
manufacturer. For example:
Cable isolation (primary):
HAR 05
HAR 07
Category:
600 V CAT III
1000 V CAT III
Safety and warning notes
In order to guarantee safe operation of the transducer and to be able to make
proper use of all features and functions, please read these instructions thoroughly!
Safe operation can only be guaranteed if the transducer is used for the purpose it
has been designed for and within the limits of the technical specifications.
Ensure you get up-to-date technical information that can be found in the latest
associated datasheet under www.lem.com.
Caution! Risk of danger
Ignoring the warnings can lead to serious injury and/or cause damage!
The electric measuring transducer may only be installed and put into
operation by qualified personnel that have received an appropriate
training.
The corresponding national regulations shall be observed during
installation and operation of the transducer and any electrical conductor.
The transducer shall be used in electric/electronic equipment with respect
to applicable standards and safety requirements and in accordance
with all the related systems and components manufacturer’ operating
instructions
Caution, Risk of electrical shock
When operating the transducer, certain parts of the module may carry
hazardous live voltage (eg. primary conductor, power supply).
The user shall ensure to take all measures necessary to protect against
electical shock.
The transducer is a build-in device containing conducting parts that shall
not be accessible after installation.
A protective enclosure or additional insulation barrier may be necessary.
The transducer shall not be put into operation if the jaw opening is open
(split core version) or the installation is not completed.
Installation and maintenance shall be done with the main power supply
disconnected except if there are no hazardous live parts in or in close
proximity to the system and if the applicable national regulations are fully
observed.
Safe and trouble-free operation of this transducer can only be guaranteed if transport,
storage and installation are carried out correctly and operation and maintenance are
carried out with care.
Page 2/3
22May2012/version 1
LEM reserves the right to carry out modifications on its transducers, in order to improve them, without prior notice
www.lem.com

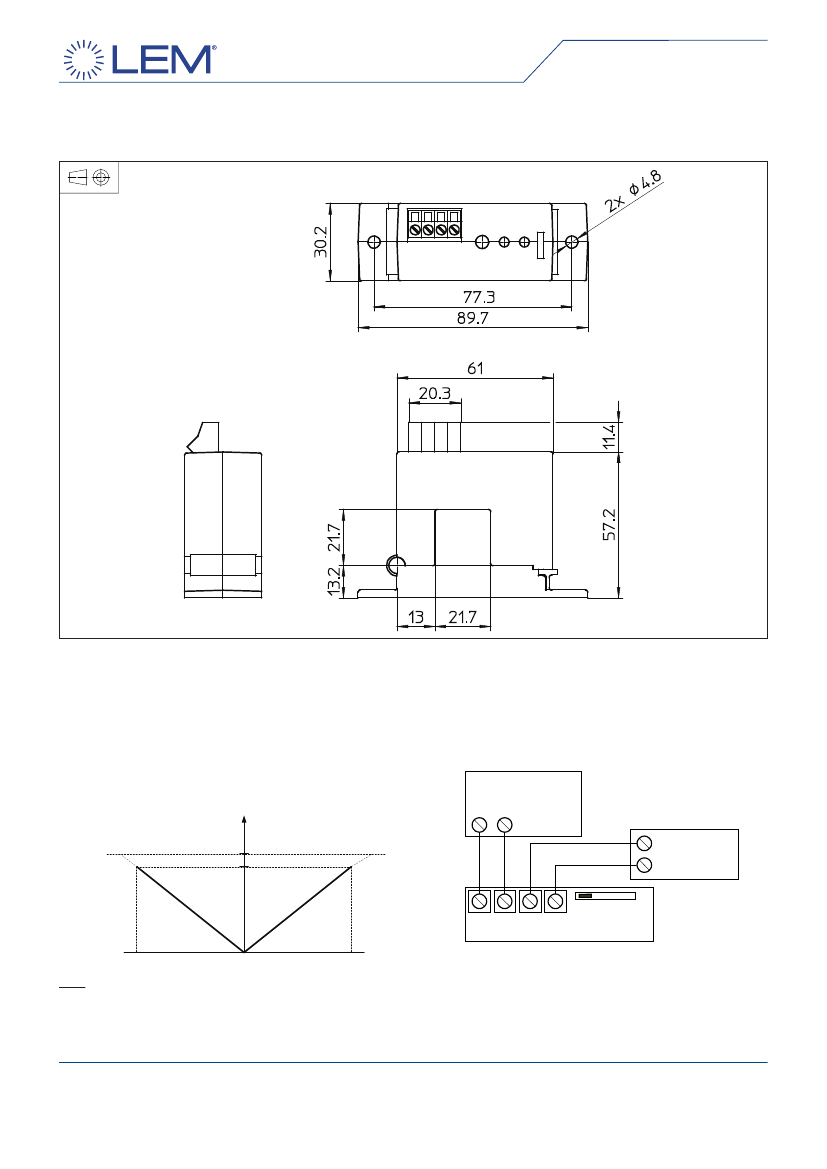

Dimensions DK-B10
(in mm)
Mechanical characteristics
● General tolerance
● Primary aperture
● Panel mounting
Distance between holes
± 1 mm
21.7 mm square
2 holes Ø 4.8 mm
77.3 mm
Connections
●
●
●
●
Dead front captive screw terminals
12-22AWG solid or stranded
Observe polarity
Output loop is powered by DK transducer.
No loop power supply required
Power Supply
20-50 VDC
Transfer characteristics
● DC measurement
1)
(magnitude only)
Output voltage V
(-) (+)
(-)
(+)
Low Mid High
11.5
10
Load
(Controller,
Meter, Etc).
1(-) 2(+)
Power
-I
PN
0
+I
PN
3(-) 4(+)
Output
Jumper
Range
Option on request
● DIN rail adaptor (ref.: F2.90.98.000.1)
Note:
1)
The performance specified in the datasheet is valid
within the 0-10 V DC output range only.
Remark
● Temperature of the primary conductor should noe exceed
60°C.
Page 3/3
22May2012/version 1
LEM reserves the right to carry out modifications on its transducers, in order to improve them, without prior notice
www.lem.com
