9104 Series / Hi Voltage SIP Reed Relays
Hi Voltage SIP Reed Relays
Molded SIP relays are the industry standard when high reliability and
consistent performance are desired in a compact package. The 9104
Series adds high voltage switching capability and high voltage standoff
capability to a SIP relay package. These high voltage, high performance
relays are ideally suited for Automatic Test Equipment, Instrumenta-
tion, and Process Control applications where voltage isolation is a key
design requirement.
Series Features
High voltage switching up to 1000 V
High dielectric strength (2000 V DC)
High Insulation Resistance – 10
11
Ω
minimum
High reliability, hermetically sealed contacts for long life
High speed switching compared to electromechanical relays
Molded thermoset body on integral lead frame design
Optional Coil Suppression Diode – protects coil drive circuits
Magnetic Shield – reduces interaction
UL File # E67117

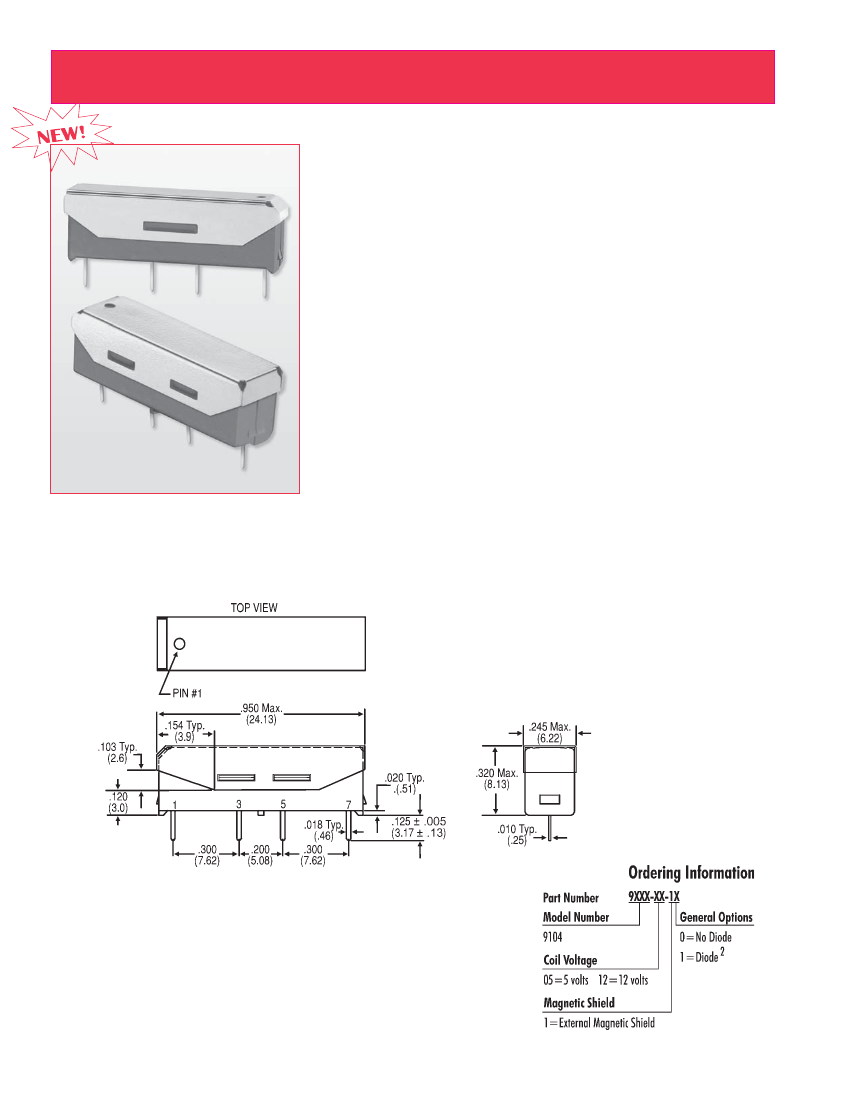

Model 9104
Dimensions in Inches (Millimeters)
36
COTO TECHNOLOGY (USA)
Tel:
(401) 943-2686 / Fax (401) 942-0920
6
(Europe) Tel: +31-45-5439343 / Fax +31-45-5427216
9104 Series / Hi Voltage SIP Reed Relays
Top View:
Dot stamped
on relay refers
to pin #1
Grid = .1"x.1"
(2.54mm x 2.54mm)

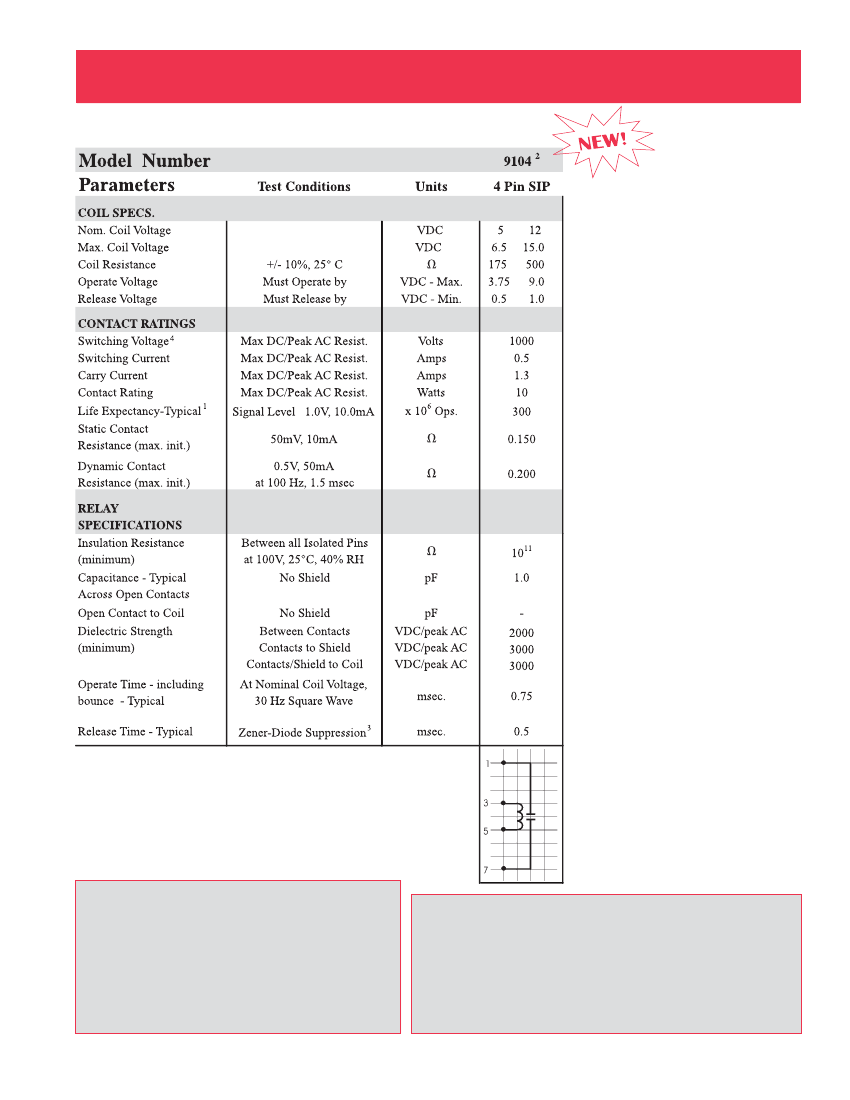

Notes:
1
Consult factory for life expectancy at other switching
loads.
2
Optional diode is connected to pin #3 (+) and pin
#5(-). Correct coil polarity must be observed.
3
Consists of 56V Zener diode and 1N4148 diode in
series, connected in parallel with coil.
4
Switch current limited to 1.0mA @ 1000V.
Environmental Ratings:
Storage Temp: -35°C to +100°C; Operating Temp: -20°C to +85°C
Solder Temp: 270°C max; 10 sec. max
The operate and release voltage and the coil resistance are
specified at 25°C. These values vary by approximately
0.4% / °C as the ambient temperature varies.
Vibration: 20 G’s to 2000 Hz; Shock: 50 G’s
6
E-mail: sales@cotorelay.com
For Most Recent Data, Consult the Coto Technology Website:
www.cotorelay.com
