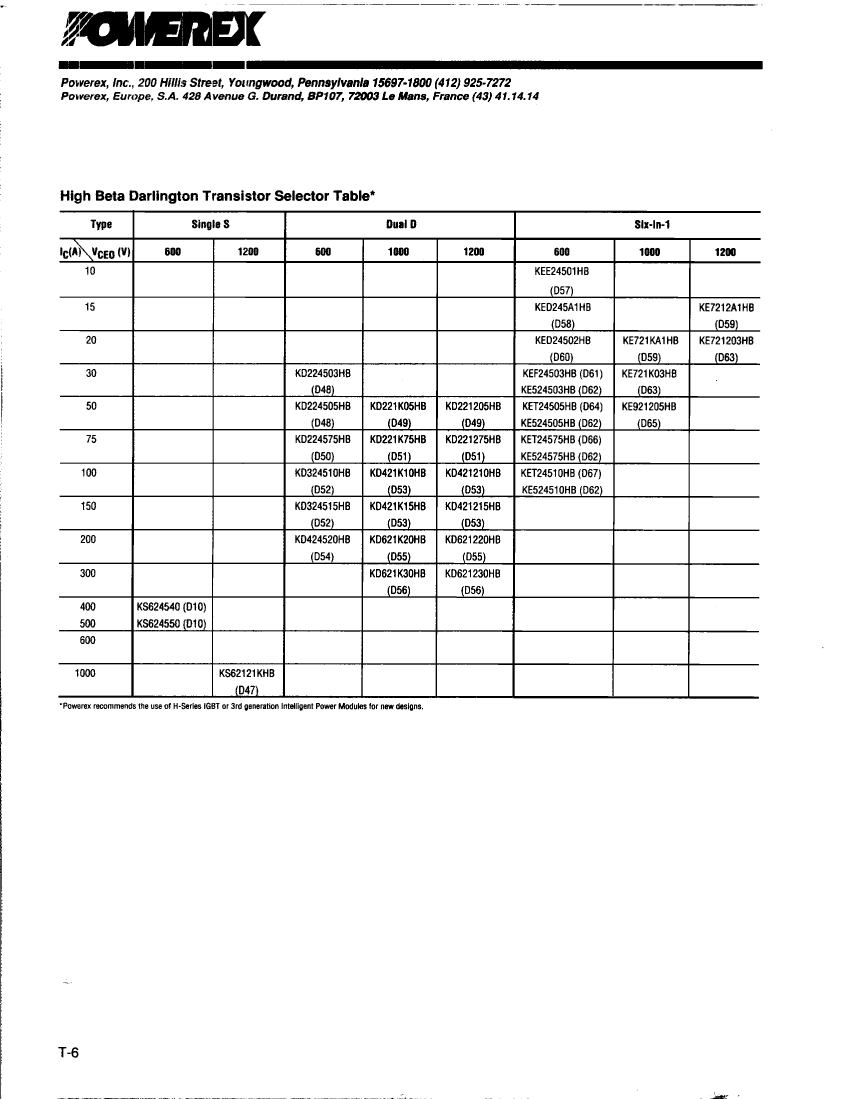

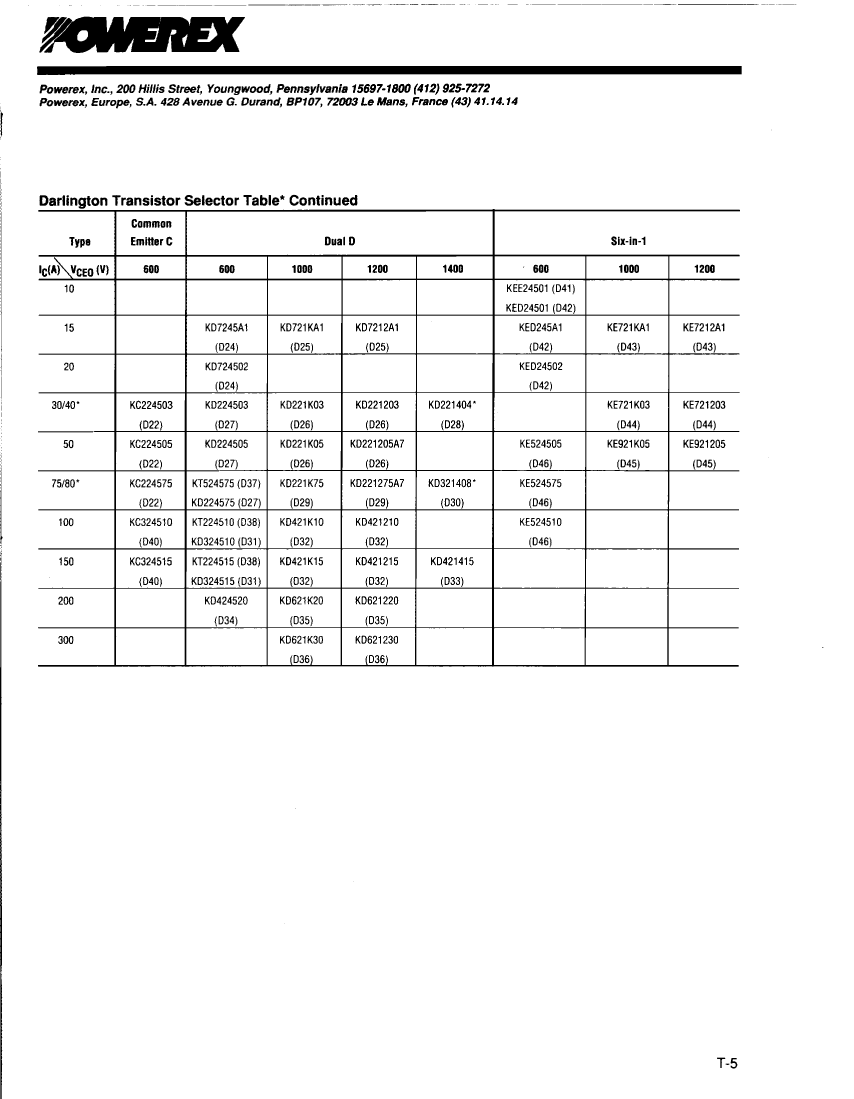

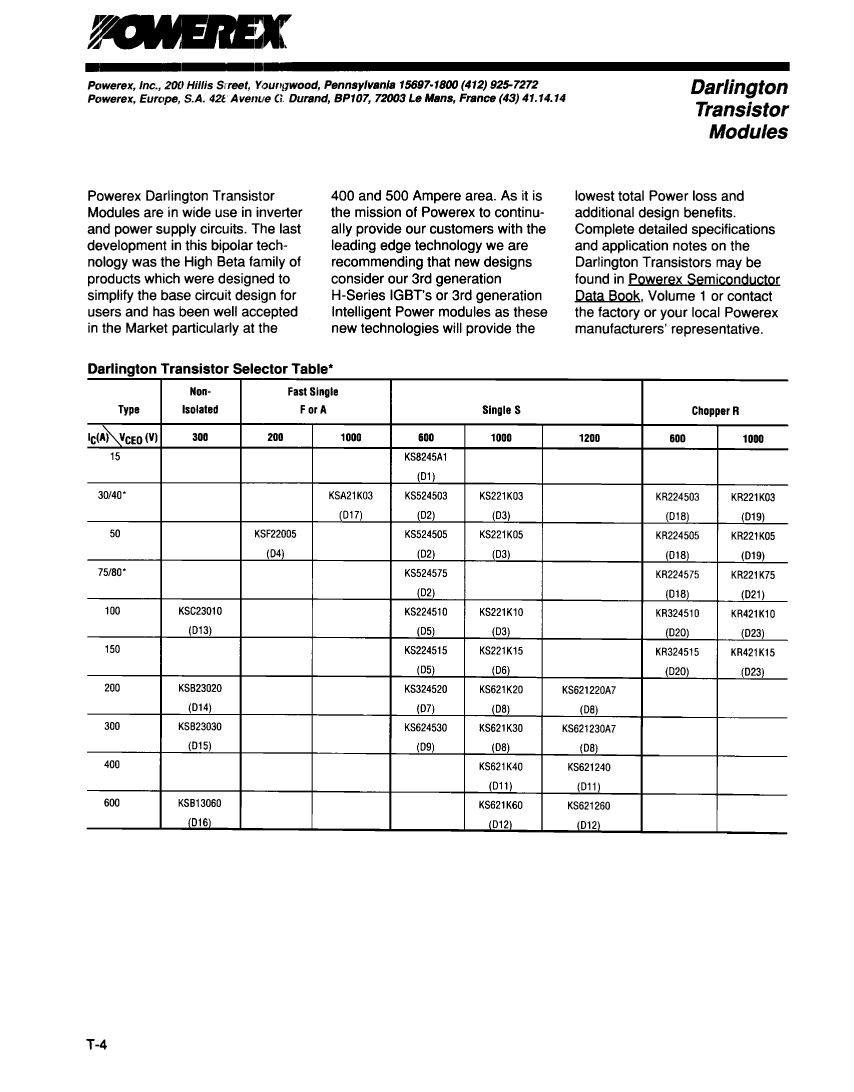

KSC23010 Overview

Power Bipolar Transistor, 100A I(C), 300V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 2 Pin, D13, 2 PIN

Parameter Name	Attribute value
Maker	POWEREX
package instruction	FLANGE MOUNT, R-PUFM-X2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	100 A
Collector-emitter maximum voltage	300 V
Configuration	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR
Minimum DC current gain (hFE)	100
Maximum landing time (tf)	3000 ns
JESD-30 code	R-PUFM-X2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Maximum power dissipation(Abs)	415 W
Certification status	Not Qualified
Maximum rise time (tr)	2000 ns
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
transistor applications	SWITCHING
Transistor component materials	SILICON
VCEsat-Max	2 V
