LT1105CS datasheet, PDF - EEWORLD Datasheet

LT1105CS: DescriptionIC 1.5 A SWITCHING CONTROLLER, 200 kHz SWITCHING FREQ-MAX, PDSO20, PLASTIC, SOL-20, Switching Regulator or Controller; CategoryPower/power management The power supply circuit; File Size2MB，28 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric View All

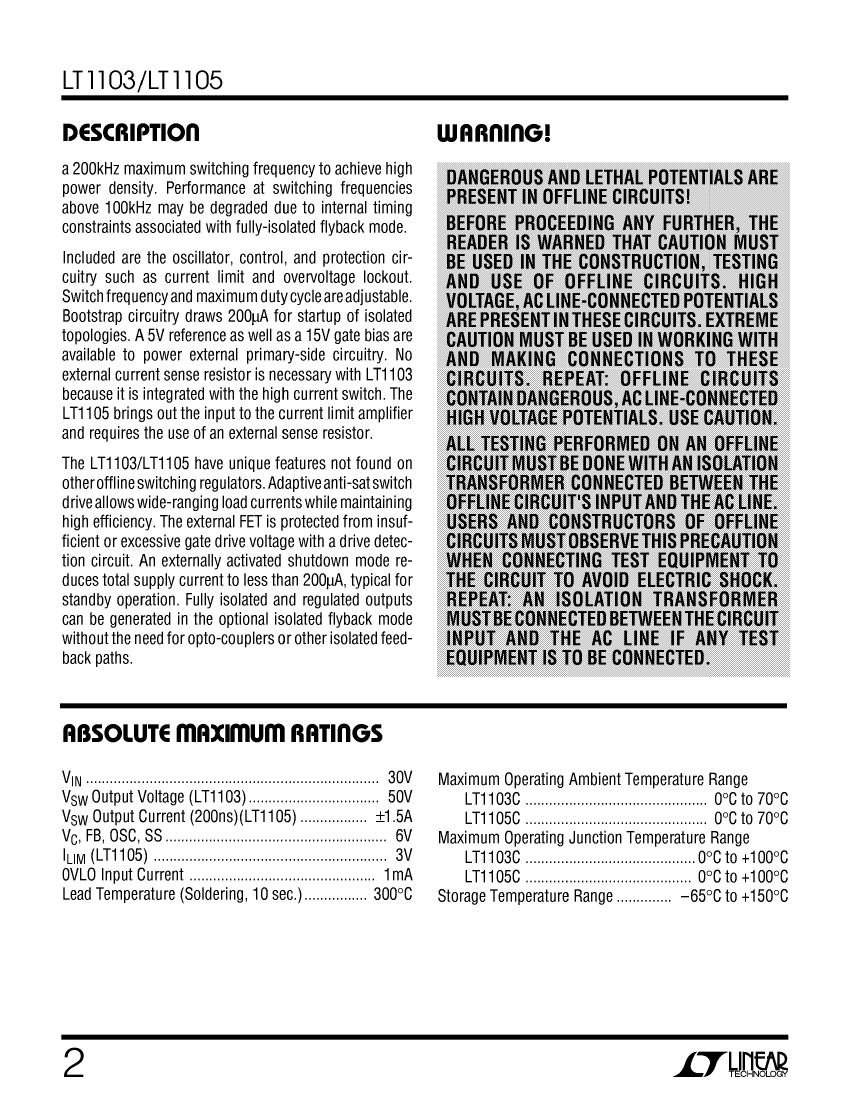

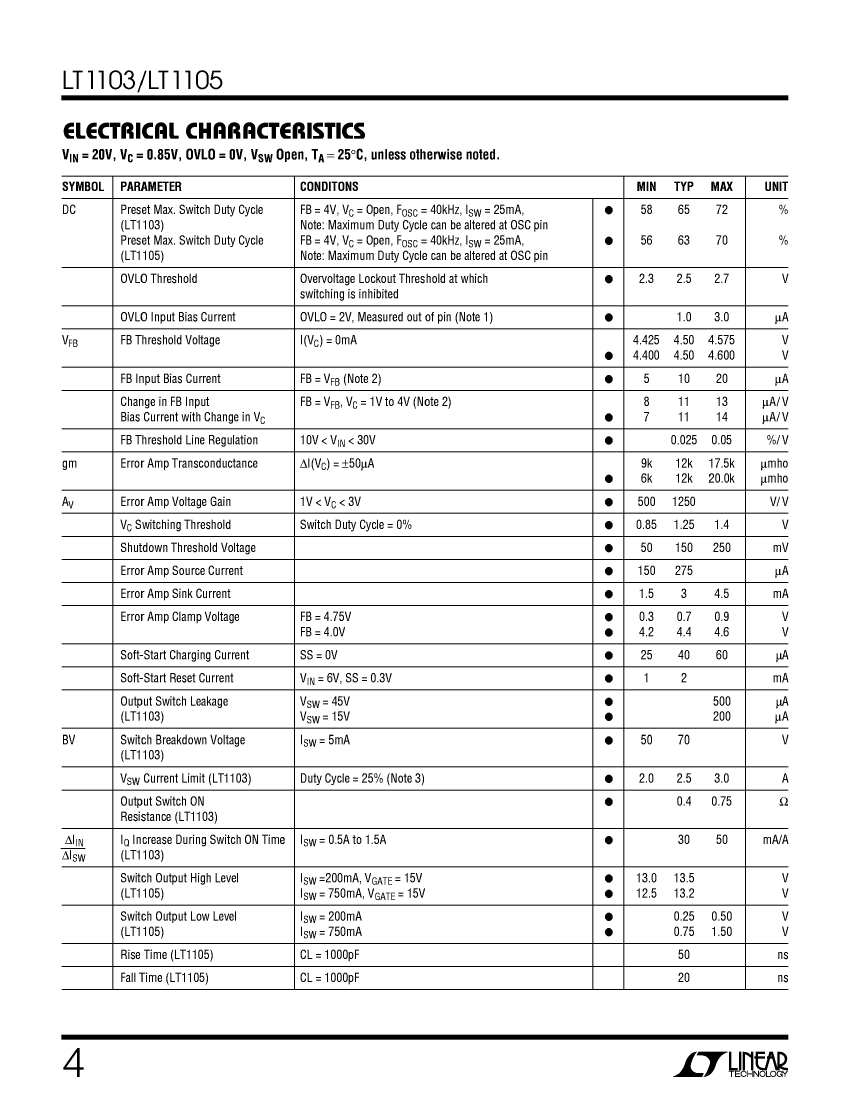

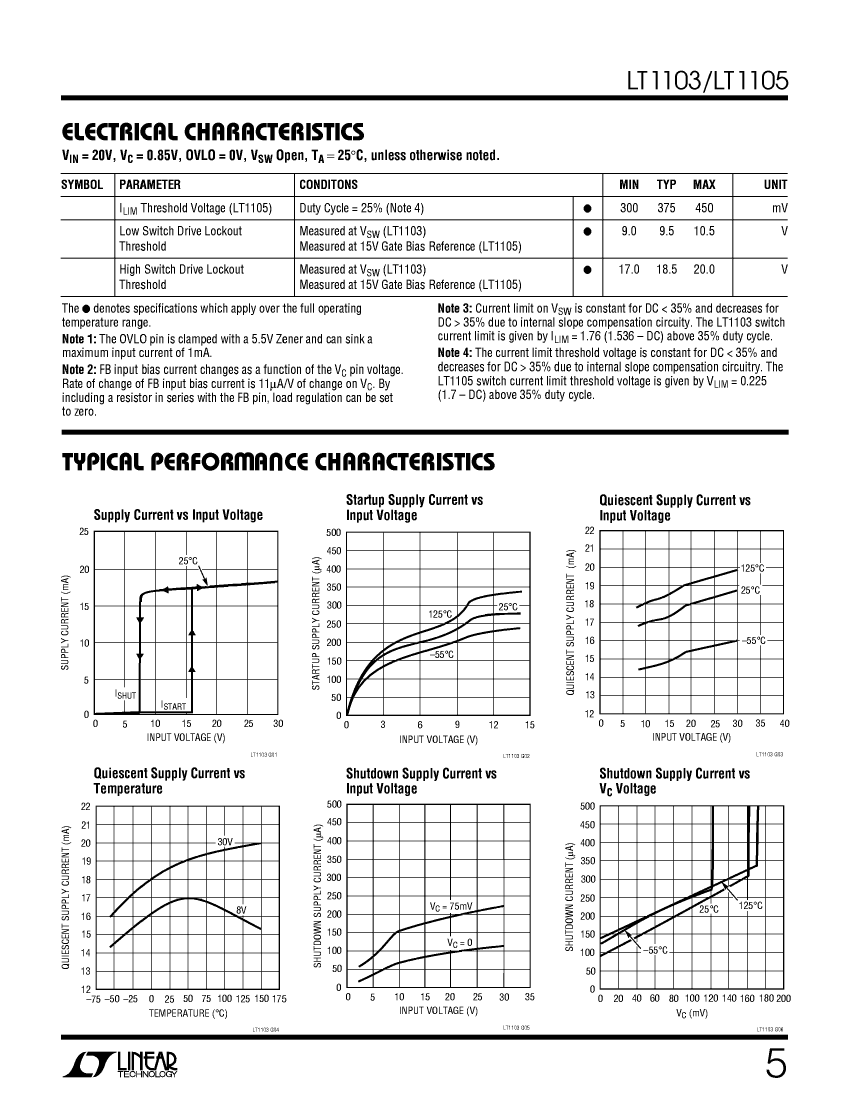

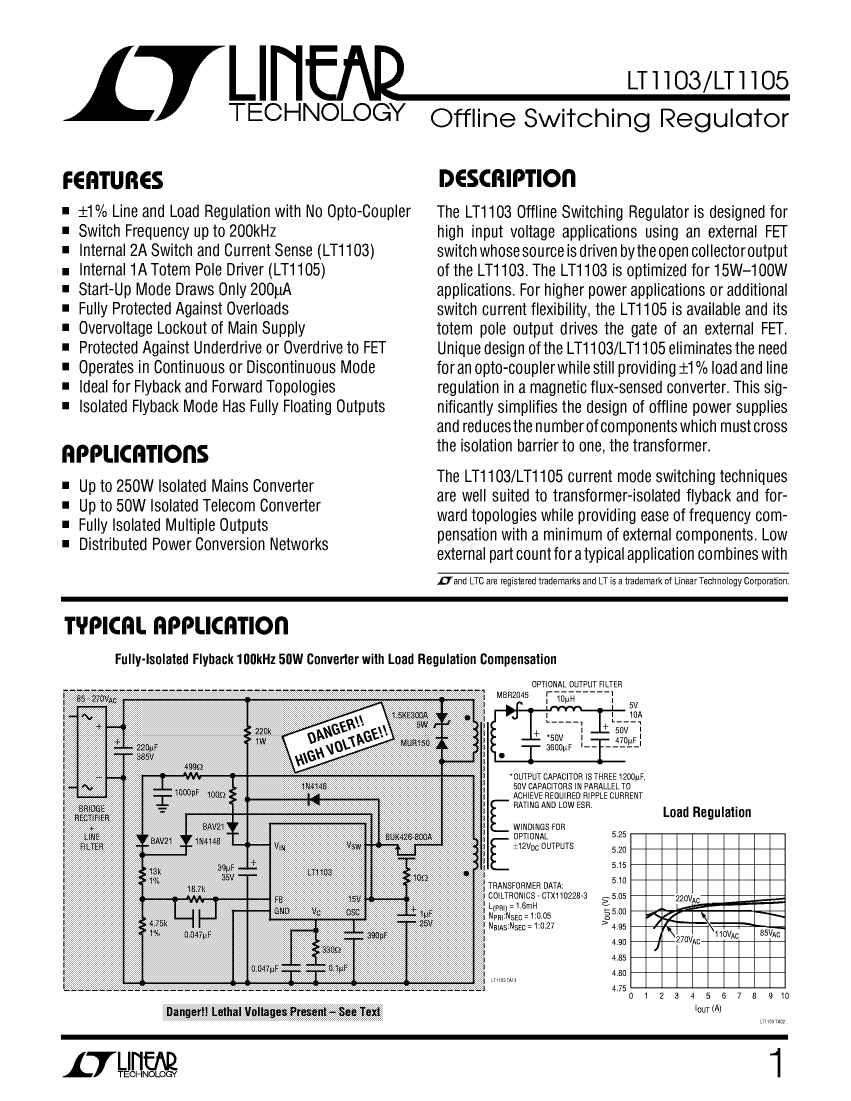

LT1105CS Overview

IC 1.5 A SWITCHING CONTROLLER, 200 kHz SWITCHING FREQ-MAX, PDSO20, PLASTIC, SOL-20, Switching Regulator or Controller

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )

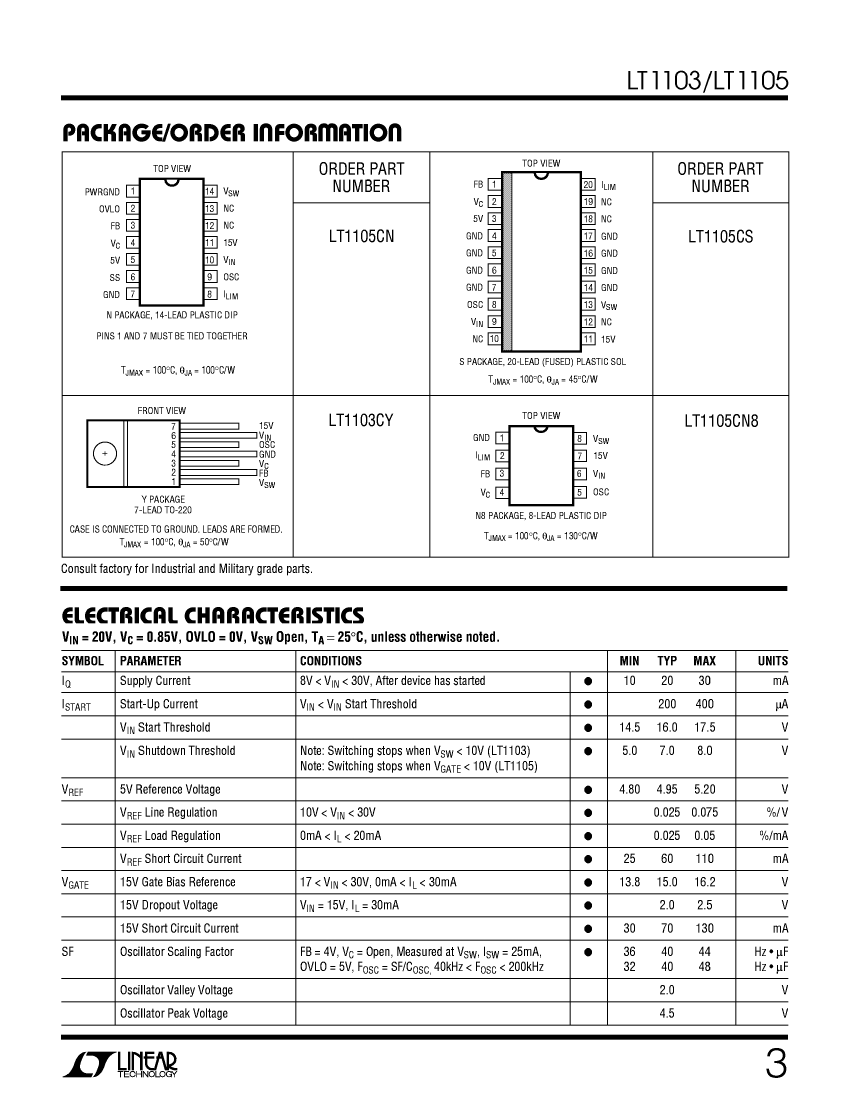

Parts packaging code	SOIC
package instruction	SOP, SOP20,.4
Contacts	20
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	30 V
Minimum input voltage	8 V
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
length	12.8 mm
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output current	1.5 A
Nominal output voltage	4.5 V
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	245
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply current (Isup)	30 mA
surface mount	YES
Switch configuration	SINGLE
Maximum switching frequency	200 kHz
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm
