LT111J8/883B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LT111J8/883B

LT111J8/883B: DescriptionIC COMPARATOR, 4000 uV OFFSET-MAX, 200 ns RESPONSE TIME, CDIP8, HERMETIC SEALED, CERDIP-8, Comparator; CategoryAnalog mixed-signal IC Amplifier circuit; File Size279KB，8 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LT111J8/883B Overview

IC COMPARATOR, 4000 uV OFFSET-MAX, 200 ns RESPONSE TIME, CDIP8, HERMETIC SEALED, CERDIP-8, Comparator

LT111J8/883B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	DIP
package instruction	HERMETIC SEALED, CERDIP-8
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	0.15 µA
Maximum input offset voltage	4000 µV
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Nominal response time	200 ns
Maximum slew rate	6 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	DUAL

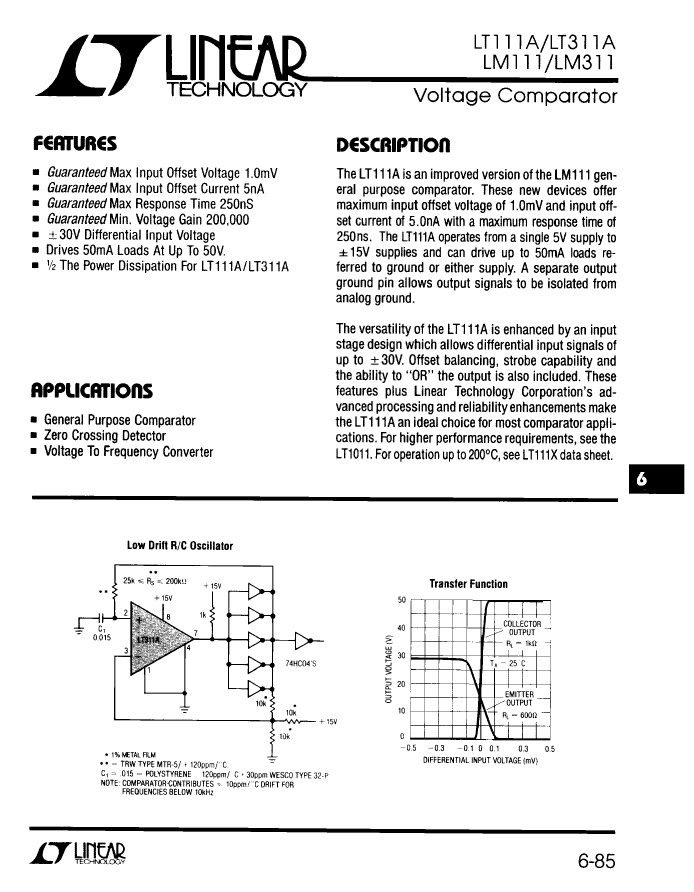

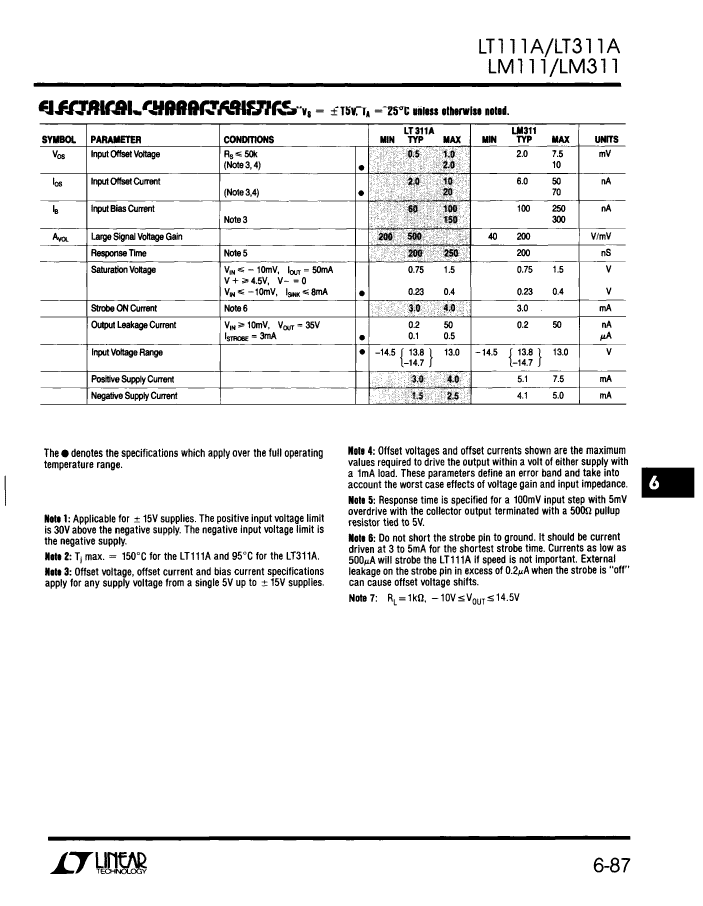

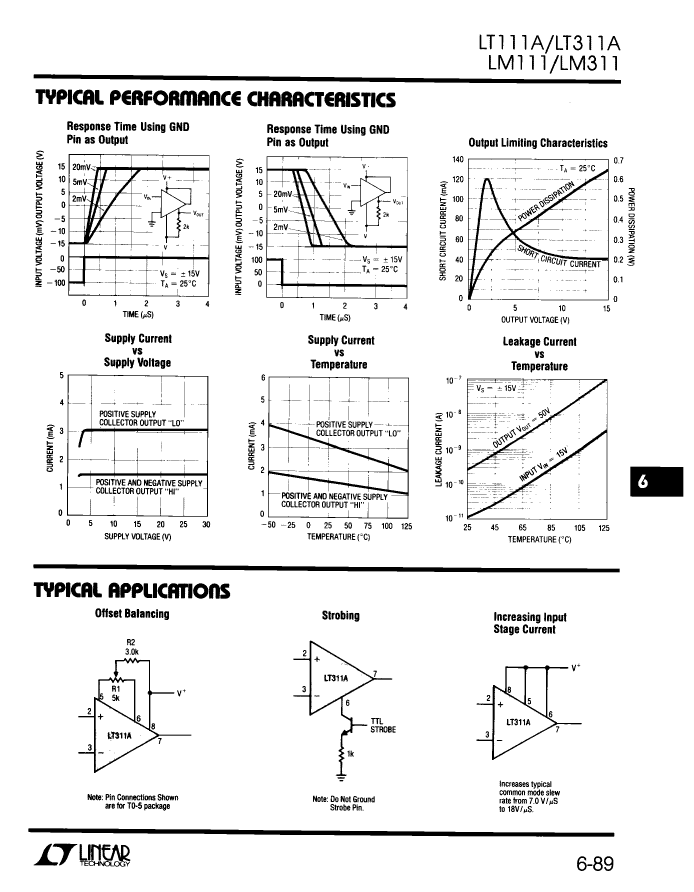

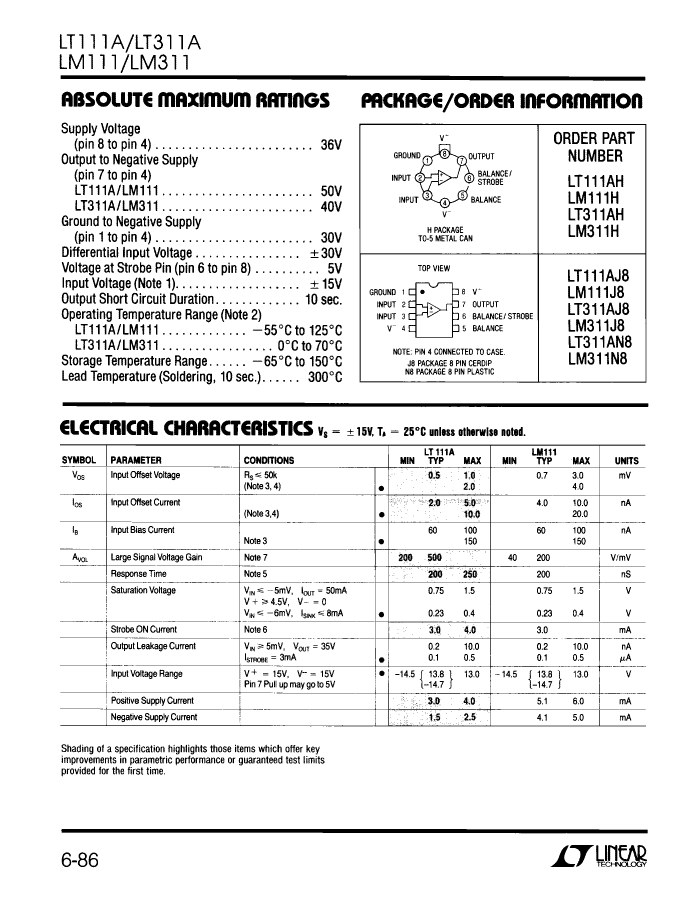

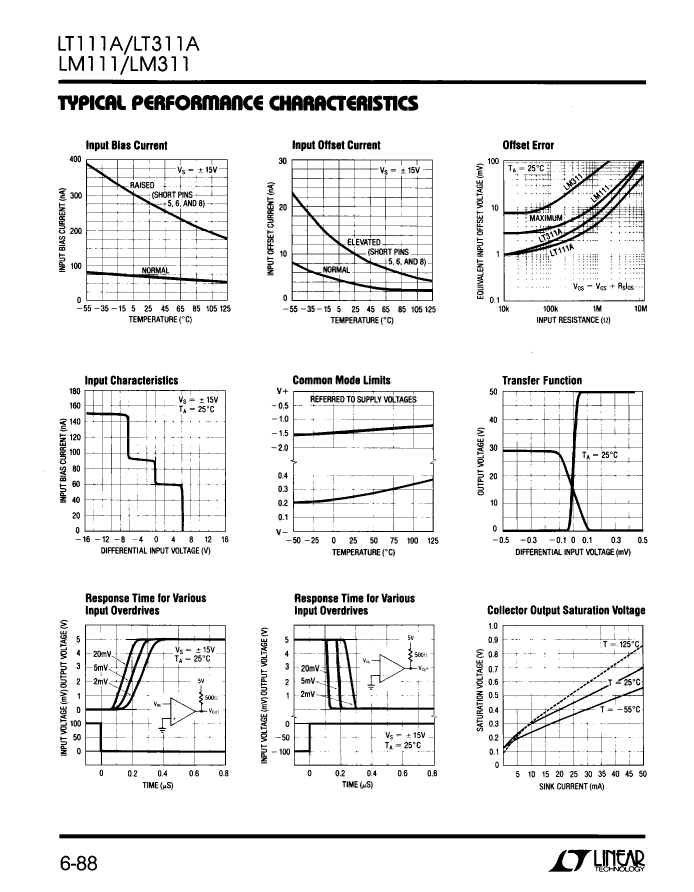

Preview

Download Datasheet

View All

LT111J8/883B Related Products

	LT111J8/883B	LT111AJ8/883B	LT111AH/883B	LT111H/883B
Description	IC COMPARATOR, 4000 uV OFFSET-MAX, 200 ns RESPONSE TIME, CDIP8, HERMETIC SEALED, CERDIP-8, Comparator	IC COMPARATOR, 2000 uV OFFSET-MAX, 200 ns RESPONSE TIME, CDIP8, HERMETIC SEALED, CERDIP-8, Comparator	IC COMPARATOR, 2000 uV OFFSET-MAX, 200 ns RESPONSE TIME, MBCY8, METAL CAN, TO-5, 8 PIN, Comparator	IC COMPARATOR, 4000 uV OFFSET-MAX, 200 ns RESPONSE TIME, MBCY8, METAL CAN, TO-5, 8 PIN, Comparator
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )
Parts packaging code	DIP	DIP	TO-5	TO-5
package instruction	HERMETIC SEALED, CERDIP-8	HERMETIC SEALED, CERDIP-8	,	METAL CAN, TO-5, 8 PIN
Contacts	8	8	8	8
Reach Compliance Code	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR
Maximum average bias current (IIB)	0.15 µA	0.15 µA	0.15 µA	0.15 µA
Maximum input offset voltage	4000 µV	2000 µV	2000 µV	4000 µV
JESD-30 code	R-GDIP-T8	R-GDIP-T8	O-MBCY-W8	O-MBCY-W8
JESD-609 code	e0	e0	e0	e0
Negative supply voltage upper limit	-18 V	-18 V	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1
Number of terminals	8	8	8	8
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	METAL	METAL
Package shape	RECTANGULAR	RECTANGULAR	ROUND	ROUND
Package form	IN-LINE	IN-LINE	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal response time	200 ns	200 ns	200 ns	200 ns
Maximum slew rate	6 mA	4 mA	4 mA	6 mA
Supply voltage upper limit	18 V	18 V	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	WIRE	WIRE
Terminal location	DUAL	DUAL	BOTTOM	BOTTOM
