LT1179S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LT1179S

LT1179S: DescriptionOperational Amplifier, 4 Func, 800uV Offset-Max, BIPolar, PDSO16, 0.150 INCH, SLIM, PLASTIC, SO-16; CategoryAnalog mixed-signal IC Amplifier circuit; File Size246KB，6 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

LT1179S Overview

Operational Amplifier, 4 Func, 800uV Offset-Max, BIPolar, PDSO16, 0.150 INCH, SLIM, PLASTIC, SO-16

LT1179S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	SOIC
package instruction	SOP, SOP16,.4
Contacts	16
Reach Compliance Code	not_compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.007 µA
Maximum bias current (IIB) at 25C	0.006 µA
Nominal Common Mode Rejection Ratio	100 dB
frequency compensation	YES
Maximum input offset voltage	800 µV
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	10.3 mm
low-dissonance	NO
micropower	YES
Number of functions	4
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/+-15 V
Certification status	Not Qualified
Maximum seat height	2.65 mm
minimum slew rate	0.02 V/us
Maximum slew rate	0.096 mA
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	60 kHz
Minimum voltage gain	150000
width	7.5 mm

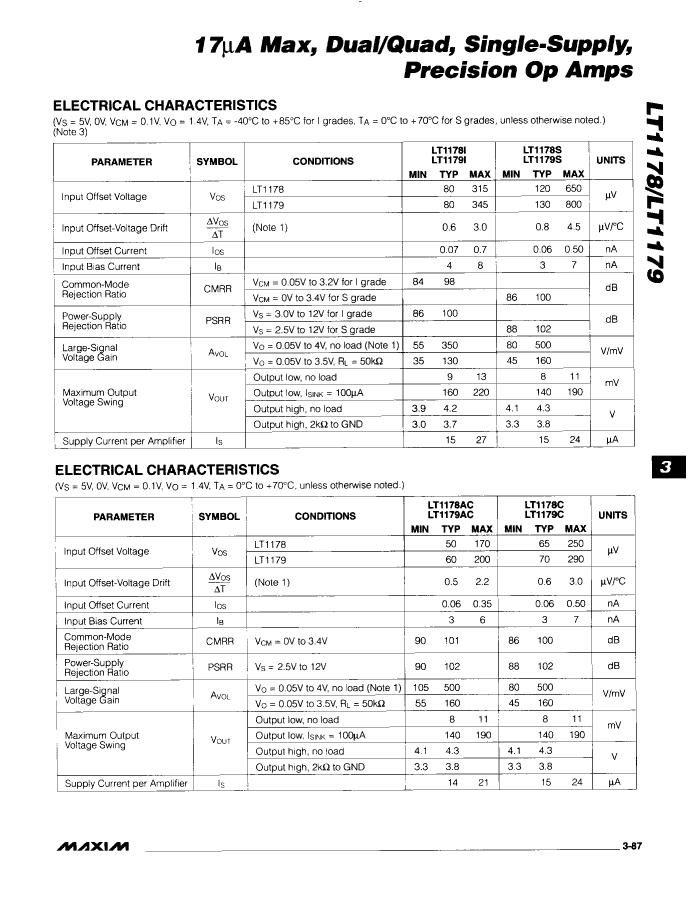

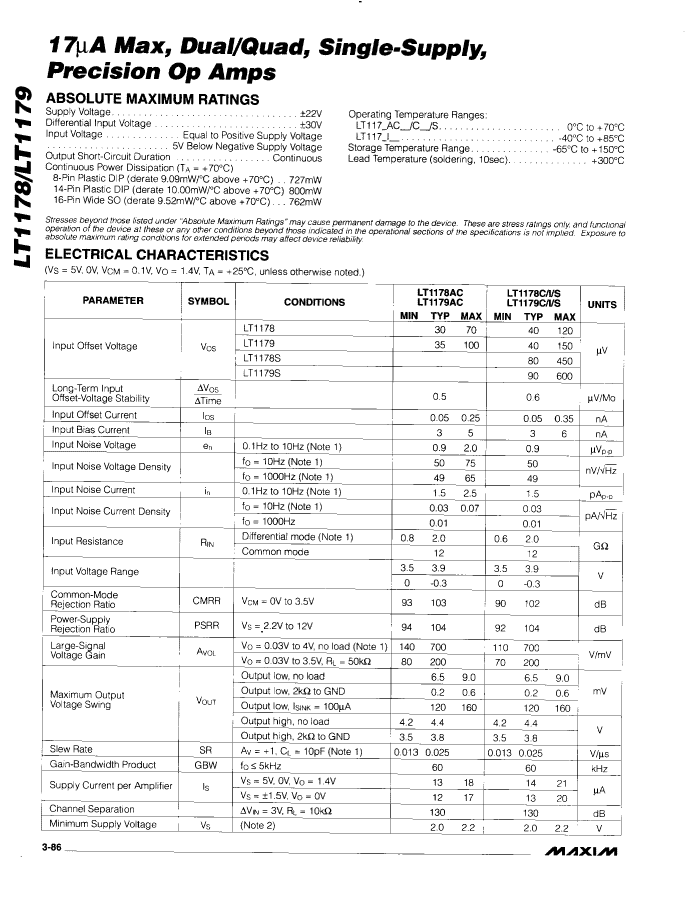

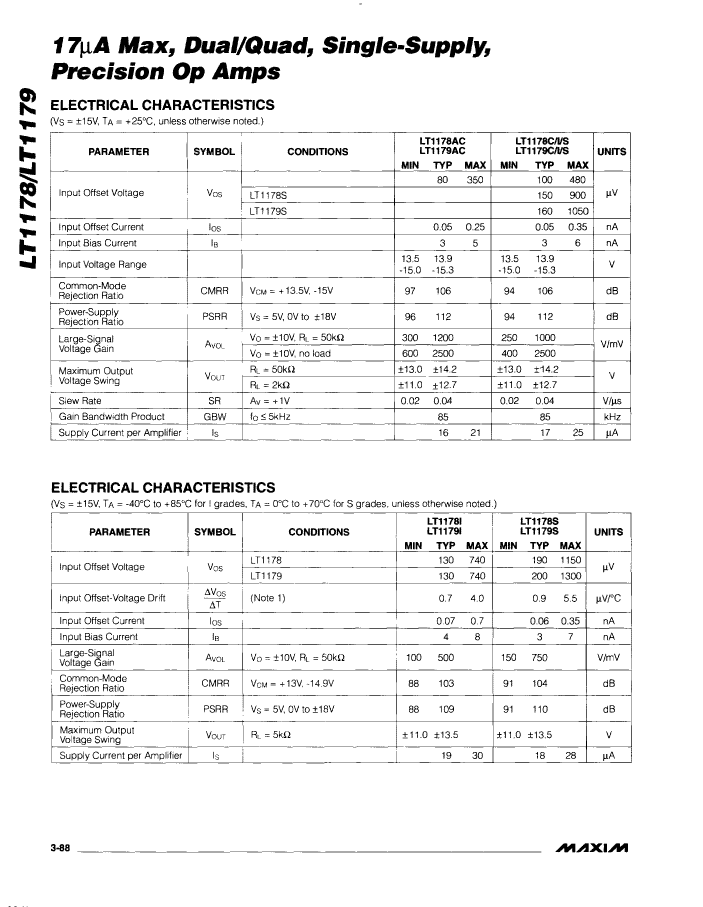

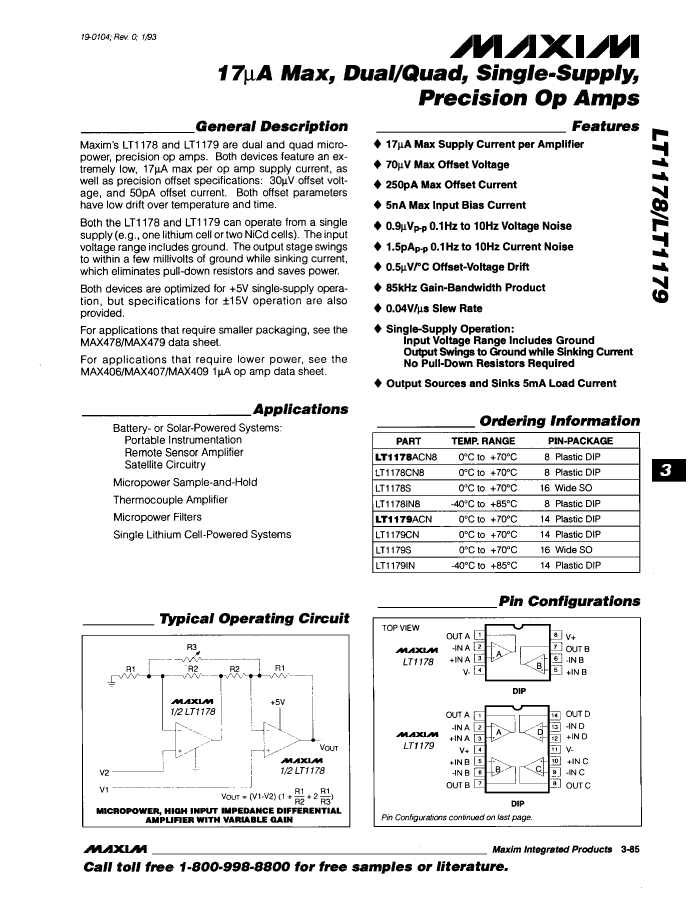

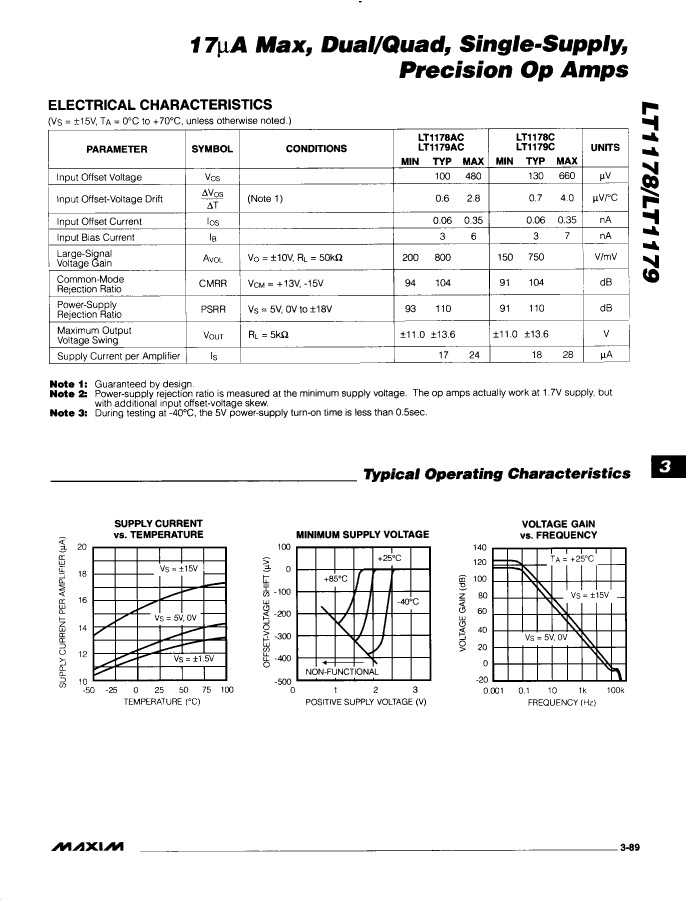

Preview

Download Datasheet

View All

LT1179S Related Products

	LT1179S	LT1178ACN8	LT1178CN8	LT1178IN8	LT1178S	LT1179IN	LT1179CN	LT1179ACN
Description	Operational Amplifier, 4 Func, 800uV Offset-Max, BIPolar, PDSO16, 0.150 INCH, SLIM, PLASTIC, SO-16	Operational Amplifier, 2 Func, 170uV Offset-Max, BIPolar, PDIP8, PLASTIC, DIP-8	Operational Amplifier, 2 Func, 250uV Offset-Max, BIPolar, PDIP8, PLASTIC, DIP-8	Operational Amplifier, 2 Func, 315uV Offset-Max, BIPolar, PDIP8, PLASTIC, DIP-8	Operational Amplifier, 2 Func, 650uV Offset-Max, BIPolar, PDSO16, 0.150 INCH, SLIM, PLASTIC, SO-16	Operational Amplifier, 4 Func, 345uV Offset-Max, BIPolar, PDIP14, PLASTIC, DIP-14	Operational Amplifier, 4 Func, 290uV Offset-Max, BIPolar, PDIP14, PLASTIC, DIP-14	Operational Amplifier, 4 Func, 200uV Offset-Max, BIPolar, PDIP14, PLASTIC, DIP-14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim
Parts packaging code	SOIC	DIP	DIP	DIP	SOIC	DIP	DIP	DIP
package instruction	SOP, SOP16,.4	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3	0.150 INCH, SLIM, PLASTIC, SO-16	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Contacts	16	8	8	8	16	14	14	14
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.007 µA	0.006 µA	0.007 µA	0.008 µA	0.007 µA	0.008 µA	0.007 µA	0.006 µA
Maximum bias current (IIB) at 25C	0.006 µA	0.005 µA	0.006 µA	0.006 µA	0.006 µA	0.006 µA	0.006 µA	0.005 µA
Nominal Common Mode Rejection Ratio	100 dB	101 dB	100 dB	98 dB	100 dB	98 dB	100 dB	101 dB
frequency compensation	YES	YES	YES	YES	YES	YES	YES	YES
Maximum input offset voltage	800 µV	170 µV	250 µV	315 µV	650 µV	345 µV	290 µV	200 µV
JESD-30 code	R-PDSO-G16	R-PDIP-T8	R-PDIP-T8	R-PDIP-T8	R-PDSO-G16	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	10.3 mm	9.375 mm	9.375 mm	9.375 mm	10.3 mm	19.05 mm	19.05 mm	19.05 mm
low-dissonance	NO	YES	YES	YES	NO	YES	YES	YES
micropower	YES	YES	YES	YES	YES	YES	YES	YES
Number of functions	4	2	2	2	2	4	4	4
Number of terminals	16	8	8	8	16	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C	85 °C	70 °C	85 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	DIP	SOP	DIP	DIP	DIP
Encapsulate equivalent code	SOP16,.4	DIP8,.3	DIP8,.3	DIP8,.3	SOP16,.4	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5/+-15 V	5/+-15 V	5/+-15 V	5/+-15 V	5/+-15 V	5/+-15 V	5/+-15 V	5/+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	4.572 mm	4.572 mm	4.572 mm	2.65 mm	4.572 mm	4.572 mm	4.572 mm
minimum slew rate	0.02 V/us	0.02 V/us	0.02 V/us	0.02 V/us	0.02 V/us	0.02 V/us	0.02 V/us	0.02 V/us
Maximum slew rate	0.096 mA	0.042 mA	0.048 mA	0.054 mA	0.048 mA	0.108 mA	0.096 mA	0.084 mA
Supply voltage upper limit	22 V	22 V	22 V	22 V	22 V	22 V	22 V	22 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	NO	YES	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	60 kHz	60 kHz	60 kHz	60 kHz	60 kHz	60 kHz	60 kHz	60 kHz
Minimum voltage gain	150000	200000	200000	100000	150000	100000	150000	200000
width	7.5 mm	7.62 mm	7.62 mm	7.62 mm	7.5 mm	7.62 mm	7.62 mm	7.62 mm
