BTS949E3043NKSA1

Description
Buffer/Inverter Based Peripheral Driver, 19A, MOS, PSFM5, PLASTIC, TO-220, 5 PIN
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size215KB，12 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Download Datasheet Parametric View All

BTS949E3043NKSA1 Overview

Buffer/Inverter Based Peripheral Driver, 19A, MOS, PSFM5, PLASTIC, TO-220, 5 PIN

BTS949E3043NKSA1 Parametric

Parameter NameAttribute value
MakerInfineon
package instruction,
Reach Compliance Codeunknown
ECCN codeEAR99
Built-in protectionTRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL
Interface integrated circuit typeBUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 codeR-PSFM-T5
Number of functions1
Number of terminals5
Output current flow directionSINK
Nominal output peak current19 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
surface mountNO
technologyMOS
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Disconnect time170 µs
connection time100 µs

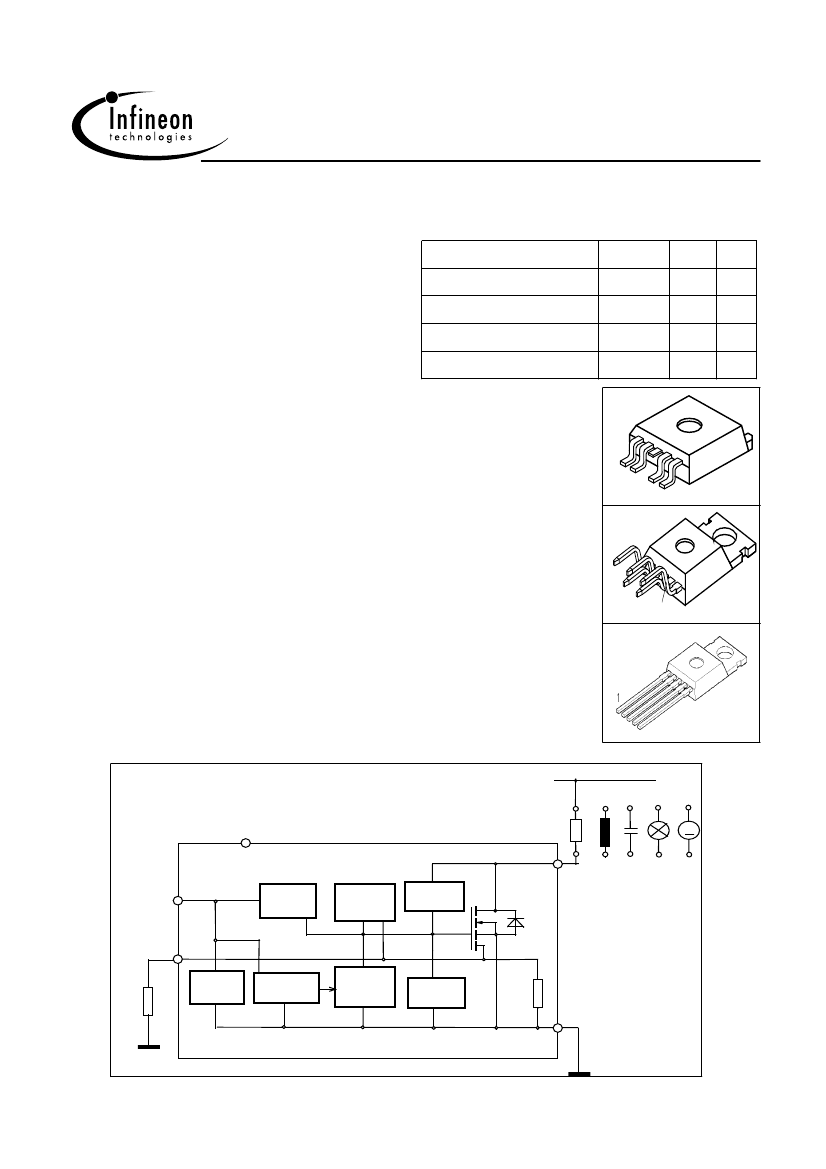

BTS949E3043NKSA1 Preview

HITFET
=
BTS 949
Smart Lowside Power Switch
Features
•
Logic Level Input
•
Input Protection (ESD)
•=Thermal
shutdown with latch
•
Overload protection
•
Short circuit protection
•
Overvoltage protection
•
Current
Product Summary
Drain source voltage
On-state resistance
Current limit
Nominal load current
Clamping energy
V
DS
R
DS(on)
I
D(lim)
I
D(ISO)
E
AS
60
18
9.5
19
V
mΩ
A
A
6000 mJ
limitation
•
Maximum current adjustable with external resistor
•
Current sense
•
Status feedback with external input resistor
•
Analog driving possible
1
5
VPT05166
Application
•
All kinds of resistive, inductive and capacitive loads in switching or
linear applications
•
µC compatible power switch for 12 V and 24 V DC applications
•
Replaces electromechanical relays and discrete circuits
1
5
VPT05165
General Description
N channel vertical power FET in Smart SIPMOS
chip on chip tech-
nology. Fully protected by embedded protected functions.
V bb
+
2
NC
Drain
LOAD
M
3
1
IN
dv/dt
limitation
Current
limitation
Overvoltage
protection
4
CC
Over-
temperature
protection
ESD
R
CC
Overload
protection
Short circuit
Short circuit
protection
protection
Source
5
HITFET
Page 1
07.06.2000
BTS 949
Maximum Ratings at Tj = 25 °C unless otherwise specified
Parameter
Drain source voltage
Drain source voltage for short circuit protection
R
CC
= 0
Ω
without
R
CC
Continuous input current
1)
-0.2V
≤
V
IN
≤
10V
V
IN
< -0.2V or
V
IN
> 10V
Operating temperature
Storage temperature
Power dissipation
T
C
= 25 °C
Unclamped single pulse inductive energy
I
D(ISO)
= 19 A
Electrostatic discharge
voltage
(Human Body Model)
V
ESD
according to MIL STD 883D, method 3015.7 and
EOS/ESD assn. standard S5.1 - 1993
Load dump protection
V
LoadDump2)
=
V
A
+
V
S
V
IN
=low or high;
V
A
=13.5 V
t
d
= 400 ms,
R
I
= 2
Ω,
I
D
=0,5*19A
t
d
= 400 ms,
R
I
= 2
Ω,
I
D
= 19A
DIN humidity category, DIN 40 040
IEC climatic category; DIN IEC 68-1
V
LD
110
92
E
40/150/56
3000
V
E
AS
6000
mJ
T
j
T
stg
P
tot
I
IN
no limit
|
I
IN
|
≤
2
- 40 ... +150
- 55 ... +150
240
W
°C
Symbol
V
DS
V
DS(SC)
15
50
mA
Value
60
Unit
V
Thermal resistance
junction - case:
junction - ambient:
SMD version, device on PCB:
3)
R
thJC
R
thJA
R
thJA
0.7
75
45
K/W
1In case of thermal shutdown a minimum sensor holding current of 500 µA has to be guaranteed (see also page 3).
2
V
Loaddump is setup without the DUT connected to the generator per ISO 7637-1 and DIN 40839
3 Device on 50mm*50mm*1.5mm epoxy PCB FR4 with 6cm 2 (one layer, 70µm thick) copper area for drain
connection. PCB mounted vertical without blown air.
Page 2
07.06.2000
BTS 949
Electrical Characteristics
Parameter
at T
j
=25°C, unless otherwise specified
Characteristics
Drain source clamp voltage
T
j
= - 40 ...+ 150°C,
I
D
= 10 mA
Off state drain current
V
DS
= 32 V,
T
j
= -40...+150 °C,
V
IN
= 0 V
Input threshold voltage
I
D
= 3,9 mA
Input current - normal operation,
I
D
<I
D(lim)
:
V
IN
= 10 V
V
IN
= 10 V
Input current - after thermal shutdown,
I
D
=0 A:
V
IN
= 10 V
Input holding current after thermal shutdown
1)
T
j
= 25 °C
T
j
= 150 °C
On-state resistance
V
IN
= 5 V,
I
D
= 19 A,
T
j
= 25 °C
V
IN
= 5 V,
I
D
= 19 A,
T
j
= 150 °C
On-state resistance
V
IN
= 10 V,
I
D
= 19 A,
T
j
= 25 °C
V
IN
= 10 V,
I
D
= 19 A,
T
j
= 150 °C
Nominal load current (ISO 10483)
V
IN
= 10 V,
V
DS
= 0.5 V,
T
C
= 85 °C
I
D(ISO)
R
DS(on)
-
-
19
14
25
-
18
36
-
A
R
DS(on)
-
-
18
30
22
44
I
IN(3)
I
IN(H)
500
300
-
-
-
-
mΩ
1500
3000
6000
I
IN(1)
-
-
-
400
100
1000
µA
V
IN(th)
1.3
1.7
2.2
V
V
DS(AZ)
I
DSS
60
-
-
-
73
25
V
µA
Symbol
min.
Values
typ.
max.
Unit
Input current - current limitation mode,
I
D
=I
D(lim)
:
I
IN(2)
1If the input current is limited by external components, low drain currents can flow and heat the device.
Auto restart behaviour can occur.
Page 3
07.06.2000
BTS 949
Electrical Characteristics
Parameter
at T
j
=25°C, unless otherwise specified
Characteristics
Initial peak short circuit current limit
V
IN
= 10 V,
V
DS
= 12 V
Current limit
1)
V
IN
= 10 V,
V
DS
= 12 V,
t
m
= 350 µs,
T
j
= -40...+150 °C, without
R
CC
V
IN
= 10 V,
V
DS
= 12 V,
t
m
= 350 µs,
T
j
= -40...+150 °C,
R
CC
= 0
Ω
Dynamic Characteristics
Turn-on time
Turn-off time
Slew rate on
Slew rate off
V
IN
to 90%
I
D
:
V
IN
to 10%
I
D
:
70 to 50%
V
bb
:
t
on
t
off
-dV
DS
/dt
on
dV
DS
/dt
off
-
-
-
-
40
70
1
1
100
170
3
3
V/µs
µs
R
L
= 1
Ω,
V
IN
= 0 to 10 V,
V
bb
= 12 V
R
L
= 1
Ω,
V
IN
= 10 to 0 V,
V
bb
= 12 V
R
L
= 1
Ω,
V
IN
= 0 to 10 V,
V
bb
= 12 V
50 to 70%
V
bb
:
R
L
= 1
Ω,
V
IN
= 10 to 0 V,
V
bb
= 12 V
9.5
150
19
220
40
270
I
D(lim)
I
D(SCp)
-
175
-
A
Symbol
min.
Values
typ.
max.
Unit
Protection Functions
Thermal overload trip temperature
Unclamped single pulse inductive energy
I
D
= 19 A,
T
j
= 25 °C,
V
bb
= 32 V
I
D
= 19 A,
T
j
= 150 °C,
V
bb
= 32 V
T
jt
E
AS
6000
1800
-
-
-
-
150
165
-
°C
mJ
Inverse Diode
Inverse diode forward voltage
I
F
= 5*19A,
t
m
= 300
µS,
V
IN
= 0 V
V
SD
-
1,1
-
V
1Device switched on into existing short circuit (see diagram Determination of I D(lim)). If the device is in on condition
and a short circuit occurs, these values might be exceeded for max. 50 µs.
Page 4
07.06.2000
BTS 949
Block Diagramm
Terms
RL
I IN
1
RCC
V IN
V
4
CC
IN
HITFET
CC
S
5
3
ID
VDS
Vbb
Inductive and overvoltage output clamp
D
V
Z
D
S
HITFET
The ground lead impedance of
R
CC
should be as low as possible
Input circuit (ESD protection)
Short circuit behaviour
V IN
I D(SCp)
IN
ID
I D(Lim)
ESD-ZD
I
Source
t0
tm
t1
t2
t0:
ESD zener diodes are not designed
for DC current > 2 mA @
V
IN
>10V.
Turn on into a short circuit
tm: Measurementpoint for
I
D(lim)
t1: Activation of the fast temperature sensor and
regulation of the drain current to a level where
the junction temperature remains constant.
t2: Thermal shutdown caused by the second
temperature sensor, achieved by an
integrating measurement.
Page 5
07.06.2000
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

6V regulated power supply circuit with input short circuit protection

ISD1016A voice recording and playback circuit

TEM-0002 schematic circuit

Practical uninterruptible power supply circuit diagram

Fast detection circuit for AC power drop

WINCE4.2 installation error, please help!
An error occurred during the installation of WINCE4.2. The error message is as follows: Error 21337. Setup encountered problems installing some critical emulation components. You may continue the inst...
小飞龙 Embedded System
Verilog failed to write frequency counter FPGA (cyclone4) development board experience 05
It is not right to not learn HDL language after getting an FPGA board. I looked at the Verilog tutorial and felt that it was too empty to just read it. I might as well do something. So I decided to ma...
astwyg FPGA/CPLD
stm32 learning (3)--GPIO
The IO ports of STM32 can be configured into 8 modes by software: 1. Input floating 2. Input pull-up 3. Input pull-down 4. Analog input 5. Open-drain output 6. Push-pull output 7. Push-pull multiplexi...
tzzhuang stm32/stm8
SDRAM controller
I want to know how to implement the arbitration code in the command of the sdram controller code segment? The code segment is as follows: // set command_delay shift register and command_done flag // T...
小霍 FPGA/CPLD
If the GPMC of AM335X is connected to the FPGA, does it need a separate clock to provide to the FPGA?
As the title says! If you have done this, please give me some advice. When I was working on AM335X, I found that the GPMC_CLK pin of its GPMC bus interface only outputs a clock when the interface is o...
slugger_tp DSP and ARM Processors
I want to develop into a computer architecture engineer, what should I pay attention to?
I have been working as a C++ engineer for several years and have always been interested in low-level development and hardware. I would like to develop in the direction of architecture and plan to do m...
henluo Embedded System
Shortcut:   E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components

  1. 947-112M21-11APP
  2. PIC16F687-I/MLSQTP
  3. EXM-S06-19-32SA-05
  4. CDR32BP330BJYRAB
  5. MWDL15P-8E1-18S1
  6. 7301TPV3SE2
  7. MD37M4PZV30
  8. BLU1210-2102-CB101Q
  9. AME8500AEEVDF29
  10. MMBT3906-AU_BX_00001
  11. MMBZ5259AT/R13
  12. 2CW032036YQ-PA

Popular Articles

  1. Application of digital filtering function in circuit noise interference test
  2. Counterpoint: Indian smartphone market may hit new highs
  3. Semiconductor refrigeration refrigerator made of single chip microcomputer
  4. Battery-powered Tektronix oscilloscope TPS2000B, please learn more about it
  5. Mouser Electronics and Amphenol Launch Plugged In Video Series Introducing New Connectivity Solutions
  6. Infineon AURIX™ TC3xx, TC4x, TRAVEO™ T2G and PSoC microcontroller families support Rust language
  7. 100% independent instruction set! Domestic Loongson CPU is compatible with 409 products this year
  8. RIGOL oscilloscope provides effective solutions for power measurement
  9. 1200 V SiC MOSFET single-tube design with enhanced interconnect packaging technology for high-efficiency welding machine
  10. Share a good four-channel amplifier 40W circuit

Technical ResourceMore

  1. lm358 Chinese information
  2. AG6200 Chinese Specifications
  3. Programming tool SmartPRO.bkill
  4. Modeling and simulation research of switching power supply
  5. IC driver module
  6. MATLAB Case 5 Strong Classifier Design Based on BP_Adaboost-Company Financial Early Warning Modeling.rar
  7. Research on Control of Three-phase Three-level PWM Rectifier
  8. Frequency Counter Program
  9. Power adapter inspection specifications
  10. Planar Transformer

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 573  850  16  1352  1315  12  18  1  28  27
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
