E2RLK18MSH19-20RSTA1TP1 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> E2RLK18MSH19-20RSTA1TP1

Preview

E2RLK18MSH19-20RSTA1TP1: DescriptionCircular Connector, 19 Contact(s), Aluminum Alloy, Female, Crimp/Solder Terminal, Receptacle, HALOGEN FREE; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerSOURIAU; Environmental Compliance

Download Datasheet Parametric View All

E2RLK18MSH19-20RSTA1TP1 Overview

Circular Connector, 19 Contact(s), Aluminum Alloy, Female, Crimp/Solder Terminal, Receptacle, HALOGEN FREE

E2RLK18MSH19-20RSTA1TP1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SOURIAU
package instruction	HALOGEN FREE
Reach Compliance Code	compliant
Other features	POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	18
Termination type	CRIMP/SOLDER
Total number of contacts	19

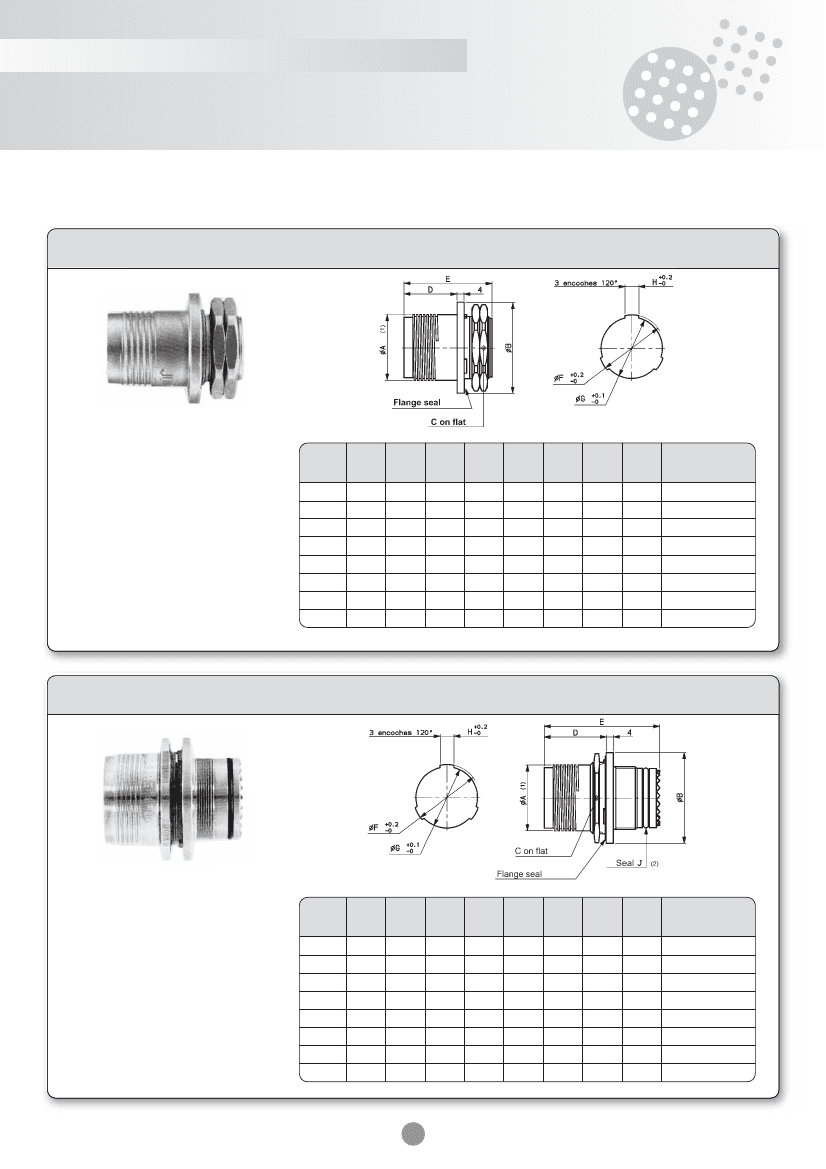

E2RLK18MSH19-20RSTA1TP1 Preview

MSH/MPH series

Dimensions

Standard receptacle E0

Panel thickness: 2-6 mm

(1) For thread pitch values, see bulkhead

table.

Shell

Size

16

17

18

20

22

24

26

28

ØA

Max

26,1

30,1

34,4

37,4

41,5

44,4

47,2

62,5

ØB

38

42

46

49

53

56

59

74

C

32

36

40

44

47

52

55

67

D

27,5

28

E

46

48,5

ØF

+0,1

0

27

30

34

38

41

45

48

59

ØG

+0,1

0

25

28

32

36

39

43

46

57

ØH

+0,2

0

6

Flange seal

ø 2,62 x 29,82

ø 2,62 x 32,99

ø 2,62 x 36,17

ø 2,62 x 40,95

ø 2,62 x 42,52

ø 2,62 x 47,29

ø 2,62 x 50,47

ø 3,00 x 62,00

Standard receptacle E2

Panel thickness: 2-6 mm

(1) For thread pitch values, see bulkhead

table.

(2) For “J” seal dimensions, see plug F1

and FZ table.

Shell

Size

16

17

18

20

22

24

26

28

ØA

Max

26,1

30,1

34,4

37,4

41,5

44,4

47,2

62,5

ØB

41

45

49

52

56

59

62

78

C

36

40

44

47

52

55

58

73

D

33,5

34

E

60

ØF

+0,1

0

30

34

38

41

45

48

52

67

ØG

+0,1

0

28

32

36

39

43

46

50

65

ØH

+0,2

0

6

Flange seal

ø 2,62 x 32,99

ø 2,62 x 36,17

ø 2,62 x 40,95

ø 2,62 x 42,52

ø 2,62 x 47,29

ø 2,62 x 50,47

ø 2,62 x 53,64

ø 2,62 x 67,95

22

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
