68290-136LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 68290-136LF

68290-136LF: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size109KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

68290-136LF Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, LEAD FREE

68290-136LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	68290
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0

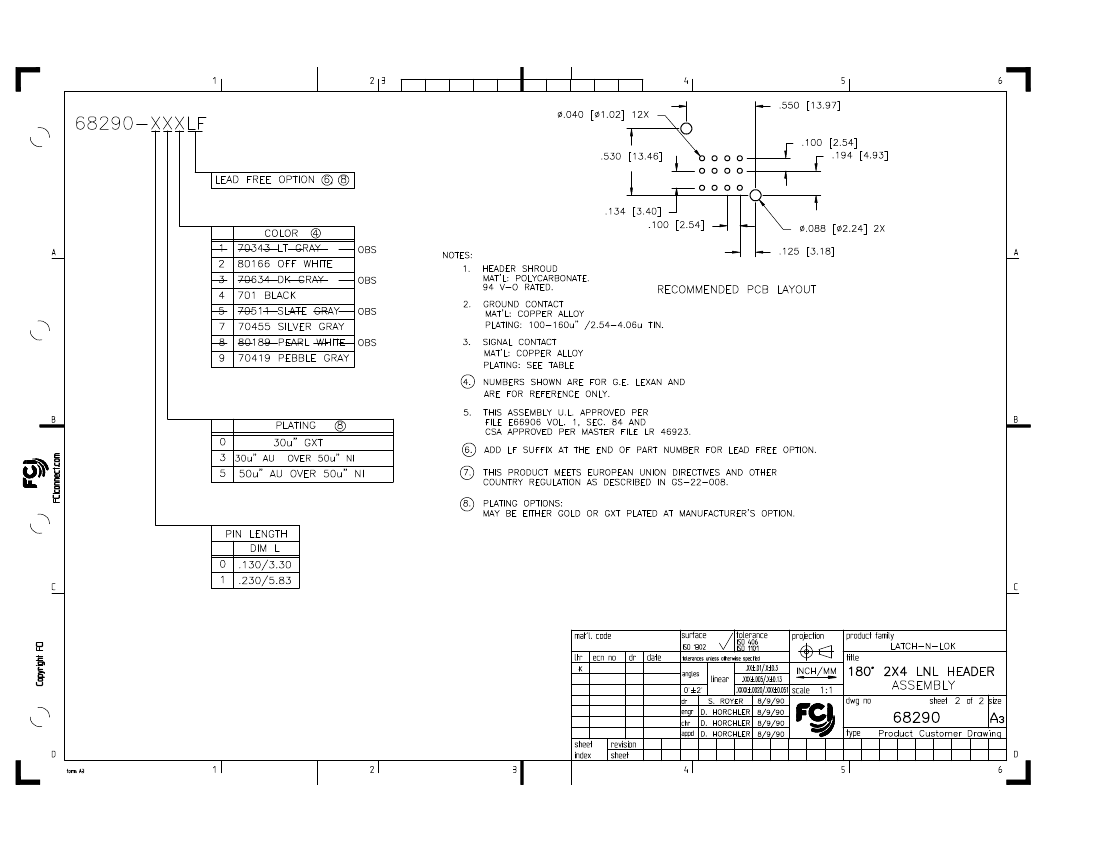

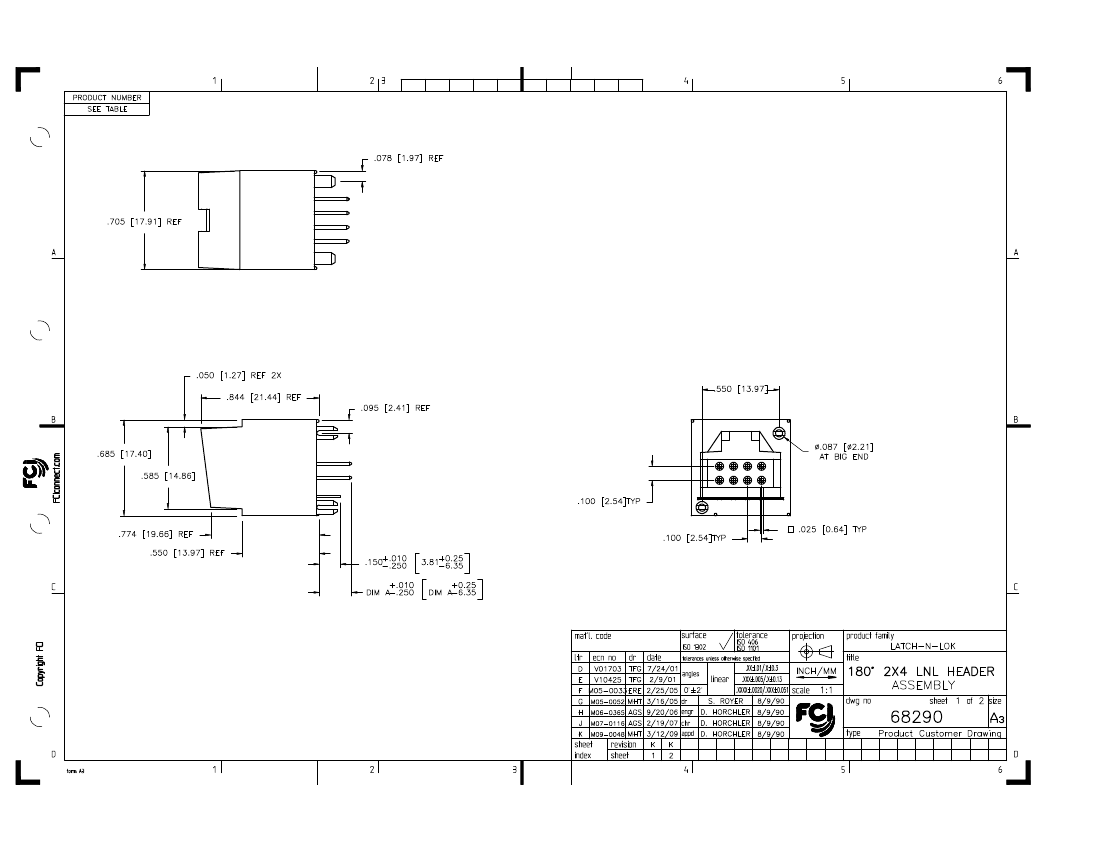

Preview

Download Datasheet

View All

PDM: Rev:K

STATUS:

Released

Printed: Oct 13, 2010

68290-136LF Related Products

	68290-136LF	68290-156LF	68290-156	68290-006LF	68290-036LF	68290-036	68290-056LF	68290-056	68290-106	68290-136
Description	Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, LEAD FREE	Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, LEAD FREE	Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal	Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, LEAD FREE	Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, LEAD FREE	Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal	Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, LEAD FREE	Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal	Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal	Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	68290	68290	68290	68290	68290	68290	68290	68290	68290	68290
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	8	8	8	8	8	8	8	8	8
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
