BRS-02-HPC-12-A-TN

Description
Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug
CategoryThe connector    The connector
File Size104KB，1 Pages
ManufacturerCentral Semiconductor
Environmental Compliance
Download Datasheet Parametric Compare View All

BRS-02-HPC-12-A-TN Overview

Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug

BRS-02-HPC-12-A-TN Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerCentral Semiconductor
Reach Compliance Codeunknown
Other featuresROHS COMPLIANT
body width0.157 inch
subject depth0.25 inch
body length0.484 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTin (Sn)
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Durability500 Cycles
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER (LCP)
JESD-609 codee3
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Rated current (signal)2 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.091 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts12

Preview

Download Datasheet
1
2
3
4
5
6
7
8
9
A
B
SPECIFICATIONS
Current rating:
Contact material:
Contact resistance:
Insulator material:
Insulation resistance:
Withstanding:
Operating temperature:
2 amps
Copper alloy
20 milliohms max.
LCP, UL94V-0, black
1,000 megohms min.
500VAC for 1 min.
-55°C to +105°C
C
D

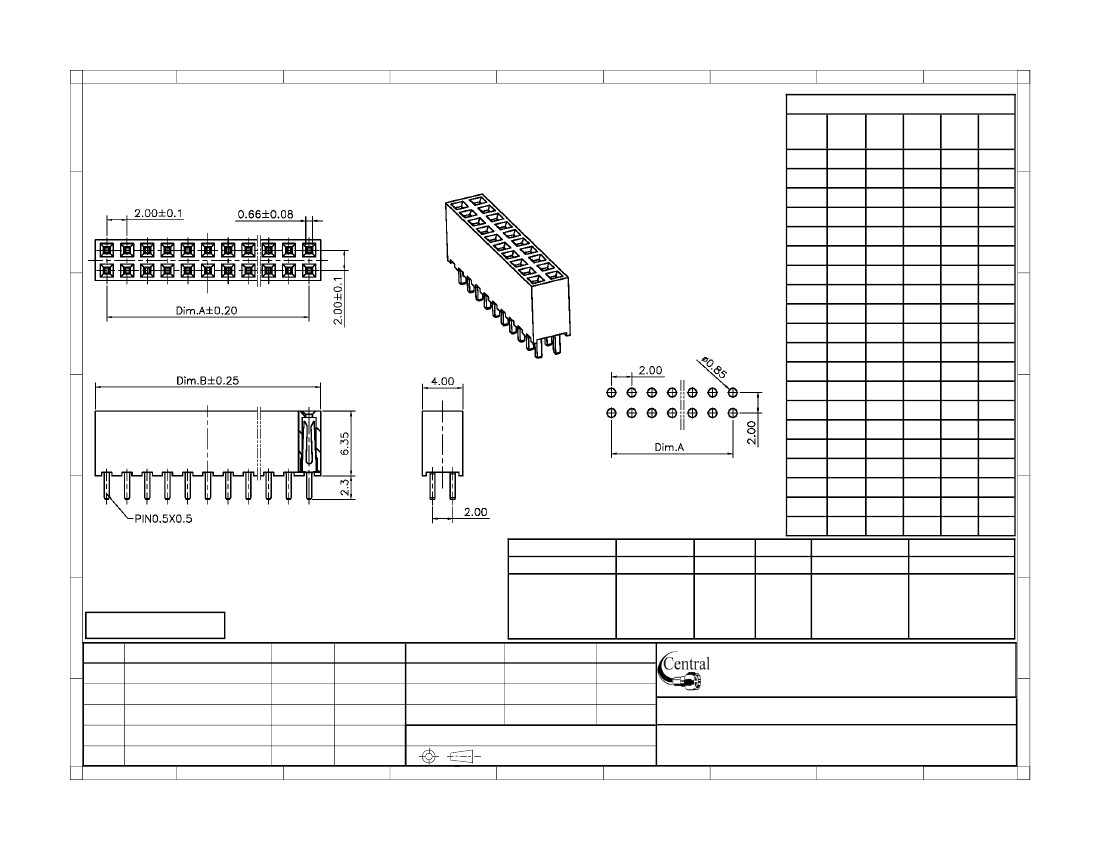

Recommended PC Board Layout
(Tolerance: 0.05mm)
E
Pins/
row
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
A
2.00
4.00
6.00
8.00
10.00
12.00
14.00
16.00
18.00
20.00
22.00
24.00
26.00
28.00
30.00
32.00
34.00
36.00
38.00
40.00
Dimensions
Pins/
B
row
4.30 22
6.30 23
8.30 24
10.30 25
12.30 26
14.30 27
16.30 28
18.30 29
20.30 30
22.30 31
24.30 32
26.30 33
28.30 34
30.30 35
32.30 36
34.30 37
36.30 38
38.30 39
40.30 40
42.30
A
42.00
44.00
46.00
48.00
50.00
52.00
54.00
56.00
58.00
60.00
62.00
64.00
66.00
68.00
70.00
72.00
74.00
76.00
78.00
B
44.30
46.30
48.30
50.30
52.30
54.30
56.30
58.30
60.30
62.30
64.30
66.30
68.30
70.30
72.30
74.30
76.30
78.30
80.30
A
B
C
D
E
Series
BRS
Female header,
2mm pitch
F
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
No. of Rows
Profile Contacts
Tail
Plating
XX
HPC
XX
X
XX
02=2 rows
6.35 base 4-80
A=Standard (2.3) TN=Tin
SG=Selective gold
GD=Gold
GD10=10µ” gold
Date
08/10/99
08/10/99
08/10/99 Part No.:
F
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
BRS-02-HPC-XX-A-XX
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: Header, female, 2.00mm pitch, dual rows, DIP type,
base 6.35mm
G

BRS-02-HPC-12-A-TN Related Products

BRS-02-HPC-12-A-TN BRS-02-HPC-04-A-GD10 BRS-02-HPC-04-A-TN BRS-02-HPC-04-A-SG BRS-02-HPC-04-A-GD BRS-02-HPC-12-A-GD10 BRS-02-HPC-12-A-GD BRS-02-HPC-12-A-SG BRS-02-HPC-24-A-GD
Description Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug Board Connector, 4 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug Board Connector, 4 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug Board Connector, 4 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug Board Connector, 4 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug Board Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to conform to
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown
Other features ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
body width 0.157 inch 0.157 inch 0.157 inch 0.157 inch 0.157 inch 0.157 inch 0.157 inch 0.157 inch 0.157 inch
subject depth 0.25 inch 0.25 inch 0.25 inch 0.25 inch 0.25 inch 0.25 inch 0.25 inch 0.25 inch 0.25 inch
body length 0.484 inch 0.169 inch 0.169 inch 0.169 inch 0.169 inch 0.484 inch 0.484 inch 0.484 inch 0.957 inch
Body/casing type PLUG PLUG PLUG PLUG PLUG PLUG PLUG PLUG PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation SN AU SN AU AU AU AU AU AU
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
Contact material COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
Dielectric withstand voltage 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V
Durability 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles 500 Cycles
Insulation resistance 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω
Insulator color BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK
insulator material LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER
Plug contact pitch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch
Match contact row spacing 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE ONE ONE ONE ONE ONE
PCB row number 2 2 2 2 2 2 2 2 2
Number of rows loaded 2 2 2 2 2 2 2 2 2
Maximum operating temperature 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm
Rated current (signal) 2 A 2 A 2 A 2 A 2 A 2 A 2 A 2 A 2 A
Guideline UL UL UL UL UL UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.091 inch 0.091 inch 0.091 inch 0.091 inch 0.091 inch 0.091 inch 0.091 inch 0.091 inch 0.091 inch
Terminal pitch 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 12 4 4 4 4 12 12 12 24
Base Number Matches - 1 1 1 1 1 - - -
