RD*G SERIES
SPACE-SAVING D-SUBMINIATURE

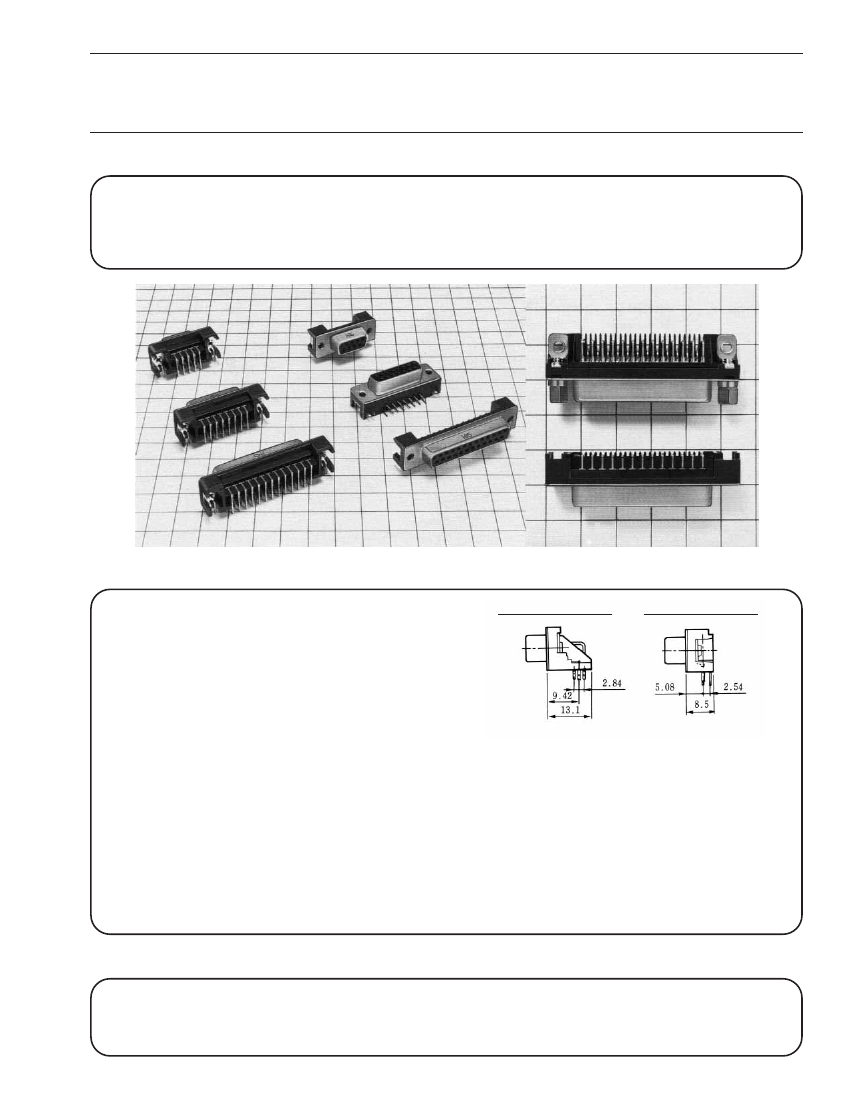

General
The "RD*G" Series Right-angled D-Subminiature
connectors are specially developed to answer the
needs for smaller and lighter equipment such as
personal computers peripherals and workstations.
The PCB mounting section has been reduced in size
while the mating section maintains the same
configuration as the conventional models.
Female 9, 15 and 25 position sizes sre available.
Conventional type (RD*D)
Space-saving type (RD*G)
Features
(1) 35% Space-saving is achieved in terms of depth
and mounting area as compared to the convention-
al models (HIROSE's RD※D)
(2) Weight is approximately 10% less than convention-
al models.
(3) Full interchangeability in terms of mating with con-
ventional D-Subminiature connectors. The mating
section meets the international standard.
(4) For smoother insertion and withdrawal, reliable
partly gold-plated tulip-shaped contacts are used
(same as the conventional models).
(5) The lock pin grounding system which solders
directly to the substrate eliminates troublesome
hold down hardware.
(6) Since they are fixed to the insulator (caulked), the
metallic shells and lock pins do not become loose
even when the lock screws are removed. This has
improved assembly productivity of the units.
Conventional type (RD*D)
Space-saving type (RD*G)
(7) Two lock pin lengths for substrate thickness:
t-1.2mm (0.05") and t-1.6mm (0.062") are available.
(8) These are two Dip post lengths of 3.5mm and
2.8mm.
(9) The new connectors are suitable for robotic inser-
tion.
(10) UL94V-0 insulator material offers excellent heat
resistant and chemical resistant capability.
(11) Metal shell structure offers improved grounding
and EMI immunity.
Application
Electronic equipment such as personal computers, peripherals, workstations, measuring instruments, communica-
tions equipment, FA and control devices.
04/2009
39
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

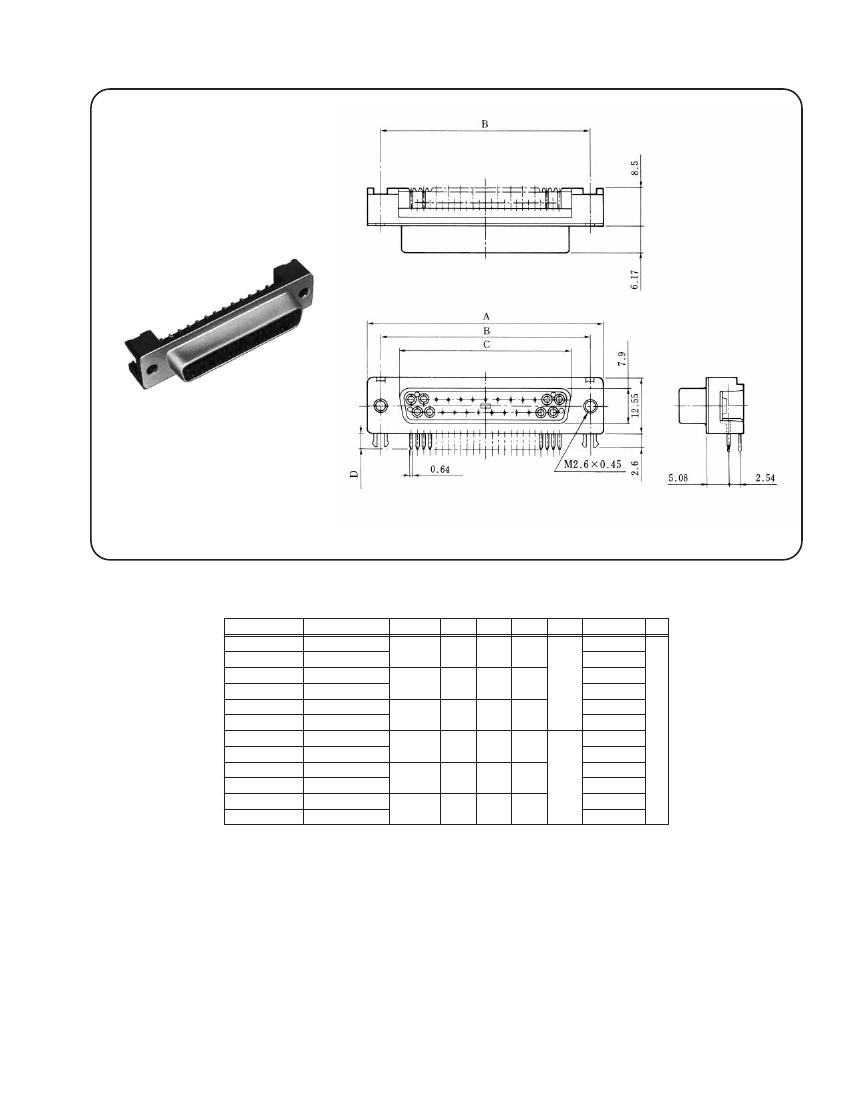

Female Connector
RDBG 25SE1
（50）
Unit: mm
HRS No
CL211-5200-7-50
CL211-5201-0-50
CL211-5204-8-50
CL211-5205-0-50
CL211-5206-3-50
CL211-5207-6-50
CL211-5250-5-50
CL211-5251-8-50
CL211-5254-6-50
CL211-5255-9-50
CL211-5256-1-50
CL211-5257-4-50
Part No.
RDEG-9SE1
（50）
9
RDEG-9SE2
（50）
RDAG-15SE1
（50）
15
RDAG-15SE2
（50）
RDBG-25SE1
（50）
25
RDBG-25SE2
（50）
RDEG1-9SE1
（50）
9
RDEG1-9SE2
（50）
RDAG1-15SE1
（50）
15
RDAG1-15SE2
（50）
RDBG1-25SE1
（50）
25
RDBG1-25SE2
（50）
53.04
47.04
38.38
1.2
39.14
33.32
24.66
2.8
1.2
1.6
30.81
24.99
16.34
1.2
1.6
53.04
47.04
38.38
1.2
YES
1.6
39.14
33.32
24.66
3.5
1.2
1.6
30.81
24.99
16.34
1.2
1.6
No. of Contacts
A
B
C
D
Applicable
substrate thickness
RoHS
1.6
04/2009
41
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

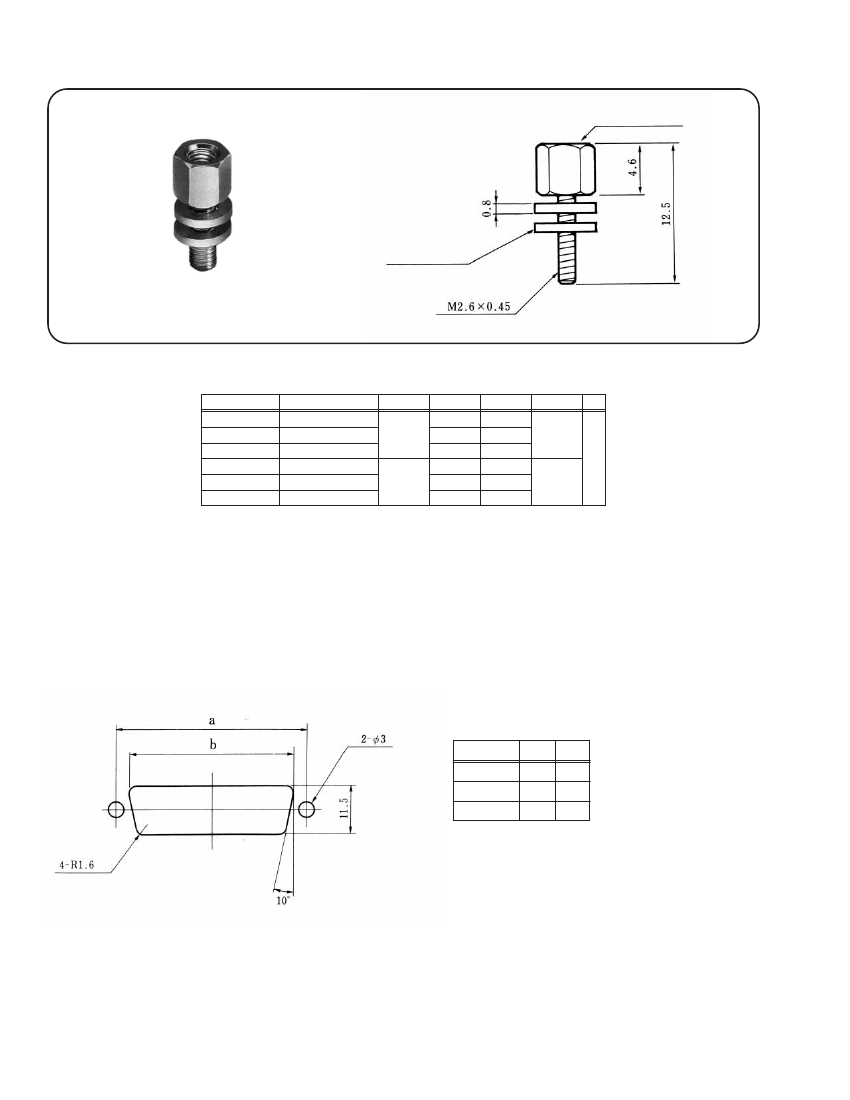

Locking Screw
Female thread size
Washer
RDG-LNA-W2
（01）
HRS No
CL211-5180-1-01
CL211-5181-4-01
CL211-5182-7-01
CL211-5183-0-01
CL211-5184-2-01
CL211-5185-5-01
Part No.
RDG-LNA
（01）
RDG-LNA-W1
（01）
RDG-LNA-W2
（01）
RDG-LNA
（4-40）01）
（
Female thread size
No. of washers
Applicable panel
thickness
Packaging unit
(per bag)
RoHS
0
M2.6×0.45
1
2
0
1
2
1.6∼2.0
0.8∼1.2
0∼0.4
YES
1.6∼2.0
0.8∼1.2
0∼0.4
*All models are nickel-plated
100pieces
100pieces
RDG-LNA
（4-40） （01） No.4-40UNC
-W1
RDG-LNA
（4-40） （01）
-W2

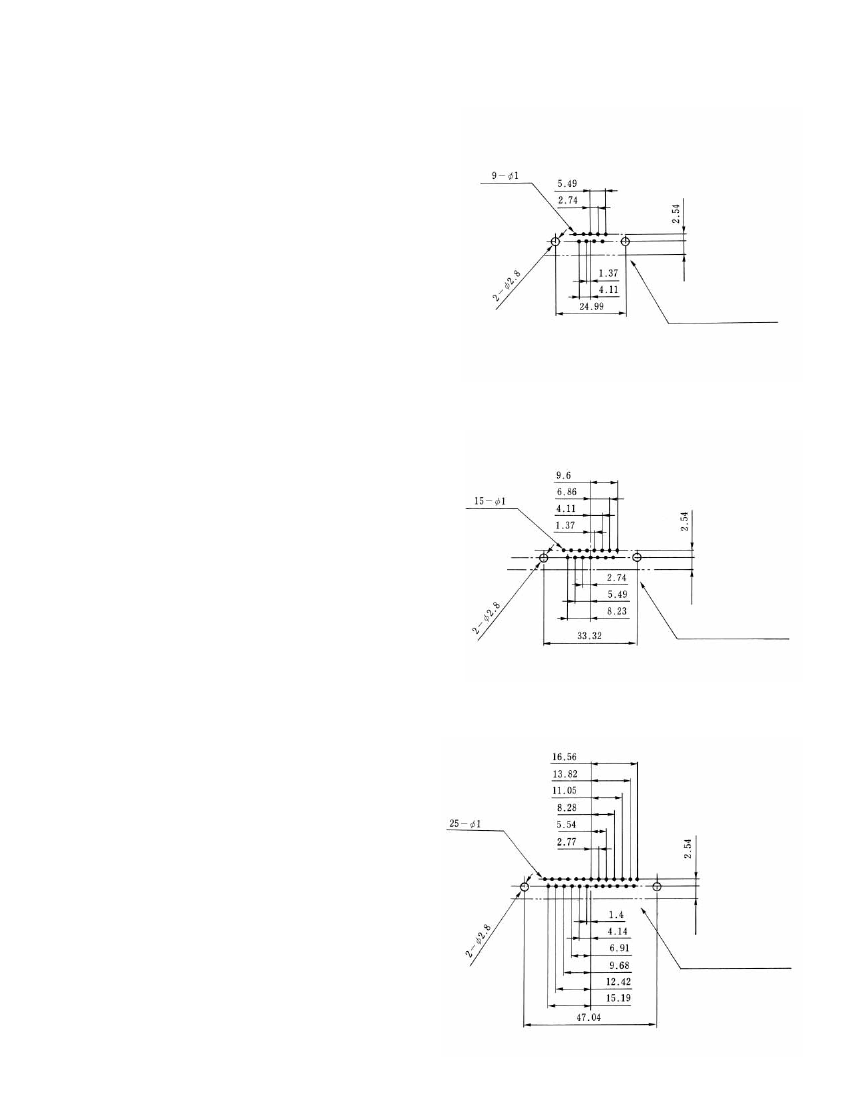

Panel Mounting Dimensions
For hexagon locking screws
Unit: mm
Shell Size
E
A
B
a
24.99
33.32
47.04
b
20.2
28.6
42.3
42
04/2009
