IDT74LVC258APG8 datasheet, PDF

Datasheet> All Categories > logic> logic> IDT74LVC258APG8

IDT74LVC258APG8: DescriptionMultiplexer, LVC/LCX/Z Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDSO16, 0.65 MM PITCH, TSSOP-16; Categorylogic logic; File Size160KB，6 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT74LVC258APG8 Overview

Multiplexer, LVC/LCX/Z Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDSO16, 0.65 MM PITCH, TSSOP-16

IDT74LVC258APG8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	16
Reach Compliance Code	compliant
series	LVC/LCX/Z
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	5 mm
Logic integrated circuit type	MULTIPLEXER
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	12 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4.4 mm

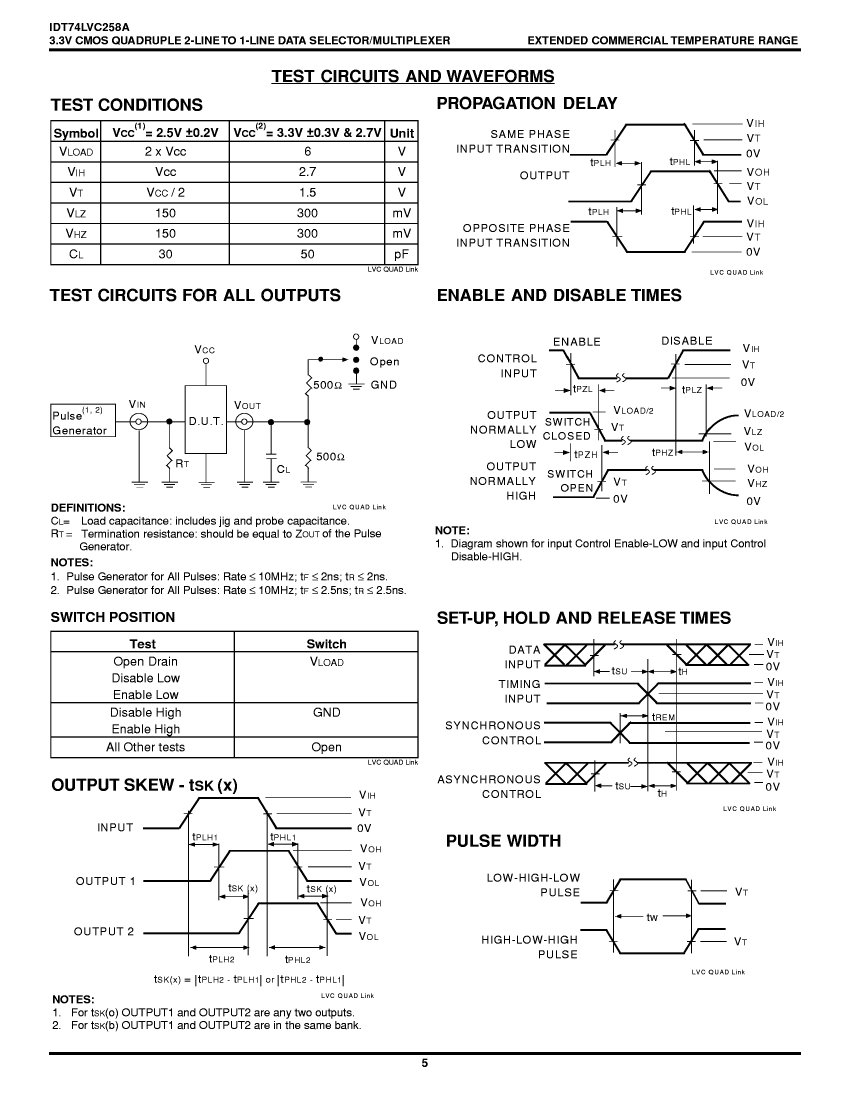

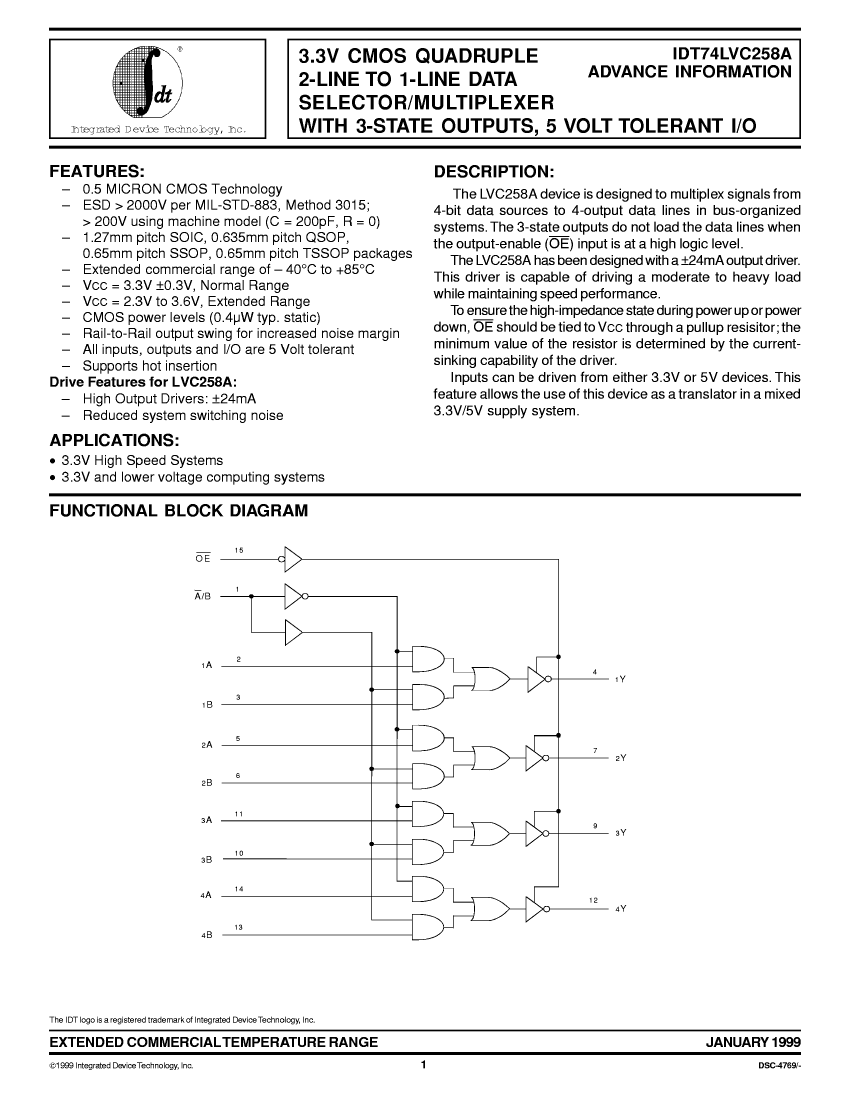

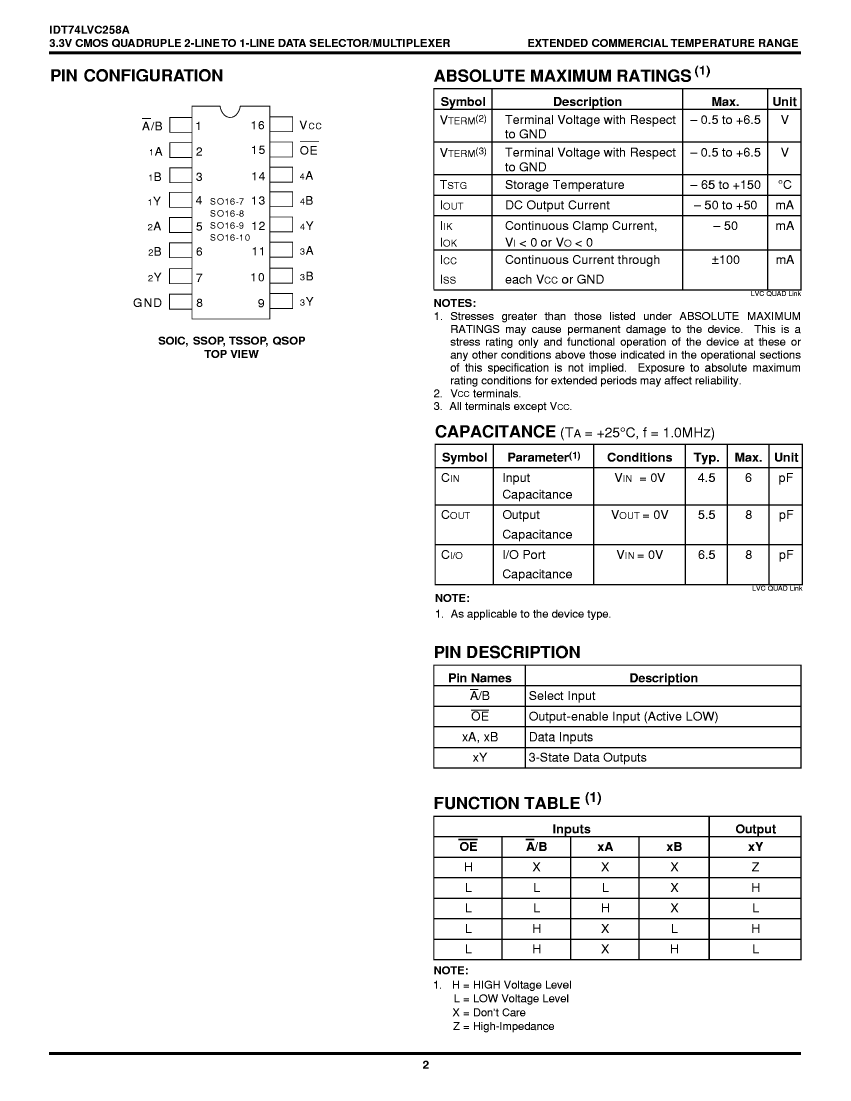

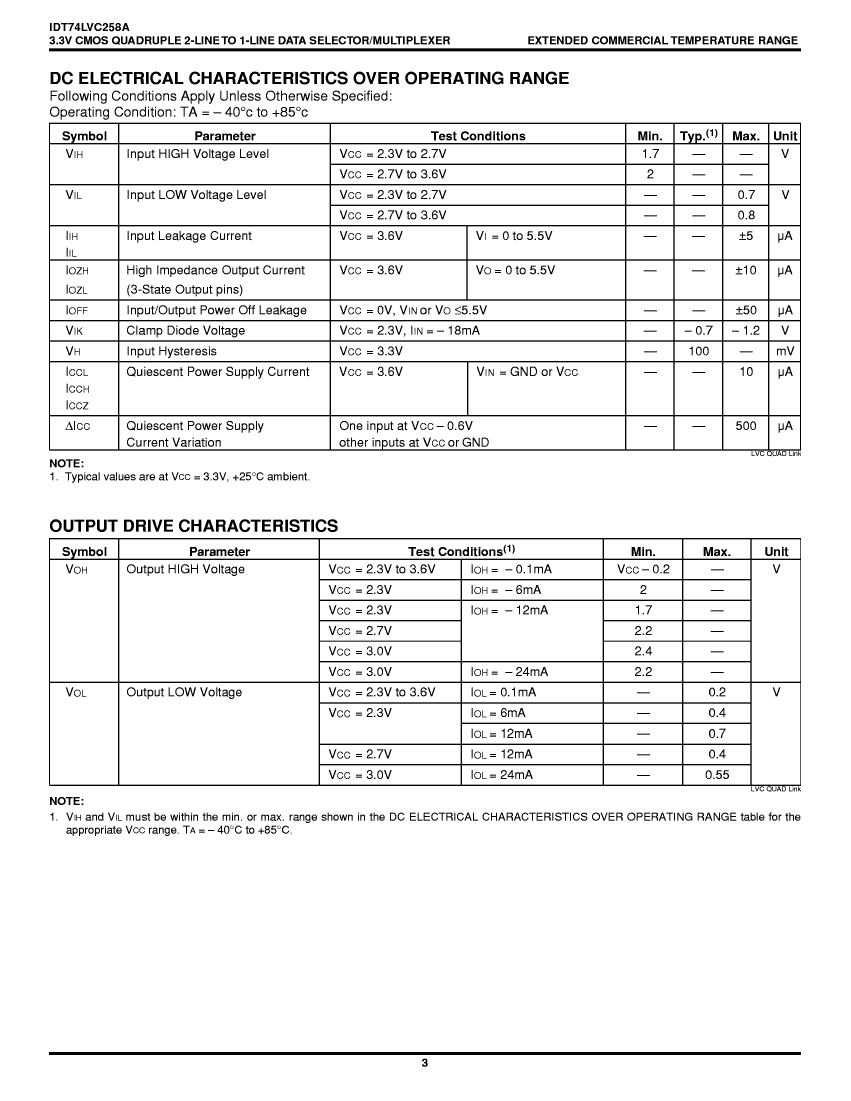

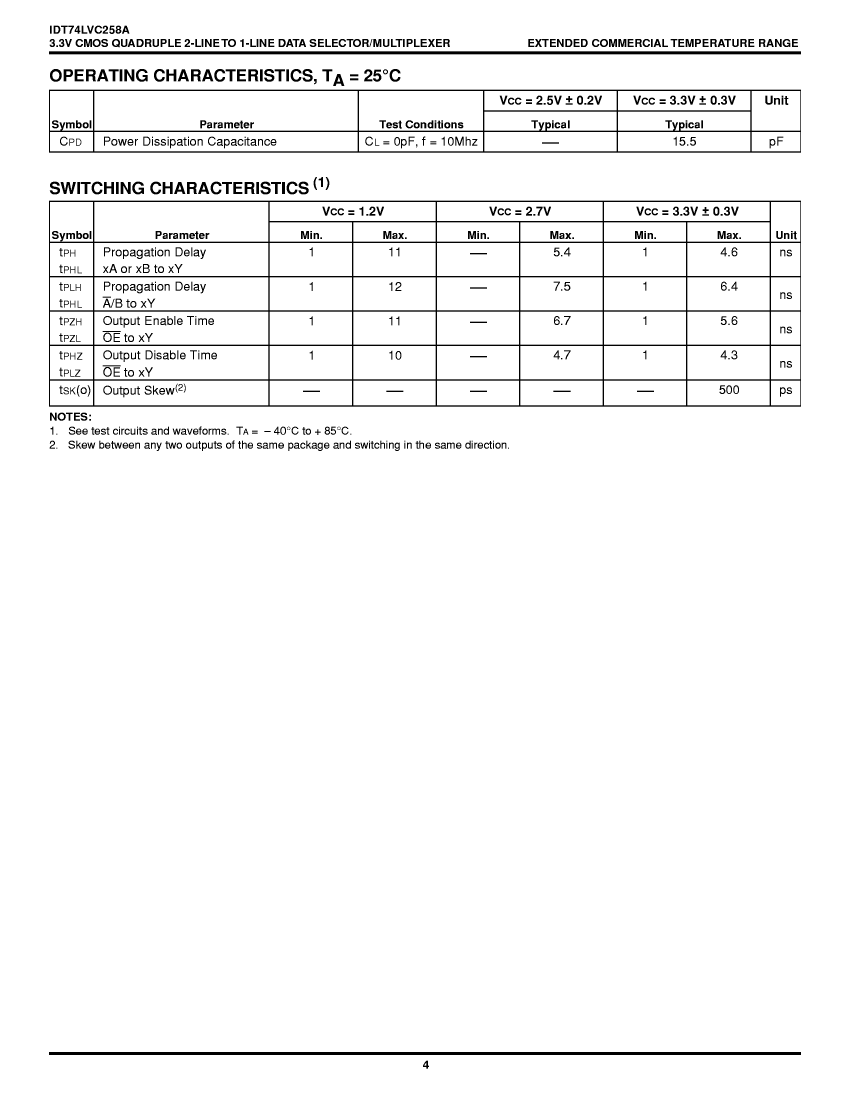

Preview

Download Datasheet

View All

IDT74LVC258APG8 Related Products

	IDT74LVC258APG8	IDT74LVC258AQ8	IDT74LVC258ADC8
Description	Multiplexer, LVC/LCX/Z Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDSO16, 0.65 MM PITCH, TSSOP-16	Multiplexer, LVC/LCX/Z Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDSO16, 0.635 MM PITCH, QSOP-16	Multiplexer, LVC/LCX/Z Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDSO16, 1.27 MM PITCH, SOIC-16
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	TSSOP	SOIC	SOIC
package instruction	TSSOP,	SSOP,	SOP,
Contacts	16	16	16
Reach Compliance Code	compliant	compliant	compliant
series	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e0	e0	e0
length	5 mm	4.9 mm	9.9 mm
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	4	4	4
Number of entries	2	2	2
Output times	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SSOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	225	225
propagation delay (tpd)	12 ns	12 ns	5.4 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.3 V	2.3 V	2.3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.635 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	30	30
width	4.4 mm	3.9 mm	3.9 mm
Maker	IDT (Integrated Device Technology)	-	IDT (Integrated Device Technology)
