IDT74FCT845BL datasheet, PDF - EEWORLD Datasheet

IDT74FCT845BL: DescriptionBus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC28, LCC-28; Categorylogic logic; File Size216KB，6 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric View All

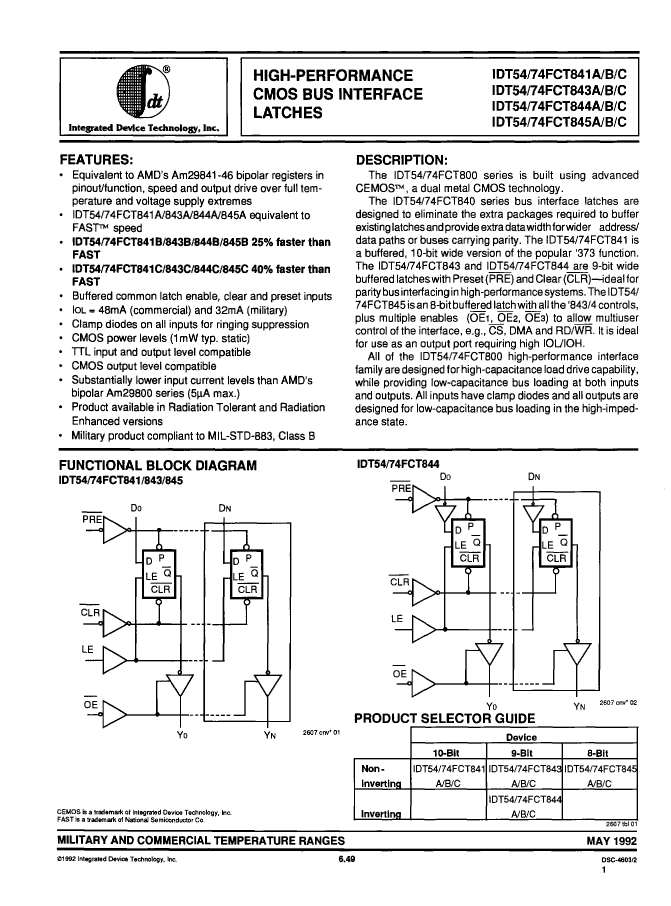

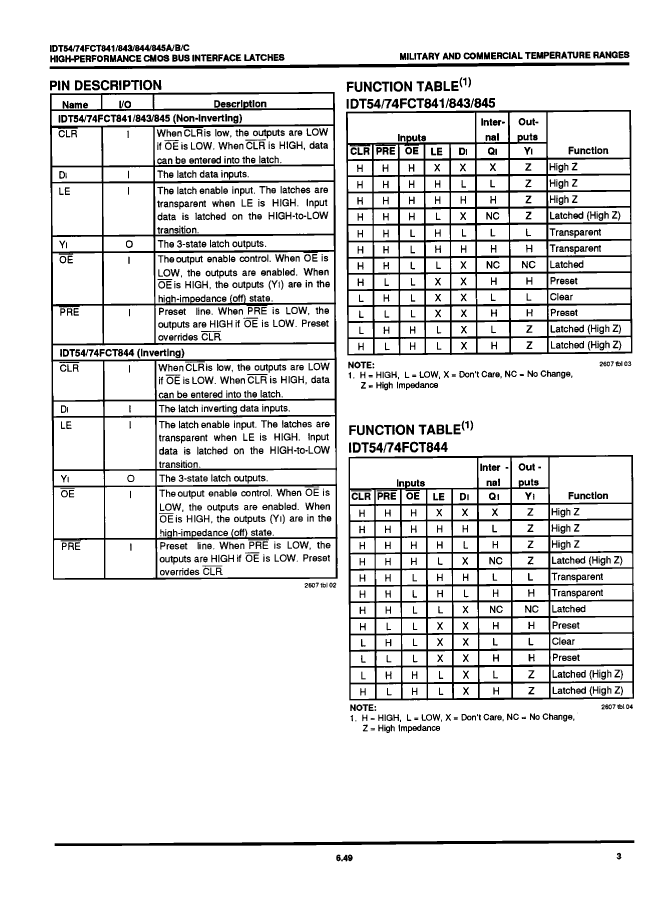

IDT74FCT845BL Overview

Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC28, LCC-28

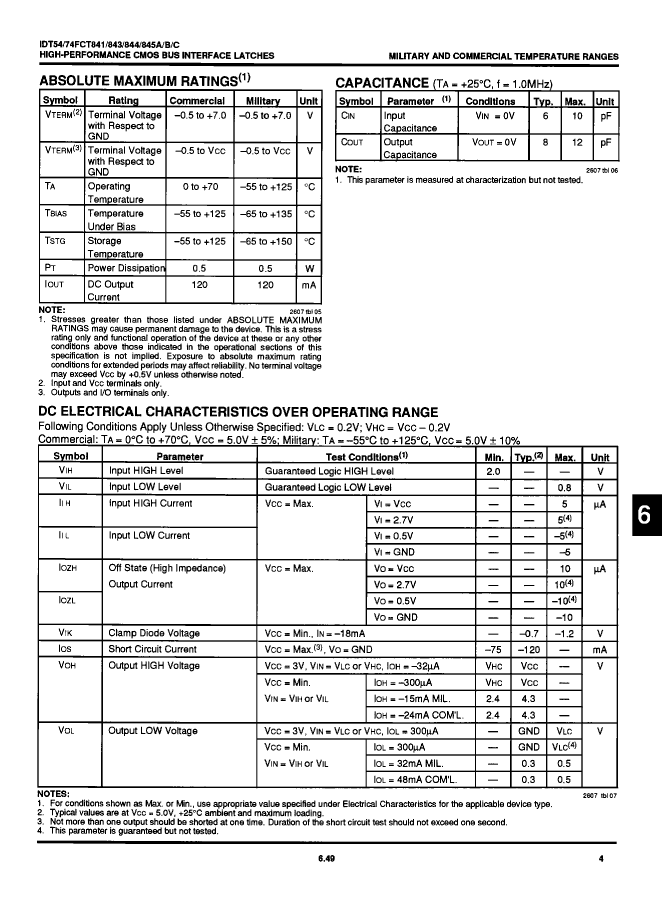

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)

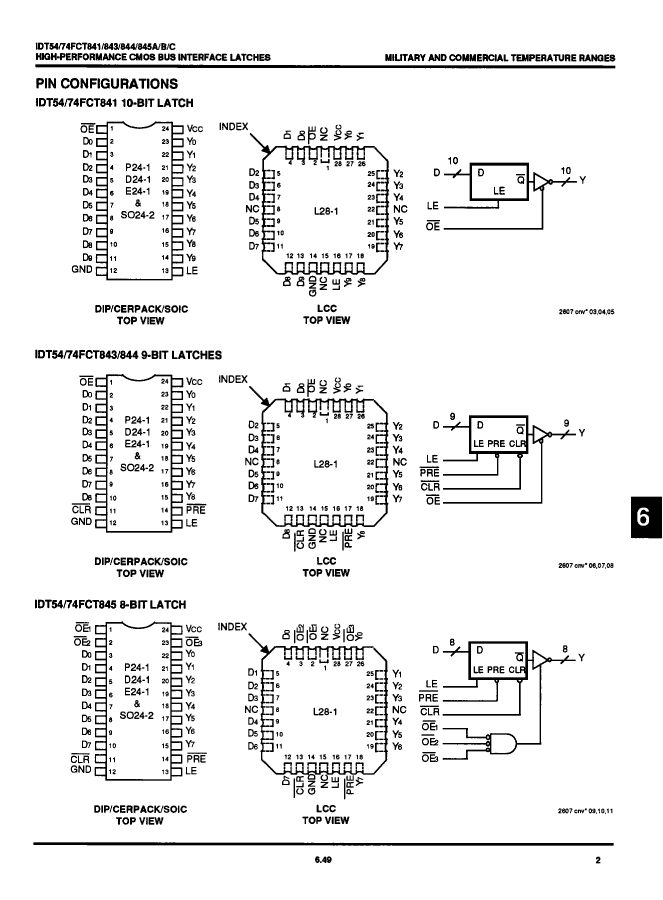

Parts packaging code	QLCC
package instruction	QCCN, LCC28,.45SQ
Contacts	28
Reach Compliance Code	not_compliant
Other features	WITH TRIPLE OUTPUT ENABLE; WITH CLEAR AND PRESET
series	FCT
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
length	11.4554 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.048 A
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC28,.45SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

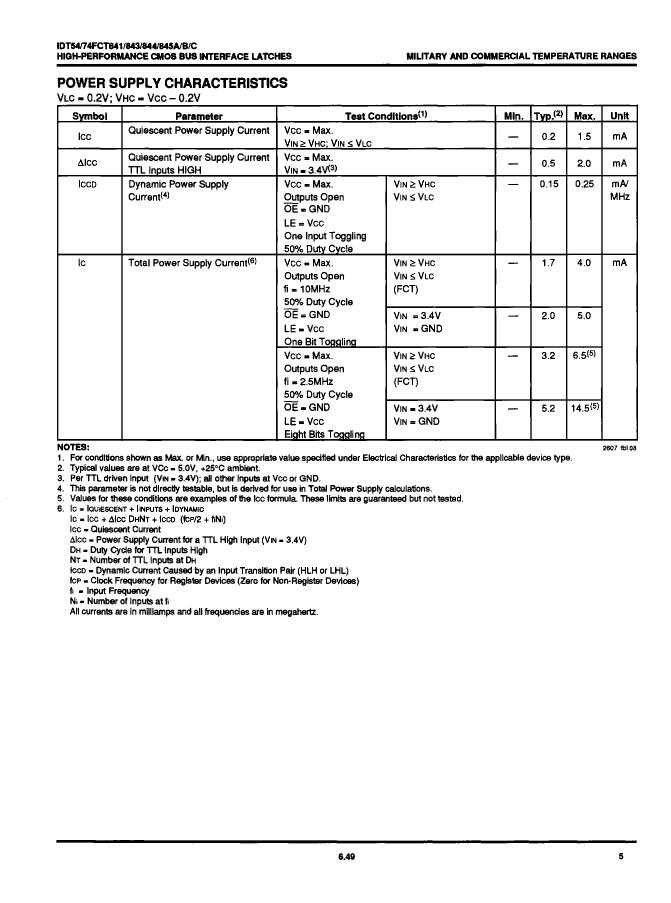

power supply	5 V
Prop。Delay @ Nom-Sup	6.5 ns
propagation delay (tpd)	8 ns
Certification status	Not Qualified
Maximum seat height	2.54 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	11.4554 mm
