IDT74FCT16651CTPV datasheet, PDF

Datasheet> All Categories > logic> logic> IDT74FCT16651CTPV

IDT74FCT16651CTPV: DescriptionRegistered Bus Transceiver, FCT Series, 2-Func, 8-Bit, Inverted Output, CMOS, PDSO56, 0.300 INCH, 0.025 INCH PITCH, SSOP-56; Categorylogic logic; File Size240KB，9 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT74FCT16651CTPV Overview

Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, Inverted Output, CMOS, PDSO56, 0.300 INCH, 0.025 INCH PITCH, SSOP-56

IDT74FCT16651CTPV Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	SSOP
package instruction	SSOP, SSOP56,.4
Contacts	56
Reach Compliance Code	not_compliant
Other features	SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
series	FCT
JESD-30 code	R-PDSO-G56
JESD-609 code	e0
length	18.415 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.064 A
Humidity sensitivity level	1
Number of digits	8
Number of functions	2
Number of ports	2
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP56,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
power supply	5 V
Prop。Delay @ Nom-Sup	5.4 ns
propagation delay (tpd)	5.7 ns
Certification status	Not Qualified
Maximum seat height	2.794 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
translate	N/A
Trigger type	POSITIVE EDGE
width	7.5 mm

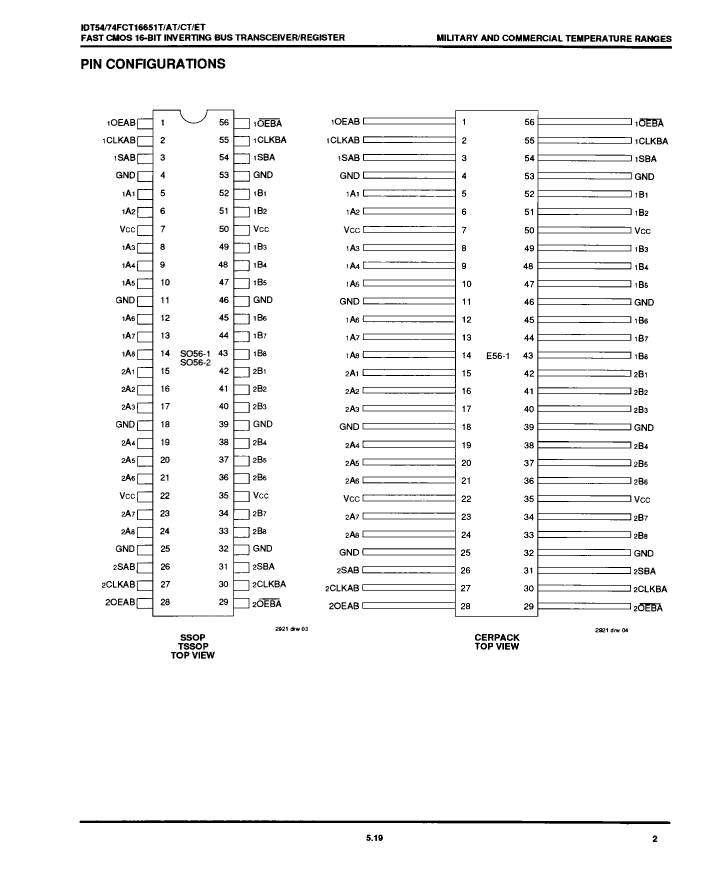

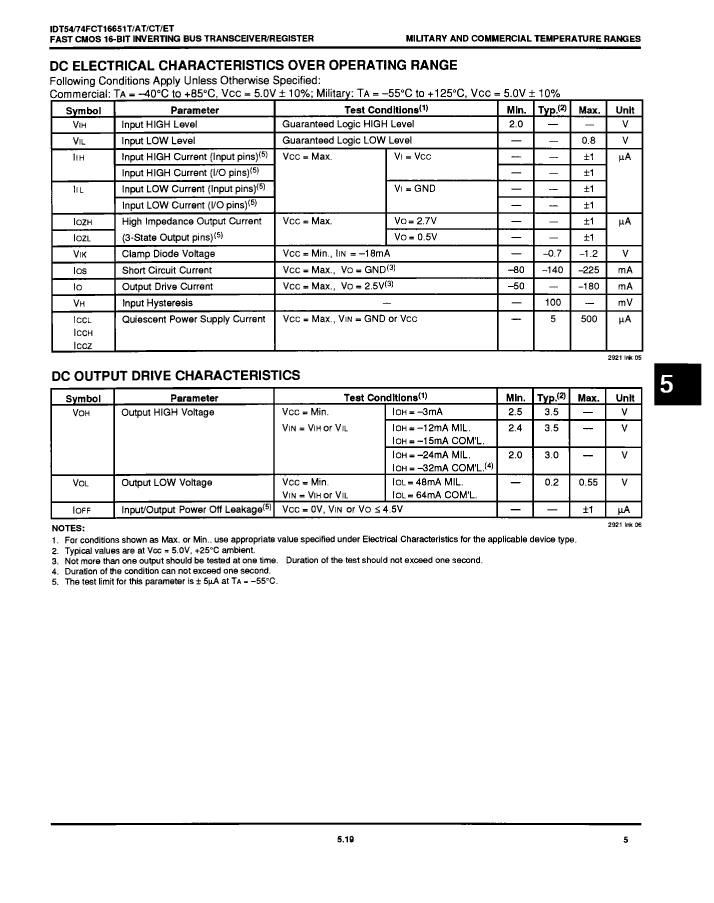

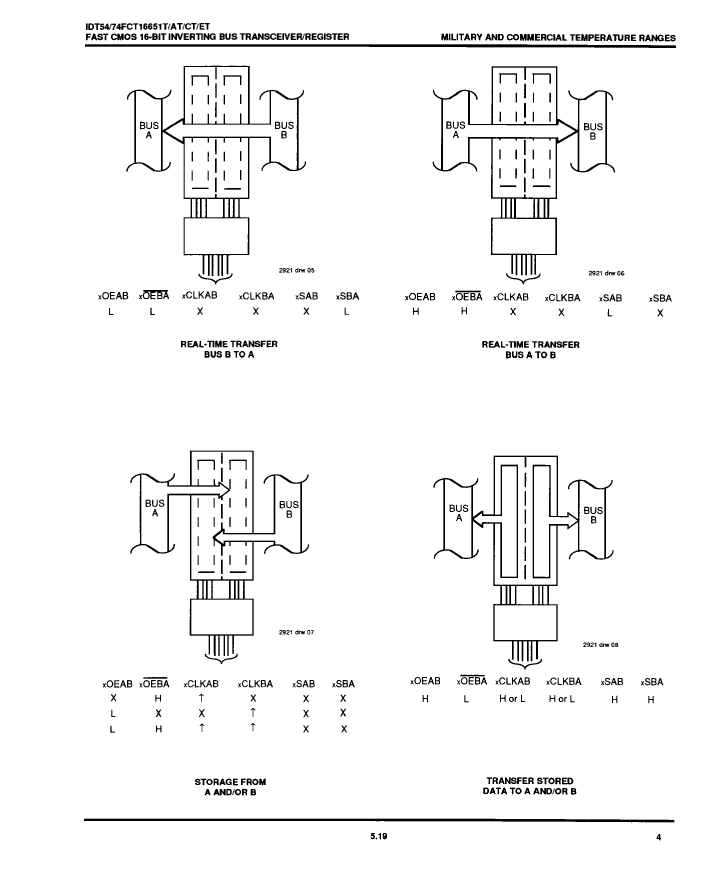

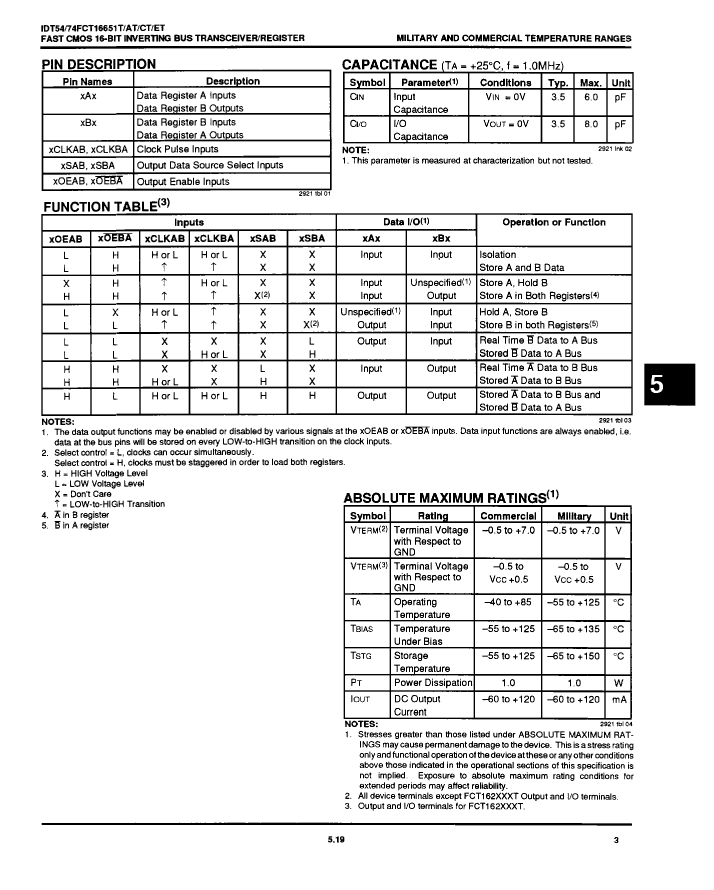

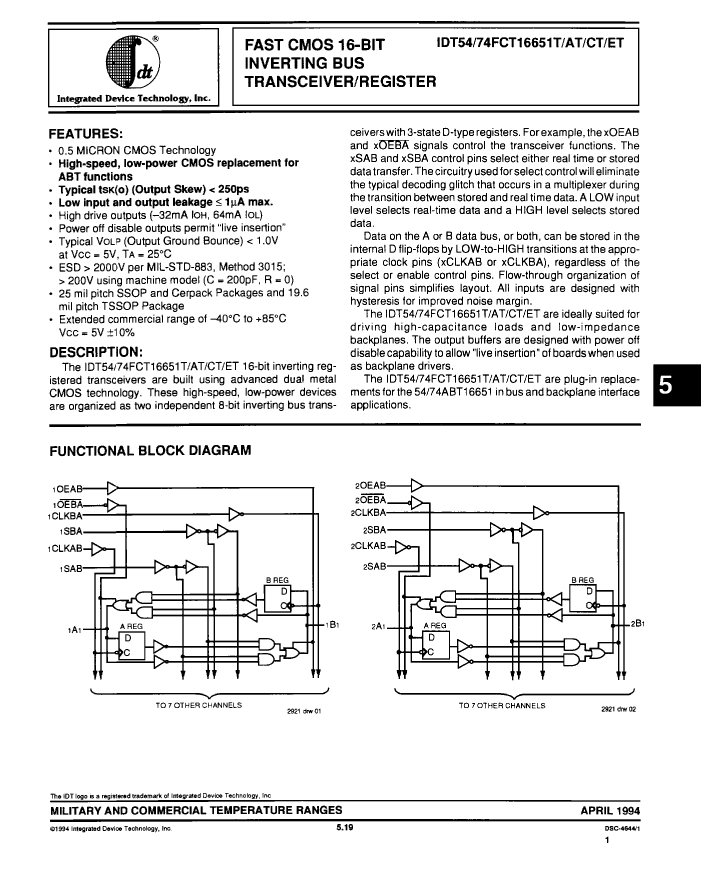

Preview

Download Datasheet

View All

IDT74FCT16651CTPV Related Products

	IDT74FCT16651CTPV	IDT74FCT16651ETPV	IDT74FCT16651TPV	IDT74FCT16651CTPA	IDT74FCT16651TPA	IDT74FCT16651ETPA	IDT74FCT16651ATPV	IDT54FCT16651TE	IDT54FCT16651ATE	IDT74FCT16651ATPA
Description	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, Inverted Output, CMOS, PDSO56, 0.300 INCH, 0.025 INCH PITCH, SSOP-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, Inverted Output, CMOS, PDSO56, 0.300 INCH, 0.025 INCH PITCH, SSOP-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, Inverted Output, CMOS, PDSO56, 0.300 INCH, 0.025 INCH PITCH, SSOP-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, Inverted Output, CMOS, PDSO56, 0.0196 INCH PITCH, TSSOP-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, Inverted Output, CMOS, PDSO56, 0.0196 INCH PITCH, TSSOP-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, Inverted Output, CMOS, PDSO56, 0.0196 INCH PITCH, TSSOP-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, Inverted Output, CMOS, PDSO56, 0.300 INCH, 0.025 INCH PITCH, SSOP-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, Inverted Output, CMOS, CDFP56, 0.025 INCH PITCH, CERPACK-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, Inverted Output, CMOS, CDFP56, 0.025 INCH PITCH, CERPACK-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, Inverted Output, CMOS, PDSO56, 0.0196 INCH PITCH, TSSOP-56
Parts packaging code	SSOP	SSOP	SSOP	TSSOP	TSSOP	TSSOP	SSOP	DFP	DFP	TSSOP
package instruction	SSOP, SSOP56,.4	SSOP, SSOP56,.4	SSOP, SSOP56,.4	0.0196 INCH PITCH, TSSOP-56	0.0196 INCH PITCH, TSSOP-56	0.0196 INCH PITCH, TSSOP-56	0.300 INCH, 0.025 INCH PITCH, SSOP-56	DFP,	DFP,	0.0196 INCH PITCH, TSSOP-56
Contacts	56	56	56	56	56	56	56	56	56	56
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	unknown	unknown	not_compliant
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	-	-	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Other features	SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA	SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA	-	SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA	SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA	SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA	SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA	SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA	SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA	SELECT INPUT FOR MULTIPLEXED TRANSMISSION OF REGISTERED/REAL TIME DATA
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL	-	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	-	-	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	-	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	-	-	BIDIRECTIONAL
series	FCT	FCT	-	FCT	FCT	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-PDSO-G56	R-PDSO-G56	-	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-GDFP-F56	R-GDFP-F56	R-PDSO-G56
JESD-609 code	e0	e0	-	e0	e0	e0	e0	e0	e0	e0
length	18.415 mm	18.415 mm	-	14.1 mm	14.1 mm	14.1 mm	18.415 mm	18.415 mm	18.415 mm	14.1 mm
Load capacitance (CL)	50 pF	50 pF	-	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	-	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.064 A	0.064 A	-	0.064 A	0.064 A	0.064 A	0.064 A	-	-	0.064 A
Humidity sensitivity level	1	1	-	1	1	1	1	-	-	1
Number of digits	8	8	-	8	8	8	8	8	8	8
Number of functions	2	2	-	2	2	2	2	2	2	2
Number of ports	2	2	-	2	2	2	2	2	2	2
Number of terminals	56	56	-	56	56	56	56	56	56	56
Maximum operating temperature	85 °C	85 °C	-	85 °C	85 °C	85 °C	85 °C	125 °C	125 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-55 °C	-55 °C	-40 °C
Output characteristics	3-STATE	3-STATE	-	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	-	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	-	TSSOP	TSSOP	TSSOP	SSOP	DFP	DFP	TSSOP
Encapsulate equivalent code	SSOP56,.4	SSOP56,.4	-	TSSOP56,.3,20	TSSOP56,.3,20	TSSOP56,.3,20	SSOP56,.4	-	-	TSSOP56,.3,20
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	-	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	FLATPACK	FLATPACK	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	5 V	5 V	-	5 V	5 V	5 V	5 V	-	-	5 V
Prop。Delay @ Nom-Sup	5.4 ns	3.8 ns	-	5.4 ns	9 ns	3.8 ns	6.3 ns	-	-	6.3 ns
propagation delay (tpd)	5.7 ns	3.8 ns	-	5.7 ns	9 ns	3.8 ns	6.3 ns	10 ns	7 ns	6.3 ns
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.794 mm	2.794 mm	-	1.1 mm	1.1 mm	1.1 mm	2.794 mm	2.413 mm	2.413 mm	1.1 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	-	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	-	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	-	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	-	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	-	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY	INDUSTRIAL
Terminal surface	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	-	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	TIN LEAD	TIN LEAD	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING	GULL WING	-	GULL WING	GULL WING	GULL WING	GULL WING	FLAT	FLAT	GULL WING
Terminal pitch	0.635 mm	0.635 mm	-	0.5 mm	0.5 mm	0.5 mm	0.635 mm	0.635 mm	0.635 mm	0.5 mm
Terminal location	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
translate	N/A	N/A	-	N/A	N/A	N/A	N/A	-	-	N/A
Trigger type	POSITIVE EDGE	POSITIVE EDGE	-	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	-	-	POSITIVE EDGE
width	7.5 mm	7.5 mm	-	6.2 mm	6.2 mm	6.2 mm	7.5 mm	9.652 mm	9.652 mm	6.2 mm
