IDT54FBT2240EB datasheet, PDF - EEWORLD Datasheet

IDT54FBT2240EB: DescriptionBus Driver, BCT/FBT Series, 2-Func, 4-Bit, Inverted Output, BICMOS, CDFP20, CERPACK-20; Categorylogic logic; File Size123KB，4 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric View All

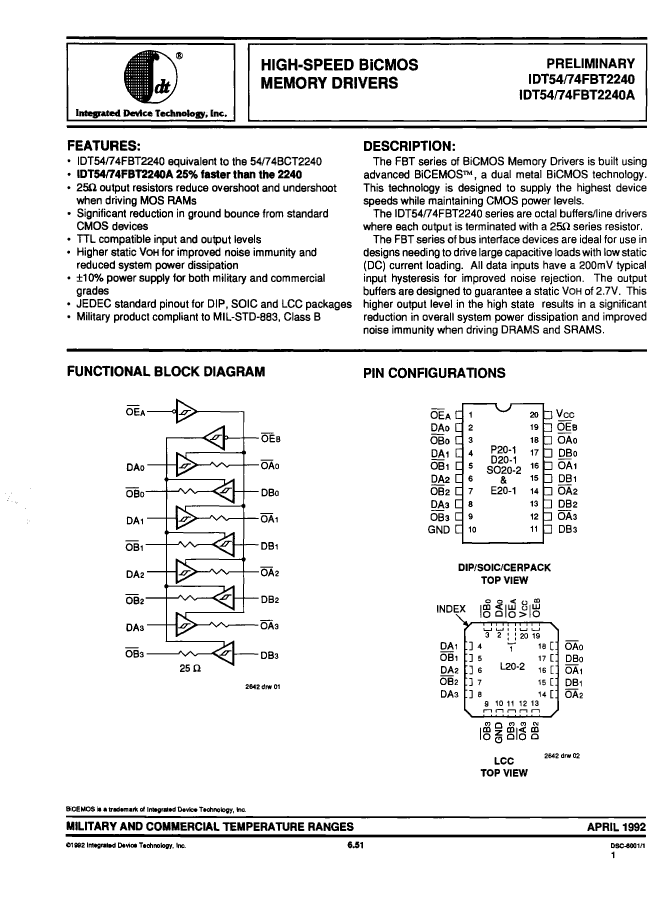

IDT54FBT2240EB Overview

Bus Driver, BCT/FBT Series, 2-Func, 4-Bit, Inverted Output, BICMOS, CDFP20, CERPACK-20

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	DFP
package instruction	DFP, FL20,.3
Contacts	20
Reach Compliance Code	not_compliant
Other features	25 OHM OUTPUT SERIES RESISTOR
Control type	ENABLE LOW
series	BCT/FBT
JESD-30 code	R-GDFP-F20
JESD-609 code	e0

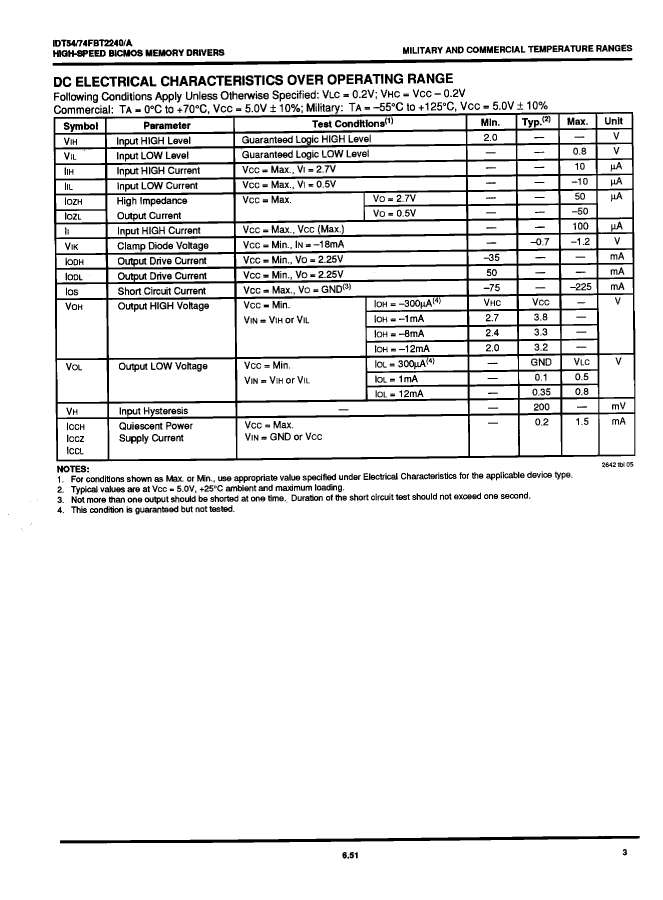

Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.012 A
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20

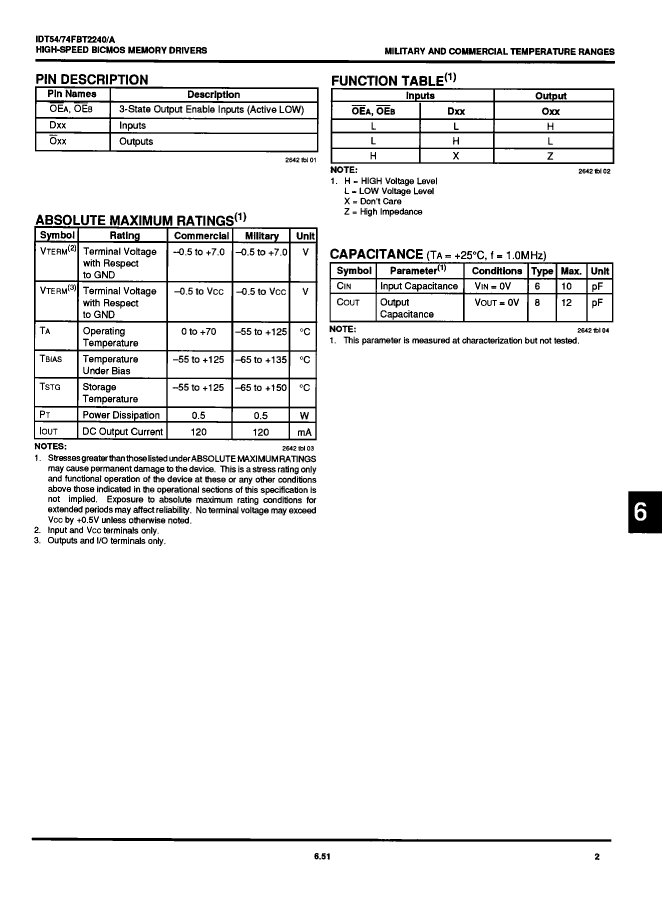

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL20,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

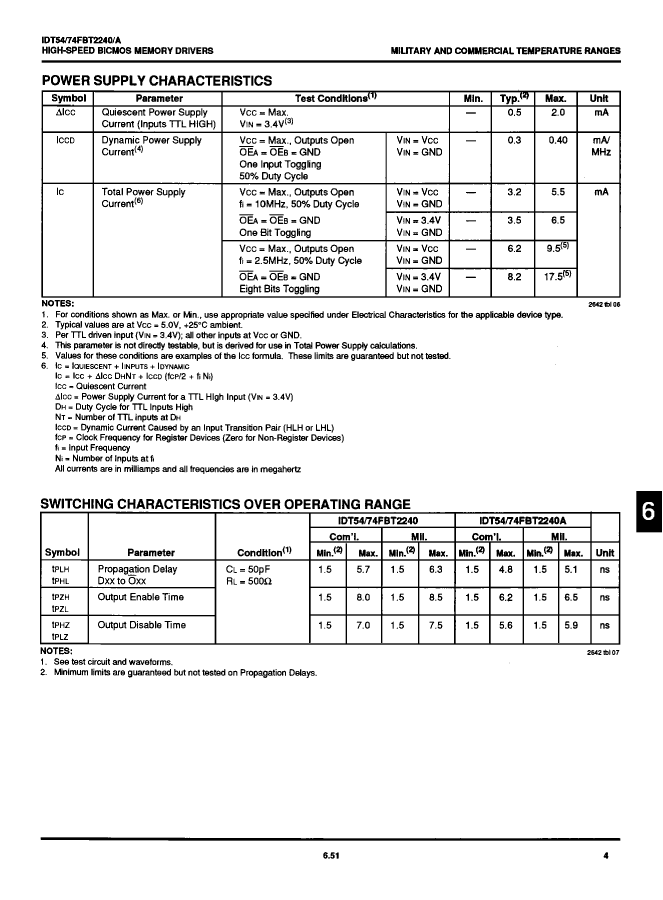

power supply	5 V
Maximum supply current (ICC)	1.5 mA
propagation delay (tpd)	6.3 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.3368 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BICMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.9215 mm
