IDT54FCT163H374EB datasheet, PDF

Datasheet> All Categories > logic> logic> IDT54FCT163H374EB

IDT54FCT163H374EB: DescriptionBus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, 0.025 INCH PITCH, CERPACK-48; Categorylogic logic; File Size230KB，9 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT54FCT163H374EB Overview

Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, 0.025 INCH PITCH, CERPACK-48

IDT54FCT163H374EB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	DFP
package instruction	DFP, FL48,.4,25
Contacts	48
Reach Compliance Code	not_compliant
Other features	BUS HOLD I/P\'S; MAX O/P SKEW = 0.5NS; TYP VOLP = 0.3V
series	FCT
JESD-30 code	R-GDFP-F48
JESD-609 code	e0
length	15.875 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.024 A
Number of digits	8
Number of functions	2
Number of ports	2
Number of terminals	48
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL48,.4,25
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Prop。Delay @ Nom-Sup	11 ns
propagation delay (tpd)	11 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.413 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	9.652 mm

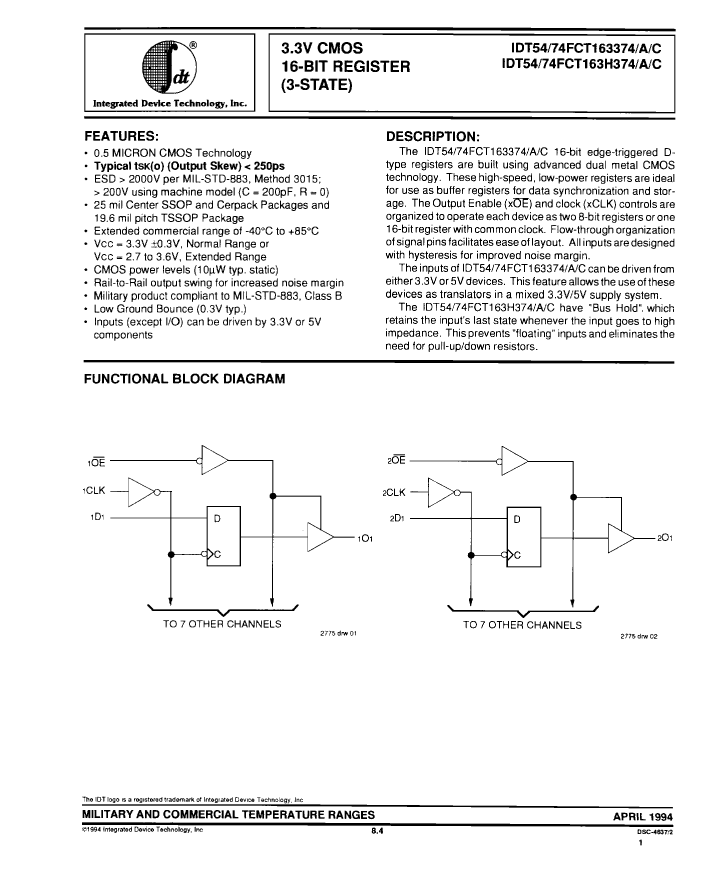

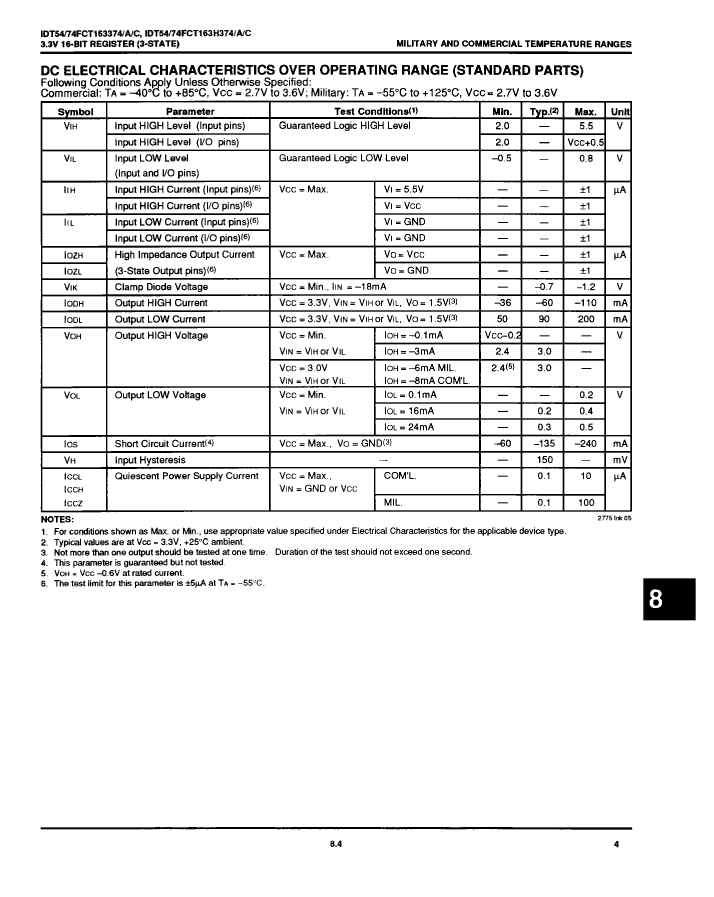

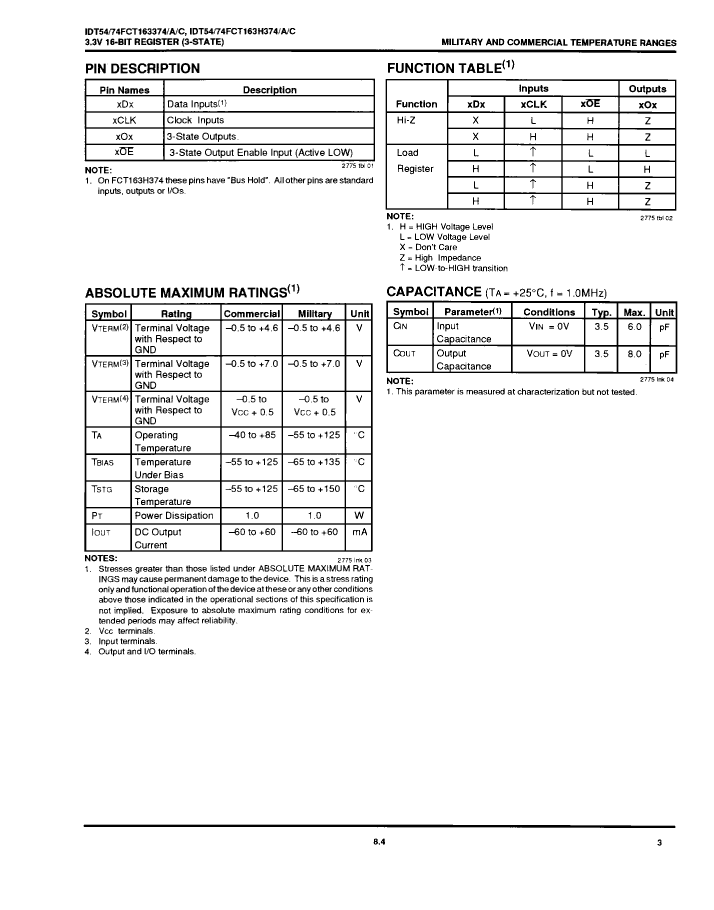

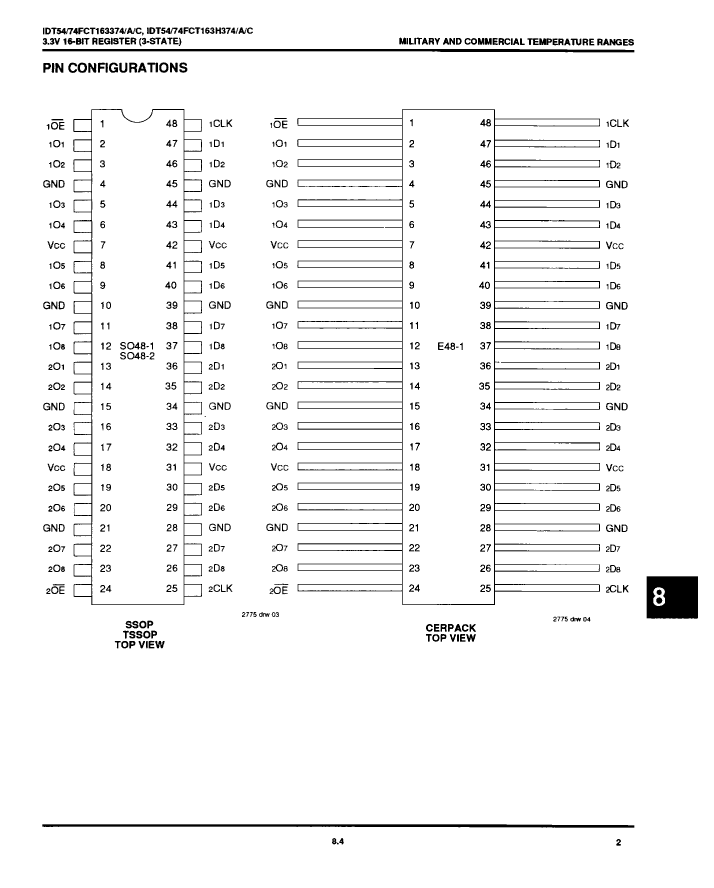

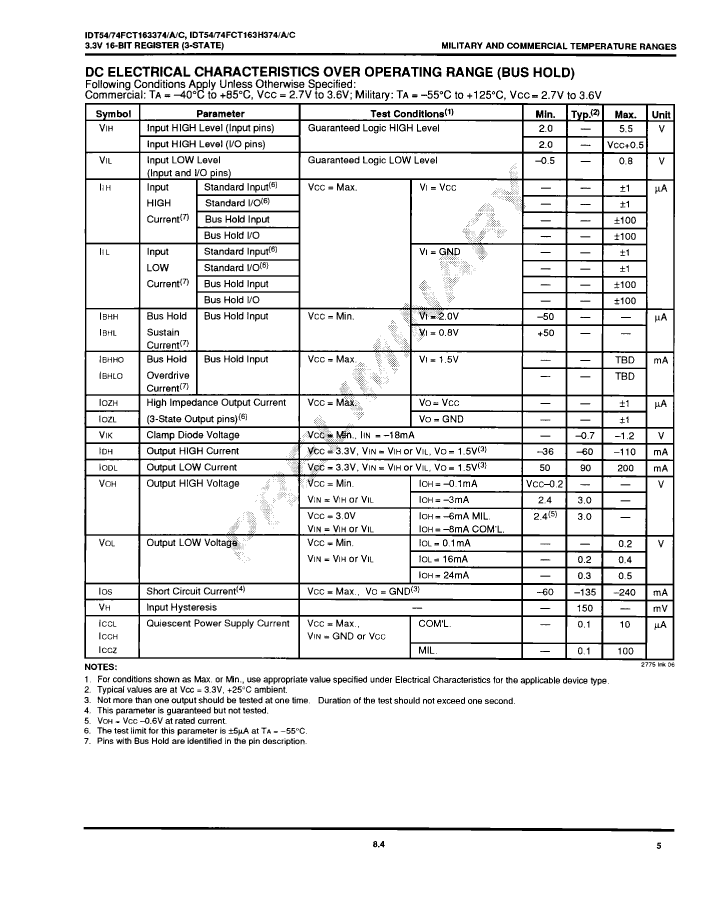

Preview

Download Datasheet

View All

IDT54FCT163H374EB Related Products

	IDT54FCT163H374EB	IDT74FCT163H374APV	IDT74FCT163H374PV	IDT74FCT163H374CPV	IDT74FCT163H374PA	IDT54FCT163H374AEB	IDT74FCT163H374CPA	IDT74FCT163H374APA
Description	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, 0.025 INCH PITCH, CERPACK-48	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.300 INCH, 0.025 INCH PITCH, SSOP-48	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.300 INCH, 0.025 INCH PITCH, SSOP-48	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.300 INCH, 0.025 INCH PITCH, SSOP-48	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.0196 INCH PITCH, TSSOP-48	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP48, 0.025 INCH PITCH, CERPACK-48	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.0196 INCH PITCH, TSSOP-48	Bus Driver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, 0.0196 INCH PITCH, TSSOP-48
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	DFP	SSOP	SSOP	SSOP	TSSOP	DFP	TSSOP	TSSOP
package instruction	DFP, FL48,.4,25	SSOP, SSOP48,.4	SSOP, SSOP48,.4	SSOP, SSOP48,.4	0.0196 INCH PITCH, TSSOP-48	0.025 INCH PITCH, CERPACK-48	0.0196 INCH PITCH, TSSOP-48	TSSOP, TSSOP48,.3,20
Contacts	48	48	48	48	48	48	48	48
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Other features	BUS HOLD I/P\'S; MAX O/P SKEW = 0.5NS; TYP VOLP = 0.3V	BUS HOLD I/P\'S; MAX O/P SKEW = 0.5NS; TYP VOLP = 0.3V	BUS HOLD I/P\'S; MAX O/P SKEW = 0.5NS; TYP VOLP = 0.3V	BUS HOLD I/P\'S; MAX O/P SKEW = 0.5NS; TYP VOLP = 0.3V	BUS HOLD I/P\'S; MAX O/P SKEW = 0.5NS; TYP VOLP = 0.3V	BUS HOLD I/P\'S; MAX O/P SKEW = 0.5NS; TYP VOLP = 0.3V	BUS HOLD I/P\'S; MAX O/P SKEW = 0.5NS; TYP VOLP = 0.3V	BUS HOLD I/P\'S; MAX O/P SKEW = 0.5NS; TYP VOLP = 0.3V
series	FCT	FCT	FCT	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-GDFP-F48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-GDFP-F48	R-PDSO-G48	R-PDSO-G48
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	15.875 mm	15.875 mm	15.875 mm	15.875 mm	12.6 mm	15.875 mm	12.6 mm	12.6 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.024 A	0.024 A	0.024 A	0.024 A	0.024 A	0.024 A	0.024 A	0.024 A
Number of digits	8	8	8	8	8	8	8	8
Number of functions	2	2	2	2	2	2	2	2
Number of ports	2	2	2	2	2	2	2	2
Number of terminals	48	48	48	48	48	48	48	48
Maximum operating temperature	125 °C	85 °C	85 °C	85 °C	85 °C	125 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-40 °C	-40 °C	-40 °C	-40 °C	-55 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DFP	SSOP	SSOP	SSOP	TSSOP	DFP	TSSOP	TSSOP
Encapsulate equivalent code	FL48,.4,25	SSOP48,.4	SSOP48,.4	SSOP48,.4	TSSOP48,.3,20	FL48,.4,25	TSSOP48,.3,20	TSSOP48,.3,20
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	FLATPACK	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Prop。Delay @ Nom-Sup	11 ns	6.5 ns	10 ns	5.2 ns	10 ns	7.2 ns	5.2 ns	6.5 ns
propagation delay (tpd)	11 ns	6.5 ns	10 ns	5.2 ns	10 ns	7.2 ns	5.2 ns	6.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.413 mm	2.794 mm	2.794 mm	2.794 mm	1.1 mm	2.413 mm	1.1 mm	1.1 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)
Terminal form	FLAT	GULL WING	GULL WING	GULL WING	GULL WING	FLAT	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.5 mm	0.635 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	9.652 mm	7.5 mm	7.5 mm	7.5 mm	6.2 mm	9.652 mm	6.2 mm	6.2 mm
Humidity sensitivity level	-	1	1	1	1	-	1	1
