IDT74FBT244AP datasheet, PDF - EEWORLD Datasheet

IDT74FBT244AP: DescriptionBus Driver, BCT/FBT Series, 2-Func, 4-Bit, True Output, BICMOS, PDIP20, 0.300 INCH, PLASTIC, DIP-20; Categorylogic logic; File Size141KB，6 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric View All

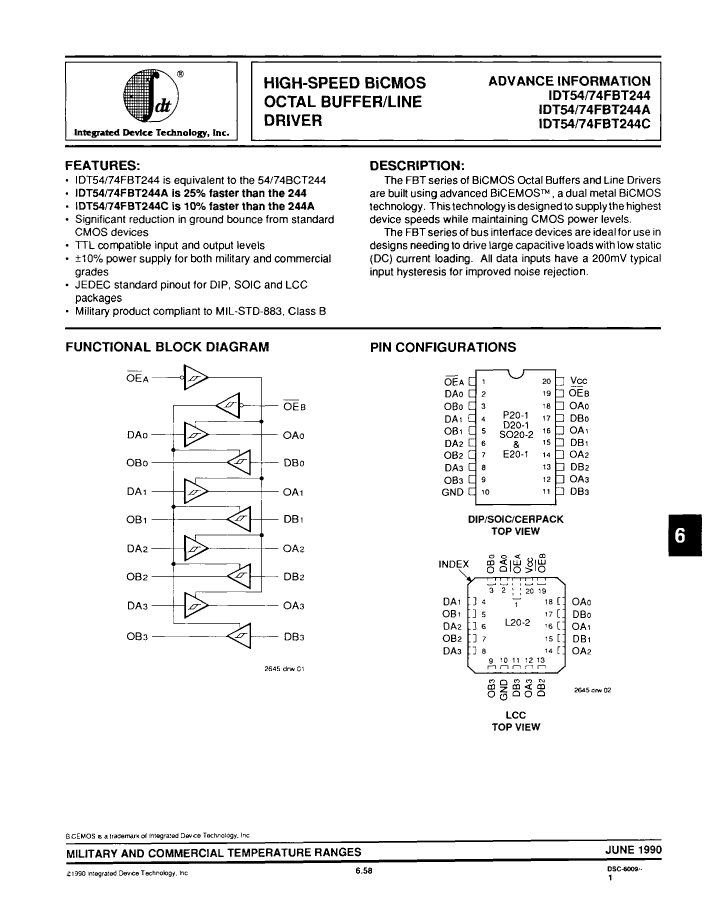

IDT74FBT244AP Overview

Bus Driver, BCT/FBT Series, 2-Func, 4-Bit, True Output, BICMOS, PDIP20, 0.300 INCH, PLASTIC, DIP-20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	DIP
package instruction	DIP, DIP20,.3
Contacts	20
Reach Compliance Code	not_compliant
Control type	ENABLE LOW
series	BCT/FBT
JESD-30 code	R-PDIP-T20
JESD-609 code	e0
length	26.1874 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.064 A
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20

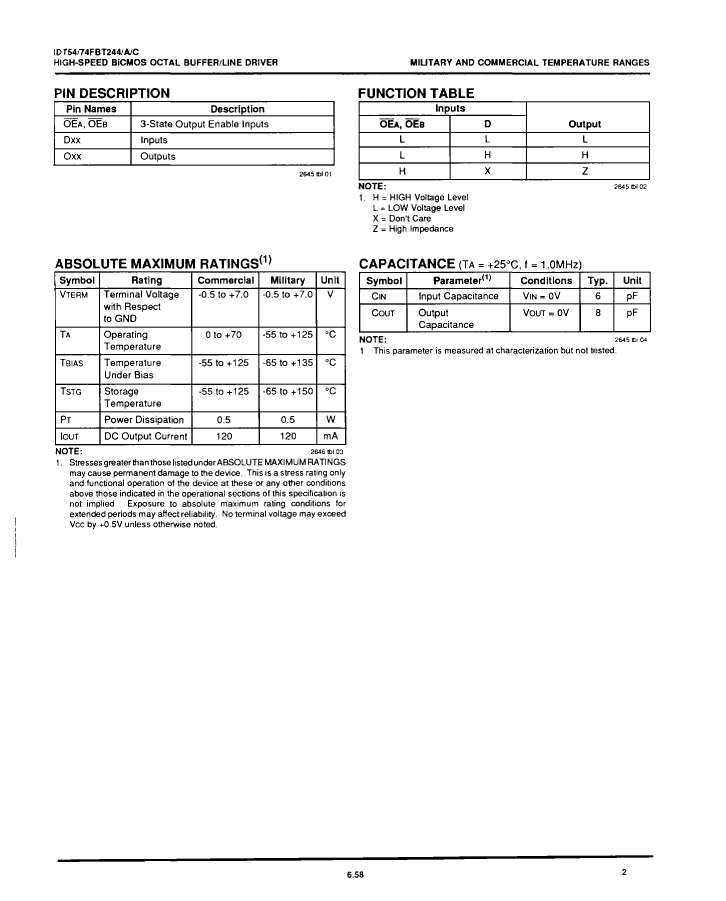

Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE

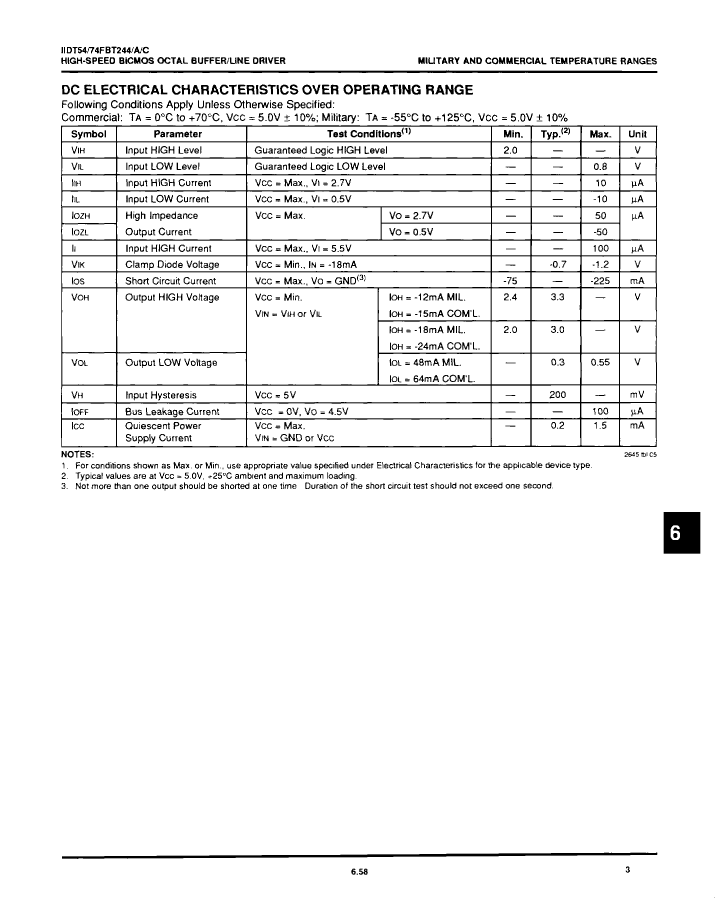

power supply	5 V

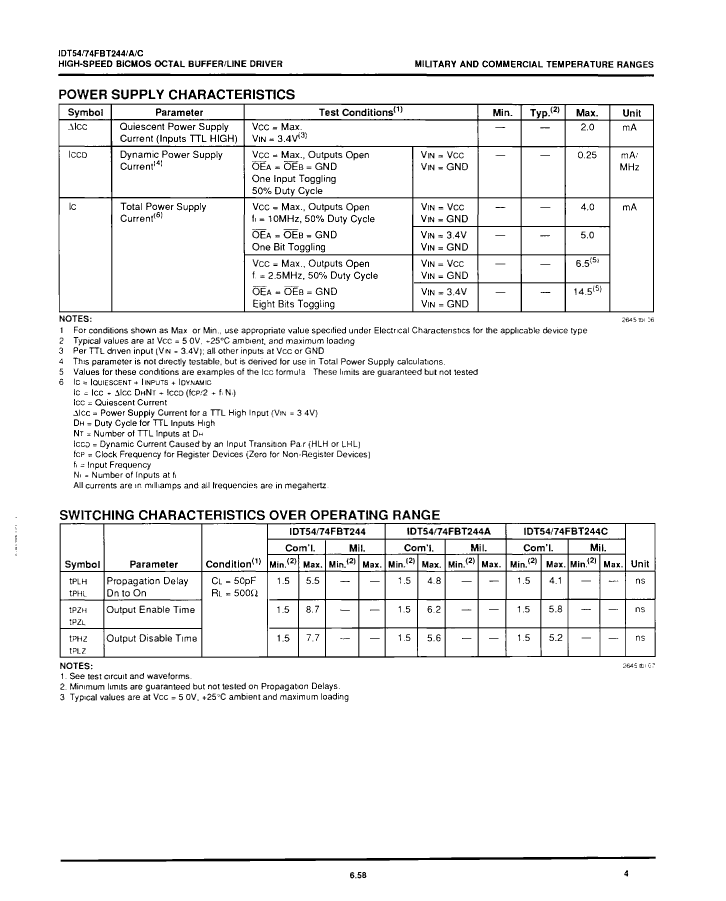

Maximum supply current (ICC)	1.5 mA

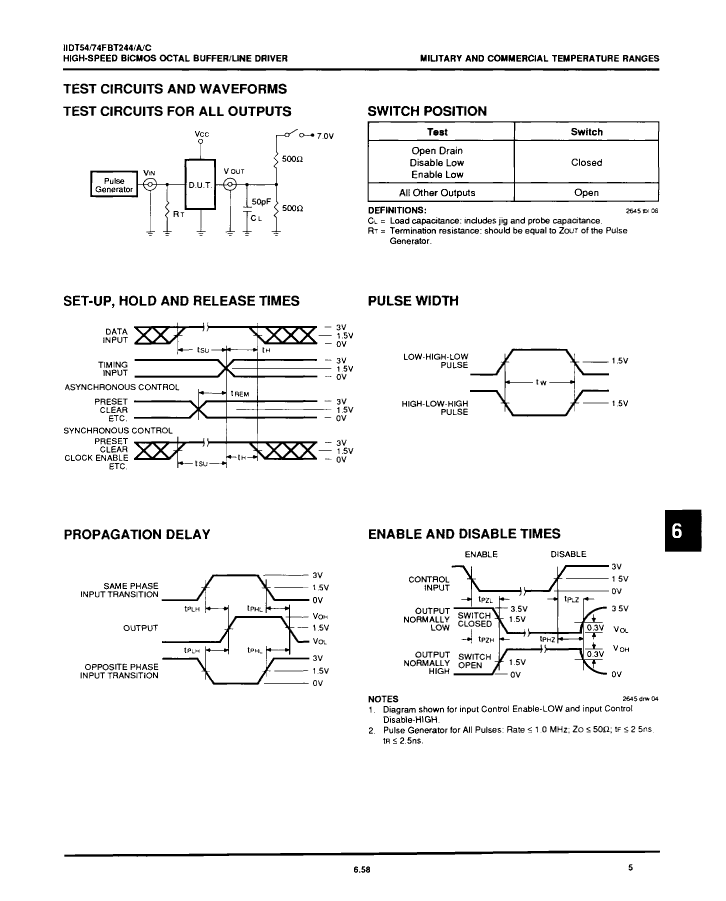

Prop。Delay @ Nom-Sup	4.8 ns
propagation delay (tpd)	4.8 ns
Certification status	Not Qualified
Maximum seat height	4.191 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
