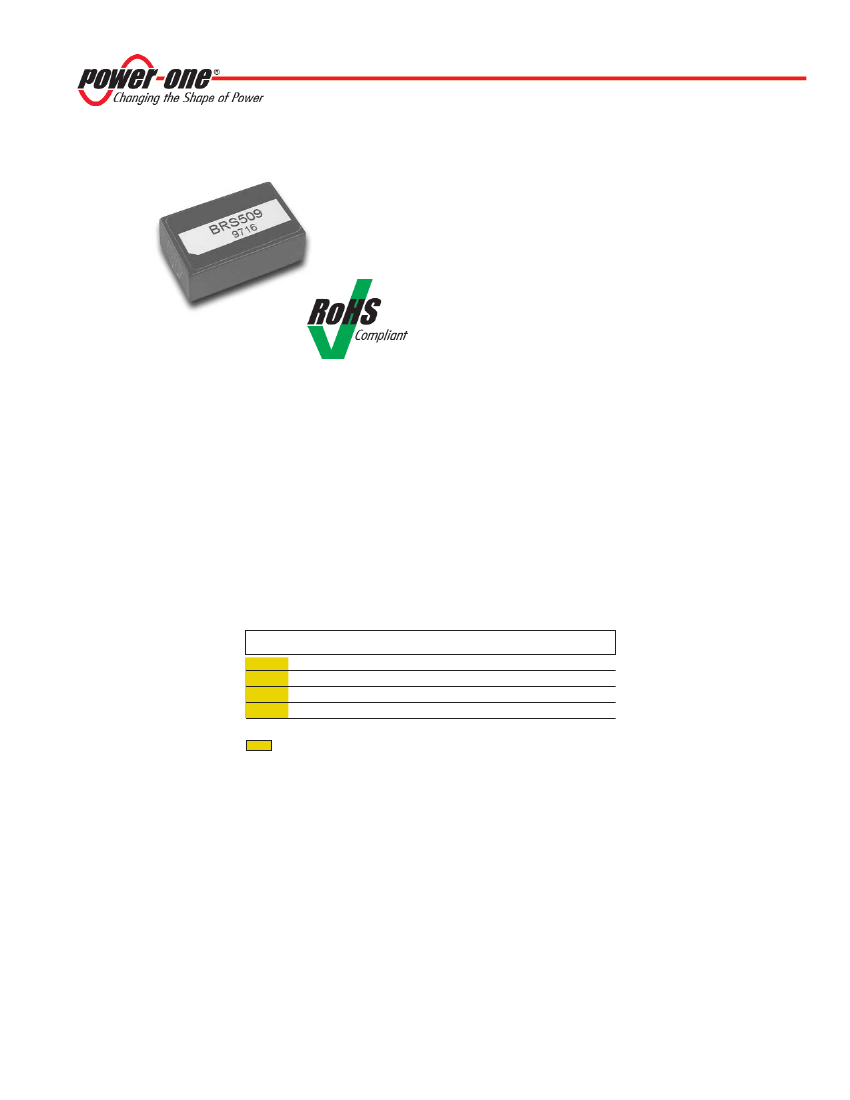

BRS Single-Output DC-DC Series Data Sheet
1.5 Watts
Features
•
•
•
•
•
•
•
•
•
Dimensions: 1.25” (31.8mm) x 0.80” (20.3mm) x 0.40” (10.2mm)
RoHS lead solder exemption compliant
Industry-standard DIP Package
Industry-standard pinout
85 °C case operation
Short-circuit protection
5V input
Input LC filter
Regulated outputs
500V isolation
Description
BRS single-output DC-DC converters offer excellent
regulation and isolation in an industry-standard DIP
package. The 5V input BRS is ideal for industrial and
EDP applications. The BRS features short-circuit
protection and 500 VDC isolation. Please see the BRD
Series for dual-output applications.
Model Selection
MODEL
INPUT VOLTAGE
RANGE (VDC)
OUTPUT
VOLTAGE (VDC)
OUTPUT
CURRENT (AMPS)
BRS505
BRS509
BRS512
BRS515
4.65 - 5.5
4.65 - 5.5
4.65 - 5.5
4.65 - 5.5
5
9
12
15
0.300
0.200
0.150
0.150
Model numbers highlighted in yellow or shaded are not recommended for new designs.
NUCLEAR AND MEDICAL APPLICATIONS - Power-One products are not designed, intended for use in, or authorized for use as critical components
in life support systems, equipment used in hazardous environments, or nuclear control systems without the express written consent of the respective
divisional president of Power-One, Inc.
TECHNICAL REVISIONS - The appearance of products, including safety agency certifications pictured on labels, may change depending on the
date manufactured. Specifications are subject to change without notice.
MCD10117 Rev. 1.0, 23-Jun-09
Page 1 of 1
www.power-one.com
