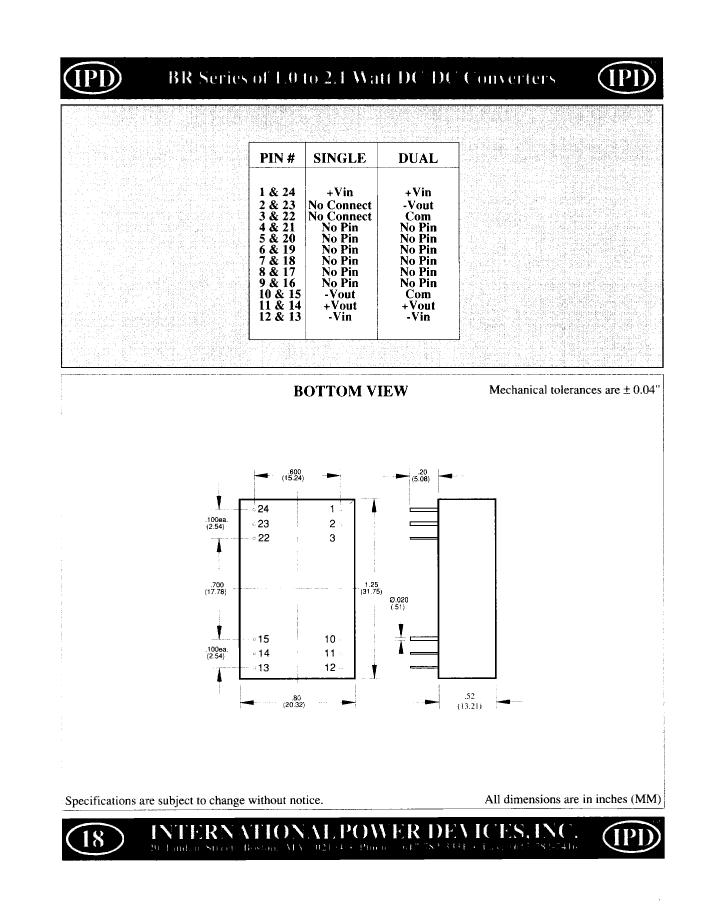

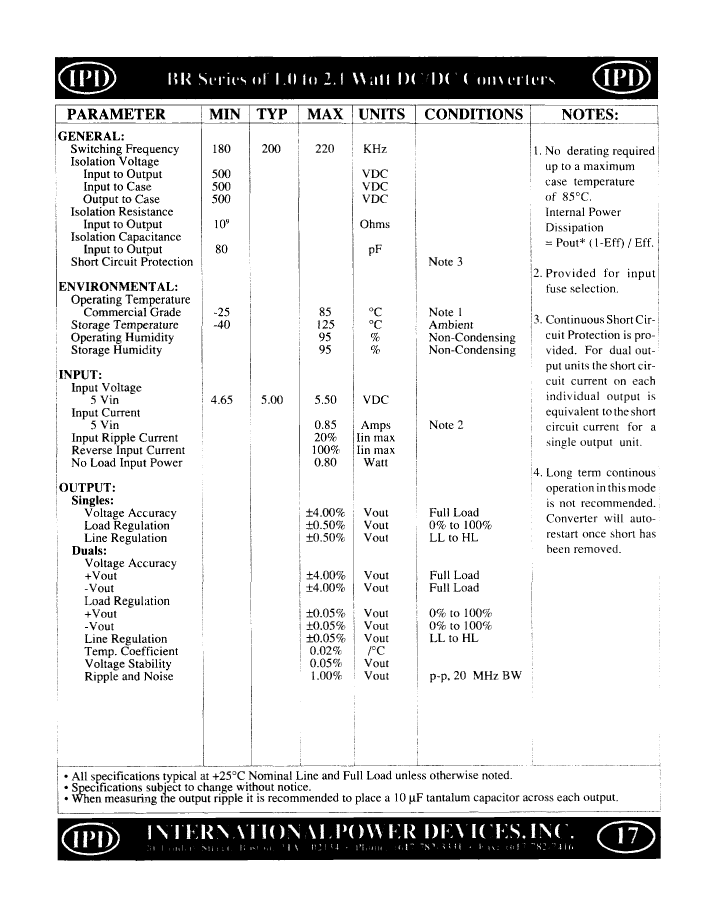

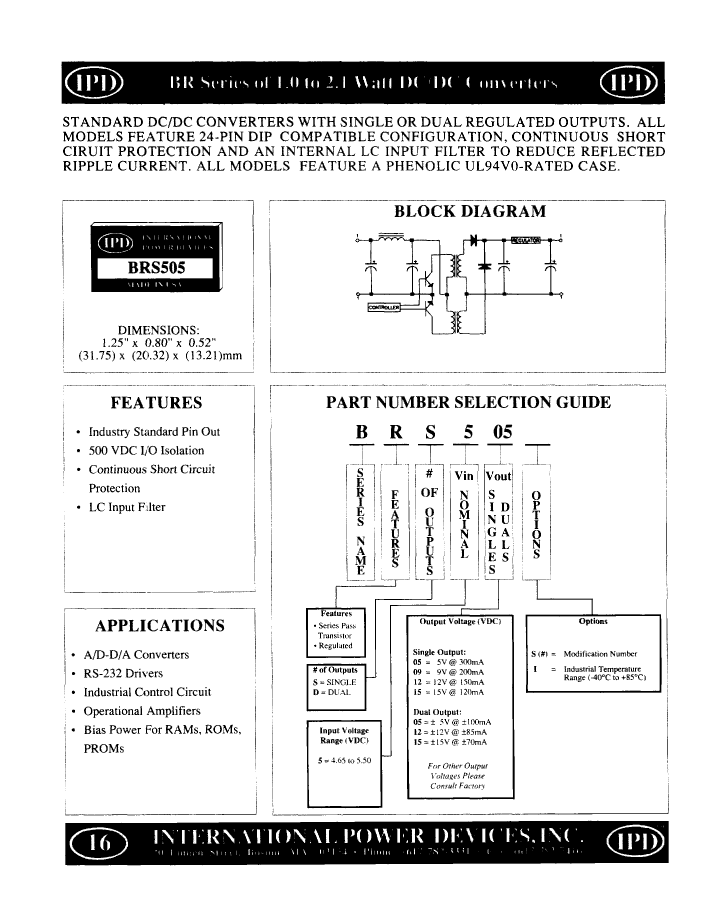

Preview

BRS515S: DescriptionDC-DC Regulated Power Supply Module, 1 Output, Hybrid; CategoryPower/power management The power supply circuit; File Size156KB，3 Pages; ManufacturerBel; Websitehttp://www.belfuse.com

Download Datasheet Parametric Compare View All

BRS515S Overview

DC-DC Regulated Power Supply Module, 1 Output, Hybrid

BRS515S Parametric

Parameter Name	Attribute value
Brand Name	Power-One
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Bel
package instruction	DIP,
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V
Minimum input voltage	4.65 V
Nominal input voltage	5 V
JESD-30 code	R-XDIP-P12
JESD-609 code	e0
Maximum load regulation	0.5%
Number of functions	1
Output times	1
Number of terminals	12
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Maximum output voltage	15.6 V
Minimum output voltage	14.4 V
Nominal output voltage	15 V
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

BRS515S Related Products

	BRS515S	BRD512S	BRS505S	BRS509S	BRD515S
Description	DC-DC Regulated Power Supply Module, 1 Output, Hybrid	DC-DC Regulated Power Supply Module, 2 Output, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, Hybrid	DC-DC Regulated Power Supply Module, 1 Output, Hybrid	DC-DC Regulated Power Supply Module, 2 Output, Hybrid
Brand Name	Power-One	Power-One	Power-One	Power-One	Power-One
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Bel	Bel	Bel	Bel	Bel
package instruction	DIP,	DIP,	DIP,	DIP,	DIP,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum input voltage	4.65 V	4.65 V	4.65 V	4.65 V	4.65 V
Nominal input voltage	5 V	5 V	5 V	5 V	5 V
JESD-30 code	R-XDIP-P12	R-XDIP-P12	R-XDIP-P12	R-XDIP-P12	R-XDIP-P12
JESD-609 code	e0	e0	e0	e0	e0
Maximum load regulation	0.5%	0.5%	0.5%	0.5%	0.5%
Number of functions	1	1	1	1	1
Output times	1	2	1	1	2
Number of terminals	12	12	12	12	12
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Maximum output voltage	15.6 V	12.48 V	5.2 V	9.36 V	15.6 V
Minimum output voltage	14.4 V	11.52 V	4.8 V	8.64 V	14.4 V
Nominal output voltage	15 V	12 V	5 V	9 V	15 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Fine-tuning/adjustable output	NO	NO	NO	NO	NO
Parts packaging code	-	DIP	DIP	DIP	DIP
Contacts	-	24/12	24/12	24/12	24/12
