CZS5064TR13: DescriptionSilicon Controlled Rectifier, 0.8A I(T)RMS, 510mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, PLASTIC, SMD, 4 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size260KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric View All

CZS5064TR13 Overview

Silicon Controlled Rectifier, 0.8A I(T)RMS, 510mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, PLASTIC, SMD, 4 PIN

CZS5064TR13 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Central Semiconductor
package instruction	PLASTIC, SMD, 4 PIN
Contacts	4
Reach Compliance Code	unknown
Shell connection	ANODE
Configuration	SINGLE
Maximum DC gate trigger current	0.2 mA
Maximum DC gate trigger voltage	0.8 V
Maximum holding current	5 mA
JESD-30 code	R-PDSO-G4
JESD-609 code	e0
Maximum leakage current	0.05 mA
Number of components	1
Number of terminals	4
Maximum on-state current	510 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	0.8 A
Maximum repetitive peak off-state leakage current	50 µA
Off-state repetitive peak voltage	400 V
Repeated peak reverse voltage	400 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR

Preview

Download Datasheet

View All

PRODUCT

announcement

0.8 Amp, 2 Amp and 4 Amp SCRs

CZS5064 and

CS223 Series

features

•

400 Volts (CZS5064)

600 and 800 Volts (CS223-2 Series CS223-4 Series)

Low 1.8mm profile (23% lower than DPAK)

Utilizes 28% less board space

than an industry standard DPAK

in a

SOT-223

Sample Devices

available

upon request.

description

The CENTRAL SEMICONDUCTOR CZS5064 (0.8 Amp),

CS223-2M series (2 Amp), and CS223-4M series (4 Amp) types

are Epoxy Molded Silicon Controlled Rectifiers designed for

sensing circuit applications and control systems. The small size

and low profile of these SOT-223 devices are perfect for

designs with a limited board space or height requirements.

For information on these devices or any other thyristors

manufactured by Central

™

, visit:

www.centralsemi.com/thyristors

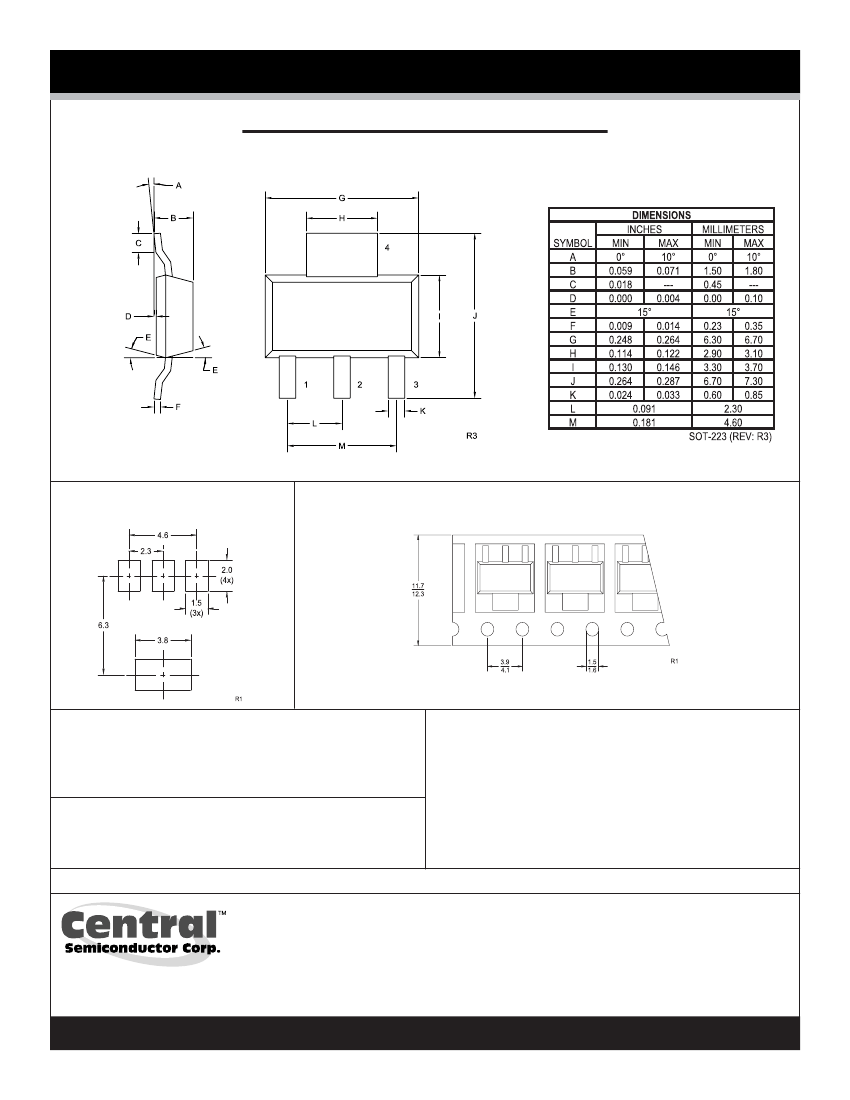

SOT-223

Actual Size

selection guide

With Central you’re not limited to just 0.8 amp in a SOT-223.

Extended Range

IT (AMPS)

@ TC (

ITSM (AMPS)

VDRM, VRRM

(VOLTS)

0.8

2.0

4.0

2005

Discrete

Thyristor

Databook

400

600

800

IGT

VGT

CZS5064

CS223-2M

CS223-2N *

200µA

CS223-4M

CS223-4N *

200µA

0.8V

5.0mA

0.8V

2.0mA

0.8V

2.0mA

To order please visit:

www.centralsemi.com/catalog

* 800 volt devices are available on request. Please consult factory.

145 Adams Avenue

•

Hauppauge

•

New York

•

11788

•

USA

•

Tel:(631) 435-1110

•

Fax: (631) 435-1824

www.centralsemi.com
