Triple Isolated Zener Diodes
in a
SOT-26
CMXZ2V4TO Series
2.4V to 47V
features
•
Three Zener Diodes in alternating configuration
in a space saving package.
description
The CENTRAL SEMICONDUCTOR CMXZ2V4TO Series
consists of three (3) Isolated Silicon Zener Diodes arranged in
an alternating configuration and packaged in a surface mount
SOT-26 case. These high quality voltage regulators are for use
in industrial, commercial, entertainment and computer
applications.
Sample Devices
available
upon request.
SOT-26
Actual Size
selection guide
SYMBOL
Power Dissipation
Operating and Storage Temperature
Thermal Resistance
PD
TJ,Tstg
Θ
JA
TEST
CURRENT
MAXIMUM
ZENER
IMPEDANCE
ZZT @ IZT
Ω
100
100
95
95
90
90
90
80
60
40
10
15
15
15
15
20
20
25
30
30
40
45
55
55
70
80
80
80
90
130
150
170
ZZK @ IZK
Ω
600
600
600
600
600
600
600
500
480
400
150
80
80
80
100
150
150
150
170
200
200
225
225
250
250
300
300
325
350
350
375
375
mA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.5
0.5
0.5
0.5
µ
A
50
20
10
5.0
5.0
3.0
3.0
3.0
2.0
1.0
3.0
2.0
1.0
0.7
0.5
0.2
0.1
0.1
0.1
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
UNITS
350
-65 to +150
357
mW
°C
°C/W
ELECTRICAL CHARACTERISTICS PER DIODE:
(TA=25°C), VF=0.9V MAX @ IF=10mA FOR ALL TYPES.
TYPE NO.
ZENER
VOLTAGE
VZ @ IZT
MIN
VOLTS
CMXZ2V4TO*
CMXZ2V7TO*
CMXZ3V0TO*
CMXZ3V3TO*
CMXZ3V6TO*
CMXZ3V9TO*
CMXZ4V3TO*
CMXZ4V7TO*
CMXZ5V1TO*
CMXZ5V6TO*
CMXZ6V2TO*
CMXZ6V8TO*
CMXZ7V5TO*
CMXZ8V2TO*
CMXZ9V1TO*
CMXZ10VTO*
CMXZ11VTO*
CMXZ12VTO*
CMXZ13VTO*
CMXZ15VTO*
CMXZ16VTO*
CMXZ18VTO*
CMXZ20VTO*
CMXZ22VTO*
CMXZ24VTO*
CMXZ27VTO*
CMXZ30VTO
CMXZ33VTO*
CMXZ36VTO*
CMXZ39VTO*
CMXZ43VTO*
CMXZ47VTO*
2.280
2.565
2.850
3.135
3.420
3.705
4.085
4.465
4.845
5.320
5.890
6.460
7.125
7.790
8.645
9.50
10.45
11.40
12.35
14.25
15.20
17.10
19.0
20.90
22.80
25.65
28.50
31.35
34.20
37.05
40.85
44.65
NOM
VOLTS
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10.0
11.0
12.0
13.0
15.0
16.0
18.0
20.0
22.0
24.0
27.0
30.0
33.0
36.0
39.0
43.0
47.0
MAX
VOLTS
2.520
2.835
3.150
3.465
3.780
4.095
4.515
4.935
5.335
5.880
6.510
7.140
7.875
8.610
9.555
10.50
11.55
12.60
13.65
15.75
16.80
18.90
21.0
23.10
25.20
28.35
31.50
34.65
37.80
40.95
45.15
49.35
MAXIMUM
REVERSE
CURRENT
IR @ VR
VOLTS
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
2.0
2.0
4.0
4.0
5.0
5.0
6.0
7.0
8.0
8.0
8.0
10.5
11.2
12.6
14.0
15.4
16.8
18.9
21.0
23.1
25.2
27.3
30.1
32.9
MAXIMUM
ZENER
CURRENT
IZM
mA
104
92
83
76
69
64
58
53
49
45
40
37
33
30
27
25
23
21
19
17
16
14
12
11
10
9
8
7
6.9
6.4
5.8
5.3
MAXIMUM
ZENER
VOLTAGE
TEMP. COEFF.
Θ
VZ
% / °C
-0.06
-0.06
-0.06
-0.06
-0.06
-0.06
-0.05
-0.03
0.02
0.03
0.04
0.05
0.05
0.06
0.06
0.07
0.07
0.07
0.08
0.08
0.08
0.08
0.08
0.09
0.09
0.09
0.09
0.09
0.09
0.09
0.10
0.10
CZ2V4
CZ2V7
CZ3V0
CZ3V3
CZ3V6
CZ3V9
CZ4V3
CZ4V7
CZ5V1
CZ5V6
CZ6V2
CZ6V8
CZ7V5
CZ8V2
CZ9V1
CZ10V
CZ11V
CZ12V
CZ13V
CZ15V
CZ16V
CZ18V
CZ20V
CZ22V
CZ24V
CZ27V
CZ30V
CZ33V
CZ36V
CZ39V
CZ43V
CZ47V
MARKING
CODE
IZT
mA
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
* Available on special order, consult factory.
145 Adams Avenue
•
Hauppauge
•
New York
•
11788
•
USA
•
Tel:(631) 435-1110
•
Fax: (631) 435-1824
www.centralsemi.com
Triple Isolated Zener Diodes
in a
SOT-26

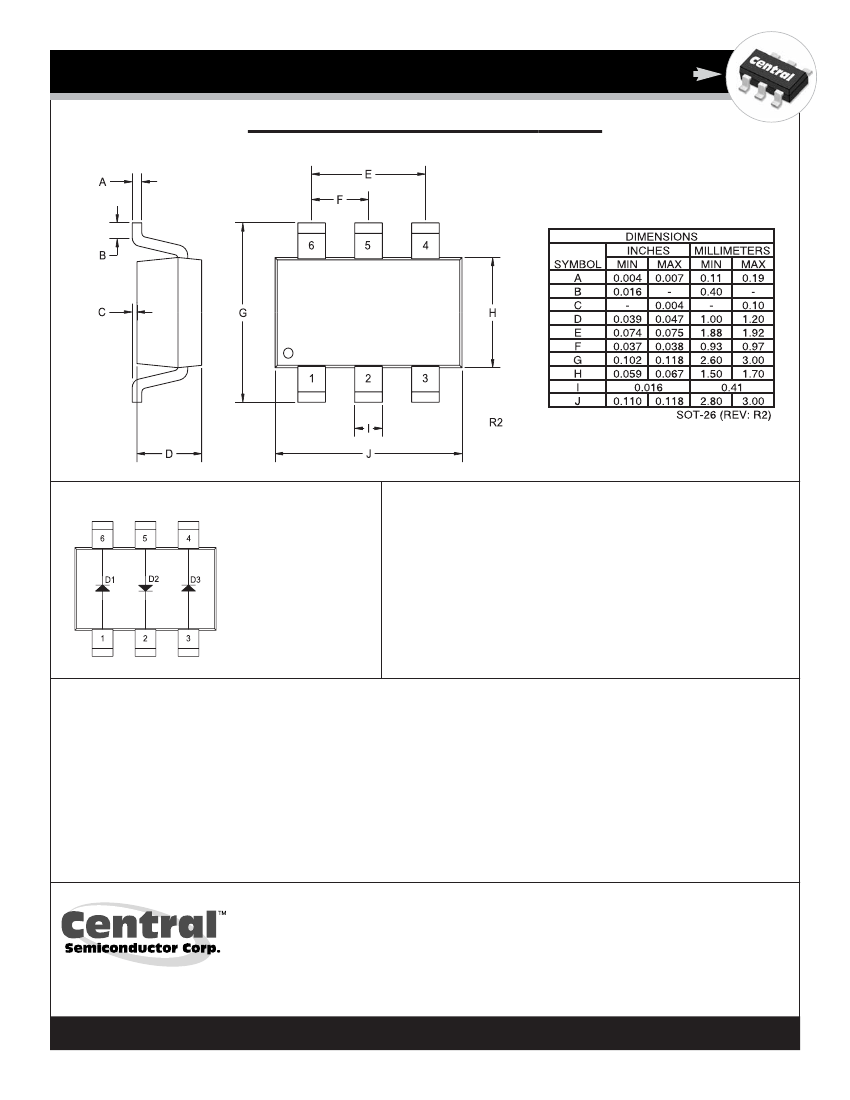

Mechanical Specifications -
SOT-26
Lead Code
1) ANODE D1
2) CATHODE D2
3) ANODE D3
4) CATHODE D3
5) ANODE D2
6) CATHODE D1
Packaging Base
7” Reel =
3,000 pcs. (add TR suffix to part number)
13” Reel = 10,000 pcs. (add TR13 suffix to part number)
Bulk =
1,000 pcs. (add BK suffix to part number)
Ordering Information
•
For devices taped and reeled on 7” reels, add TR suffix to part number.
•
For devices taped and reeled on 13” reels, add TR13 suffix to part number.
•
For devices bulk packed, add BK suffix to part number.
•
All SMDs are available bulk packed, for prototype and manual placement applications.
For more information on this product please visit our website at www.centralsemi.com
Innovations in Discrete
Semiconductors
Sales at Central Semiconductor Corp.
(631) 435-1110 or visit our website at:
www.centralsemi.com
For further information contact:
145 Adams Avenue • Hauppauge • New York • 11788 • USA • Tel:(631) 435-1110 • Fax: (631) 435-1824
